Model / SKU: LPAB

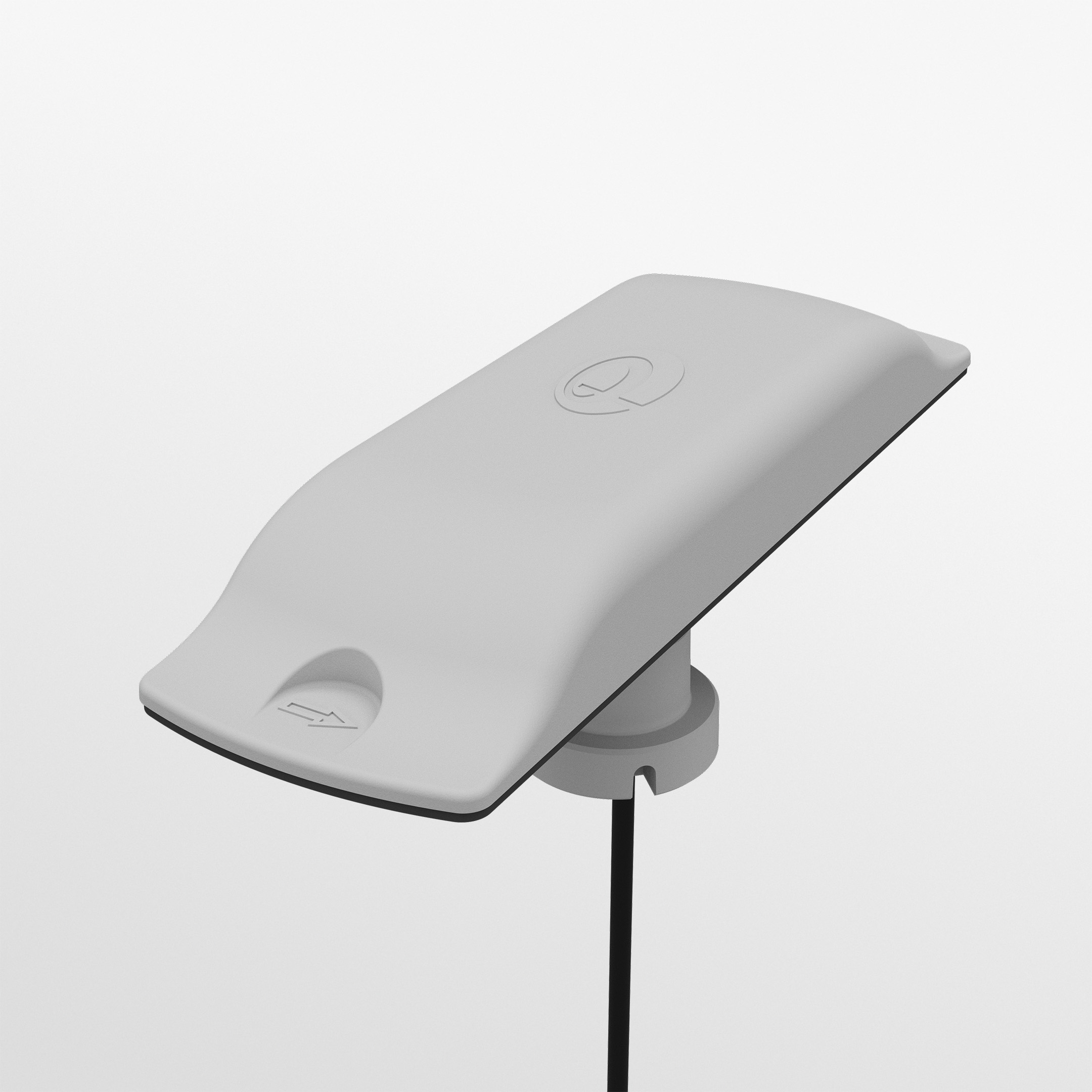

The LPAB range of antennas combine ergonomic style with sophisticated engineering.
The low profile housing gives a high degree of vandal resistance making
it perfect for vending machines or other telemetry devices in exposed

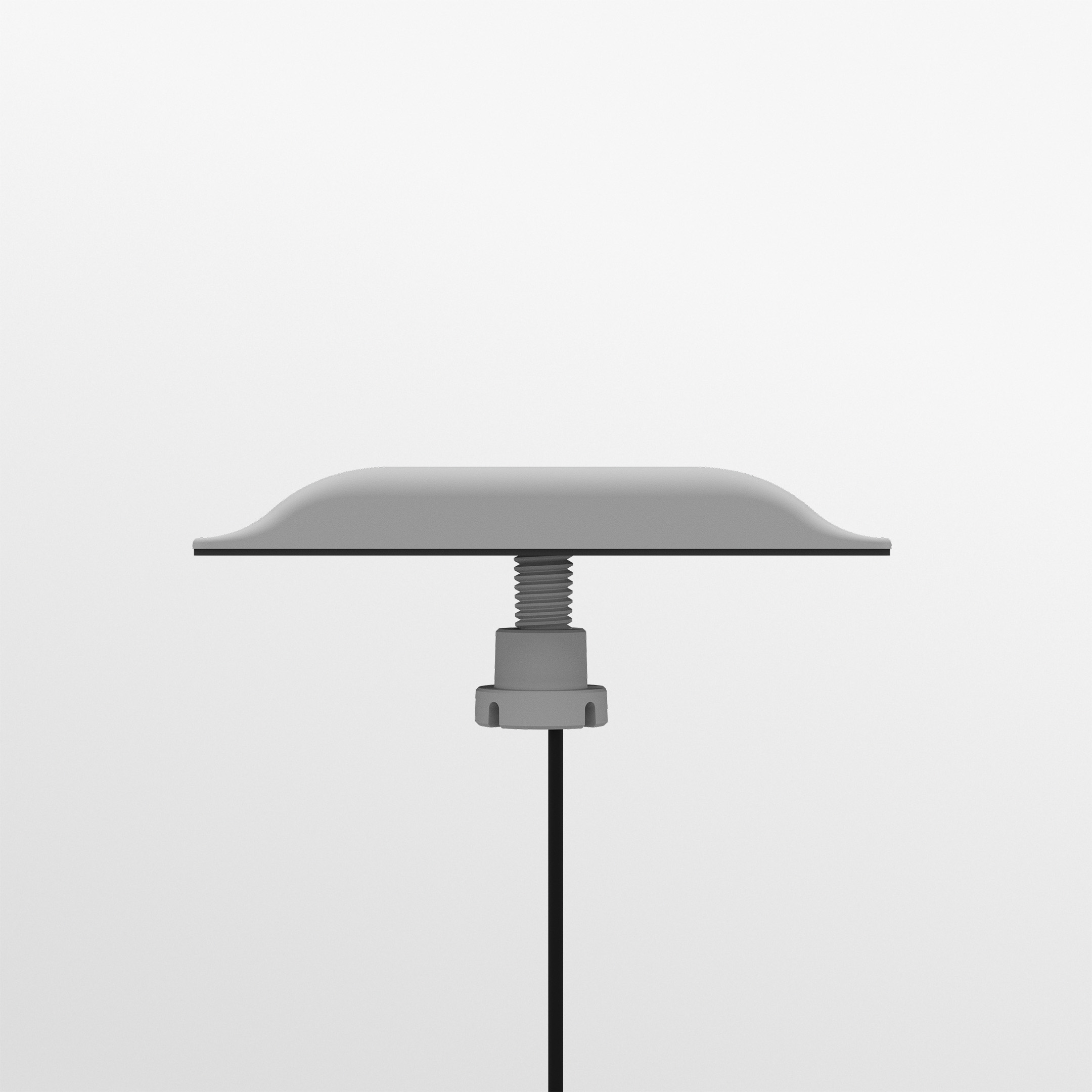

locations that require reliable communications. The antenna is secured
in place by a reversible locking nut allowing secure fitment to panels
of between 1mm and 26mm thick. The antenna offers ground-plane
independent omni directional performance across up to two bands making
it a versatile solution for a number of applications.
The LPAB range of antennas combine ergonomic style with sophisticated engineering. The low profile housing gives a high degree of vandal resistance making it perfect for vending machines or other telemetry devices in exposed locations that require reliable communications.
The LPAB range of antennas combine ergonomic style with sophisticated engineering.
The low profile housing gives a high degree of vandal resistance making it perfect for vending machines or other telemetry devices in exposed locations that require reliable communications. The antenna is secured in place by a reversible locking nut allowing secure fitment to panels of between 1mm and 26mm thick. The antenna offers ground-plane independent omni directional performance across up to two bands making it a versatile solution for a number of applications.
| Colour | Grey |
|---|---|
| Cable Length | Between 1m & 3m |
| Connector (LTE) | No Connector, SMA (m) |
| Connector (VHF/UHF) | No Connector, SMA (m) |
| Frequency Range | 868MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 25 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Length | 130 (mm) | 5.12 (in) |
| Width | 40 (mm) | 1.57 (in) |
| Height | 15 (mm) | 0.59 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F); -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 2 (m) | 6.56 (ft) |
| Cable Length – LTE | 2 (m) | 6.56 (ft) |
| Cable Type (Whip) | RG174 |
| Cable Type (LTE) | RG174 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| TECHNOLOGY DATA | |
| Technology | UHF; 868-923MHz |
