Description
The LPA[L]-460-7-42 series is a range of efficient, omni-directional, multi-band antennas for IoT devices suitable for external or internal installation covering UHF and cellular frequencies.
Product
LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant
Model / SKU: LPA[L]-460-7-42-[X]

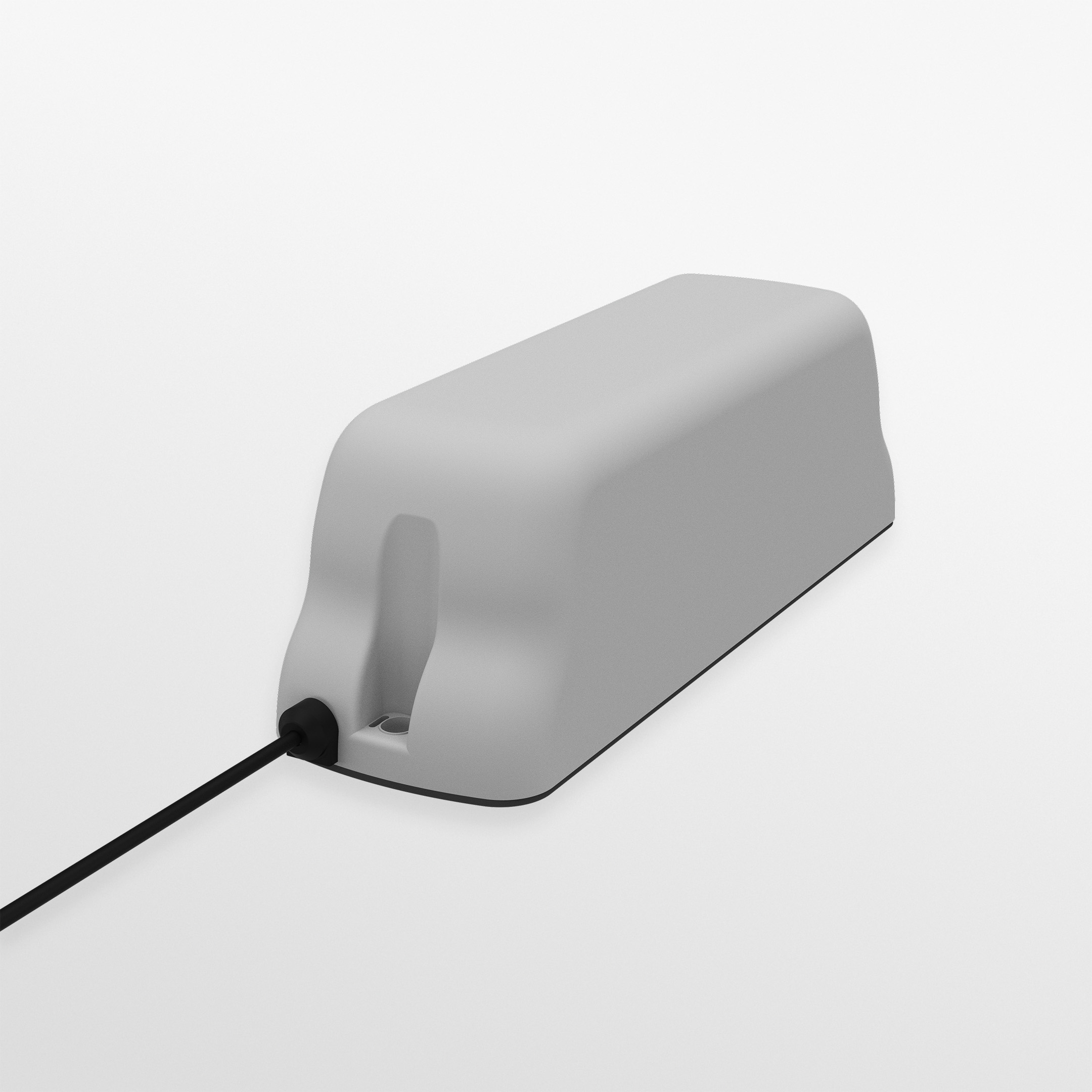

![LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LPAL-460-7-42-X-1-Main-View.jpg "LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant")

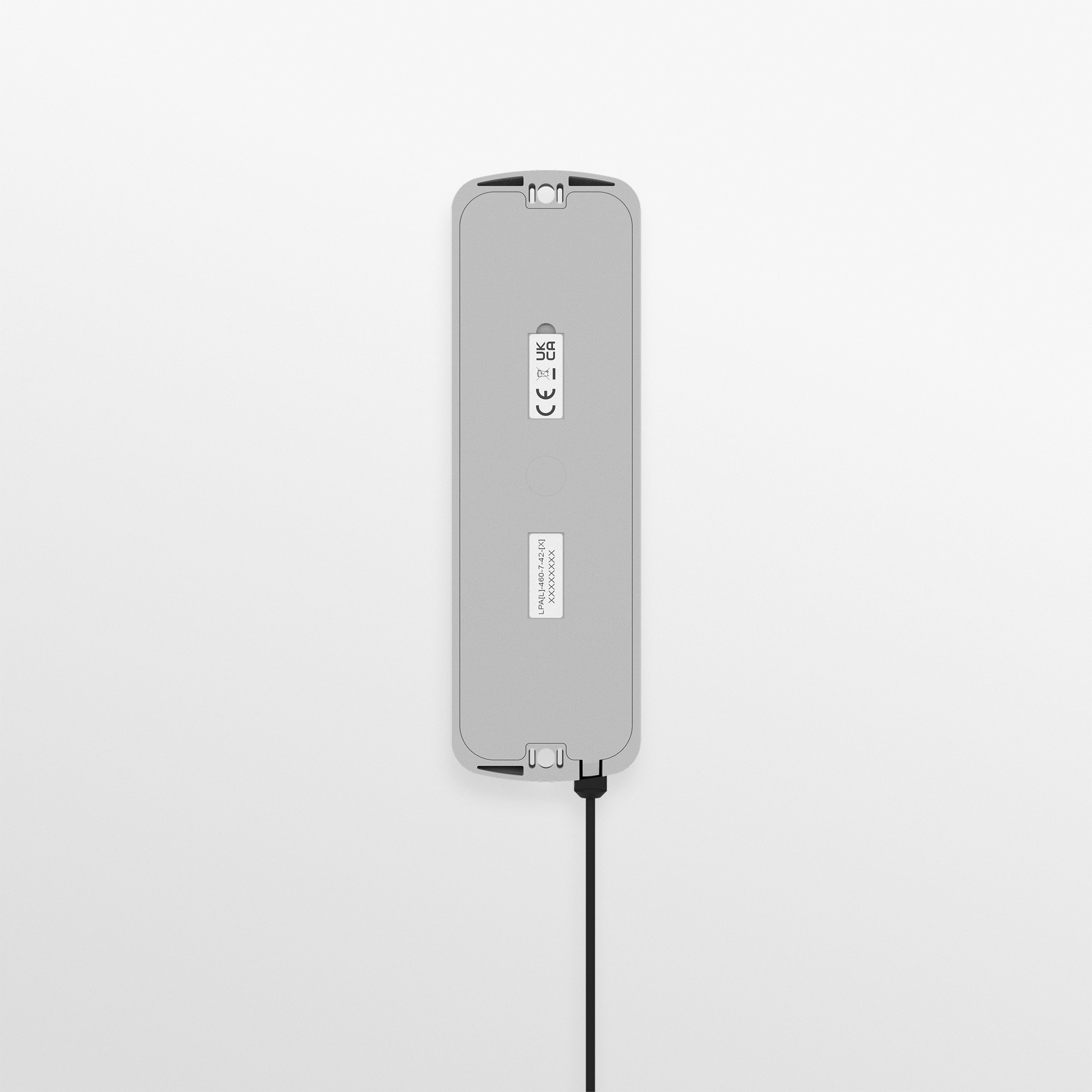

![LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LPAL-460-7-42-X-3-Back-View.jpg)

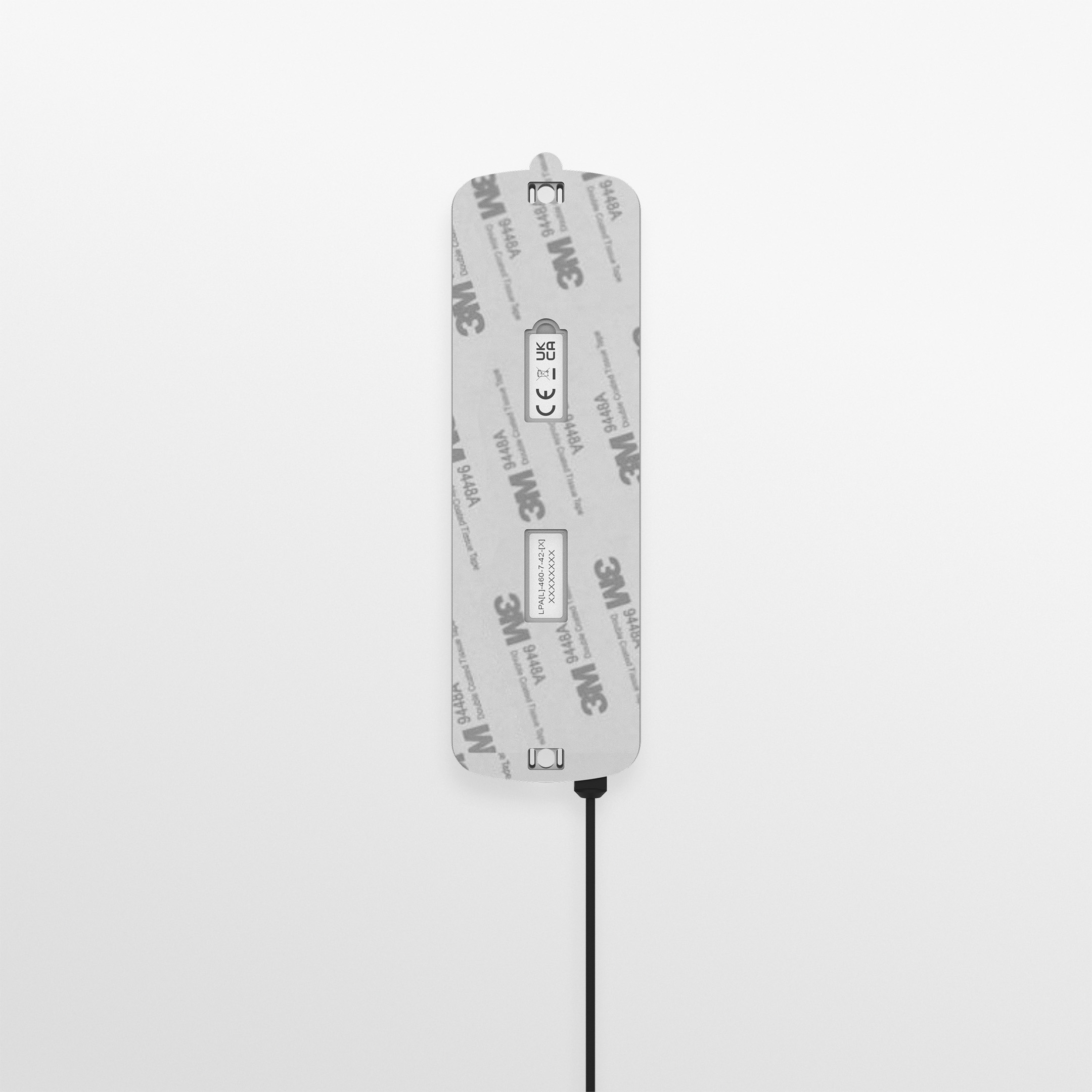

![LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LPAL-460-7-42-X-4-Back-View-with-pad.jpg)

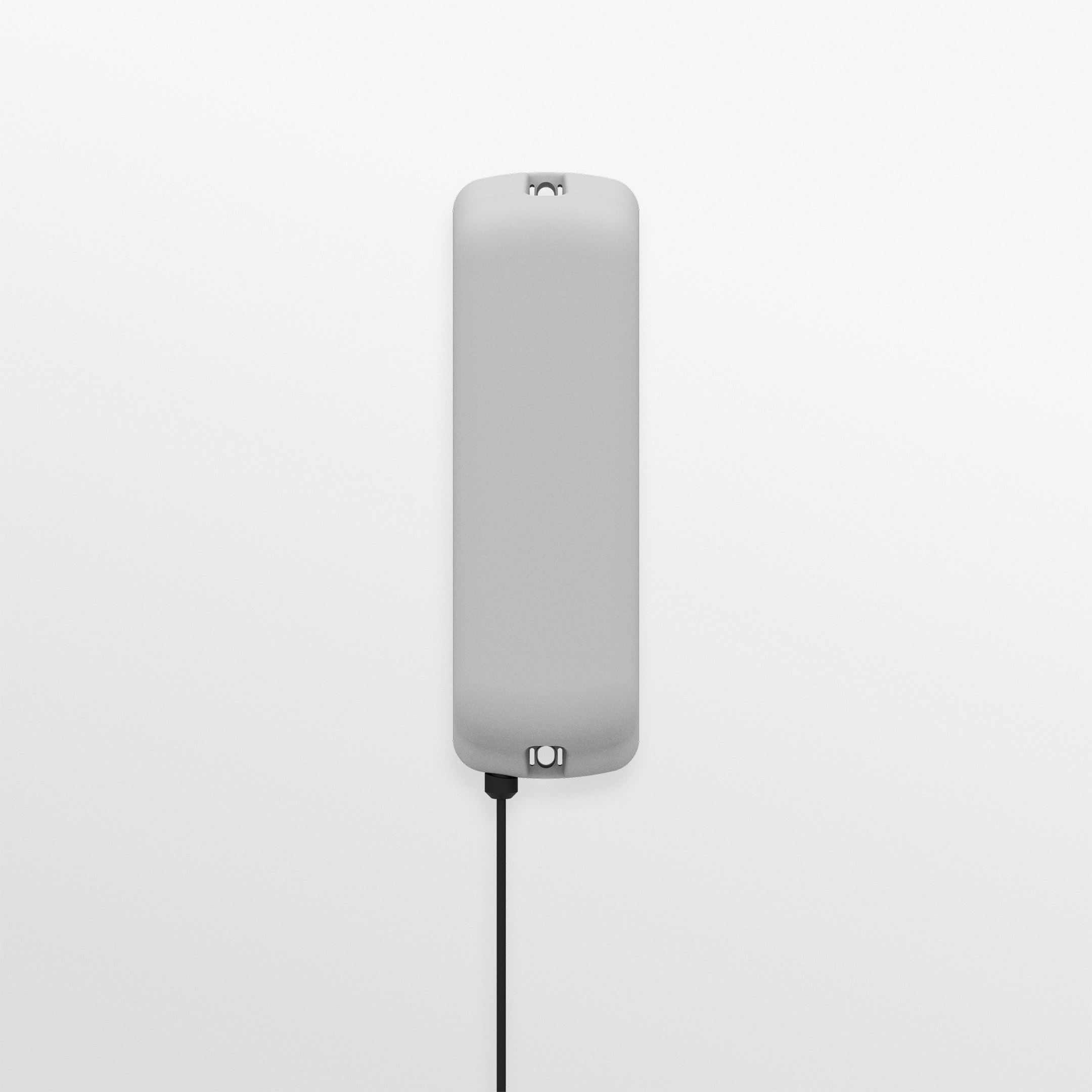

![LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LPAL-460-7-42-X-2-Front-View.jpg "LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant")
LPA[L]-460-7-42-[X] | SiSo 4G/5G + 460MHz Low Prof IoT Ant
The LPA[L]-460-7-42 series is a range of efficient, omni-directional, multi-band antennas for IoT devices suitable for external or internal installation.
The design of the antenna enables simple panel or wall mounting using the supplied screws and wall plugs, adhesive pad mounting or mast mounting using the supplied cable ties. The omni-directional radiation pattern allows easy placement and flexible installation.
These antennas are an ideal solution for use in industrial and domestic environments with cellular modems/routers for IoT and Machine to Machine (M2M) wireless connectivity applications. The high performance of the antenna helps maximise first time connection rates and minimise revisits and communications issues after installation thereby reducing lifetime costs.
The antennas are fitted with integrated FR RG174 or FR CS29 cable and a variety of connectors.
Product overview
The LPA[L]-460-7-42 series is a range of efficient, omni-directional, multi-band antennas for IoT devices suitable for external or internal installation.
The design of the antenna enables simple panel or wall mounting using the supplied screws and wall plugs, adhesive pad mounting or mast mounting using the supplied cable ties. The omni-directional radiation pattern allows easy placement and flexible installation.
These antennas are an ideal solution for use in industrial and domestic environments with cellular modems/routers for IoT and Machine to Machine (M2M) wireless connectivity applications. The high performance of the antenna helps maximise first time connection rates and minimise revisits and communications issues after installation thereby reducing lifetime costs.
The antennas are fitted with integrated FR RG174 or FR CS29 cable and a variety of connectors.
Product Features
- Low profile design Covers 450-466/698-960/1710-4200MHz Wall mast or panel mount 5mm (0.2”) or 2.8mm (0.1”) cable options
Benefits
- UHF and cellular coverage on a single feed Multiple installation options Integrated low loss cable IP66 ingress protection
Application
- IOT Smart metering Smart grid
Additional information
| Colour | Grey |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Between 1m & 3m, Between 5m & 10m |
| Connector (LTE) | Right Angle FAKRA D, SMA (m) |
| Frequency Range | 450-470MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <2:1 |
| Frequency Range | Gain | 450 – 470MHz | 3dBi; 698 – 960MHz | 4dBi; 1710 – 4200MHz | 8dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Length | 184 (mm) | 7.24 (in) |
| Width | 57 (mm) | 2.24 (in) |
| Height | 59 (mm) | 2.32 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 2 (m) | 6.56 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR RG174; FR CS29 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m); Right Angle FAKRA D |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Wall |
| Mounting Type Temp | Hook/Loop or Adhesive |
| Mounting Methods | Hook/Loop or Adhesive; Mast; Panel; Wall; Pole |
| APPROVALS DATA | |
| IP Rating | IP66 |
| TECHNOLOGY DATA | |
| Technology | UHF; 4G/5G; 5G; 2G/3G; 2G/3G/4G; CBRS |
