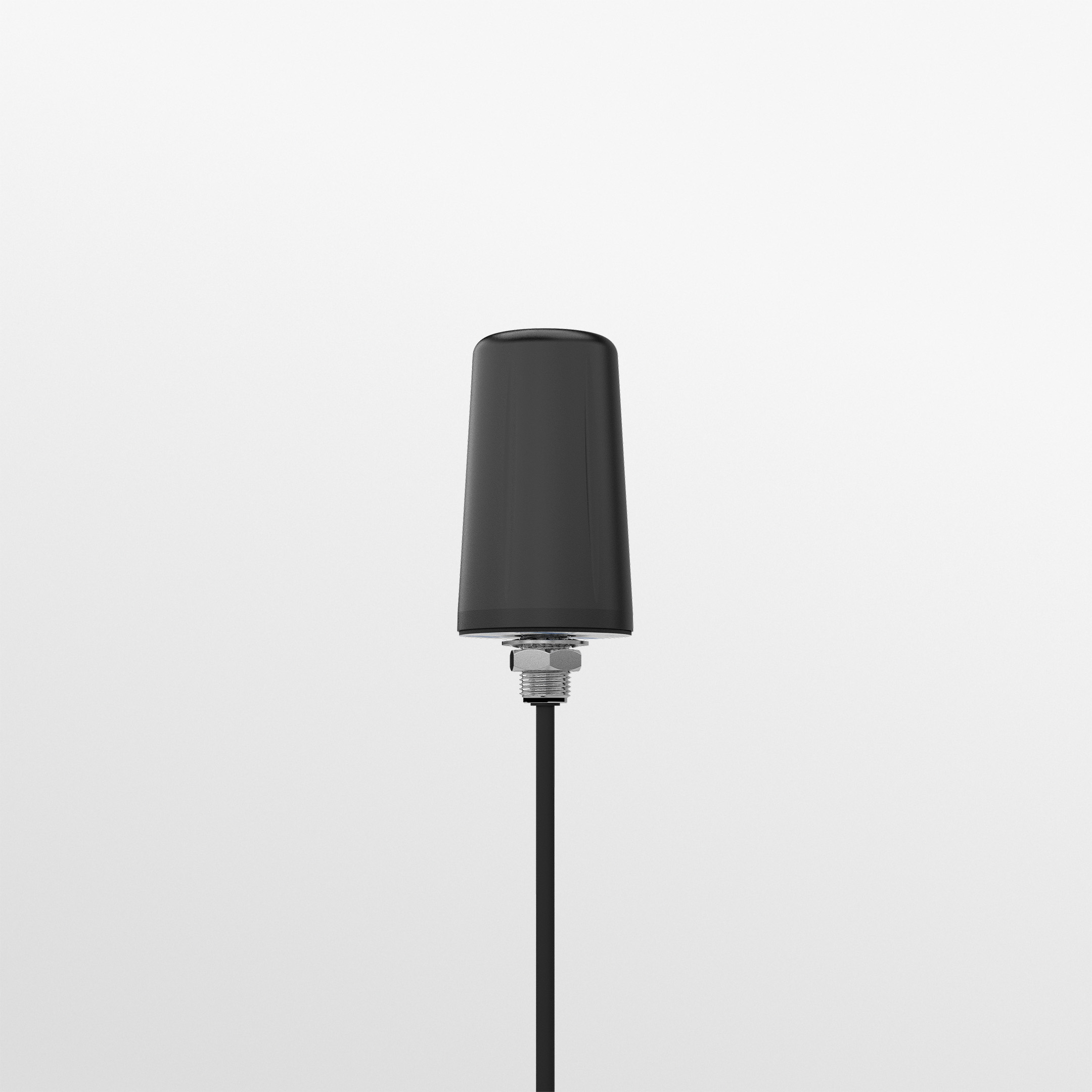

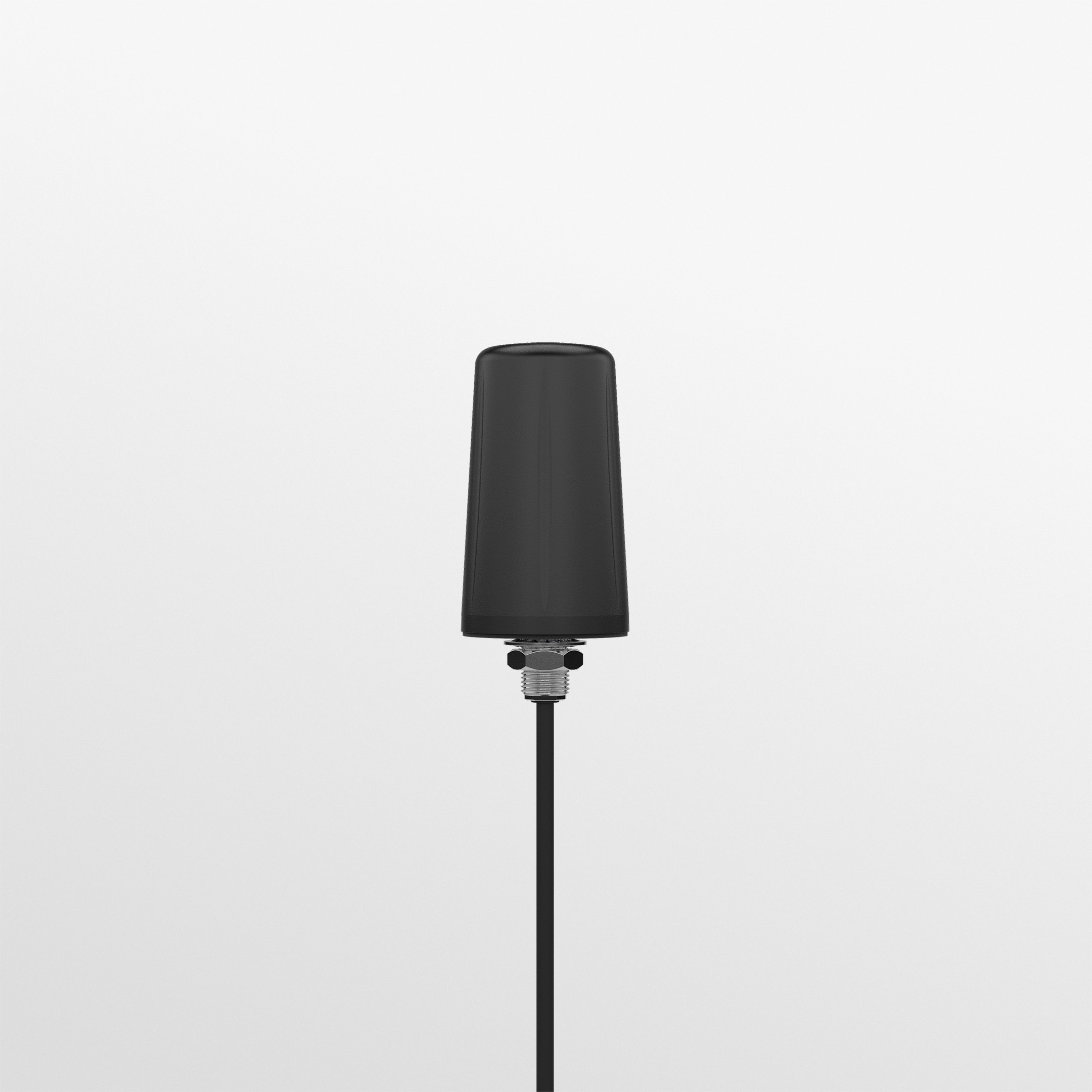

LPB-6-60 | Low Profile Antenna 5G/4G/3G/2G

Model / SKU: LPB-6-60

LPB-6-60 | Low Profile Antenna 5G/4G/3G/2G

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz.

The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.

This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).

Description

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz.
The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.
This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).

Product Features

Low profile wideband antenna Cost effective solution Robust product with integrated cable of various lengths Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz Medium dB gain antenna IP66 rated for outdoor use

Benefits

Allows for SiSo LTE connectivity in a small antenna profile and footprint Suitable for use across multiple applications and industries High Performance antenna

Application

Utility sector Smart metering Vending machine & Kiosk

Additional information

Colour	Black
4G/5G	SiSo
Cable Length	Between 1m & 3m, Between 5m & 10m
Connector (LTE)	SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	30
Frequency Range \| Gain	617 – 960MHz \| 3dBi; 1710 – 2700MHz \| 4dBi; 3400 – 3800MHz \| 8dBi; 4900 – 6000MHz \| 9dBi
Cellular LTE Elements	SiSo
WIFI Elements	No
UHF Elements	No
GPS DATA
Number of GPS Elements	No
MECHANICAL DATA
Colour	Black
Height	82 (mm) \| 3.23 (in)
Diameter	48 (mm) \| 1.89 (in)
Operating Temperature	-40°/ +85°C (-40.0°/ +185.0°F)
CABLE DATA
Cable Length – LTE	min: 2 (m) \| 6.56 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (LTE)	CS29
TERMINATION DATA
Connector (LTE)	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Mast; Panel; Wall
Mounting Methods	Mast; Panel; Wall
APPROVALS DATA
IP Rating	IP66
TECHNOLOGY DATA
Technology	4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready

Available selections

Colour	Black
4G/5G	SiSo
Cable Length	Between 1m & 3m Between 5m & 10m
Connector (LTE)	SMA (m)

Models and configurations

SKU; Colour | Cellular

LPB-6-60-2SP	Black \| SiSo 2m SMA (m)
LPB-6-60-5SP	Black \| SiSo 5m SMA (m)

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	SiSo
Cable Length	Between 1m & 3m, Between 5m & 10m
Connector Lte	SMA (m)
