Model / SKU: LPBV-169-NJ-
The Panorama LPBV-169-NJ is an extremely robust low profile fixed VHF
antenna ideal for any M2M, ISM, LoRa, SigFox or LPWA application using
VHF 169MHz bands.

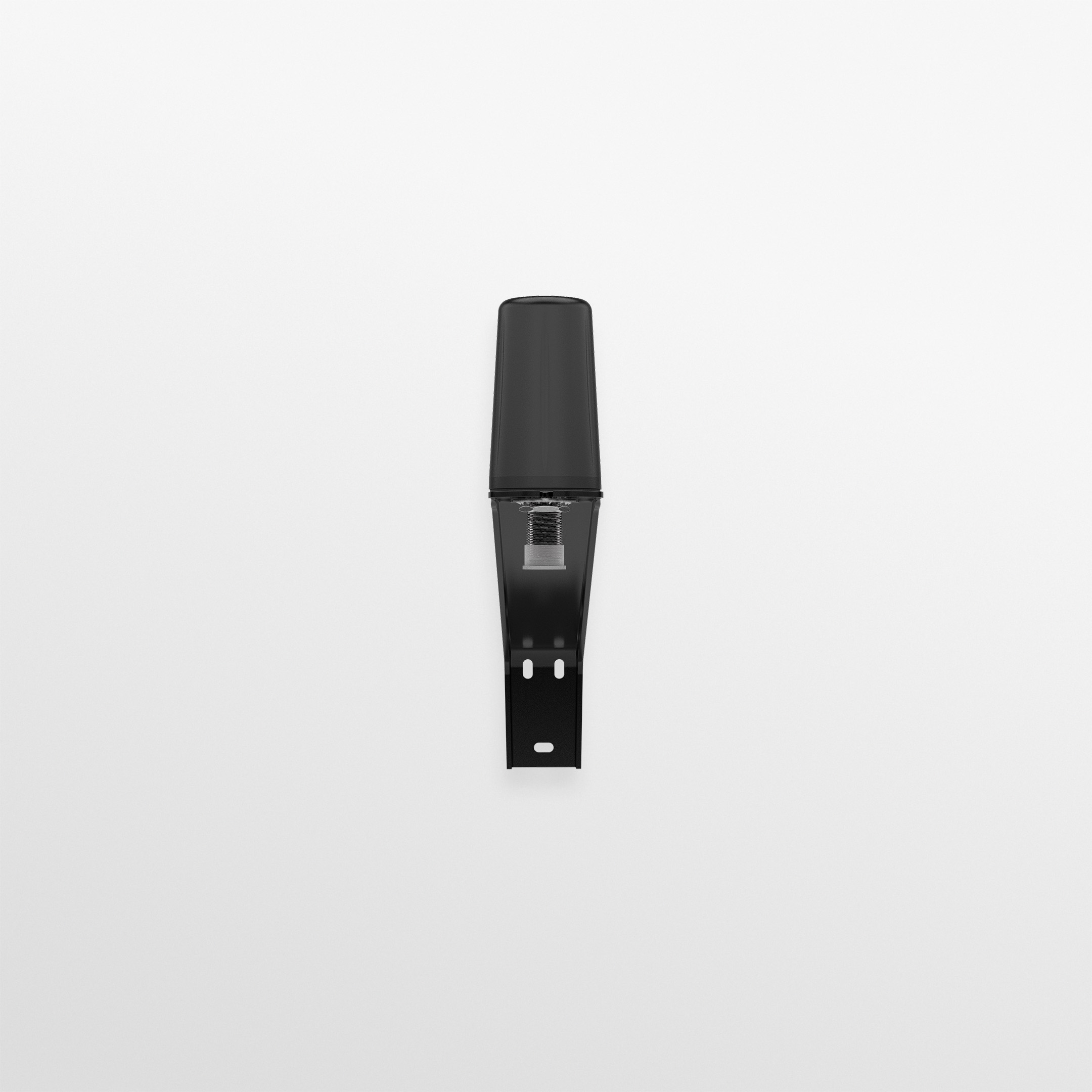

At only 82mm (3.22”) high and protected by a robust high impact
radome the antenna is almost impervious to daily wear, tear and impact.
The LPBV offers excellent performance across a wide bandwidth and is
designed for wall or mast mounting which allows the device to reap the
benefits of an antenna mounted in an elevated or external location where
the signal is strongest if inside or out.

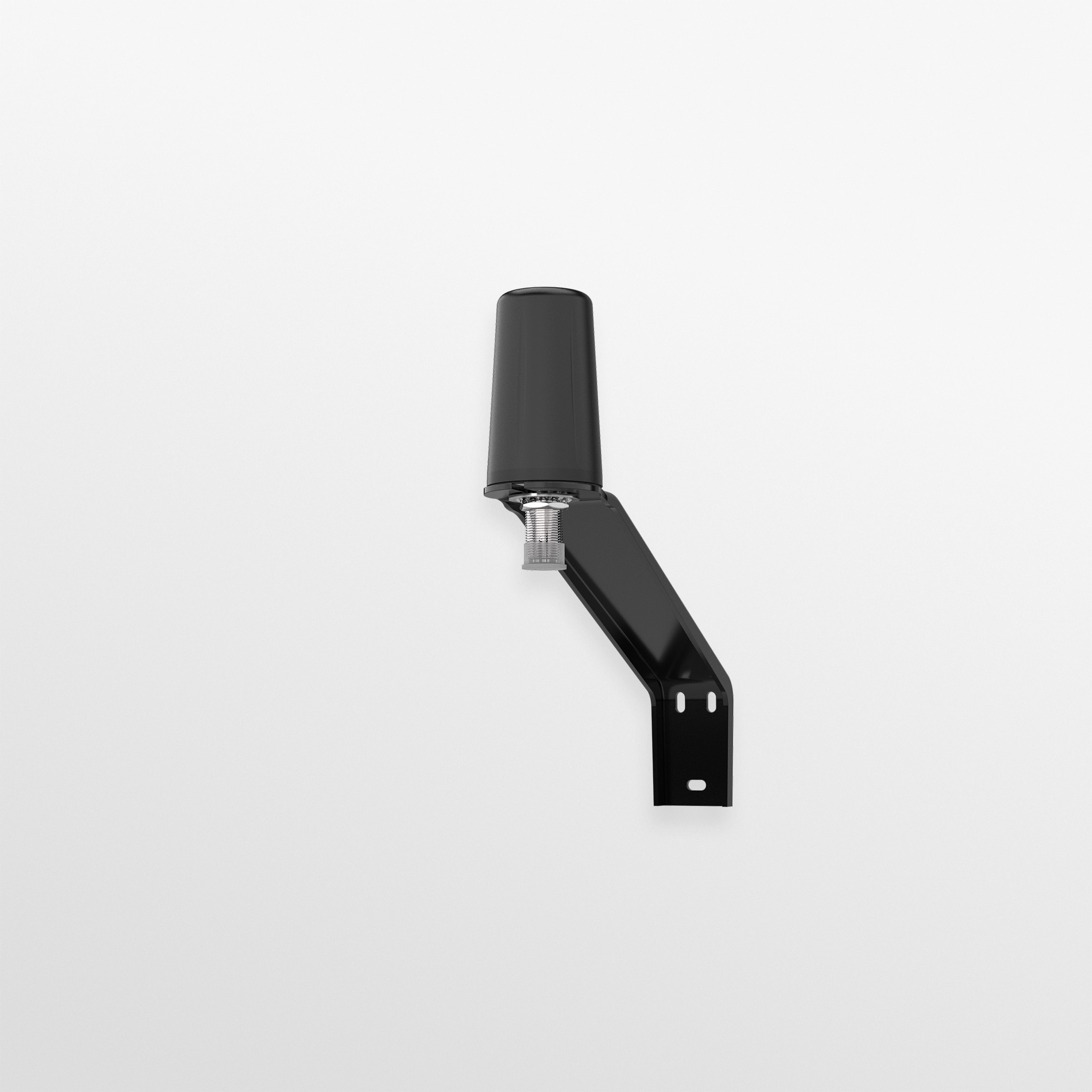

The antenna is supplied with an offset bracket which allows for
easy mounting and provides an electrical ground plane. The antenna
features an N Jack type connector allowing the use of a variety of cable
types and lengths (supplied separately).
The Panorama LPBV-169-NJ is an extremely robust low profile fixed VHF antenna ideal for any M2M, ISM, LoRa, SigFox or LPWA application using VHF 169MHz bands. At only 82mm (3.22”) high and protected by a robust high impact radome the antenna is almost impervious to daily wear, tear and impact.
The Panorama LPBV-169-NJ is an extremely robust low profile fixed VHF antenna ideal for any M2M, ISM, LoRa, SigFox or LPWA application using VHF 169MHz bands.
At only 82mm (3.22”) high and protected by a robust high impact radome the antenna is almost impervious to daily wear, tear and impact. The LPBV offers excellent performance across a wide bandwidth and is designed for wall or mast mounting which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest if inside or out.
The antenna is supplied with an offset bracket which allows for easy mounting and provides an electrical ground plane. The antenna features an N Jack type connector allowing the use of a variety of cable types and lengths (supplied separately).
| Colour | Black |
|---|---|
| Connector (VHF/UHF) | N (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 60 |
| Typical VSWR | ≤2.5:1 |
| Frequency Range | Gain | 169 – 169MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 82 (mm) | 3.23 (in) |
| Operating Temperature | -30°/ +80°C (-22.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall |
| APPROVALS DATA | |
| IP Rating | IP65 |
| TECHNOLOGY DATA | |
| Technology | VHF; 169MHz |
