LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna

Model / SKU: LP[G]AM-BC3G-26

LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna

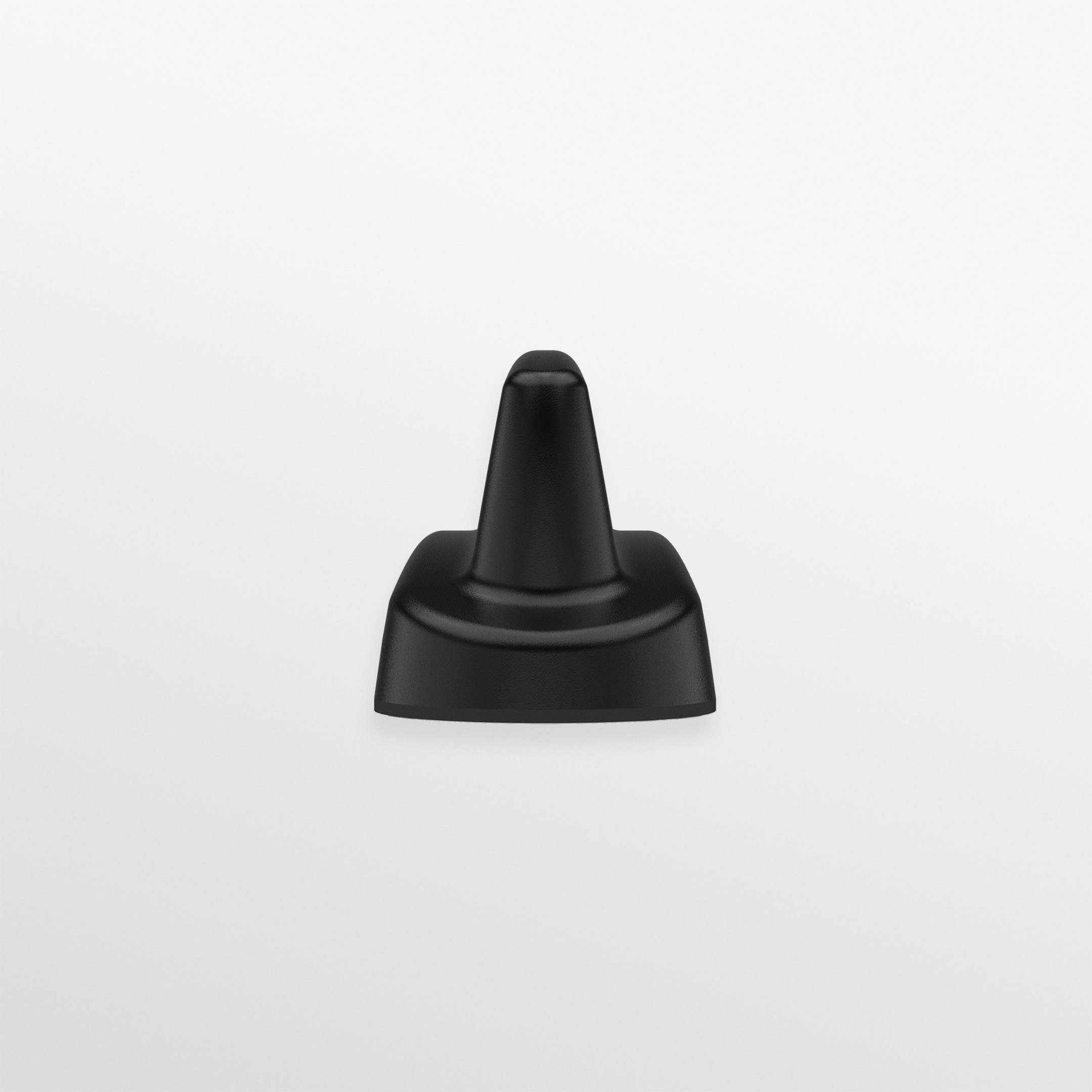

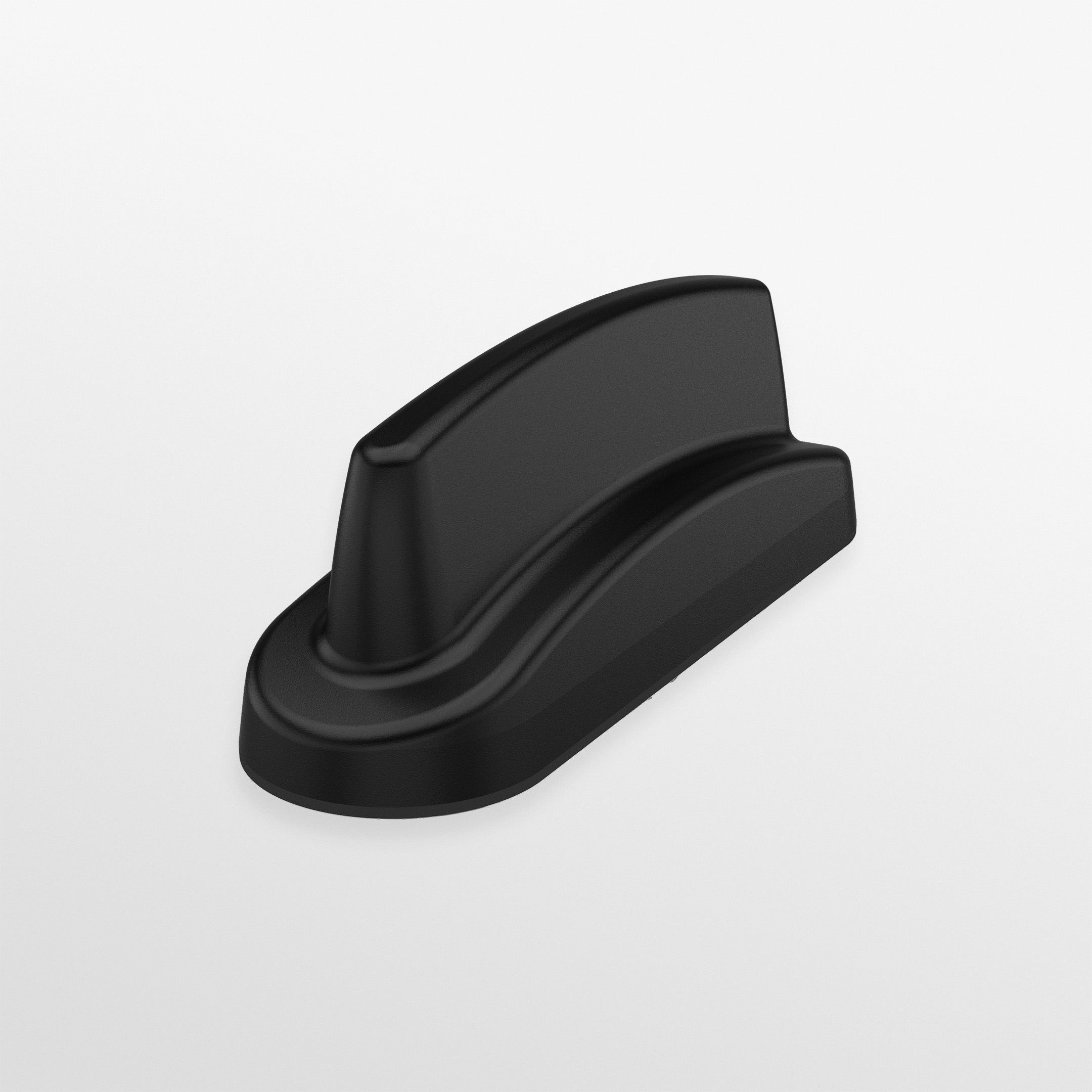

The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.

The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications that require position or timing function.

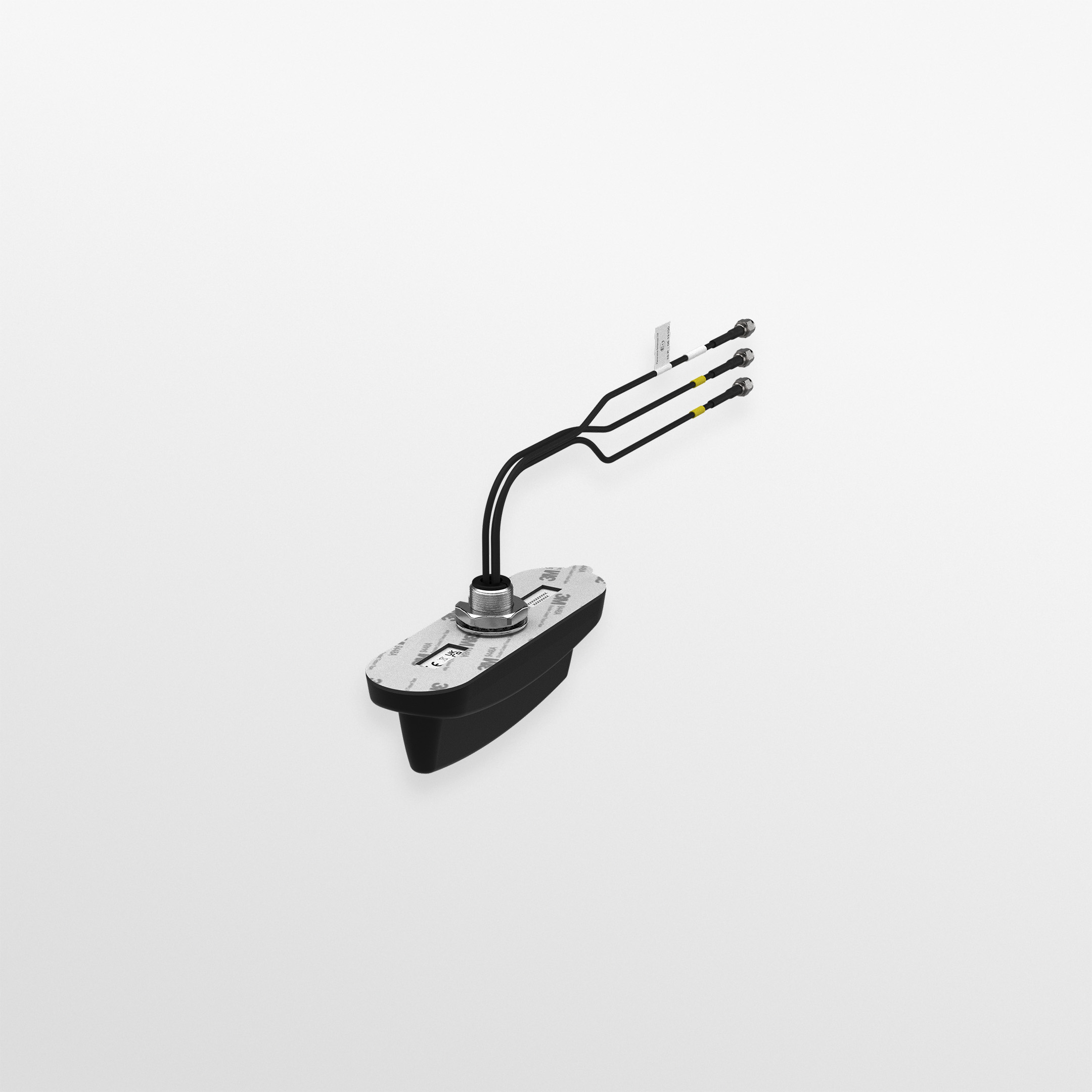

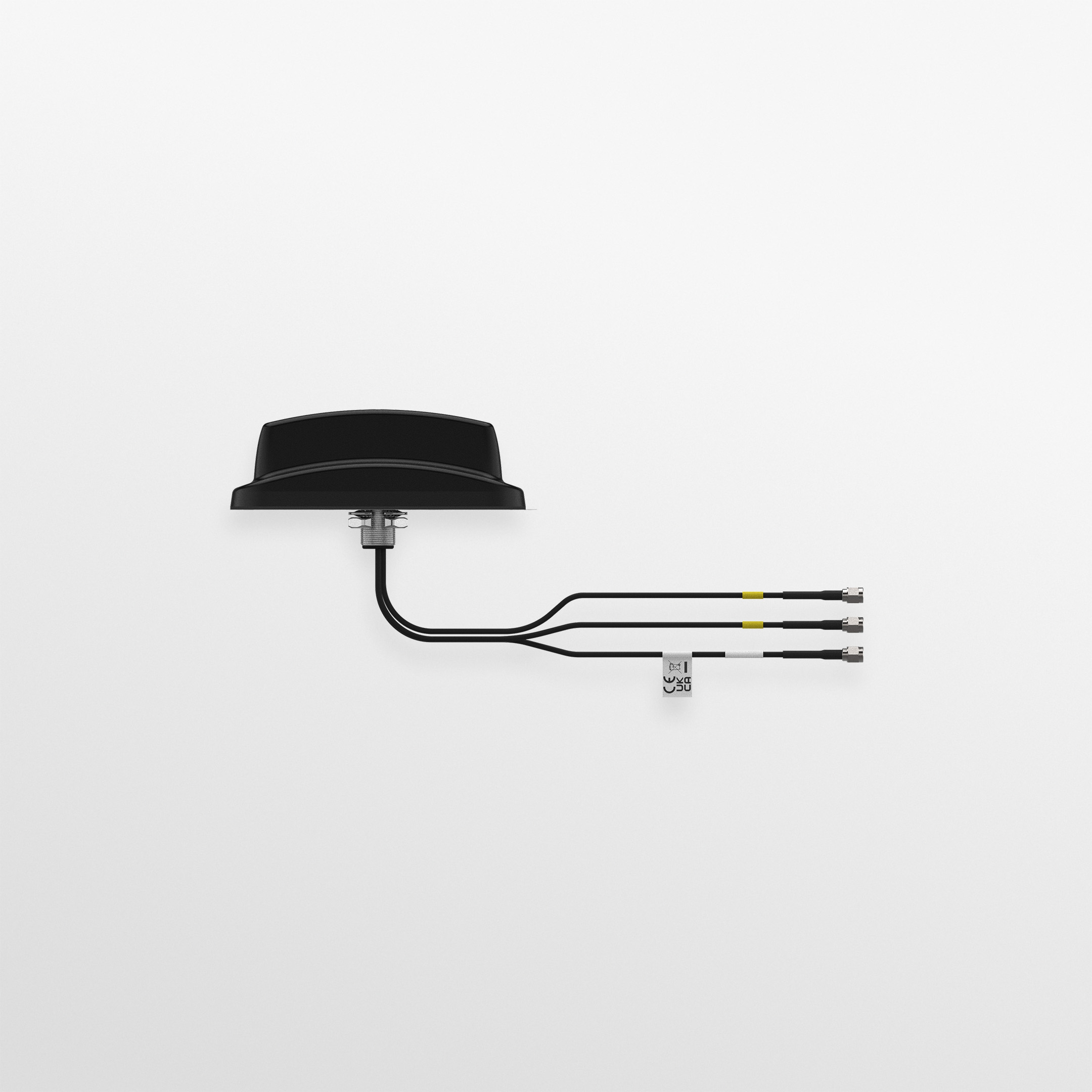

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3’) or 3m (10’) cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

Description

The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.

Product overview

The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.

Product Features

Compact low profile MiMo LTE antenna High performance in a distinctive design Optional GNSS version available Covers all 2G/3G/4G/5G LTE cellular bands Weatherproof design Single hole mount with a small footprint

Benefits

Provides MiMo LTE capability in a compact antenna Easy to install with integrated cables Can perform on or off a conductive surface

Application

Static M2M & IoT devices Remote monitoring Smart metering Vending machines

Additional information

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module, No
Cable Length	Between 1m & 3m, Between 3m & 5m
Connector (LTE)	SMA (m)
Connector (GPS)	No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	20
Frequency Range \| Gain	698 – 960MHz; 1710 – 2170MHz \| 4.5dBi; 2500 – 3800MHz \| 5dBi
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1562-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	Black
Length	150 (mm) \| 5.91 (in)
Width	45 (mm) \| 1.77 (in)
Height	49 (mm) \| 1.93 (in)
Operating Temperature	-30°/ +70°C (-22.0°/ +158.0°F)
CABLE DATA
Cable Length – LTE	min: 1 (m) \| 3.28 (ft); max: 3 (m) \| 9.84 (ft)
Cable length – GPS	min: 1 (m) \| 3.28 (ft); max: 3 (m) \| 9.84 (ft)
Cable Type (LTE)	RG174
Cable Type (GPS)	RG174
TERMINATION DATA
Connector (GPS)	SMA (m)
Connector (LTE)	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Mast; Panel; Wall
Mounting Methods	Mast; Panel; Wall
APPROVALS DATA
IP Rating	IP66
TECHNOLOGY DATA
Technology	GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; GNSS

Available selections

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module No
Cable Length	Between 1m & 3m Between 3m & 5m
Connector (LTE)	SMA (m)
Connector (GPS)	No Connector SMA (m)

Models and configurations

SKU; Colour | Cellular | GPS

LGAM-BC3G-26-1SP	Black \| 2 x 2 MIMO \| 1 Module
1m	1m
SMA (m)	SMA (m)
LGAM-BC3G-26-3SP	Black \| 2 x 2 MIMO \| 1 Module
3m	3m
SMA (m)	SMA (m)
LPAM-BC3G-26-1SP	Black \| 2 x 2 MIMO \| No 1m SMA (m)
LPAM-BC3G-26-3SP	Black \| 2 x 2 MIMO \| No 3m SMA (m)

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	2 x 2 MIMO
Gps	1 Module, No
Cable Length	Between 1m & 3m, Between 3m & 5m
Connector Lte	SMA (m)
Connector Gps	No Connector, SMA (m)
