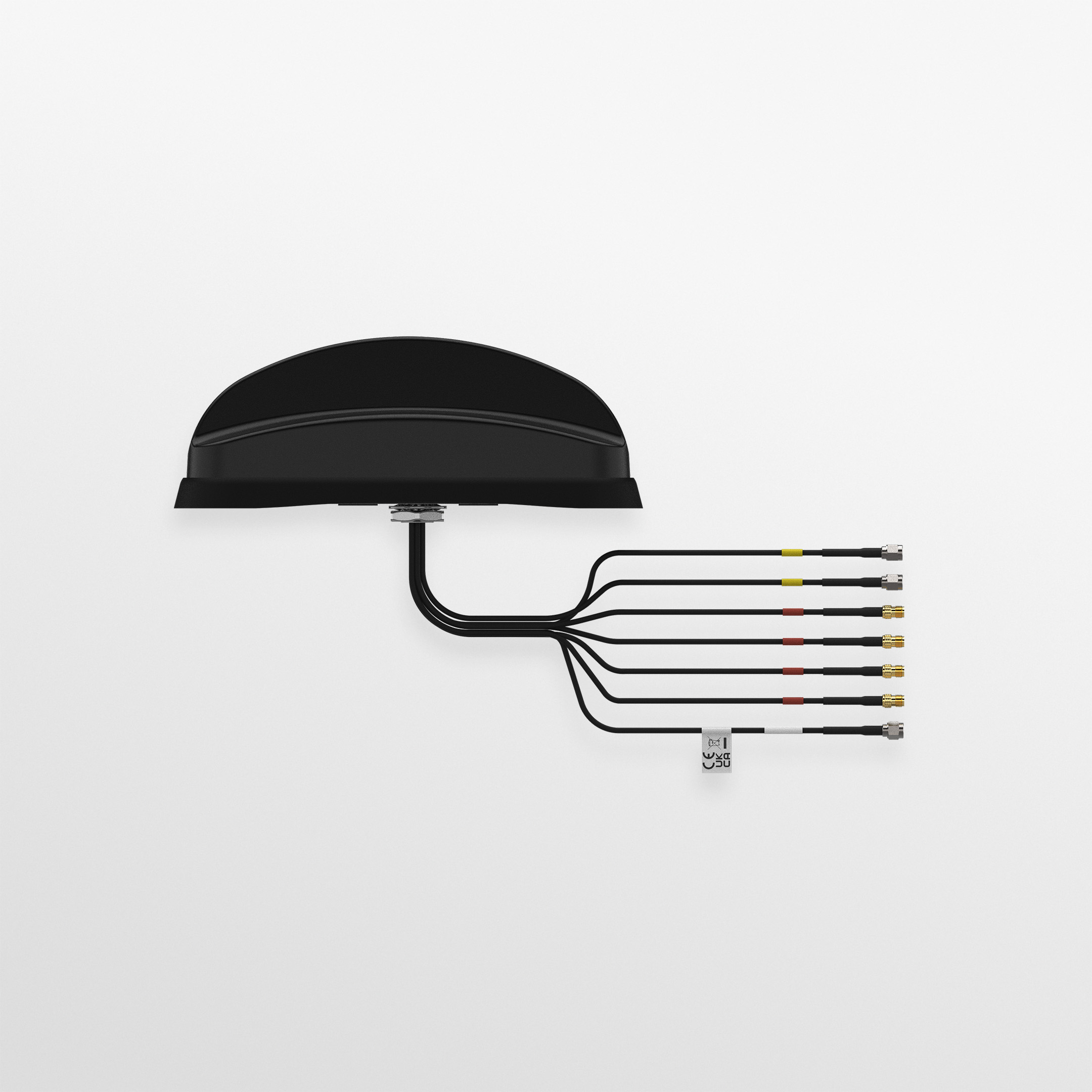

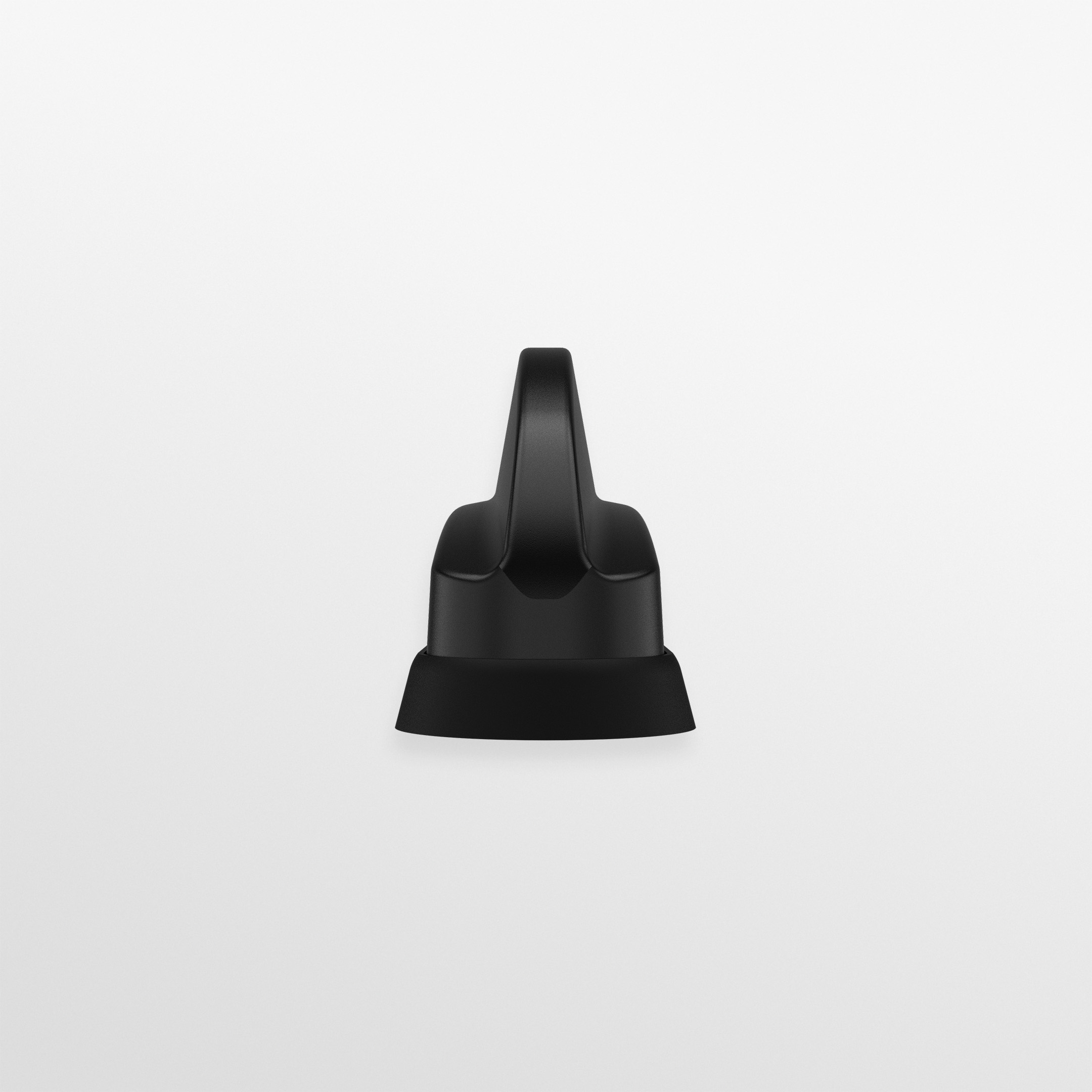

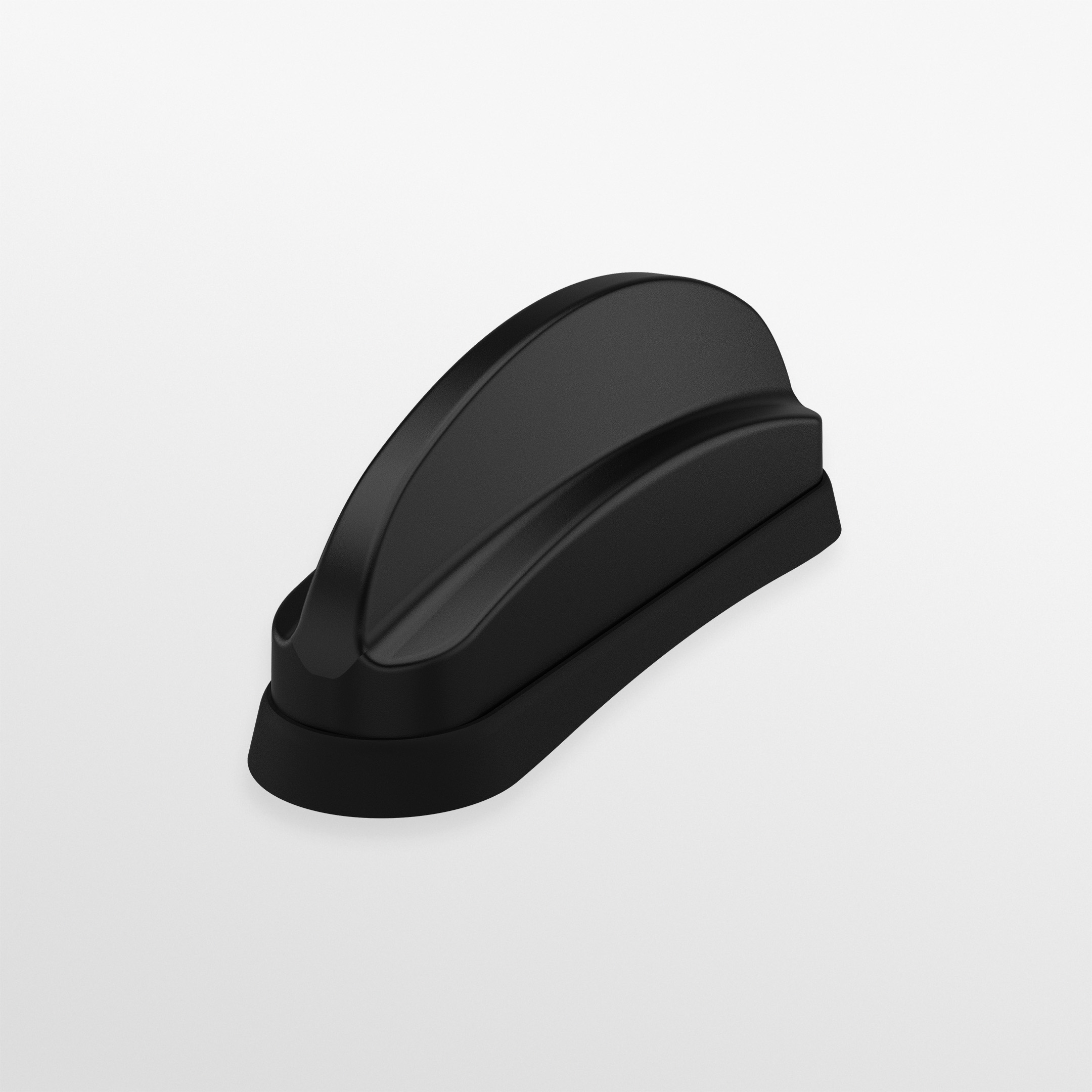

LP[G]AM[F]-6-60 | 4G/5G MiMo IOT Antenna

Model / SKU: LP[G]AM[F]-6-60

LP[G]AM[F]-6-60 | 4G/5G MiMo IOT Antenna - Image 2

LP[G]AM[F]-6-60 | 4G/5G MiMo IOT Antenna

The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E.

An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.

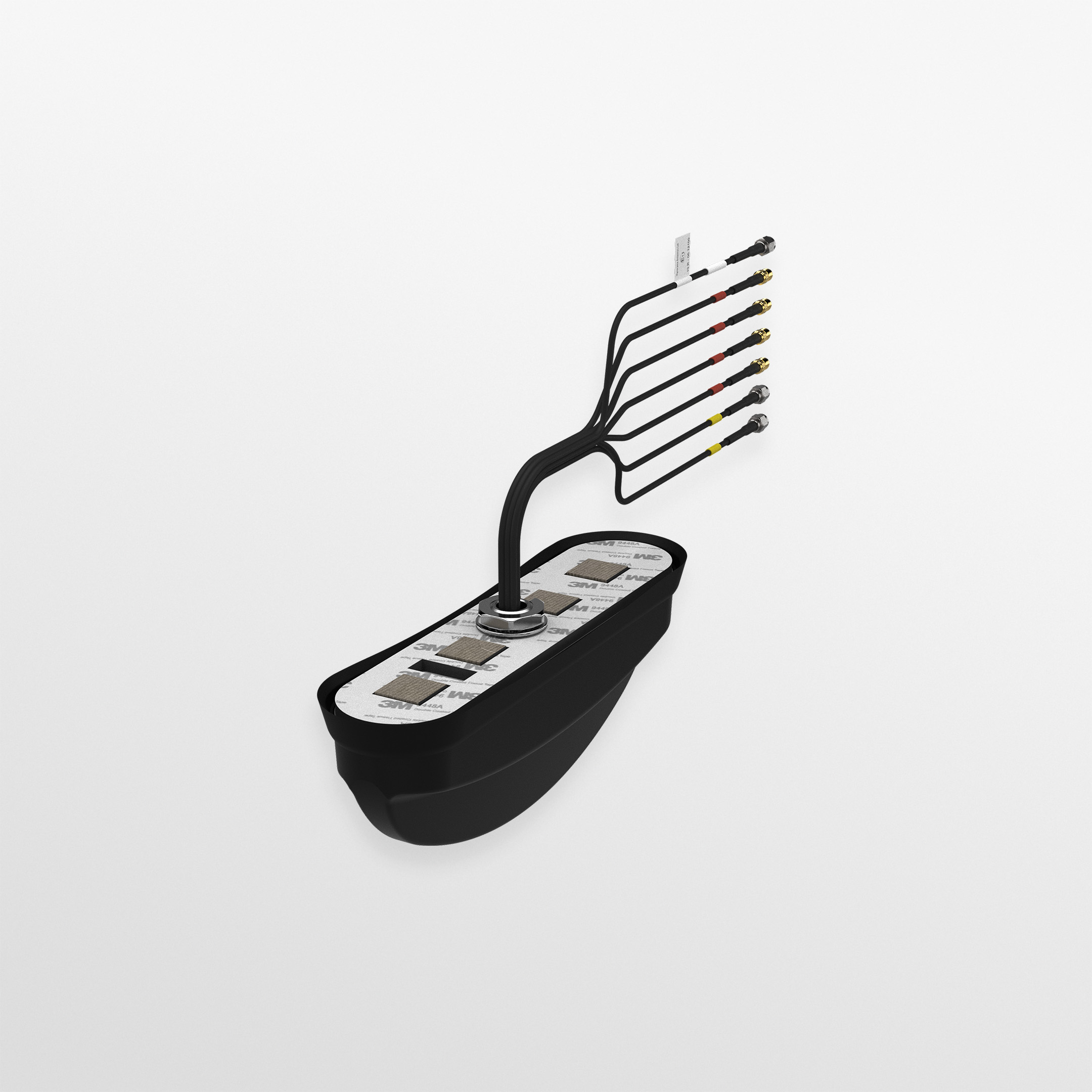

This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.

Description

The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E. An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

Product overview

The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E.

An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.

Product Features

2×2 MiMo 4G/5G LTE Antenna Low Profile Combination Product Up to 7 Antennas in 1 Housing Covers Wideband 600-6000MHz Frequencies Optional GPS/GNSS and up to 4×4 MiMo WiFi Meets IP69K Certification

Benefits

Ideal IoT or M2M Solution Fully Integrated Antenna Single Hole Easy to Install Product

Application

M2M & IoT Applications Kiosks Vending Machines Display Screen

Additional information

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module, No
WIFI MIMO	2 x 2 MIMO, 4 x 4 MIMO, No
Cable Length	Between 1m & 3m, Between 3m & 5m
Connector (LTE)	FAKRA D, SMA (m)
Connector (WIFI)	FAKRA I, No Connector, Reverse Polarity SMA
Connector (GPS)	FAKRA C, No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	10
Frequency Range \| Gain	617 – 960MHz \| 5dBi; 1427 – 3800MHz \| 8dBi; 4900 – 6000MHz \| 9dBi
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No; 4 x 4 MIMO; 2 x 2 MIMO
UHF Elements	No
GPS DATA
GPS Frequency Range	1562-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	Black
Length	243 (mm) \| 9.57 (in)
Width	63 (mm) \| 2.48 (in)
Height	90 (mm) \| 3.54 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	min: 1 (m) \| 3.28 (ft); max: 3 (m) \| 9.84 (ft)
Cable length – GPS	min: 1 (m) \| 3.28 (ft); max: 3 (m) \| 9.84 (ft)
Cable Length – WIFI	min: 1 (m) \| 3.28 (ft); max: 3 (m) \| 9.84 (ft)
Cable Type (LTE)	FR RG174
Cable Type (GPS)	FR RG174
Cable Type (WIFI)	FR RG174
TERMINATION DATA
Connector (WIFI)	Reverse Polarity SMA; FAKRA I
Connector (GPS)	SMA (m); FAKRA C
Connector (LTE)	SMA (m); FAKRA D
MOUNTING DATA
Mounting Type Fixed	Mast; Panel; Wall
Mounting Methods	Mast; Panel; Wall
APPROVALS DATA
IP Rating	IP69K
Cable Flammability	EN45545-2 HL3; UN ECE R118; EN6722
Material Flammability	UL746C-F1, UL94-V0
TECHNOLOGY DATA
Technology	GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GNSS; WIFI MIMO; WIFI

Available selections

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module No
WIFI MIMO	2 x 2 MIMO 4 x 4 MIMO No
Cable Length	Between 1m & 3m Between 3m & 5m
Connector (LTE)	FAKRA D SMA (m)
Connector (WIFI)	FAKRA I No Connector Reverse Polarity SMA
Connector (GPS)	FAKRA C No Connector SMA (m)

Models and configurations

SKU; Colour | Cellular | GPS | WIFI

LGAM-6-60	Black \| 2 x 2 MIMO \| 1 Module \| No
3m	3m
SMA (m)	SMA (m)
LGAM-6-60-1	Black \| 2 x 2 MIMO \| 1 Module \| No
1m	1m
SMA (m)	SMA (m)
LGAM-6-60-D	Black \| 2 x 2 MIMO \| 1 Module \| 2 x 2 MIMO
3m	3m \| 3m
SMA (m)	SMA (m) \| Reverse Polarity SMA
LGAM-6-60-D-1	Black \| 2 x 2 MIMO \| 1 Module \| 2 x 2 MIMO
1m	1m \| 1m
SMA (m)	SMA (m) \| Reverse Polarity SMA
LGAM-6-60-Q	Black \| 2 x 2 MIMO \| 1 Module \| 4 x 4 MIMO
3m	3m \| 3m
SMA (m)	SMA (m) \| Reverse Polarity SMA
LGAM-6-60-Q-1	Black \| 2 x 2 MIMO \| 1 Module \| 4 x 4 MIMO
1m	1m \| 1m
SMA (m)	SMA (m) \| Reverse Polarity SMA
LGAMF-6-60	Black \| 2 x 2 MIMO \| 1 Module \| No
3m	3m
FAKRA D	FAKRA C
LGAMF-6-60-D	Black \| 2 x 2 MIMO \| 1 Module \| 2 x 2 MIMO
3m	3m \| 3m
FAKRA D	FAKRA C \| FAKRA I
LGAMF-6-60-Q	Black \| 2 x 2 MIMO \| 1 Module \| 4 x 4 MIMO
3m	3m \| 3m
FAKRA D	FAKRA C \| FAKRA I
LPAM-6-60	Black \| 2 x 2 MIMO \| No \| No 3m SMA (m)
LPAM-6-60-1	Black \| 2 x 2 MIMO \| No \| No 1m SMA (m)
LPAMF-6-60	Black \| 2 x 2 MIMO \| No \| No 3m FAKRA D

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	2 x 2 MIMO
Gps	1 Module, No
Mimo Wifi	2 x 2 MIMO, 4 x 4 MIMO, No
Cable Length	Between 1m & 3m, Between 3m & 5m
Connector Lte	FAKRA D, SMA (m)
Connector Wifi	FAKRA I, No Connector, Reverse Polarity SMA
Connector Gps	FAKRA C, No Connector, SMA (m)
