Model / SKU: LPPM[X]-36-55-[VAR]

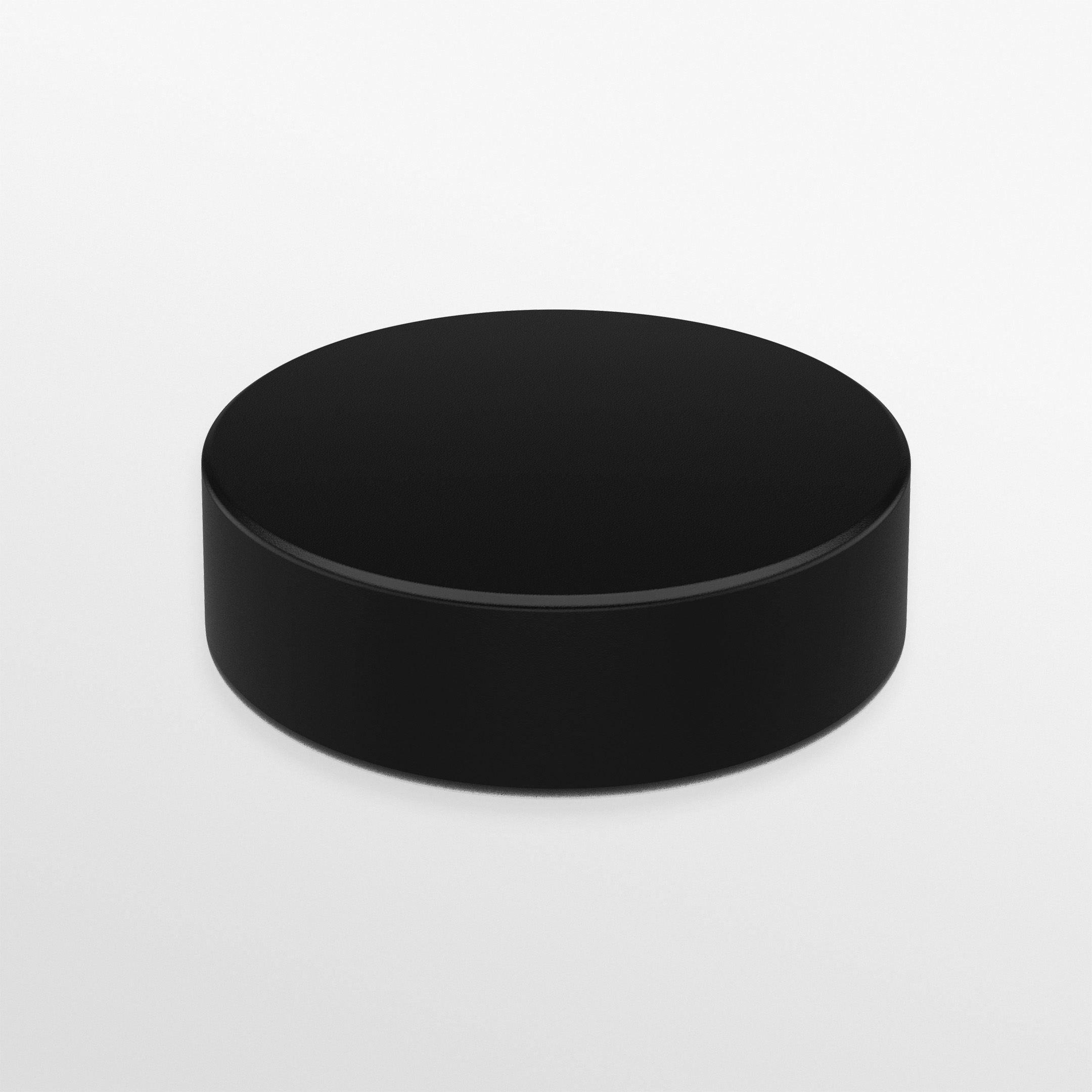

![LPPM[X]-36-55 | Low Profile MiMo Private LTE / CBRS Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LPPMX-36-55-1-Main-View.jpg "LPPM[X]-36-55 | Low Profile MiMo Private LTE / CBRS Antenna")

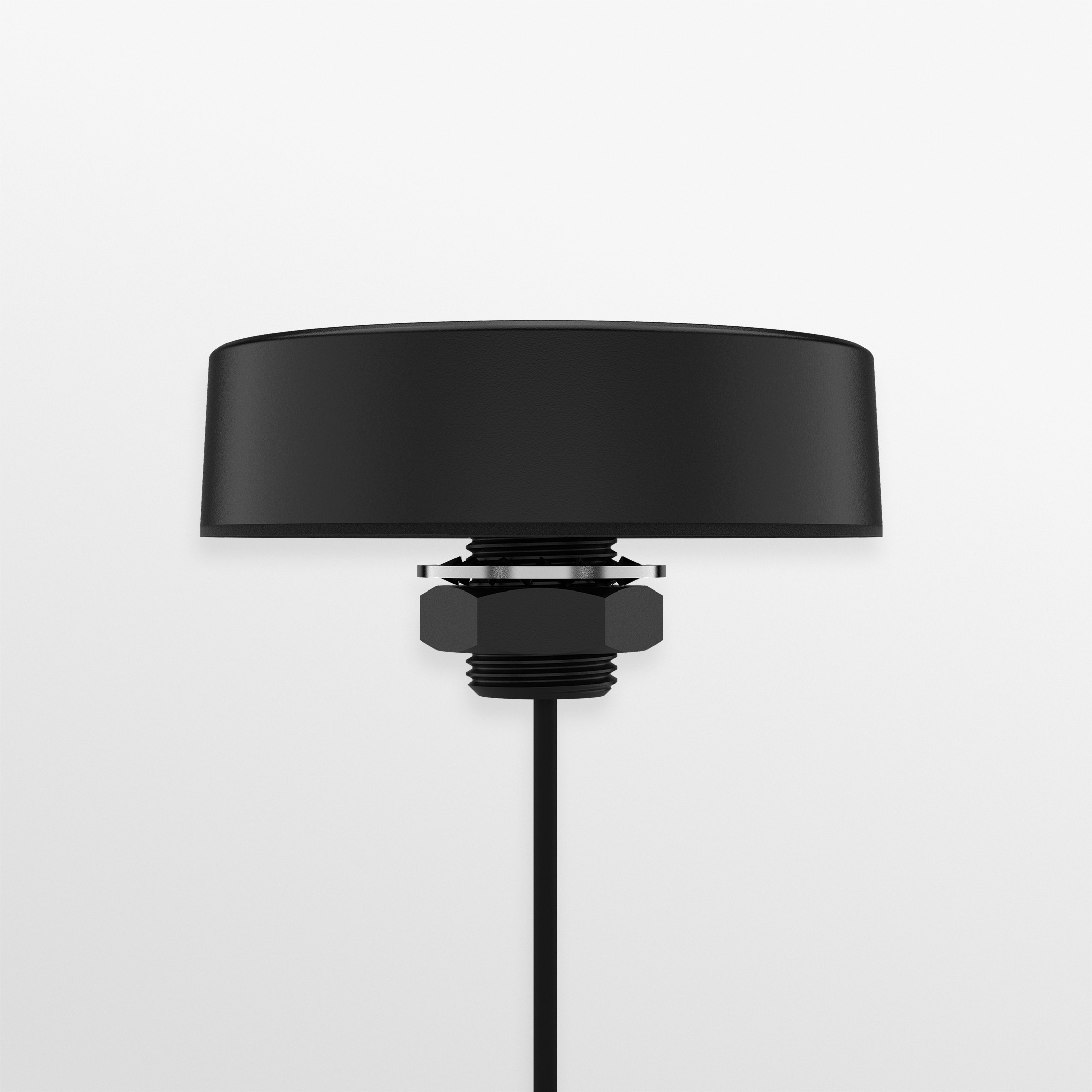

![LPPM[X]-36-55 | Low Profile MiMo Private LTE / CBRS Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGP-7-38-24-58-2-Front-View.jpg "L[G]P-7-38[-24-58] |Low Profile Hockey Puck 4G/5G Combination Antenna")
The LPPM[X]-36-55-[VAR] range has been designed to provide MiMo dual-band private LTE / CBRS coverage in an ultra compact package.
The compact, low-profile housing contains up to four antenna
elements with effective isolation and low correlation covering
3.4-3.8/4.9-6GHz.
The antenna is designed to be panel mounted and can be fitted on a
conductive or non-conductive panel. Supplied with integrated RG174
cables the antenna is cost effective and suitable for many environments.
The LPPM[X]-36-55-[VAR] range has been designed to provide MiMo dual-band private LTE / CBRS coverage in an ultra compact package. The compact, low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 3.4-3.8/4.9-6GHz.
The LPPM[X]-36-55-[VAR] range has been designed to provide MiMo dual-band private LTE / CBRS coverage in an ultra compact package. The compact, low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 3.4-3.8/4.9-6GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated RG174 cables the antenna is cost effective and suitable for many environments.
| Colour | Black |
|---|---|
| WIFI MIMO | 4 x 4 MIMO |
| Cable Length | Between 1m & 3m |
| Connector (WIFI) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 10 |
| Cellular LTE Elements | No |
| WIFI Elements | 4 x 4 MIMO |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 21.5 (mm) | 0.85 (in) |
| Diameter | 80 (mm) | 3.15 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – WIFI | 2 (m) | 6.56 (ft) |
| Cable Type (WIFI) | FR RG174 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (m) |
| APPROVALS DATA | |
| IP Rating | IP69K; IP66 |
| TECHNOLOGY DATA | |
| Technology | WIFI MIMO; WIFI; CBRS |
