Model / SKU: LPW-BC3G-26
The Panorama LPW range of antennas are designed to decrease the lifetime cost of IoT, M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
The antenna offers ground-plane independent Omni-directional
performance across global cellular and LTE bands making it a versatile
solution for any number of applications. The efficient element design
ensures a high first-time connection rate and an ongoing, robust
communications link even in problematic coverage areas.

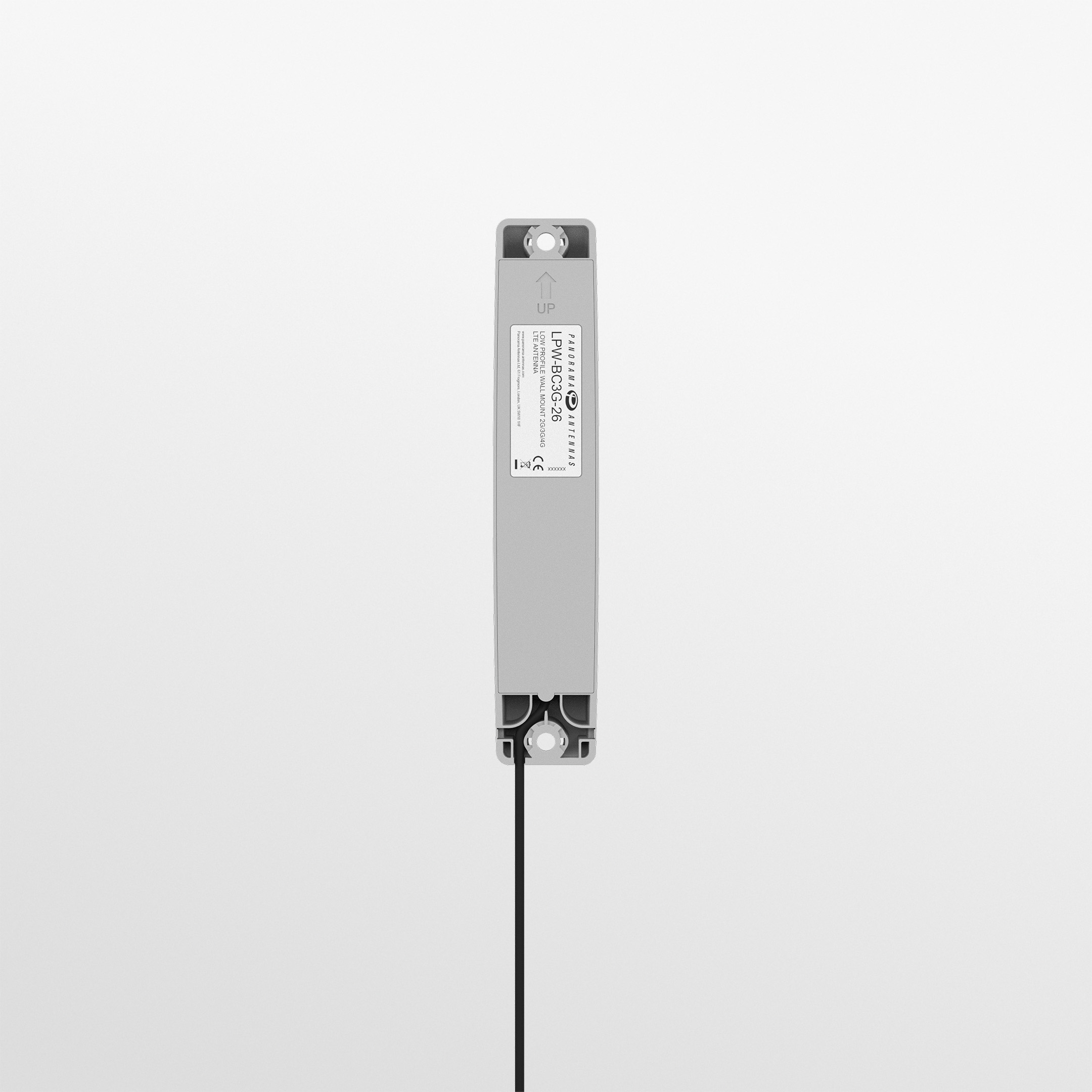

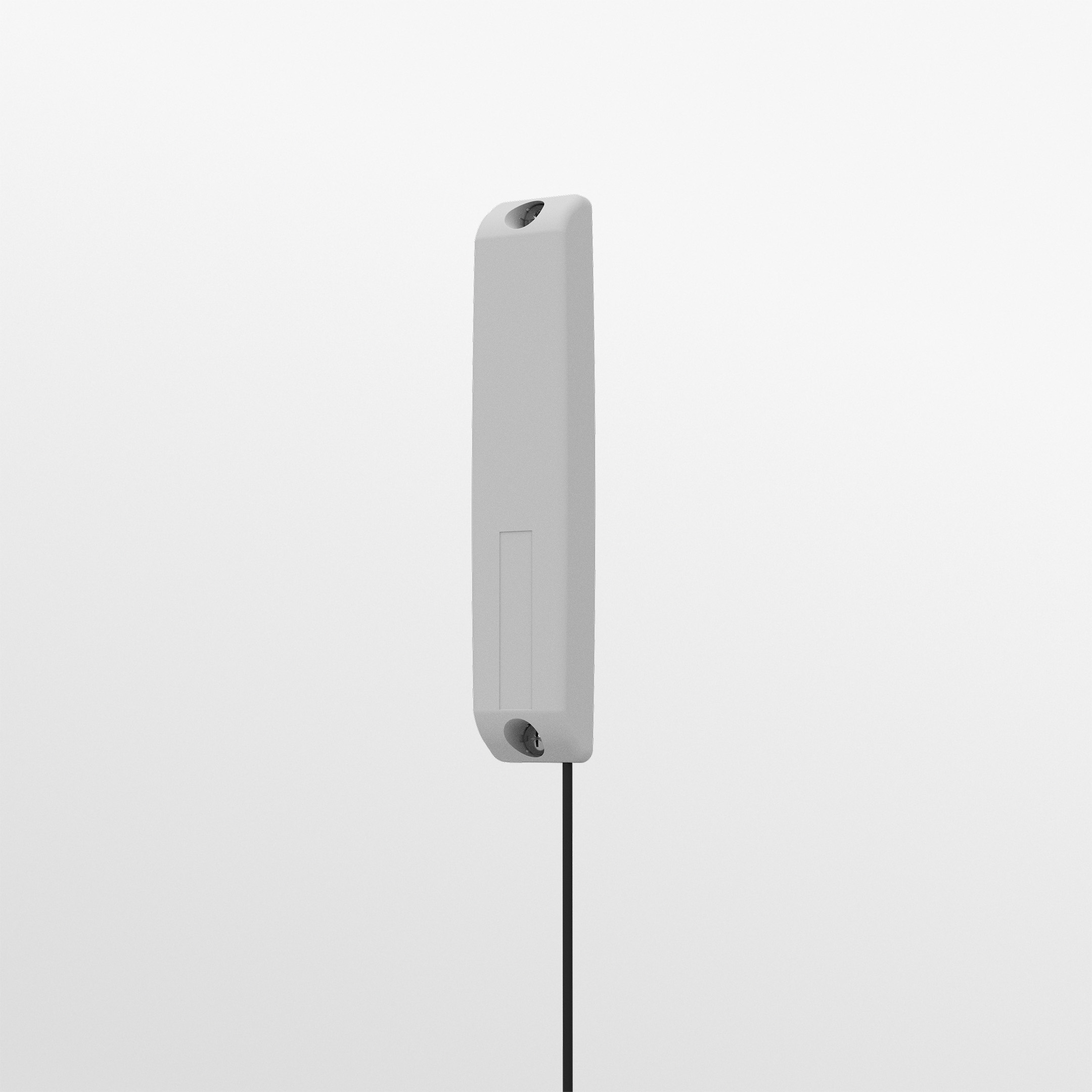

The antenna can be installed using the supplied automotive-grade
adhesive pad or via the integrated screw mounting bosses. If the antenna
is panel mounted the cable can be routed through a hole in the adhesive
pad to run invisibly into the panel behind.
*Performance may change based on the mounting surface.
The Panorama LPW range of antennas are designed to decrease the lifetime cost of IoT, M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
The Panorama LPW range of antennas are designed to decrease the lifetime cost of IoT, M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance. The antenna offers ground-plane independent Omni-directional performance across global cellular and LTE bands making it a versatile solution for any number of applications. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas.
The antenna can be installed using the supplied automotive-grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind.
*Performance may change based on the mounting surface.
| Colour | Grey |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Between 1m & 3m |
| Connector (LTE) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 2700MHz | 2dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Length | 165 (mm) | 6.50 (in) |
| Width | 32 (mm) | 1.26 (in) |
| Height | 19.6 (mm) | 0.77 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 2 (m) | 6.56 (ft) |
| Cable Type (LTE) | RG174 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m) |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G |
