LPW-[UHF] | Low Profile Wall Mount UHF Antenna

Model / SKU: LPW-[UHF]

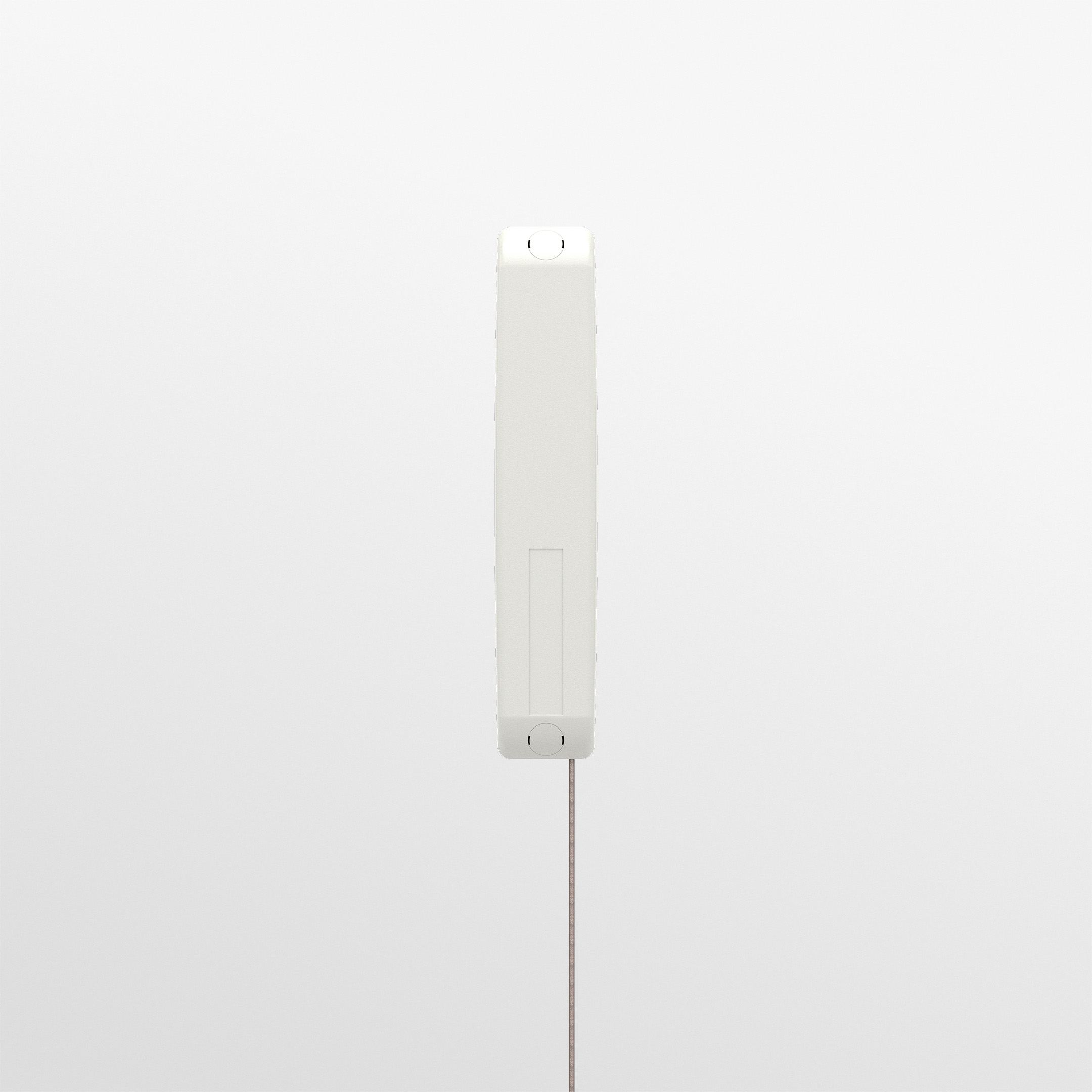

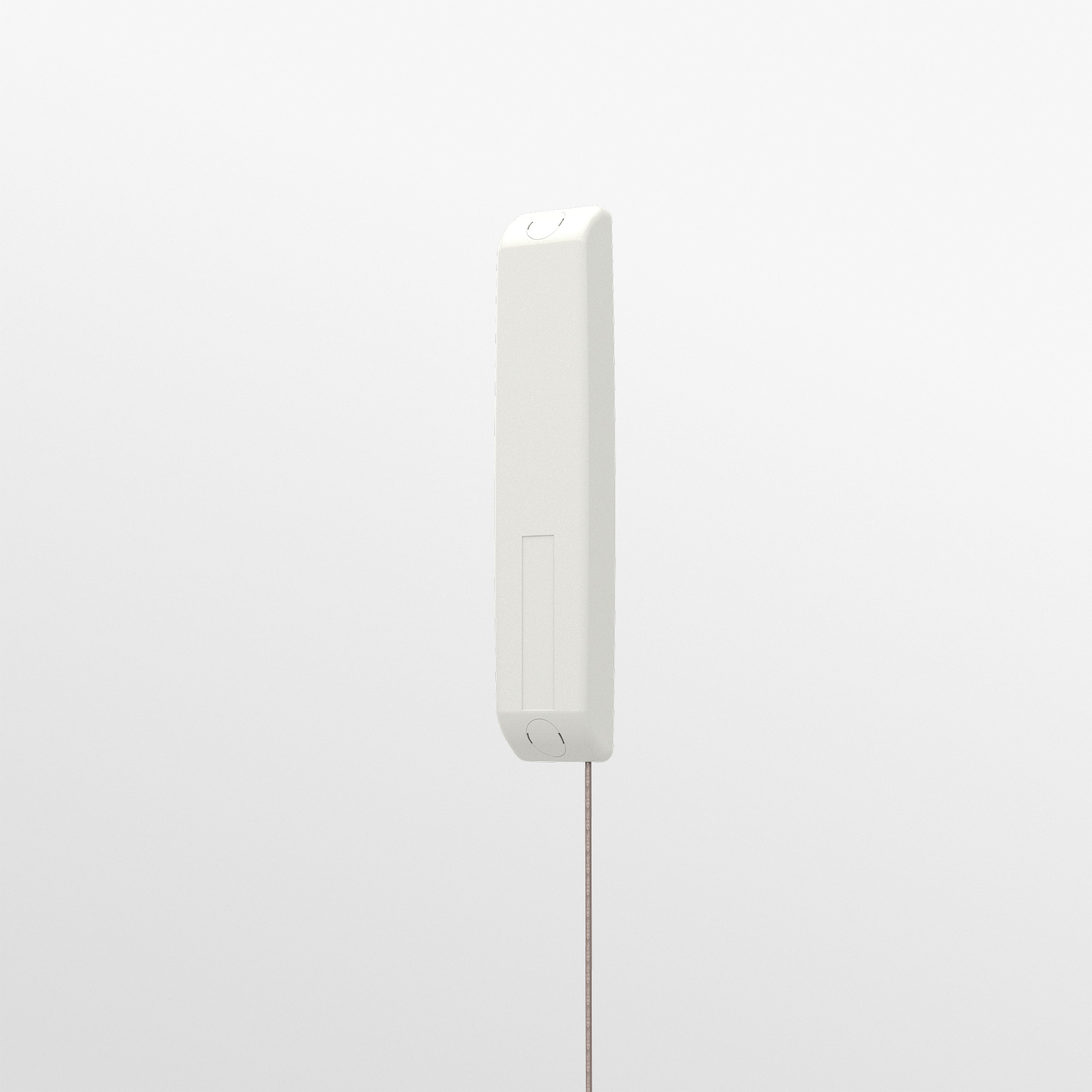

LPW-[UHF] | Low Profile Wall Mount UHF Antenna

The antenna offers
omni-directional performance across either 433 or 460MHz depending on
variant making it a versatile solution for any number of applications.
The efficient element design ensures a high first-time connection rate
and an ongoing, robust communications link even in problematic coverage
areas and the antenna will operate on either conductive or
non-conductive panels*.

The

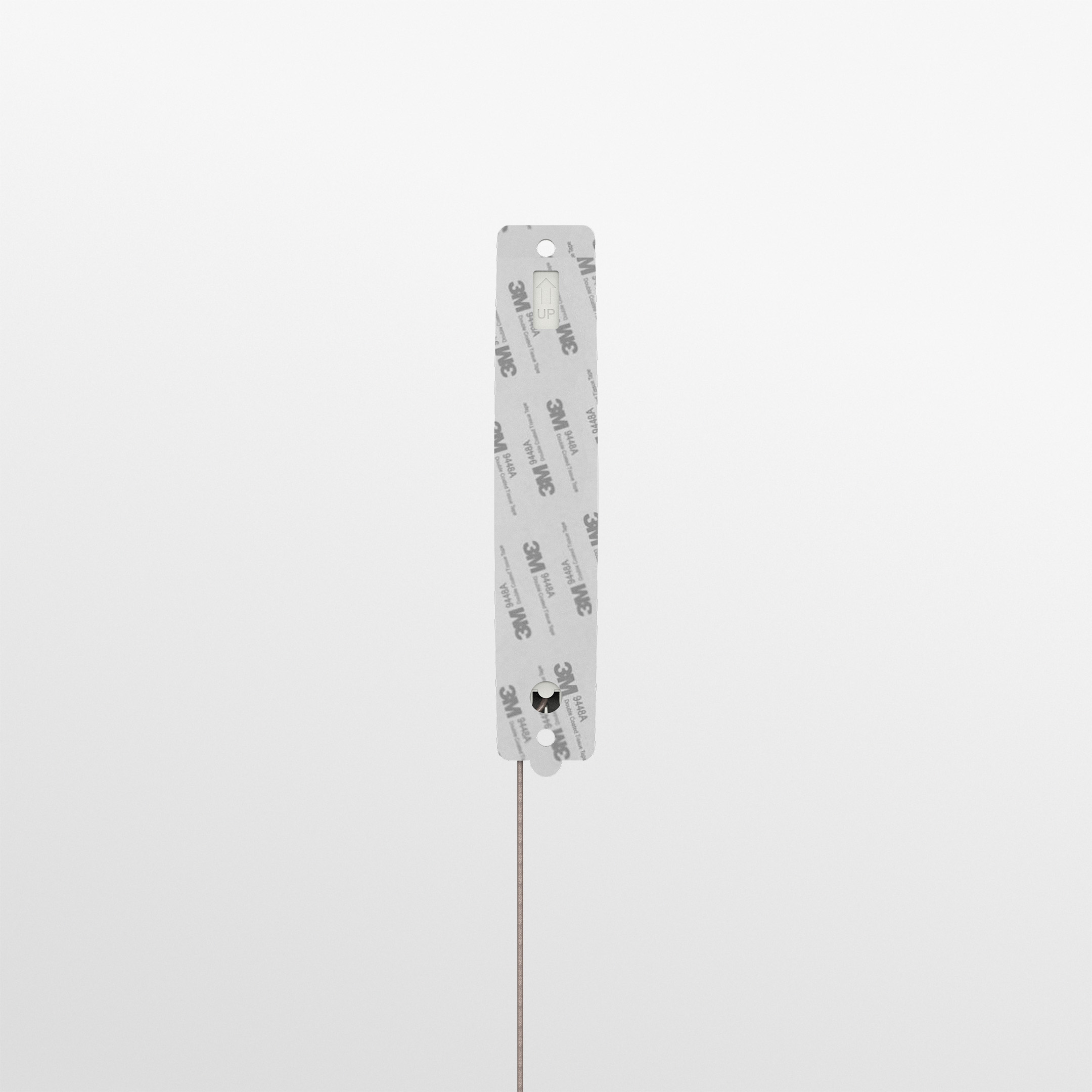

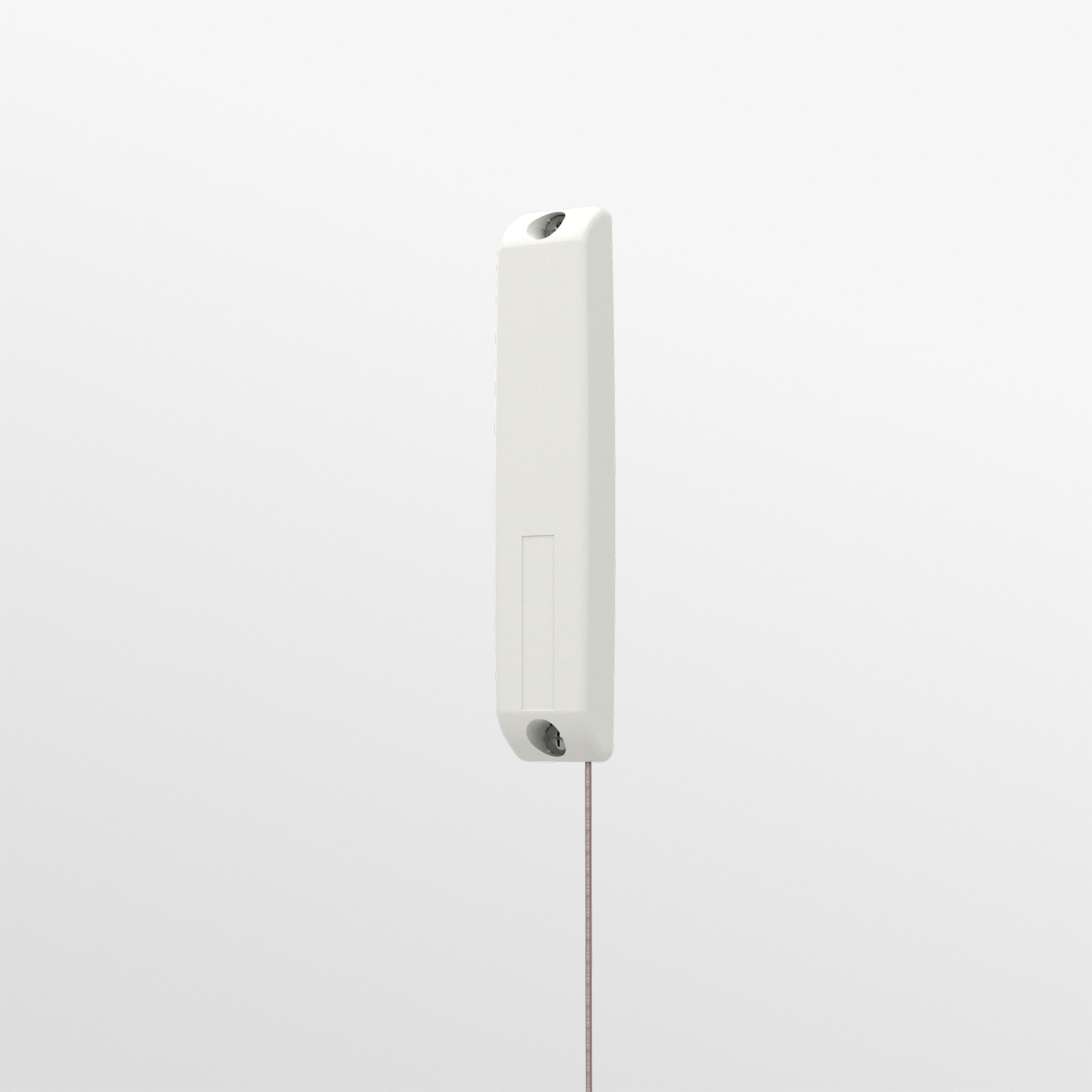

antenna can be installed using the supplied automotive grade adhesive

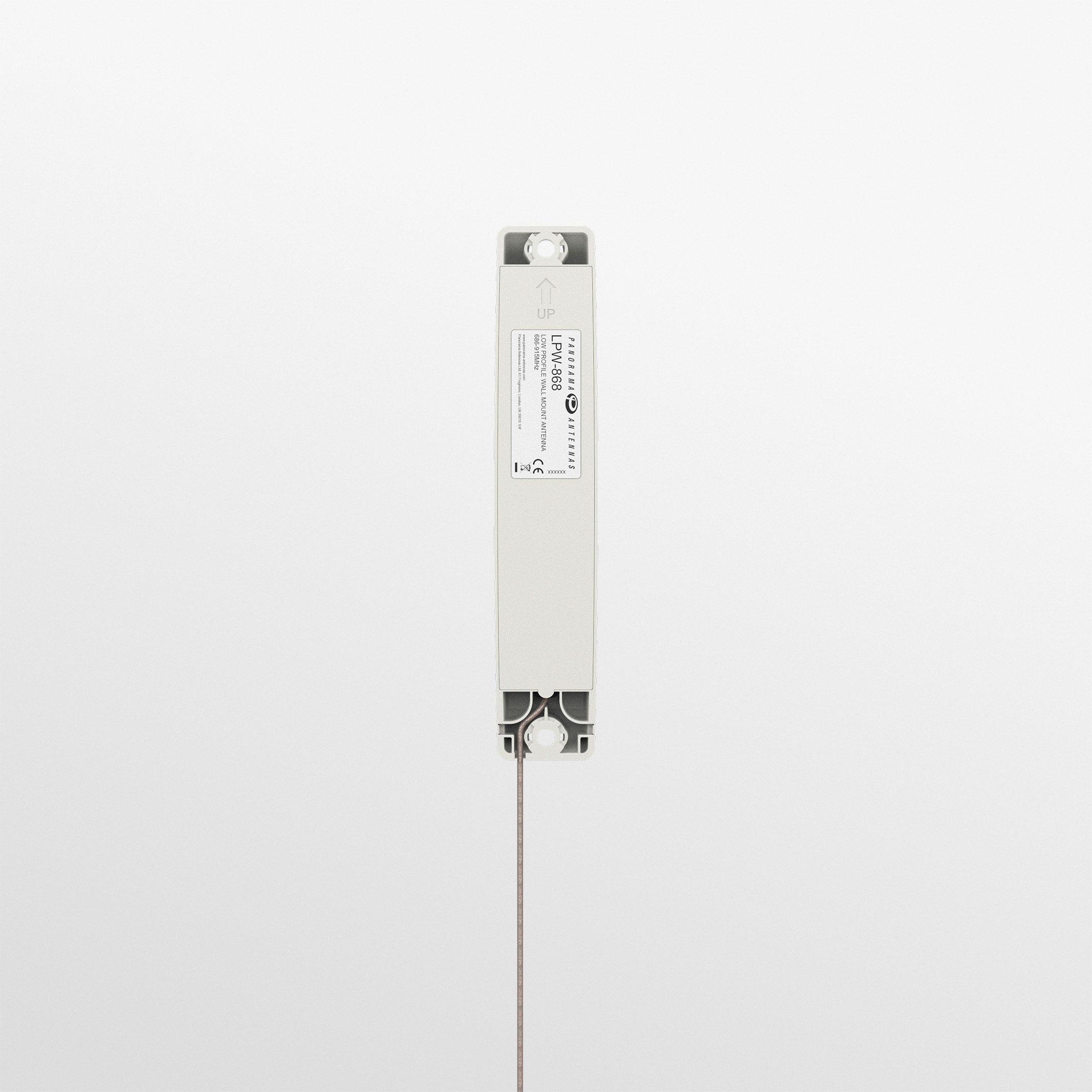

pad or via the integrated screw mounting bosses. If the antenna is panel
mounted the cable can be routed through a hole in the adhesive pad to
run invisibly into the panel behind. The antenna is supplied with ultra
thin RG178 cable which can be used to pass through sealing on some meter
boxes or device enclosures without the necessity for drilling holes.
The antenna range can be supplied with right angle FAKRA connectors or
SMA(m) as standard – other connectors are available.

*Performance may change based on mounting surface.

Description

Product overview

The Panorama LPW range of antennas are designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance. The antenna offers omni-directional performance across either 433 or 460MHz depending on variant making it a versatile solution for any number of applications. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas and the antenna will operate on either conductive or non-conductive panels*. The antenna can be installed using the supplied automotive grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind. The antenna is supplied with ultra thin RG178 cable which can be used to pass through sealing on some meter boxes or device enclosures without the necessity for drilling holes. The antenna range can be supplied with right angle FAKRA connectors or SMA(m) as standard – other connectors are available . *Performance may change based on mounting surface.

Product Features

Low Profile, wall panel or enclosure mount Mount by screw fixings or adhesive pad Supports 433 or 460 MHz

Additional information

Colour	White
Cable Length	Between 1m & 3m
Connector (VHF/UHF)	Right angle FAKRA D (f), SMA (m)
Frequency Range	433MHz, 450-465MHz

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	20
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	No
WIFI Elements	No
UHF Elements	No
GPS DATA
Number of GPS Elements	No
MECHANICAL DATA
Colour	White
Length	165 (mm) \| 6.50 (in)
Height	20 (mm) \| 0.79 (in)
Operating Temperature	-30°/ +70°C (-22.0°/ +158.0°F)
CABLE DATA
Cable Length – Whip	2 (m) \| 6.56 (ft)
Cable Type (Whip)	RG178
TERMINATION DATA
Connector (VHF/UHF) Whip	SMA (m); Right angle FAKRA D (f)
MOUNTING DATA
Mounting Type Fixed	Wall; Mast
Mounting Methods	Wall; Mast
TECHNOLOGY DATA
Technology	UHF; 433MHz

Available selections

Colour	White
Cable Length	Between 1m & 3m
Connector (VHF/UHF)	Right angle FAKRA D (f) SMA (m)
Frequency Range	433MHz 450-465MHz

Models and configurations

SKU; Colour | Frequency Range | Gain | UHF

LPW-433-2SP	White \| 433MHz \| -3dBi \| Yes 2m SMA (m)
LPW-460-2RFDJ	White \| 450 – 465MHz \| -2dBi \| Yes 2m Right angle FAKRA D (f)
LPW-460-2SP	White \| 450 – 465MHz \| -2dBi \| Yes 2m SMA (m)

Configuration options

Option	Available values
Colour	White
Cable Length	Between 1m & 3m
Connector Vhf Uhf	Right angle FAKRA D (f), SMA (m)
Frequency Range	433MHz, 450-465MHz

Data material

Datasheet - LPW-433.pdf (PDF)
Installation Instructions - SW3-193 - LPW-UHF.pdf (PDF)
Datasheet - LPW-460.pdf (PDF)
