Description
4×4 MiMo 4G/5G antenna for IOT applications designed for magnetic or adhesive mounting.
Product
L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna
Model / SKU: L[X]A[X]MM4-7-42[-X]

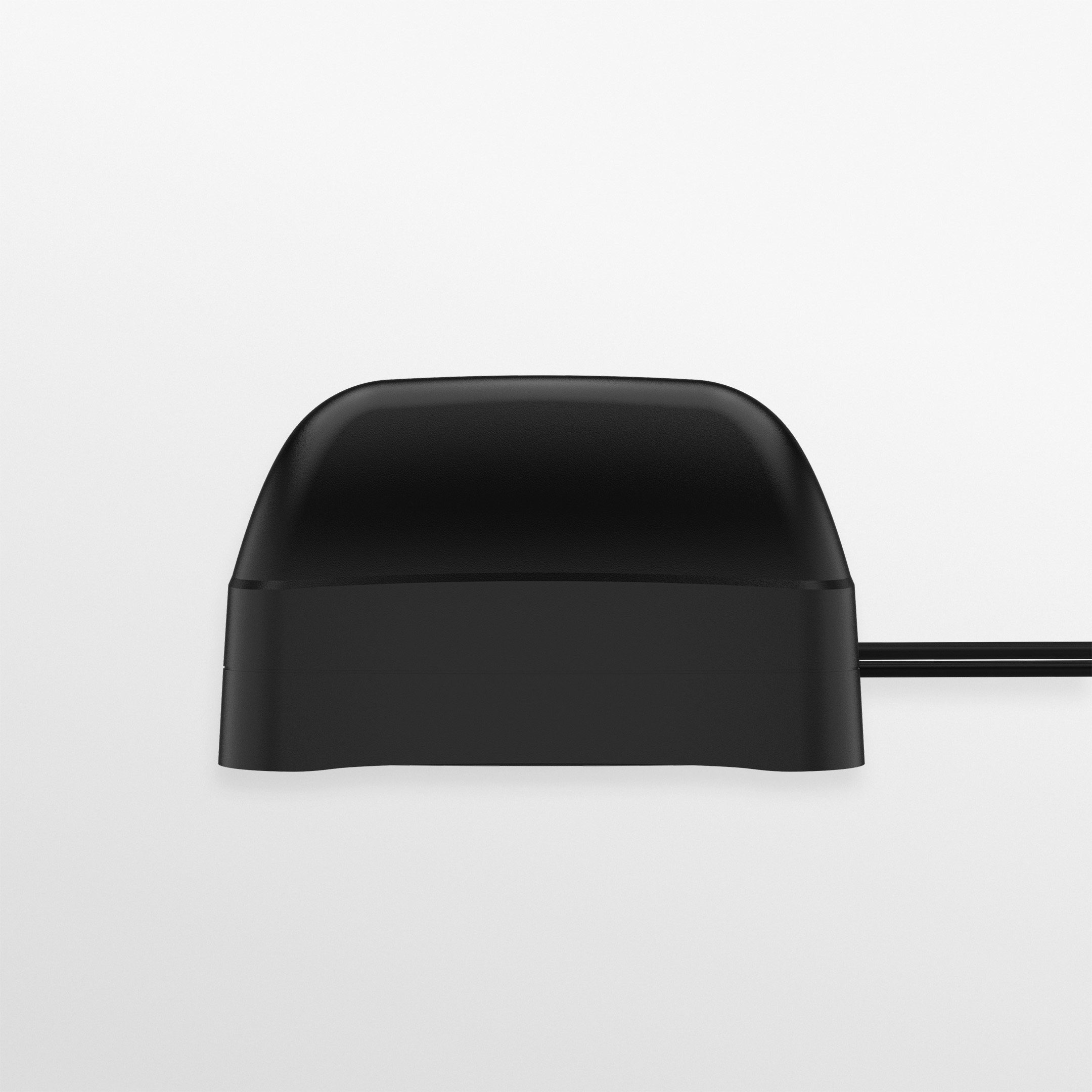

![L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXAXMM4-7-42-X-2-Black-Front-View.jpg "L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna")

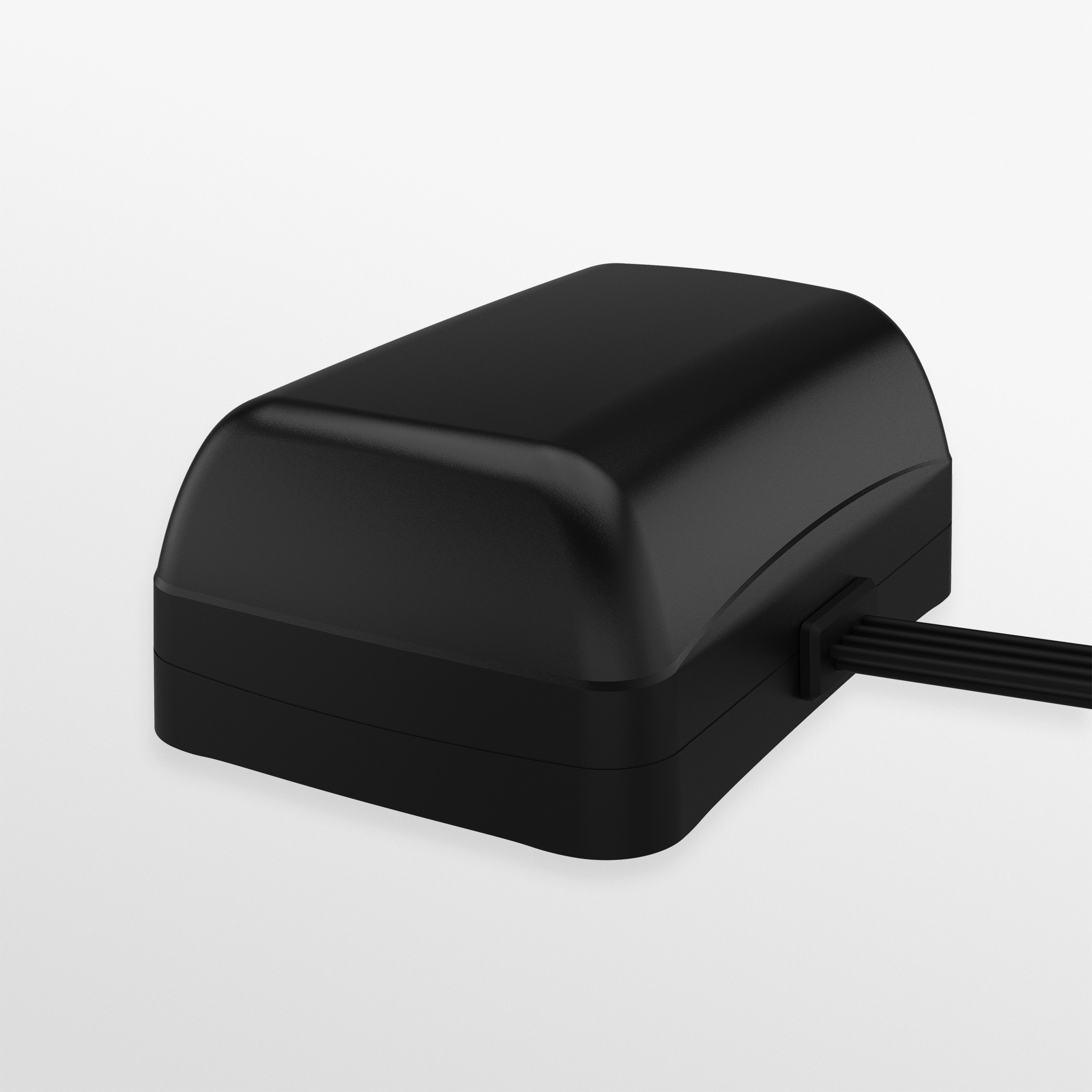

![L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXAXMM4-7-42-X-1-Black-Main-View.jpg "L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna")

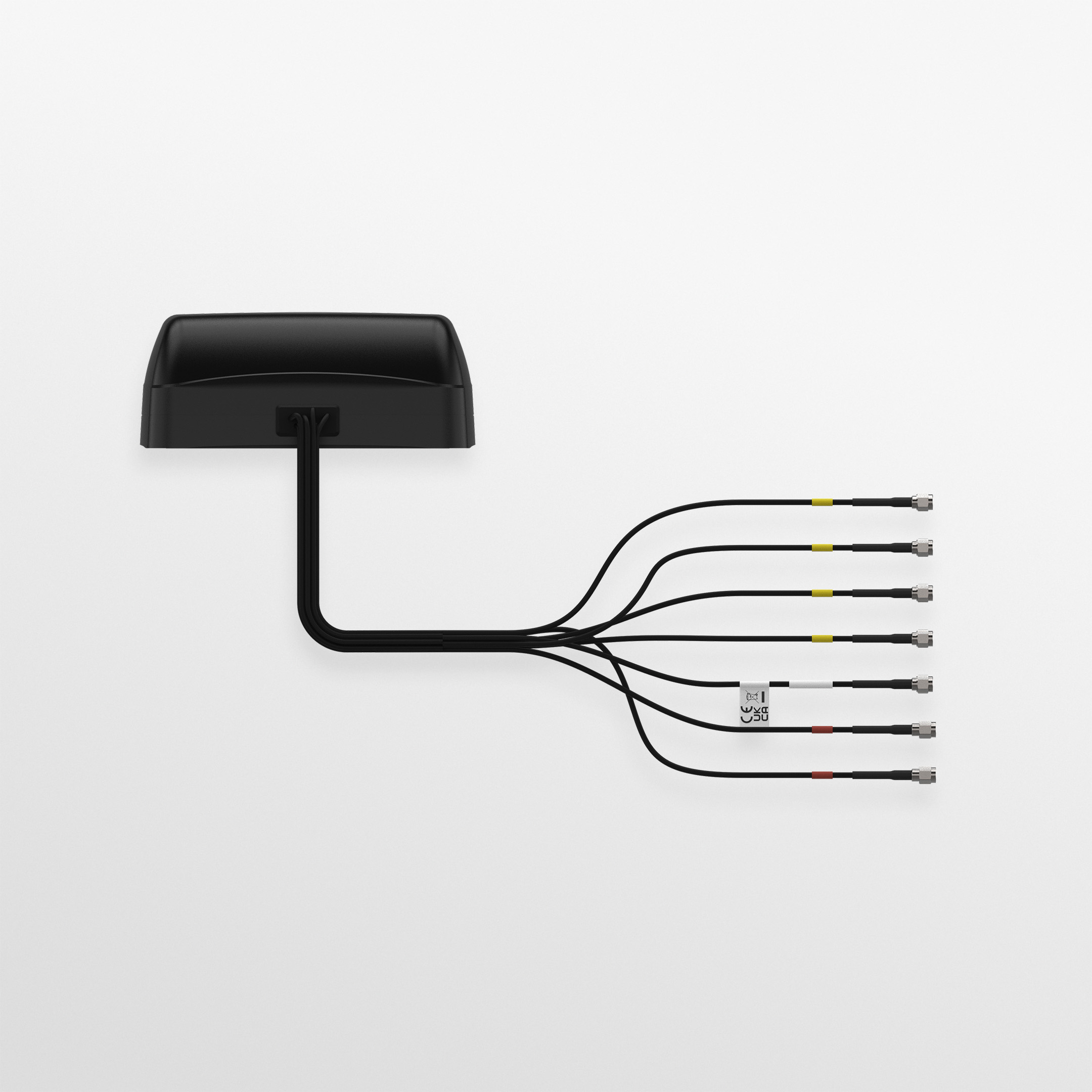

![L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXAXMM4-7-42-X-3-Black-Side-View.jpg "L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna")
L[X]A[X]MM4-7-42[-X] | Clam® 4X4 MiMo 4G/5G IOT Antenna
The robust low profile Clam® range now features a version for no-drill mounting. The L[X]A[X]MM4-7-42[-X] can be securely mounted either magnetically or using the supplied 3M VHB adhesive pad. The L[X]A[X]MM4-7-42[-X] retains all the functionality of the panel mount Clam® including 4×4 MiMo 4G/5G up to 4×4 MiMo WiFi 6e / 7 and L1 or L1/L5 GPS /GNSS. Supplied with side exit low loss FR CS30 cables (UN ECE R118 compliant) and with an IP65 and IK10 rating the L[X]A[X]MM4-7-42[-X] Clam® is a tough but flexible no drill solution for demanding applications.
Product overview
The robust low profile Clam® range now features a version for no-drill mounting. The L[X]A[X]MM4-7-42[-X] can be securely mounted either magnetically or using the supplied 3M VHB adhesive pad. The L[X]A[X]MM4-7-42[-X] retains all the functionality of the panel mount Clam® including 4×4 MiMo 4G/5G up to 4×4 MiMo WiFi 6e / 7 and L1 or L1/L5 GPS /GNSS. Supplied with side exit low loss FR CS30 cables (UN ECE R118 compliant) and with an IP65 and IK10 rating the L[X]A[X]MM4-7-42[-X] Clam® is a tough but flexible no drill solution for demanding applications.
Product Features
- Low Profile Magnetic / Adhesive IOT Antenna 4×4 MiMo 698-960/1427-4200MHz Up to 4×4 MiMo WiFi 6e (Optional) GPS/GNSS L1/L5 or L1 only 30dB / 26dB LNA (Optional) Meets IK10 and IP65
Benefits
- No drill installation Allows temporary mounting Robust IOT grade construction
Application
- 4G/5G IOT applications Private 4G /5G networks Vending machines and kiosks No-drill installation
Additional information
| Colour | Black |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, No |
| Cable Length | Between 1m & 3m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, Reverse Polarity SMA |
| Connector (GPS) | No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <2.5:1; < 2.5:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | No; 2 x 2 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 169.6 (mm) | 6.68 (in) |
| Width | 112.7 (mm) | 4.44 (in) |
| Height | 68.7 (mm) | 2.70 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 2 (m) | 6.56 (ft) |
| Cable length – GPS | 2 (m) | 6.56 (ft) |
| Cable Length – WIFI | 2 (m) | 6.56 (ft) |
| Cable Type (LTE) | CS30 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | CS30 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA |
| Connector (GPS) | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Hook/Loop or Adhesive; Magnetic |
| Mounting Methods | Hook/Loop or Adhesive; Magnetic |
| APPROVALS DATA | |
| IP Rating | IK10; IP65 |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G/4G; CBRS; GNSS; WIFI 6E; ESN; FirstNet |
