Description
The L[X]E antenna series is a range of low profile antenna in a robust compact housing, with a wideband cellular element covering 4G/5G frequencies from 617-960/ 1427-6000MHz.
Product
L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS
Model / SKU: L[X]E-6-60[-X]

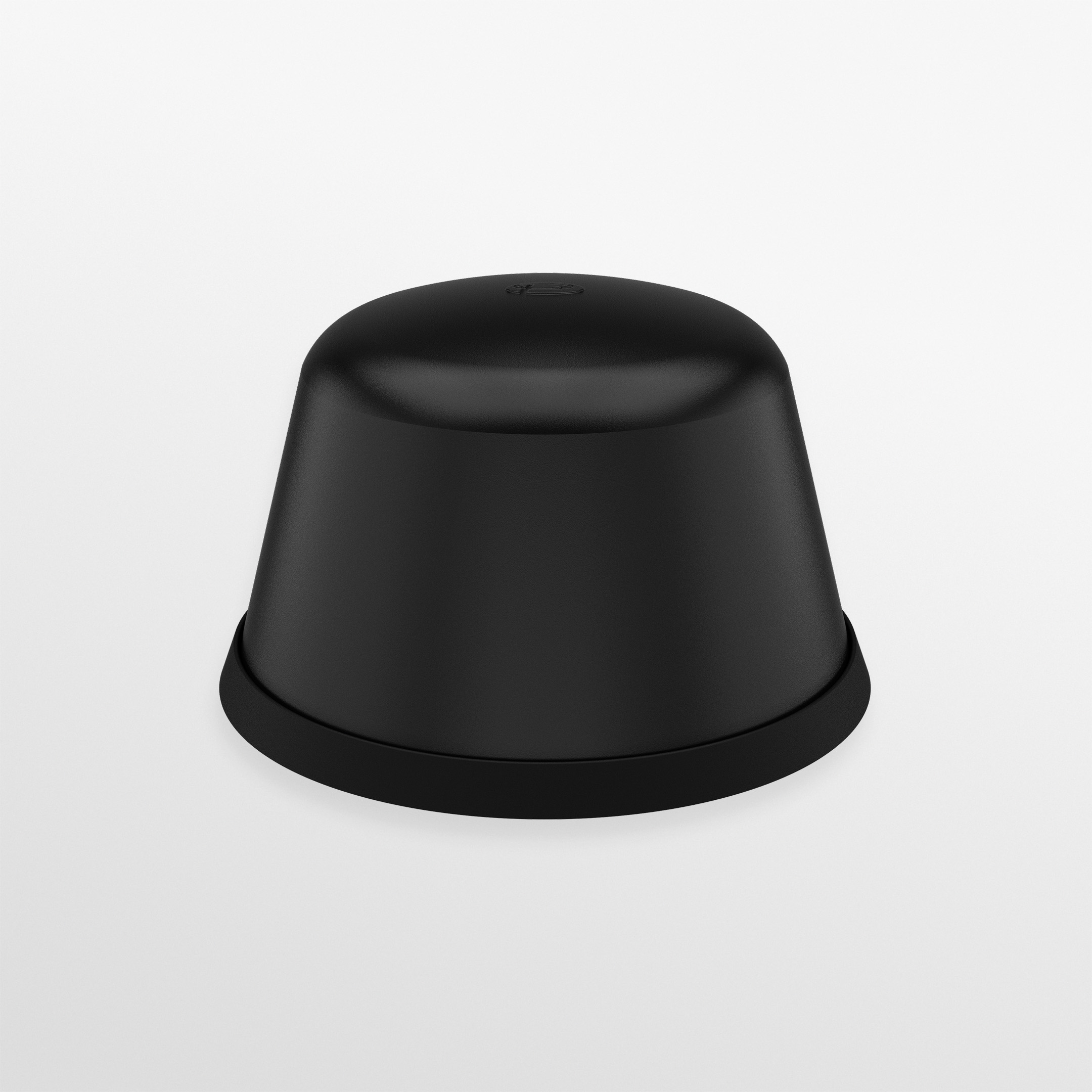

![L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXE-6-60-X-1-Black-Main-View.jpg "L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS")

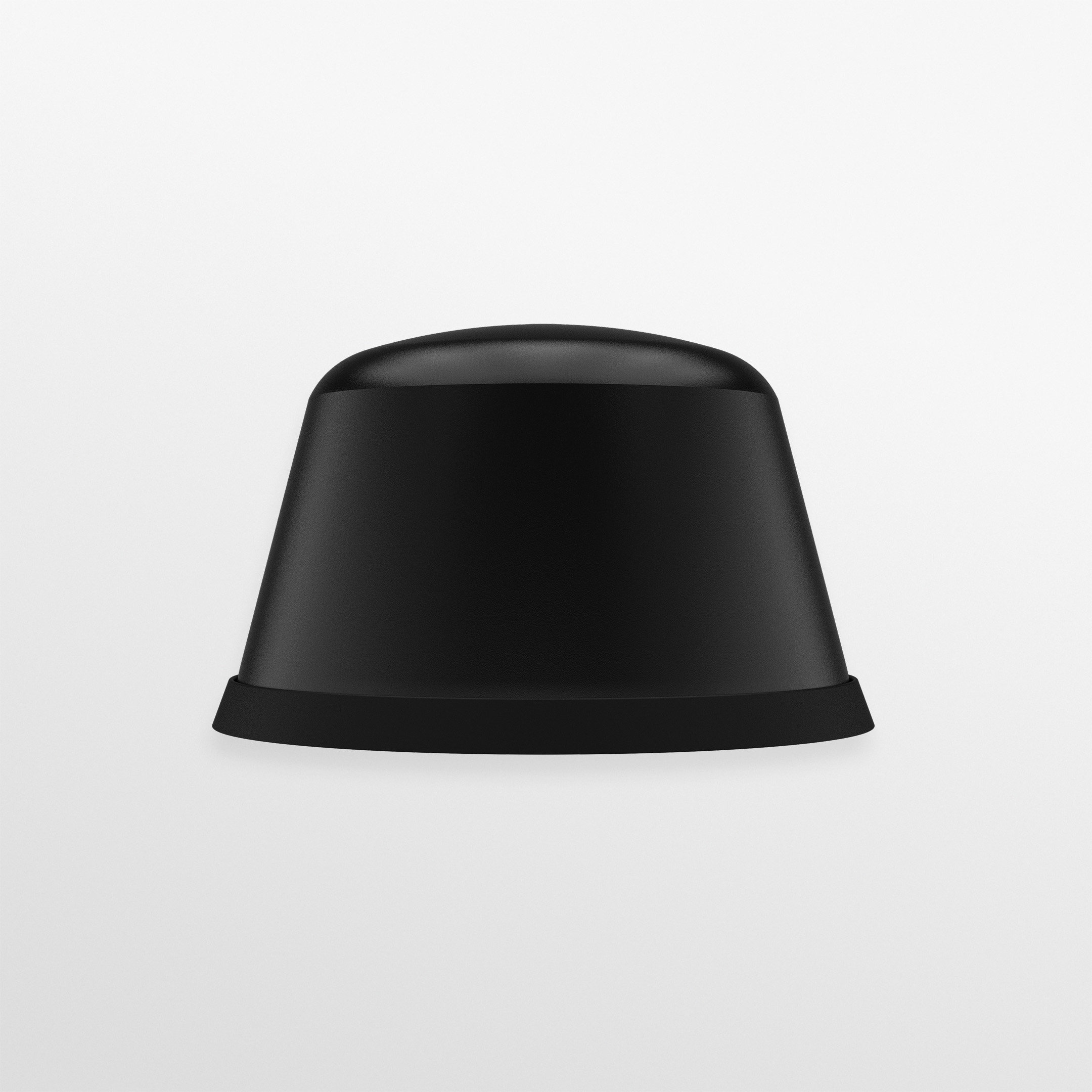

![L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXE-6-60-X-2-Black-Front-View.jpg "L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS")

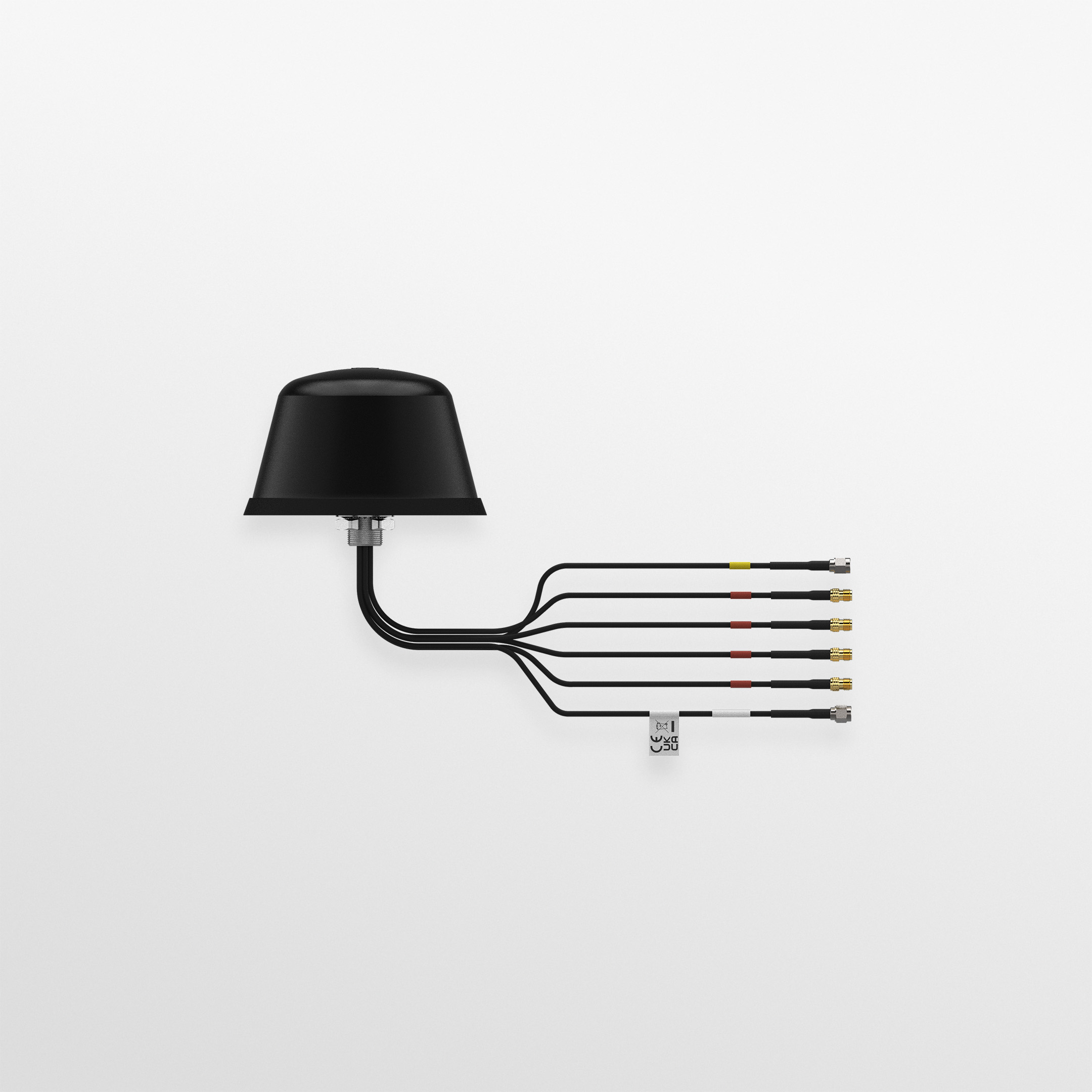

![L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXE-6-60-X-3-Black-Side-View.jpg "L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS")

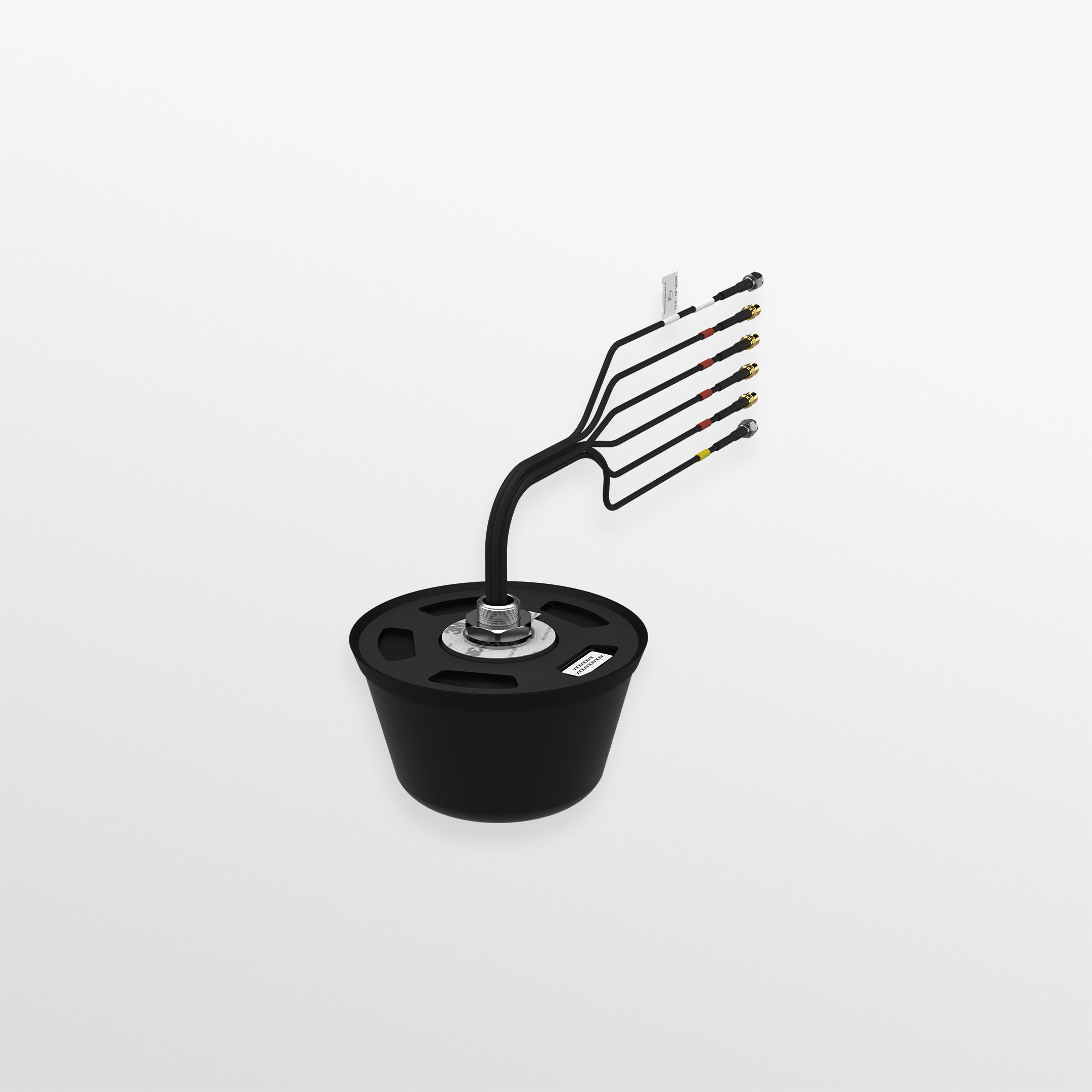

![L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXE-6-60-X-4-Black-Underside-View.jpg "L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS")
L[X]E-6-60[-X] | Low Profile 4G/5G antenna with WiFi and GPS
The L[X]E antenna series is a range of low profile antenna in a robust compact housing, with a wideband cellular element covering 4G/5G frequencies from 617-960/ 1427-6000MHz.
The LGE version incorporates an active GPS/GNSS antenna with a 26dB gain LNA and further variants can feature one to four dual band WIFI 6e elements.
Designed to be tough yet cost effective, the antennas are housed in a IP69K / IK10 rated enclosure, moulded in LEXAN for effective impact resistance. The range is supplied with short fly leads and can be kitted with Panorama Antennas’ low loss extension cables in various length and connector configurations.
This antenna does not require a ground plane for use above 698MHz and maintains a high level of performance even when mounted on a non-metallic surface.
Product overview
The L[X]E antenna series is a range of low profile antenna in a robust compact housing, with a wideband cellular element covering 4G/5G frequencies from 617-960/ 1427-6000MHz.
The LGE version incorporates an active GPS/GNSS antenna with a 26dB gain LNA and further variants can feature one to four dual band WIFI 6e elements.
Designed to be tough yet cost effective, the antennas are housed in a IP69K / IK10 rated enclosure, moulded in LEXAN for effective impact resistance. The range is supplied with short fly leads and can be kitted with Panorama Antennas’ low loss extension cables in various length and connector configurations.
This antenna does not require a ground plane for use above 698MHz and maintains a high level of performance even when mounted on a non-metallic surface.
Product Features
- Rugged low profile design SiSo wideband 4G/5G element Optional up to 4×4 MiMo WiFi Optional GPS/GNSS element
Benefits
- Ingress protected to IP69K Impact resistant – IK10 Easy to install Doesnt require a ground plane
Application
- Mass transit – bus and coach Mobile applications First responders Vending machines and kiosks
Additional information
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 4 x 4 MIMO, No |
| Cable Length | Below 1m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, SMA (f) |
| Connector (GPS) | FME (f), No Connector |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 50 |
| Typical VSWR | 2.5:1; <2.5:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | SiSo |
| WIFI Elements | 2 x 2 MIMO; 4 x 4 MIMO; No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26dB; 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 75 (mm) | 2.95 (in) |
| Diameter | 123 (mm) | 4.84 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 0.3 (m) | 0.98 (ft) |
| Cable length – GPS | 0.3 (m) | 0.98 (ft) |
| Cable Length – WIFI | 0.3 (m) | 0.98 (ft) |
| Cable Type (LTE) | FR RG174 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR RG174 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f) |
| Connector (GPS) | FME (f) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IK10; IP69K |
| Cable Flammability | UN ECE R118 |
| Material Flammability | UL746C-F1, UL94-V0 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; ESN; FirstNet; GNSS; LoRa; WIFI MIMO; WIFI; WIFI 6E |
