L[X]M2-7-27[-X] | Low-Profile MiMo 4G Antenna

Model / SKU: L[X]M2-7-27[-X]

L[X]M2-7-27[-X] | Low-Profile MiMo 4G Antenna

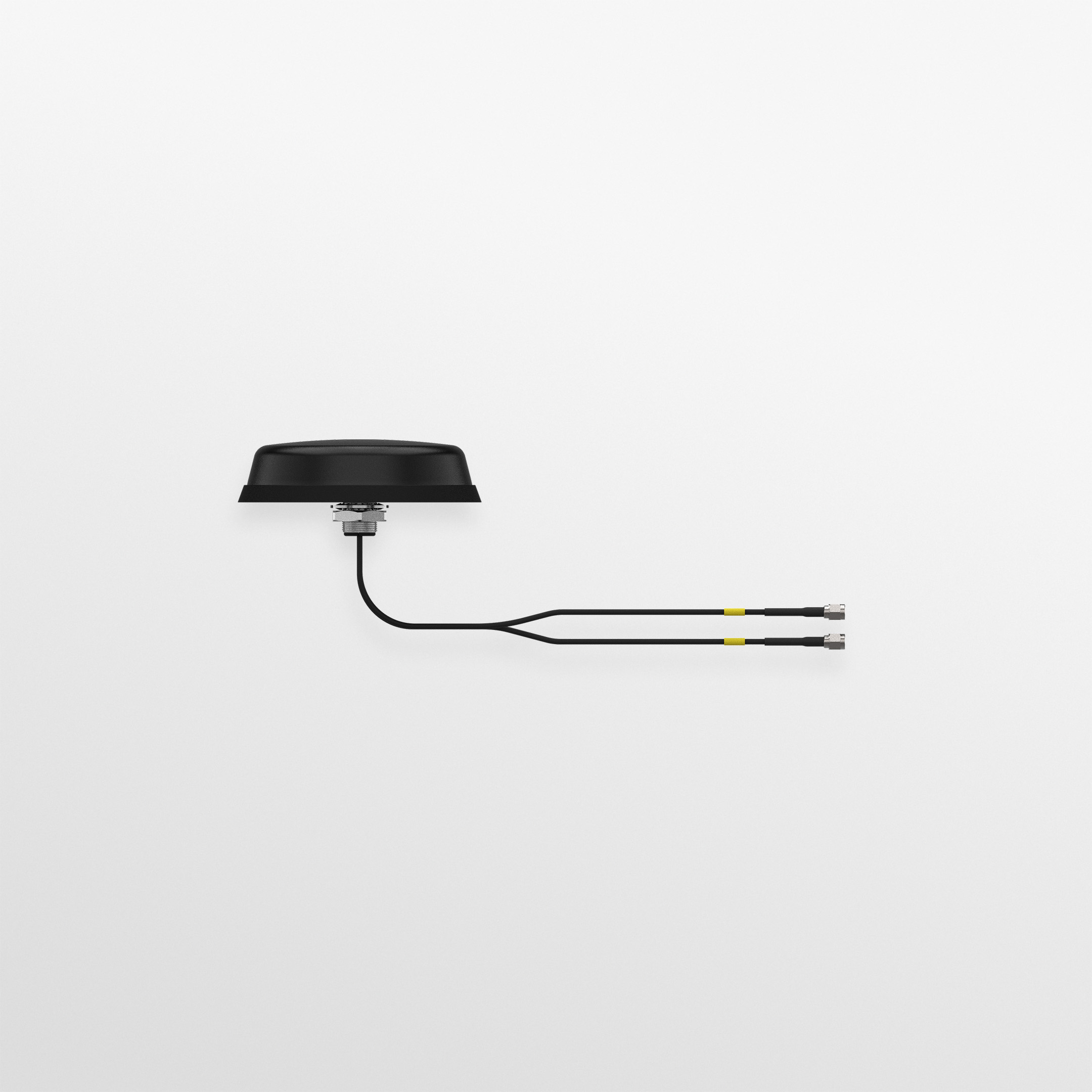

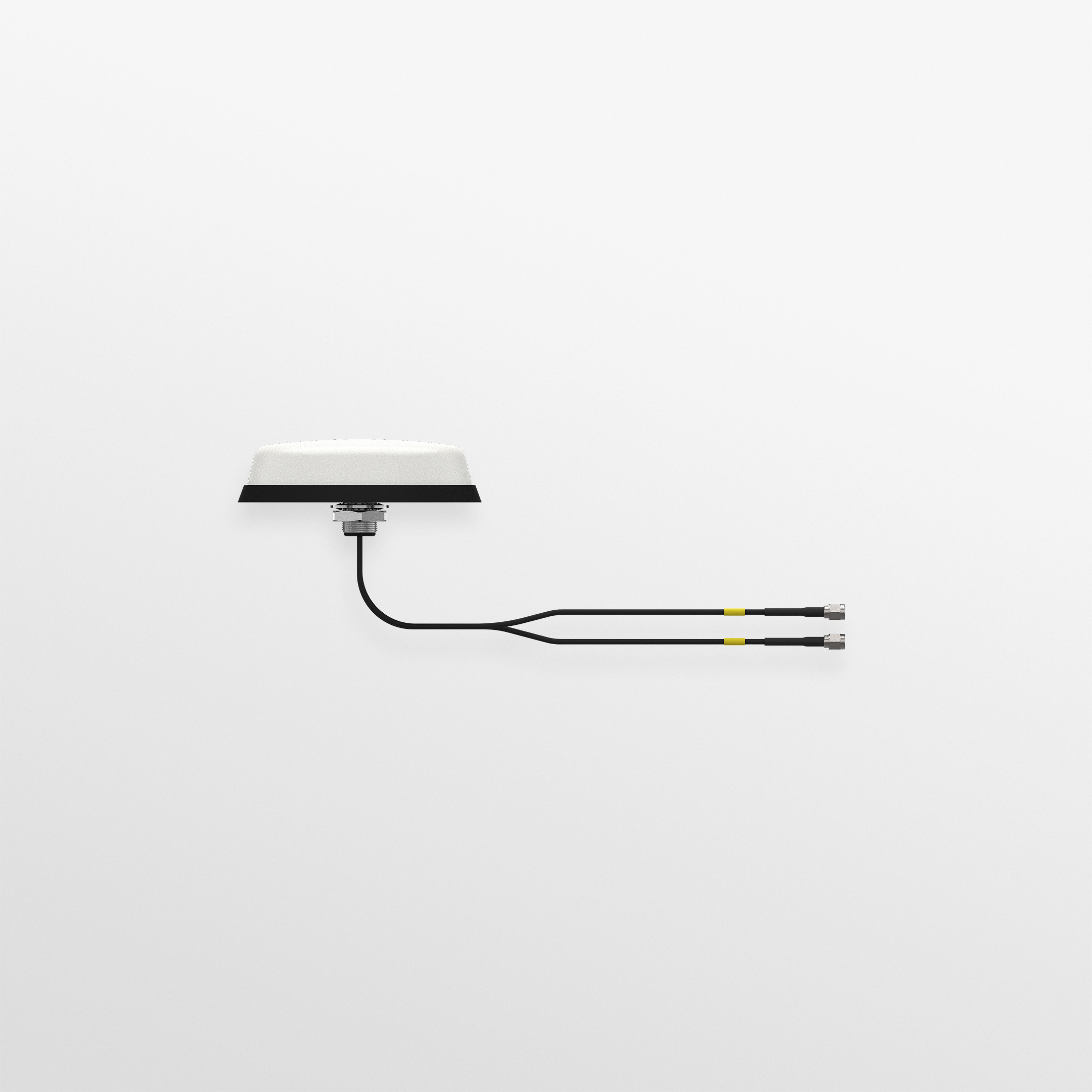

The L[X]M2-7-27-[X] antenna range has been designed to provide 2×2 MiMo 617-960/1427-4200MHz along with optional SiSo or 2×2 MiMo 2400-2485/5150-6000MHz WiFi and optional GPS/GNSS 1562-1612 MHz 26db LNA in an ultra low profile package. The compact, robust, low-profile housing is weatherproof and impact resiststant.

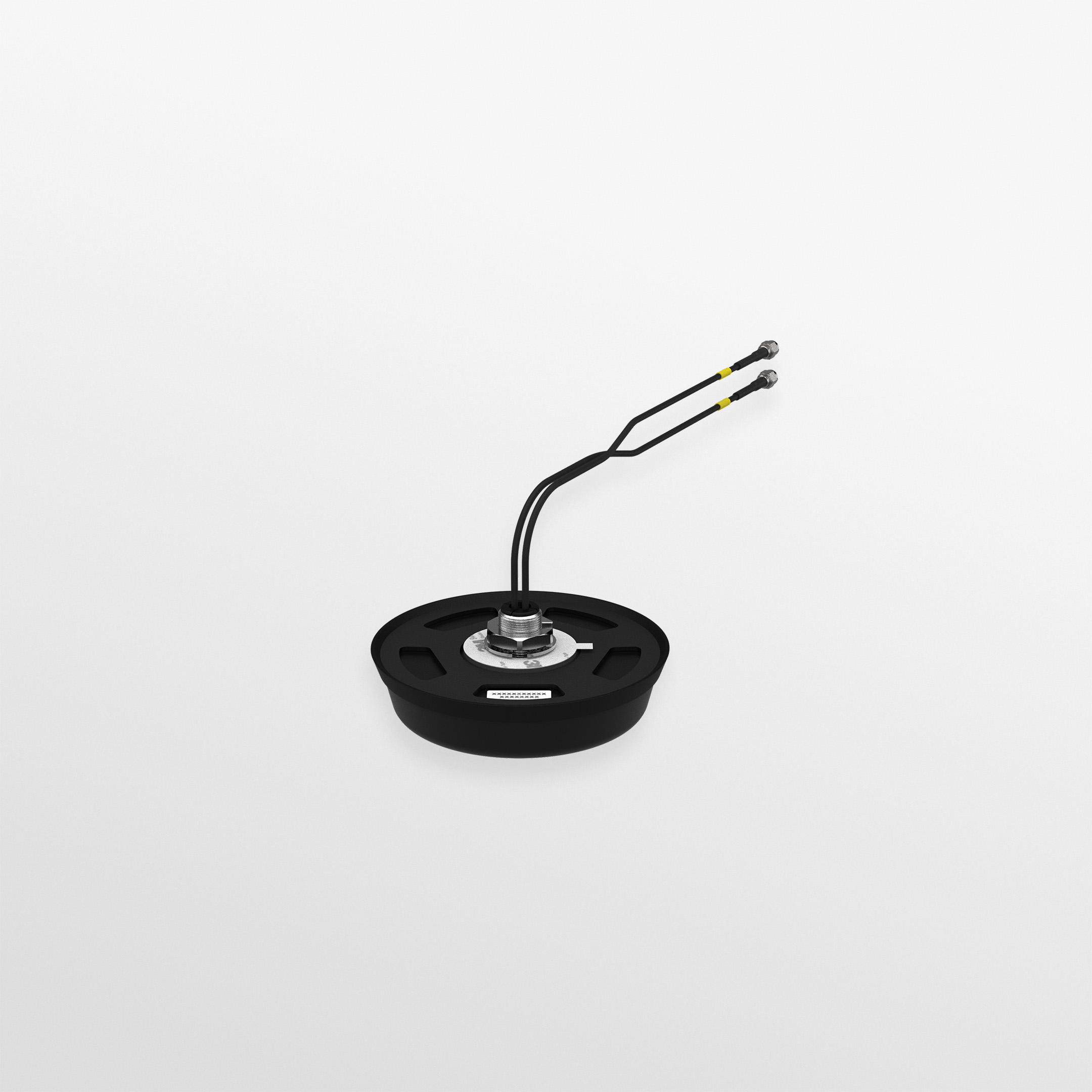

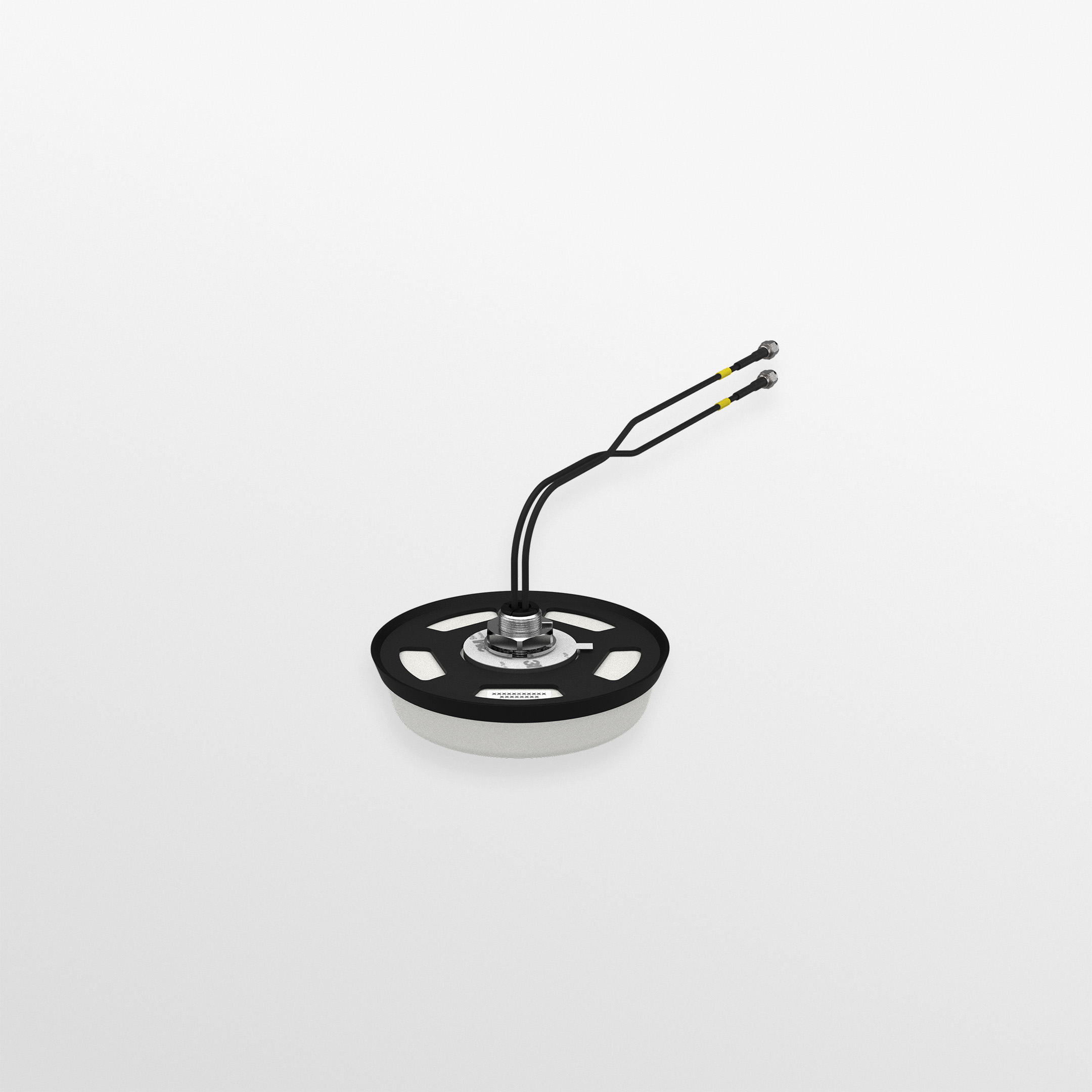

The antenna is designed to be panel mounted. Supplied with integrated flame retardant CS30 (Compliant to UN ECE 118.03) cables and SMA plug connectors (SMA Rev Pol for WiFi where applicable), the antenna will offer plug and play connectivity with many different routers and modems.

The antenna is supplied in black flame retardant LEXAN EXL9330 plastic as standard.

The product is engineered specifically for installation on a non-conductive ground plane and performance will be detrimentally affected across 617-960MHz by installation on a metallic or conductive panel.

Description

Product overview

The antenna is supplied in black flame retardant LEXAN EXL9330 plastic as standard.

Product Features

2×2 MiMo 698-960/1427-2700MHz Optional SiSo or 2×2 MiMo WiFi Optional GPS/GNSS Ultra Low Profile -30mm high IP69K and IK10 Rated

Benefits

Very low profile – low visual impact Vandal resistant -IK10 impact rating Ingress protected to IP69K UV protected and weatherproof

Application

IOT Applications Vending machines, ATMs, street furniture Electric vehicle chargers Exposed locations

Additional information

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module, No
WIFI MIMO	2 x 2 MIMO, No
Cable Length	Between 1m & 3m
Connector (LTE)	SMA (m)
Connector (WIFI)	No Connector, Reverse Polarity SMA, SMA Rev Pol
Connector (GPS)	No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	5
Typical VSWR	<2.5:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No; 2 x 2 MIMO
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26dB
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	Black
Height	32 (mm) \| 1.26 (in)
Diameter	123 (mm) \| 4.84 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	2 (m) \| 6.56 (ft)
Cable Type (LTE)	CS30; FR RG174
Cable Type (GPS)	FR RG174
Cable Type (WIFI)	CS30
TERMINATION DATA
Connector (WIFI)	Reverse Polarity SMA; SMA Rev Pol
Connector (GPS)	SMA (m)
Connector (LTE)	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Methods	Panel
APPROVALS DATA
IP Rating	IK10; IP69K
Cable Flammability	UN ECE R118
TECHNOLOGY DATA
Technology	GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; GNSS; WIFI 6E; WIFI SISO; 2G/3G; Bluetooth

Available selections

Colour	Black
4G/5G	2 x 2 MIMO
GPS	No
WIFI MIMO	No
Cable Length	Between 1m & 3m
Connector (LTE)	SMA (m)
Connector (WIFI)	No Connector
Connector (GPS)	No Connector

Models and configurations

LGDM2-7-27-2	Black \| 617 – 960MHz; 1427 – 4200MHz \| \| 2 x 2 MIMO \| 1 Module \| 2 x 2 MIMO
2mm	2mm \| 2mm
SMA (m)	SMA (m) \| Reverse Polarity SMA
LGM2-7-27-2SP	Black \| 617 – 960MHz; 1427 – 4200MHz \| \| 2 x 2 MIMO \| 1 Module \| No
2mm	2mm
SMA (m)	SMA (m)
LGSM2-7-27-2	Black \| 617 – 960MHz; 1427 – 4200MHz \| \| 2 x 2 MIMO \| 1 Module \| Yes
2mm	2mm \| 2mm
SMA (m)	SMA (m) \| SMA Rev Pol
LPDM2-7-27-2	Black \| 617 – 960MHz; 1427 – 4200MHz \| \| 2 x 2 MIMO \| No \| 2 x 2 MIMO
2mm	2mm
SMA (m)	SMA Rev Pol
LPM2-7-27-2SP	Black \| 698 – 960MHz \| 2dBi; 1427 – 2700MHz \| 5dBi \| 2 x 2 MIMO \| No \| No 2m SMA (m)
LPSM2-7-27-2	Black \| 617 – 960MHz; 1427 – 4200MHz; 2400 – 2485MHz; 5150 – 5925MHz \| \| 2 x 2 MIMO \| No \| Yes
2mm	2mm
SMA (m)	Reverse Polarity SMA
