Description
The L[X]M[X]-24-72-[X] range has been designed to provide an optimised antenna solution for WiFi 6e / 7 and some 5G applications requiring 2×2, 3×3 or 4×4 MiMo capability in a low profile package.
Product
L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna
Model / SKU: L[X]M[X]-24-72-[X]

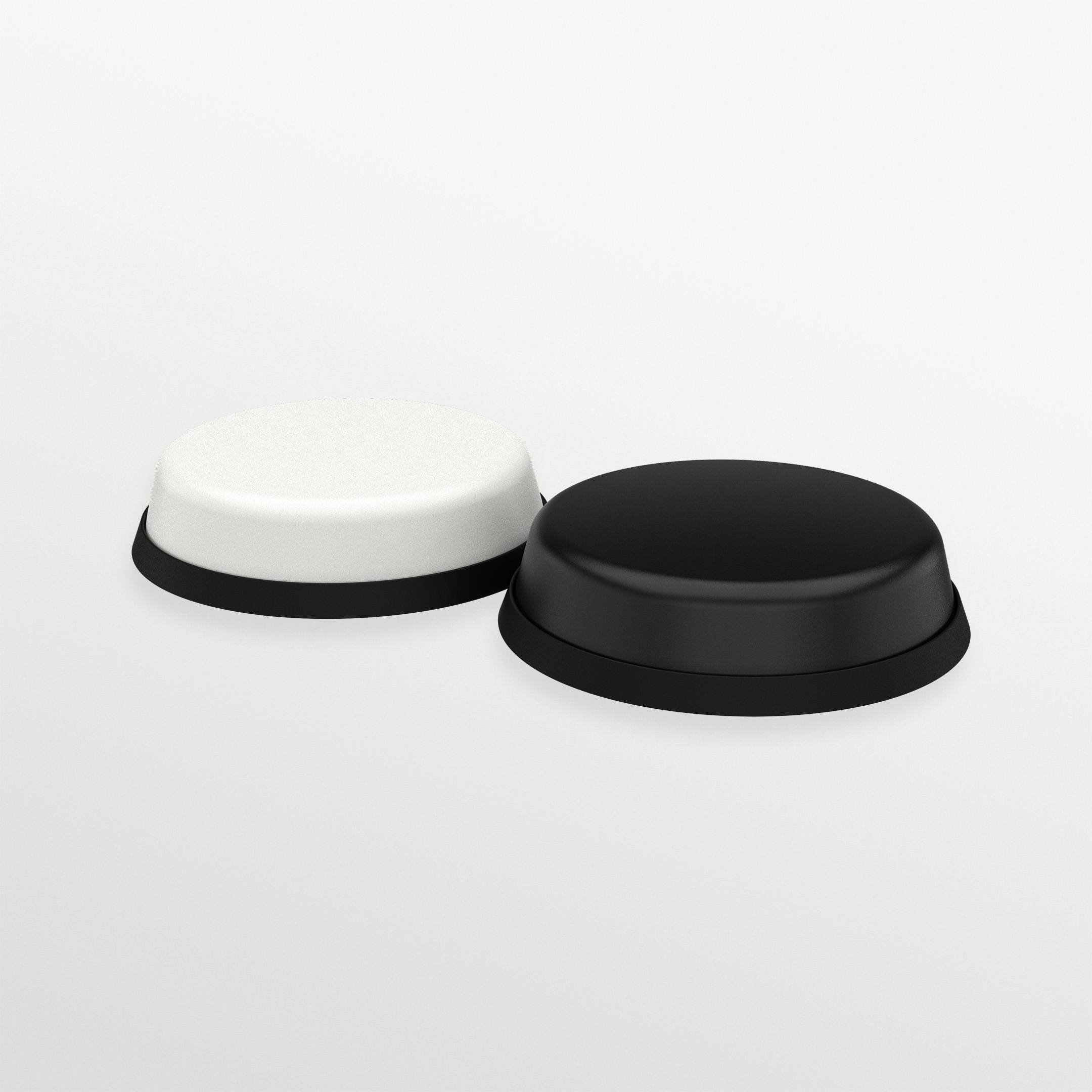

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-Black-and-White.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

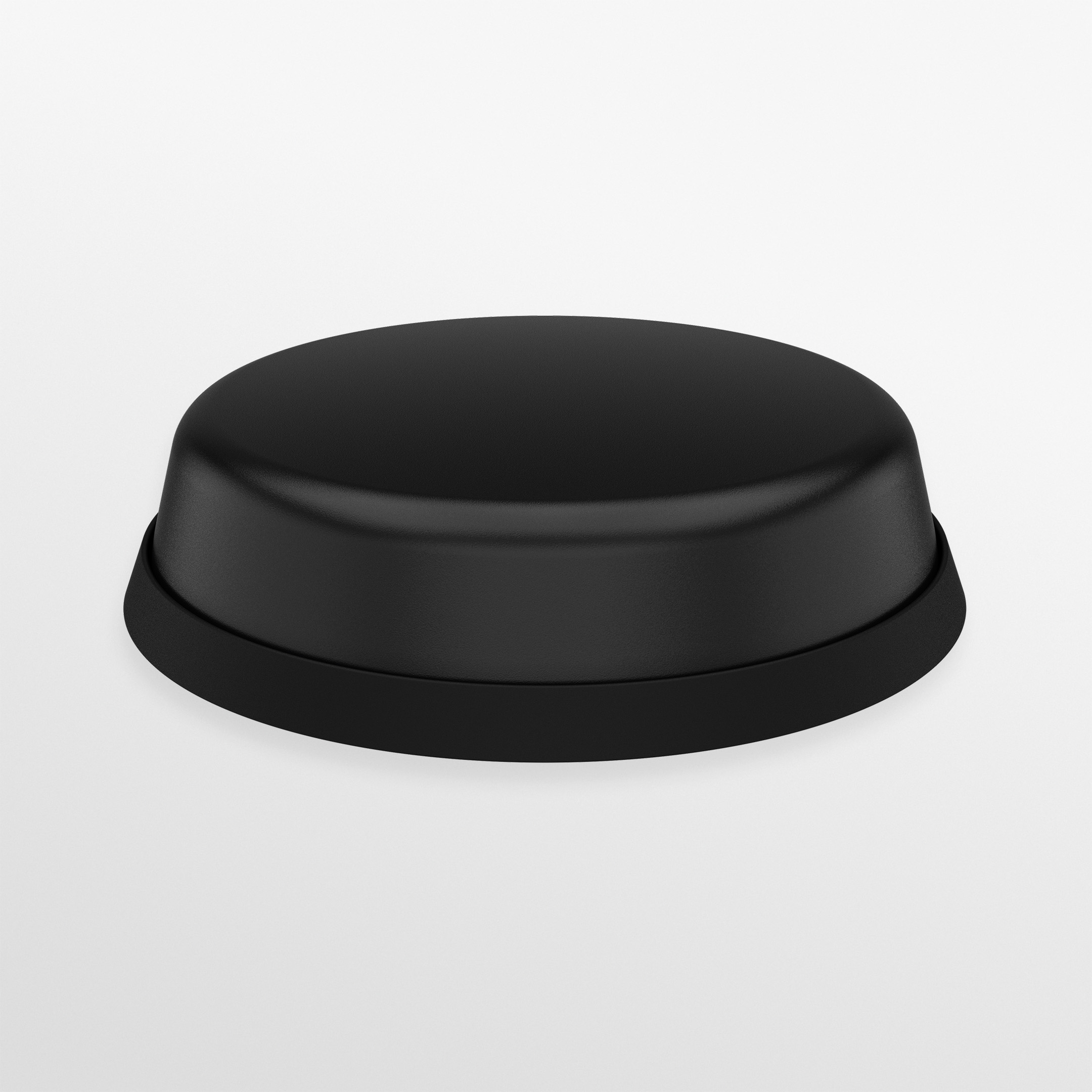

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-1-Black-Main-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

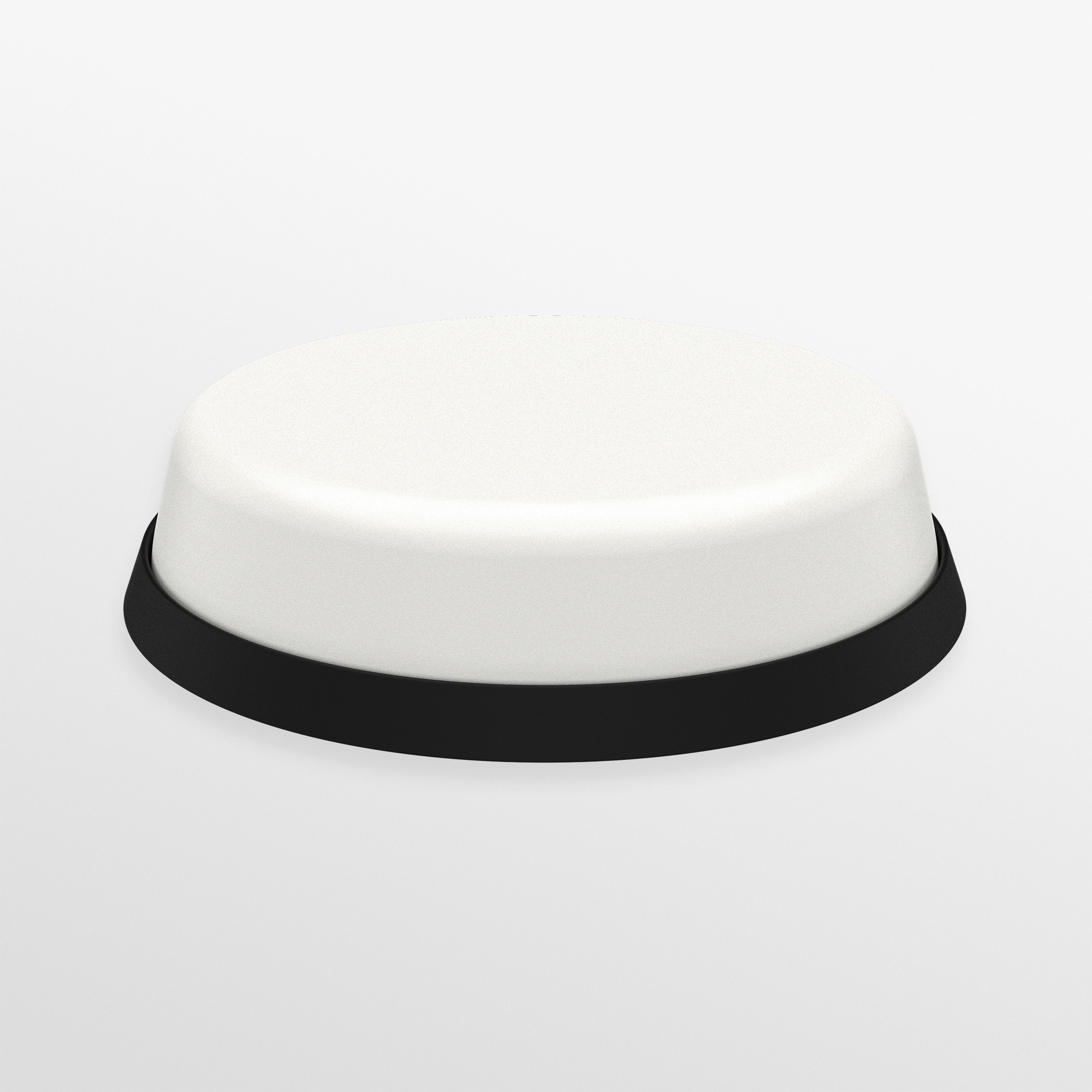

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-2-White-Main-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

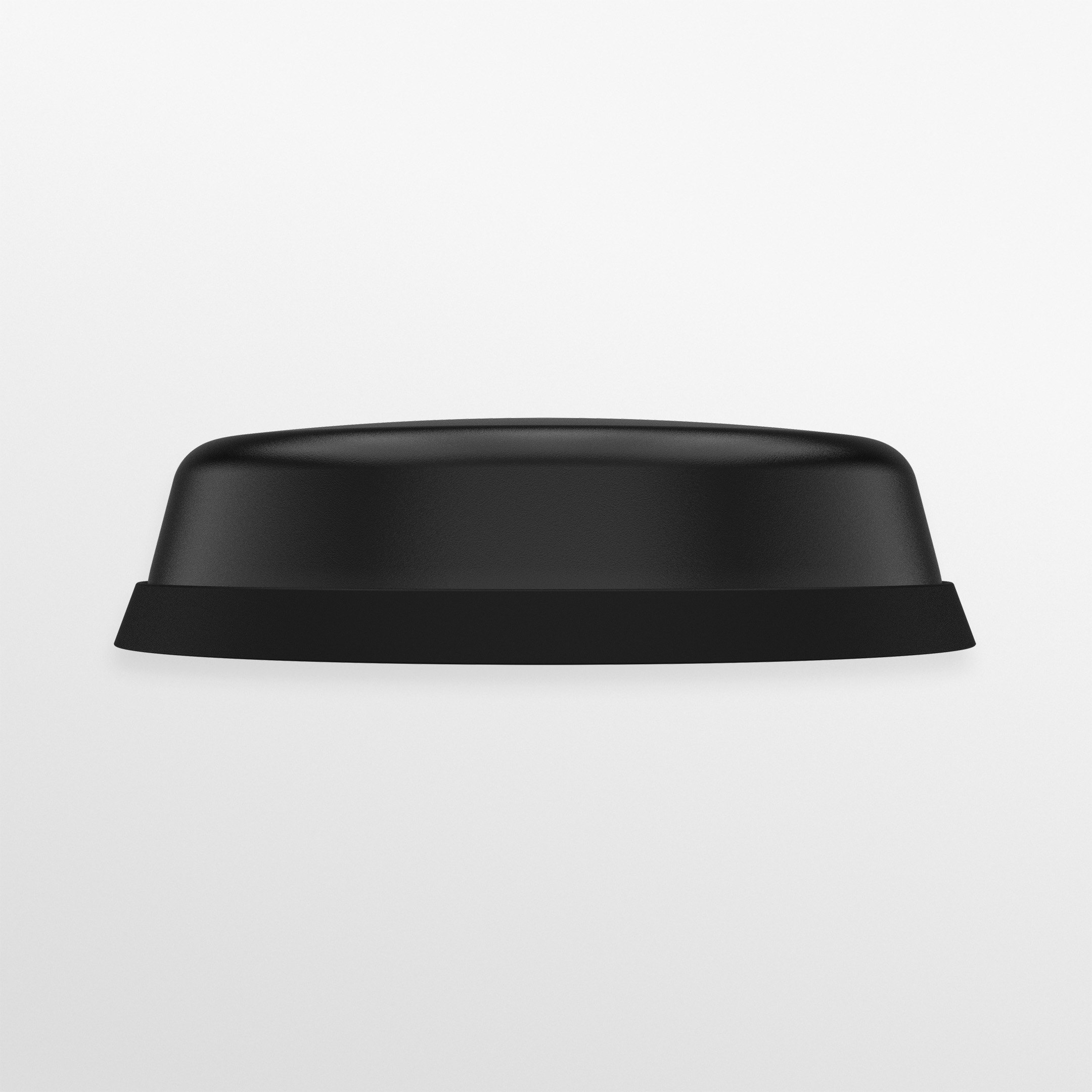

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-3-Black-Front-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

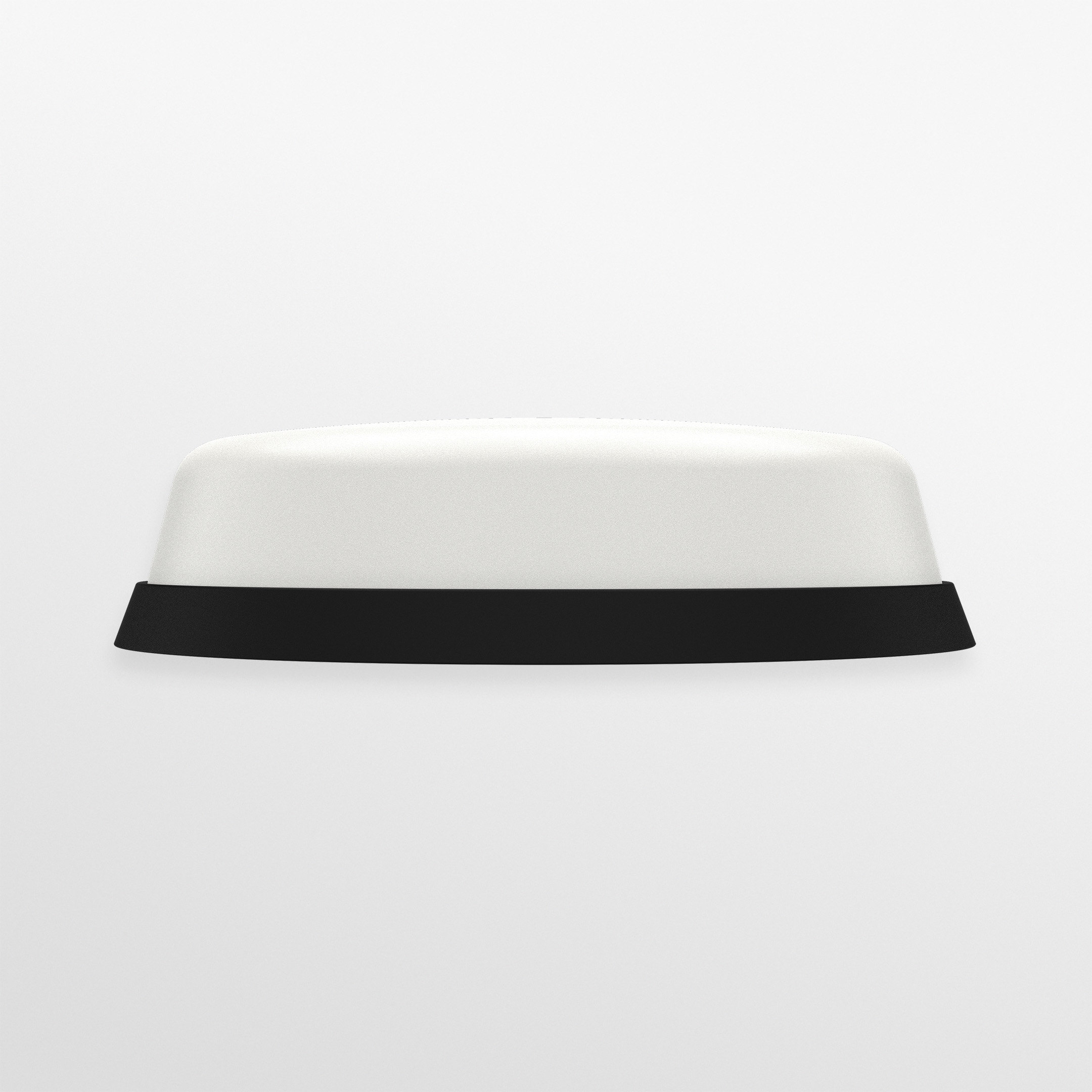

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-4-White-Front-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

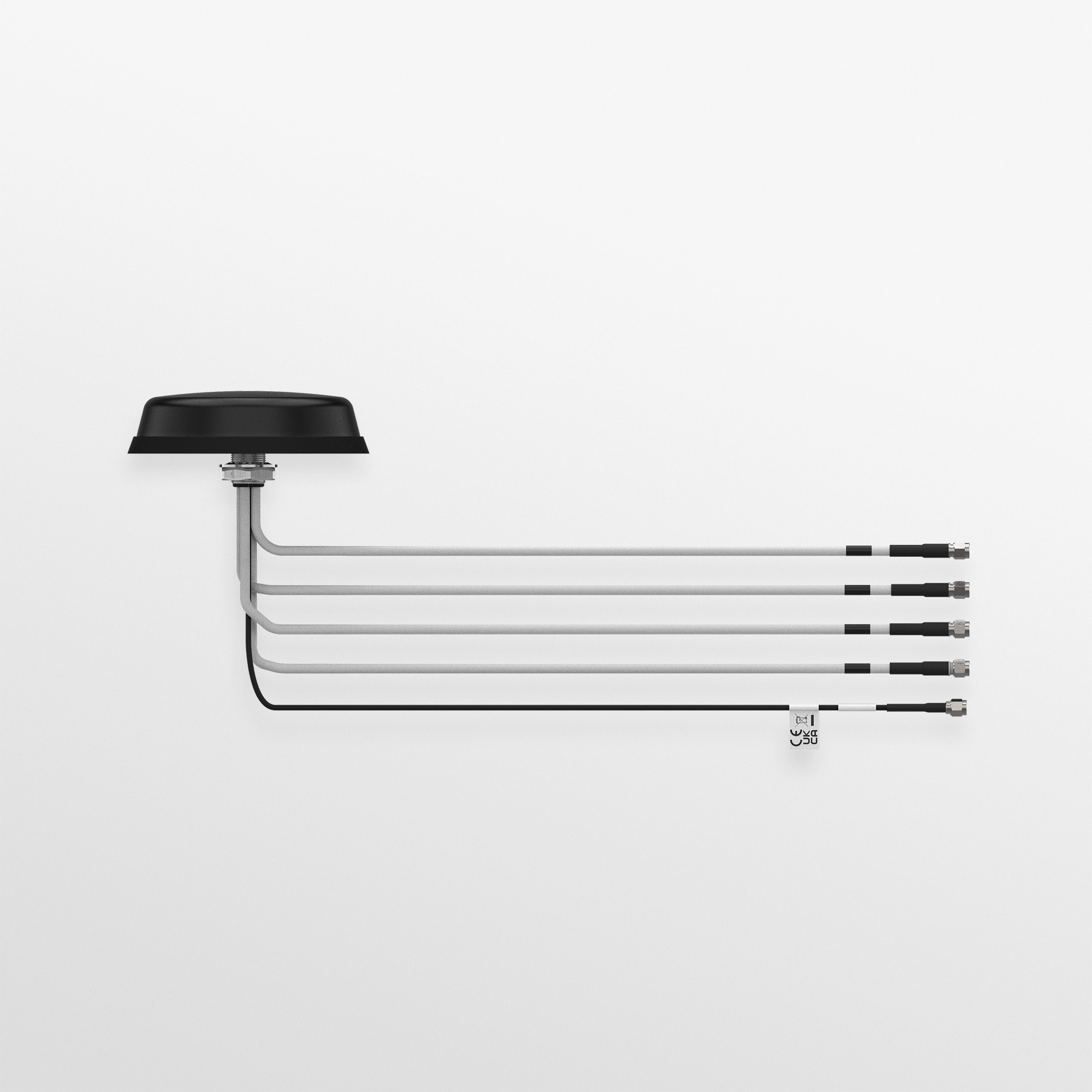

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 6](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-5-Black-Side-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

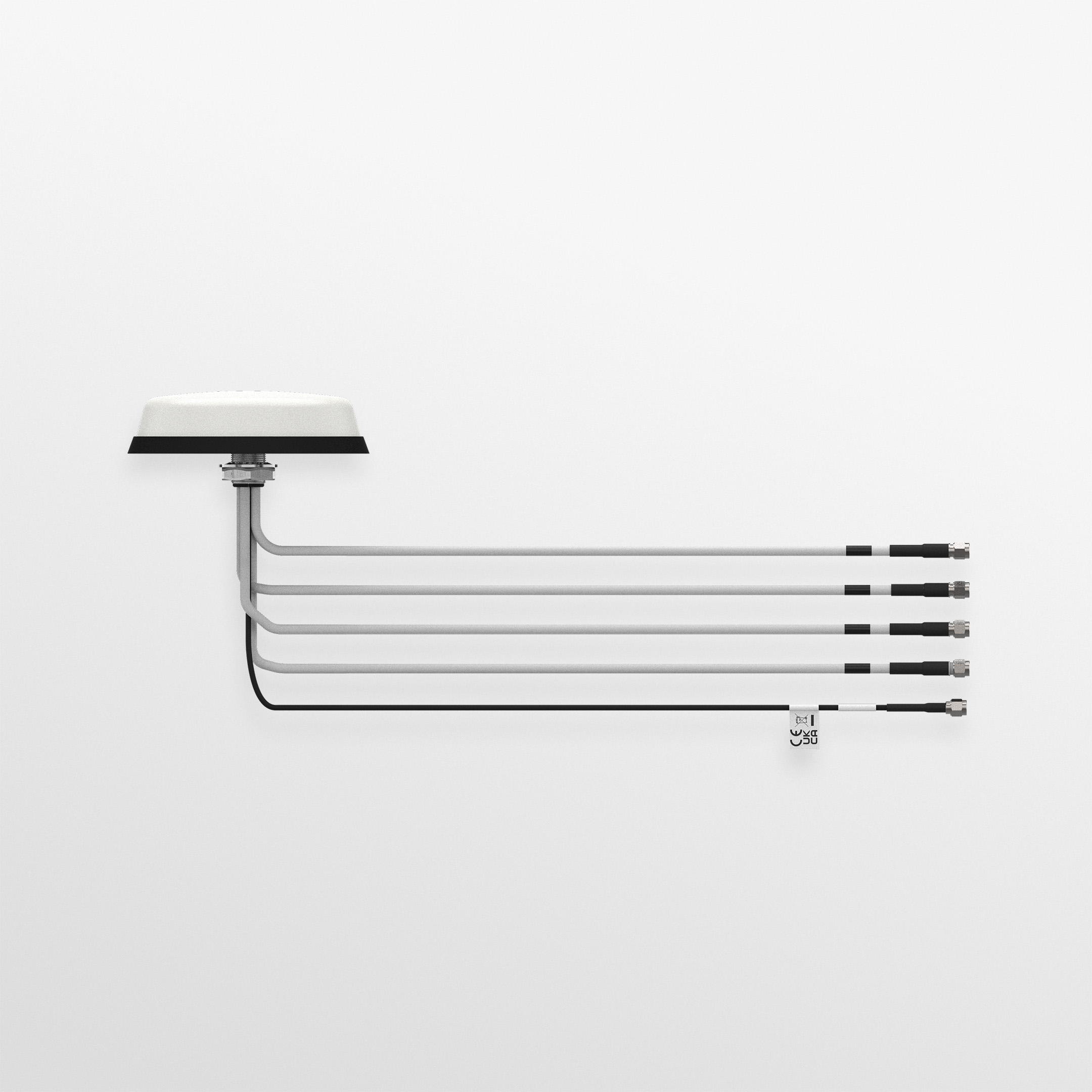

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 7](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-6-White-Side-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

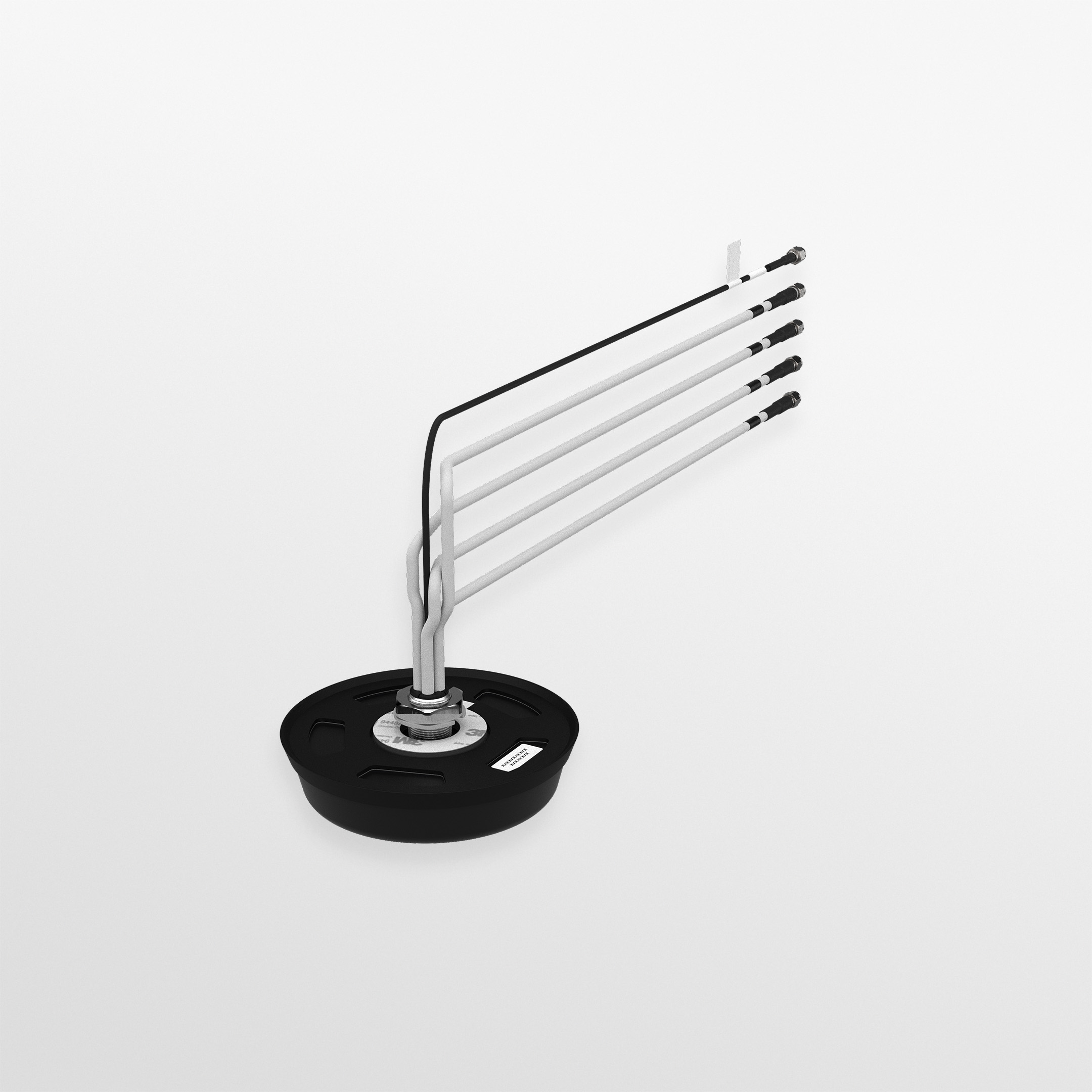

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 8](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-7-Black-Underside-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")

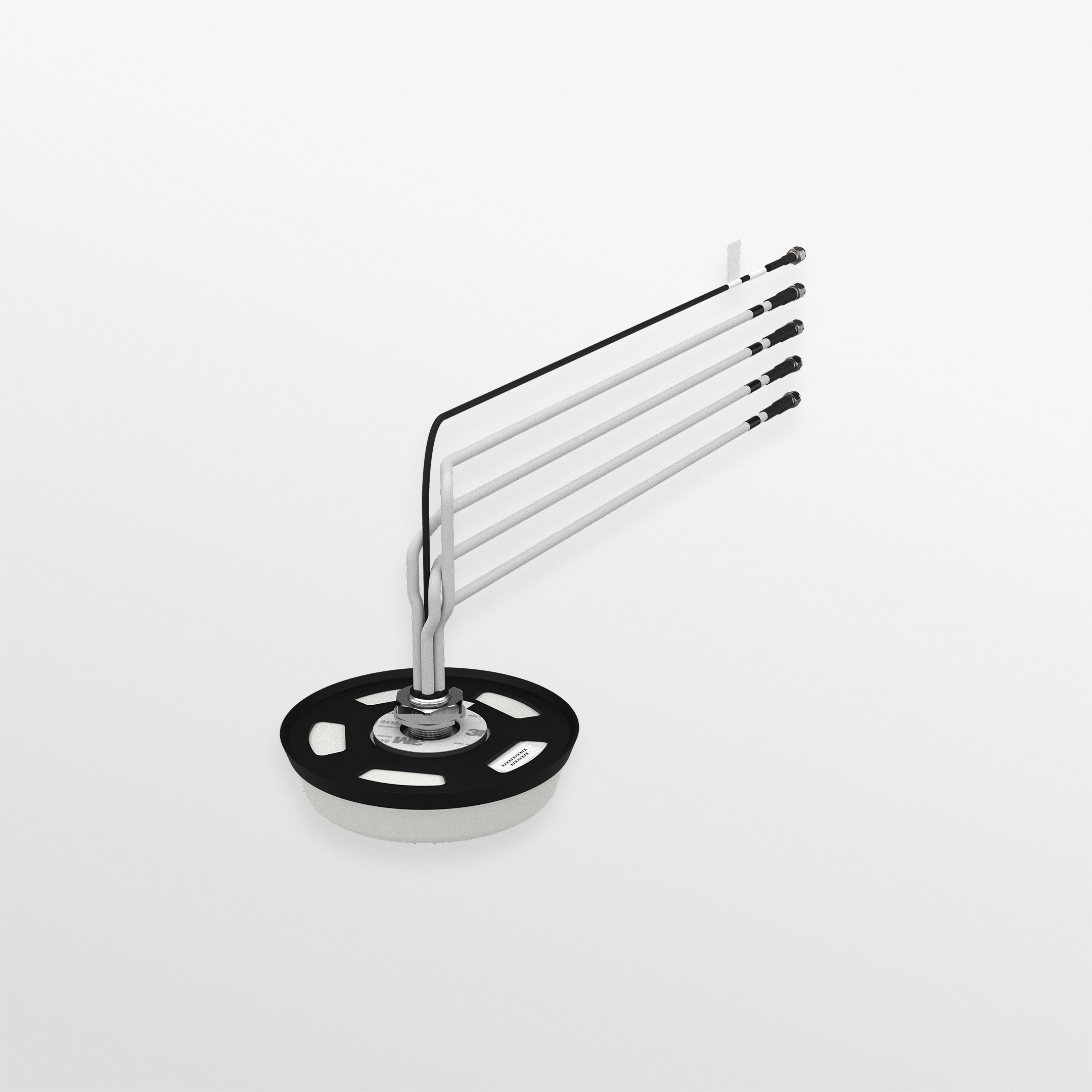

![L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna - Image 9](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LXMX-24-72-X-8-White-Underside-View.jpg "L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna")
L[X]M[X]-24-72-[X] | Low Profile WiFi / 5G MiMo Antenna
The L[X]M[X]-24-72-[X] range has been designed to provide an optimised antenna solution for WiFi 6e / 7 and some 5G applications requiring 2×2, 3×3 or 4×4 MiMo capability in a low profile package.
The compact, robust, low-profile housing contains up to four elements covering WiFi 6e, 4G and 5G frequencies from 2396-7125MHz with optimised isolation and low correlation co-efficient.
The antenna can be fitted on a conductive or non-conductive panel for device mounted, fixed site or vehicle applications.
The antenna is supplied with integrated flame retardant CS32 cables (Compliant to UN ECE R 118 and EN45545-2) and a halogen free flame retardant radome which is ingress protected to IP69K and vandal resistant to IK10 when correctly installed.
Product overview
The L[X]M[X]-24-72-[X] range has been designed to provide an optimised antenna solution for WiFi 6e / 7 and some 5G applications requiring 2×2, 3×3 or 4×4 MiMo capability in a low profile package.
The compact, robust, low-profile housing contains up to four elements covering WiFi 6e, 4G and 5G frequencies from 2396-7125MHz with optimised isolation and low correlation co-efficient.
The antenna can be fitted on a conductive or non-conductive panel for device mounted, fixed site or vehicle applications.
The antenna is supplied with integrated flame retardant CS32 cables (Compliant to UN ECE R 118 and EN45545-2) and a halogen free flame retardant radome which is ingress protected to IP69K and vandal resistant to IK10 when correctly installed.
Product Features
- Low Profile Covers WiFi, 4G and 5G frequencies from 2.3-7.2GHz 2×2, 3×3 or 4×4 MiMo IP69K and IK10
Benefits
- Low Profile, vandal resistant housing Flame retardant, halogen free materials Internal or external use Highly efficient wideband elements Small footprint
Application
- WiFi, 5G and P-LTE Industry, smart agriculture, kiosks and devices Mass transit WiFi
Additional information
| Colour | Black, White |
|---|---|
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO |
| Cable Length | Below 1m, Between 1m & 3m, Between 5m & 10m |
| Connector (LTE) | No Connector, SMA (m) |
| Connector (WIFI) | N (f), No Connector, QMA Plug (m), Reverse Polarity SMA, Right Angled N, SMA (m), SMA Rev Pol |
| Connector (GPS) | No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Typical VSWR | <2:1; < 2:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | 4 x 4 MIMO; 2 x 2 MIMO; 3 x 3 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26dB; 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black; White |
| Height | 32 (mm) | 1.26 (in) |
| Diameter | 123 (mm) | 4.84 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 5 (m) | 16.40 (ft) |
| Cable length – GPS | 5 (m) | 16.40 (ft) |
| Cable Length – WIFI | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR CS32; CS32 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR CS32 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA Rev Pol; Reverse Polarity SMA; SMA (m); N (f); QMA Plug (m); Right Angled N |
| Connector (GPS) | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Type Temp | Body Worn |
| Mounting Methods | Panel; Body Worn |
| APPROVALS DATA | |
| IP Rating | IK10; IP69K |
| Cable Flammability | EN45545-2 HL3; UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; WIFI; 5G; CBRS; GNSS; WIFI 6E; AM/FM |
