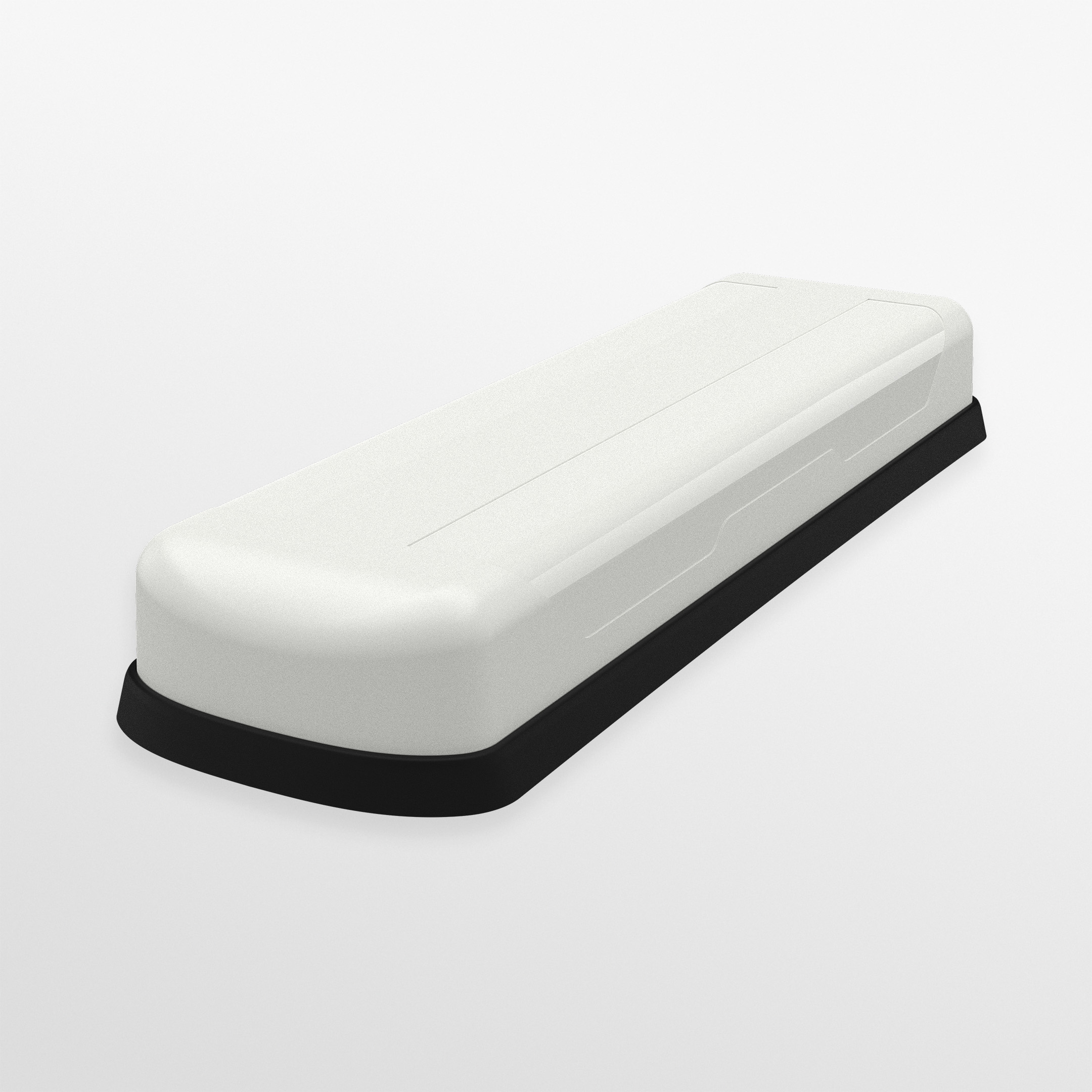

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna

Model / SKU: L[X]M[X]M8[X]-6-60

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna

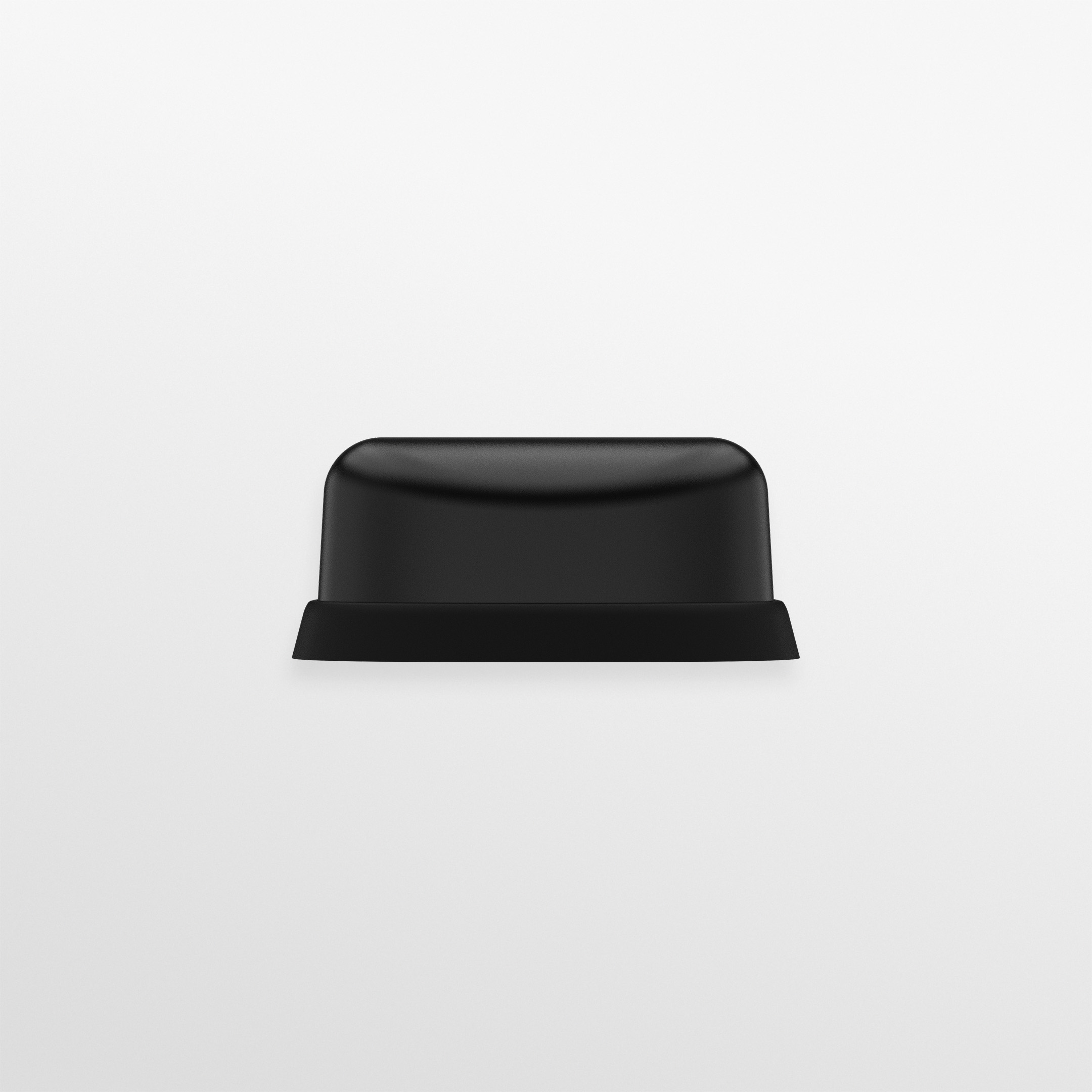

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 2

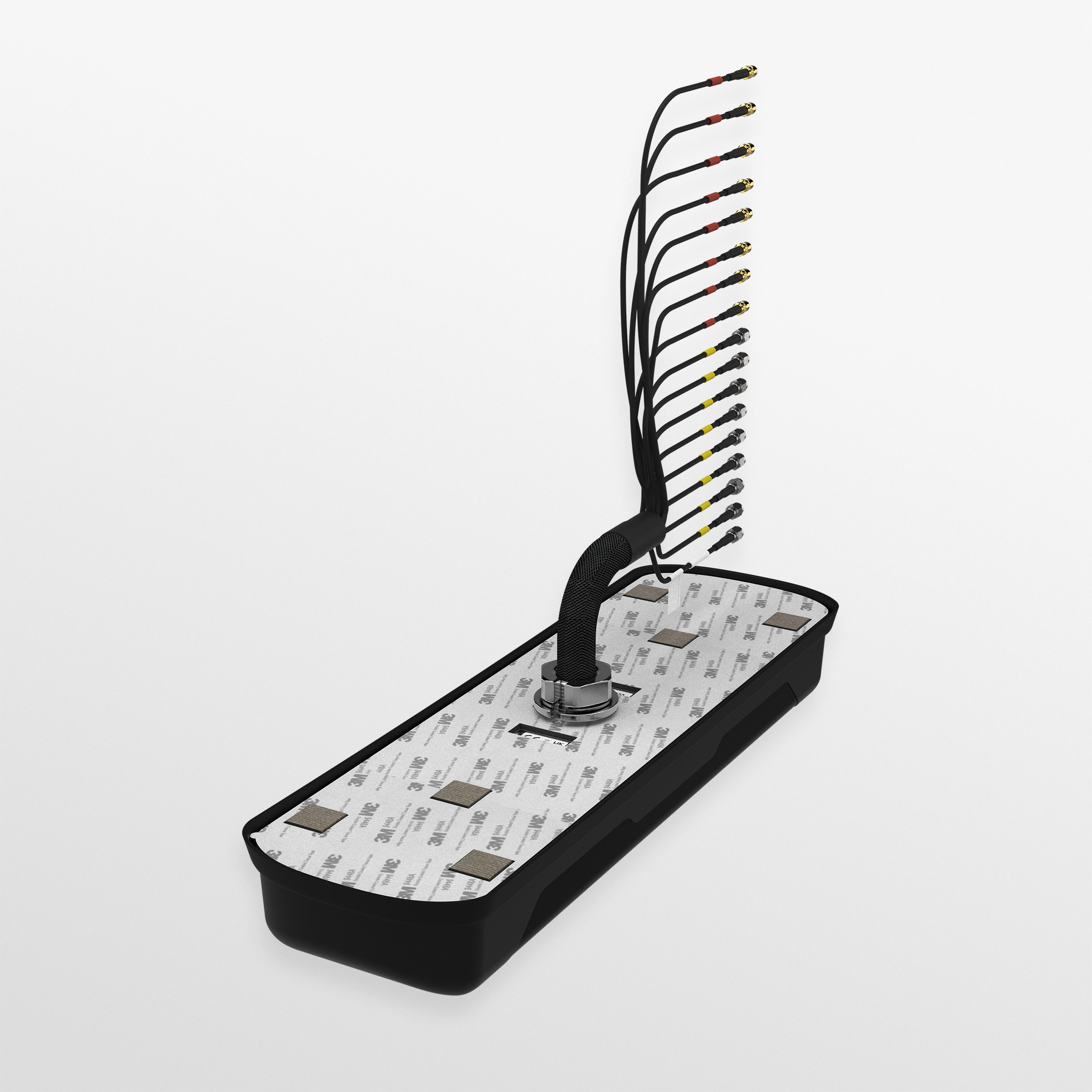

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 3

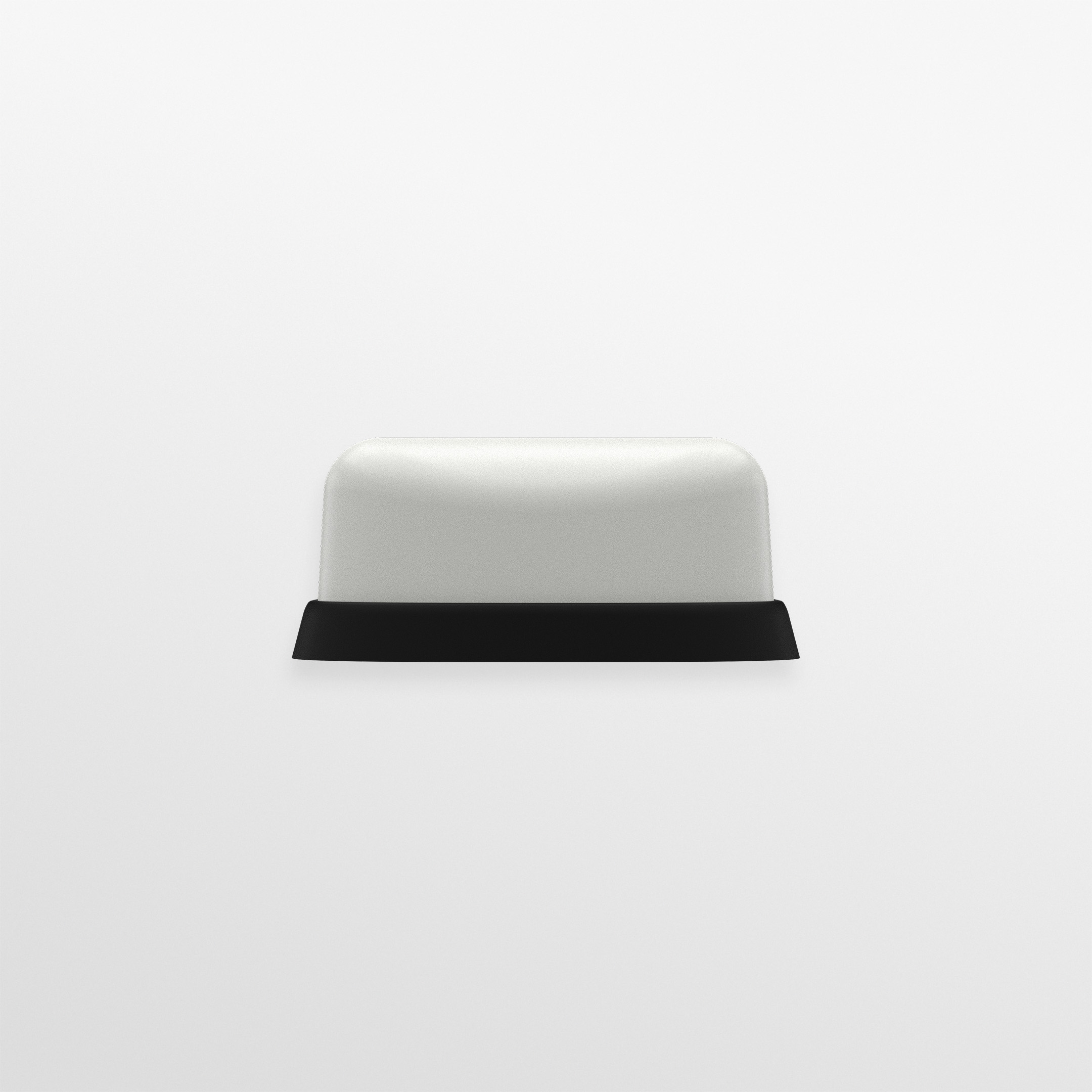

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 4

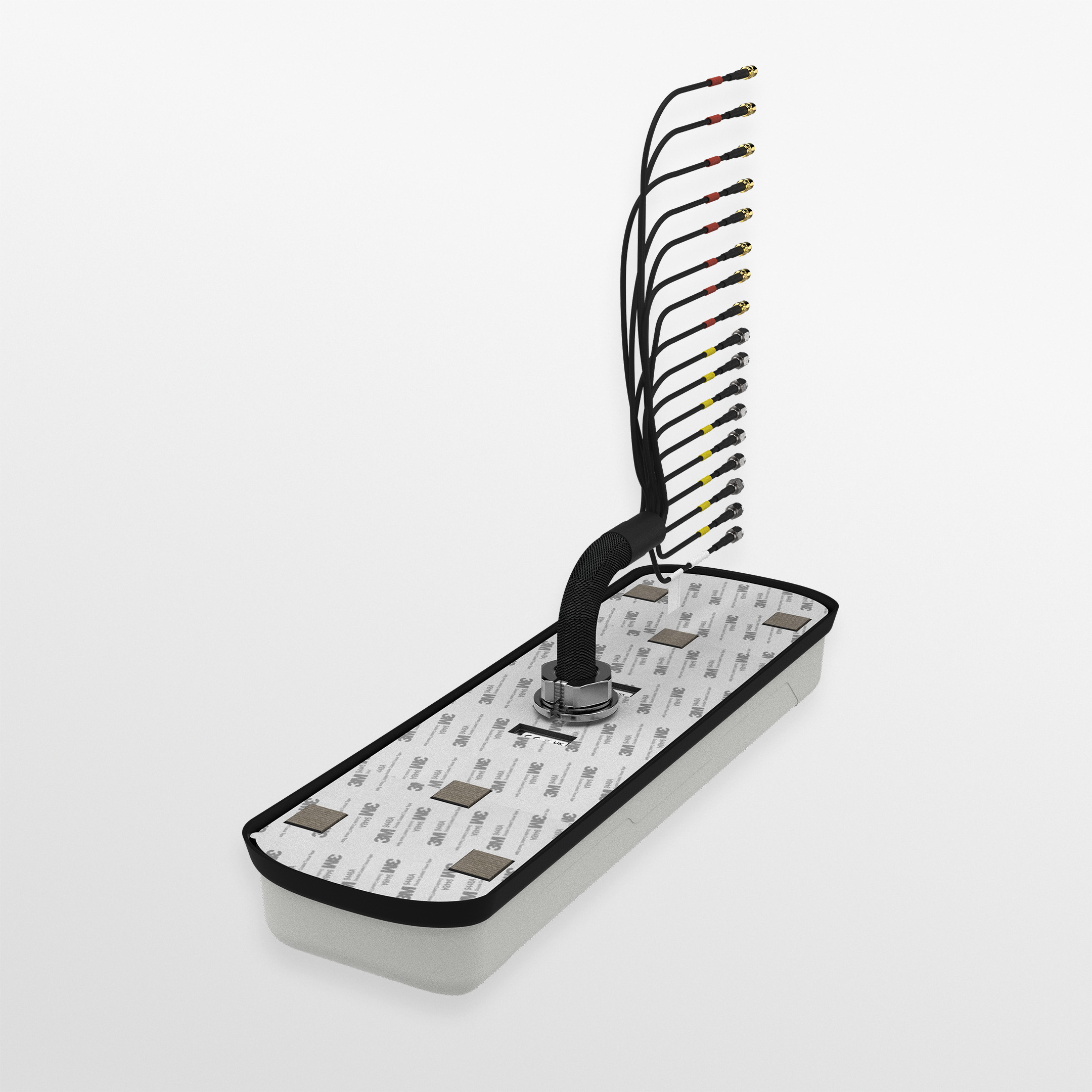

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 5

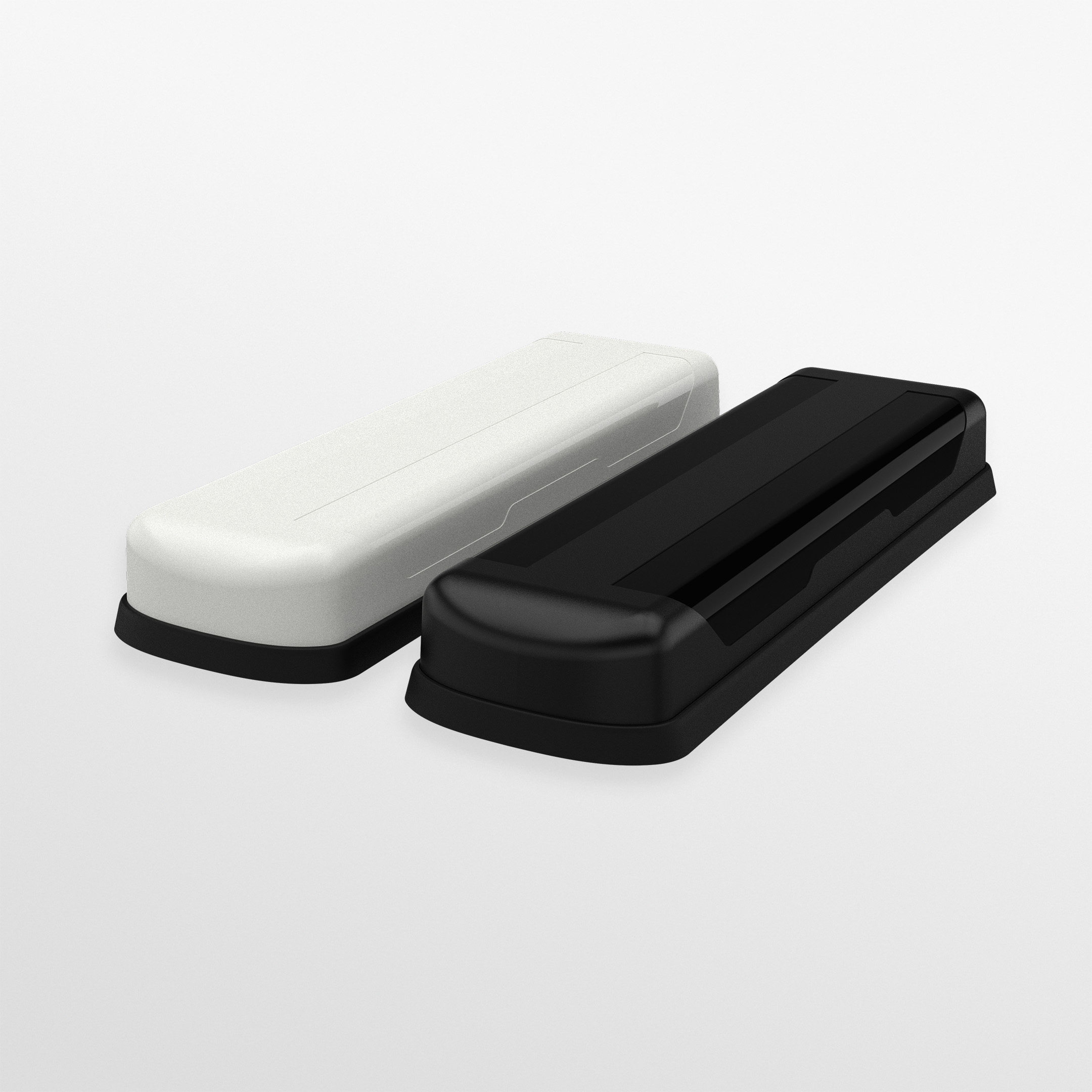

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 6

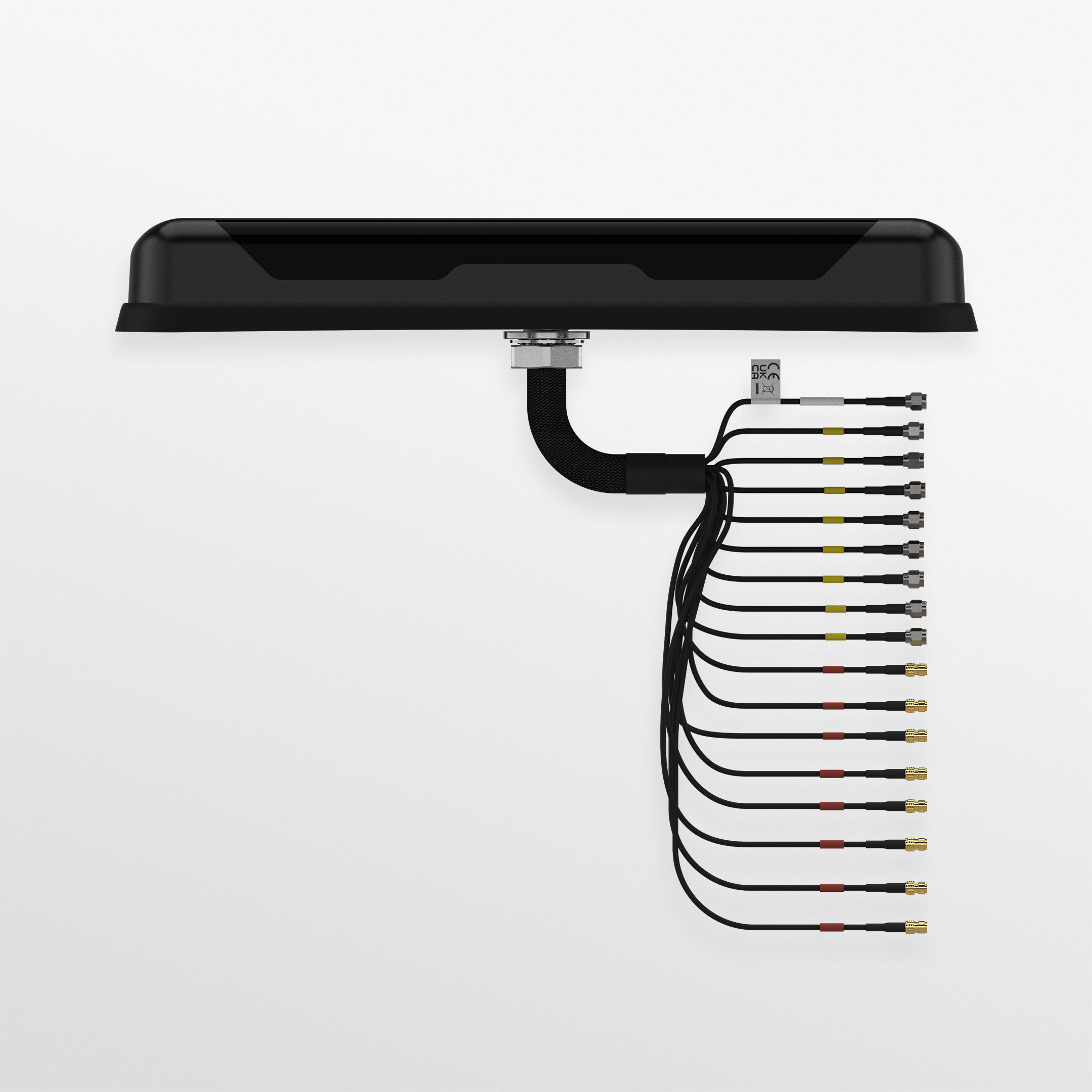

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 7

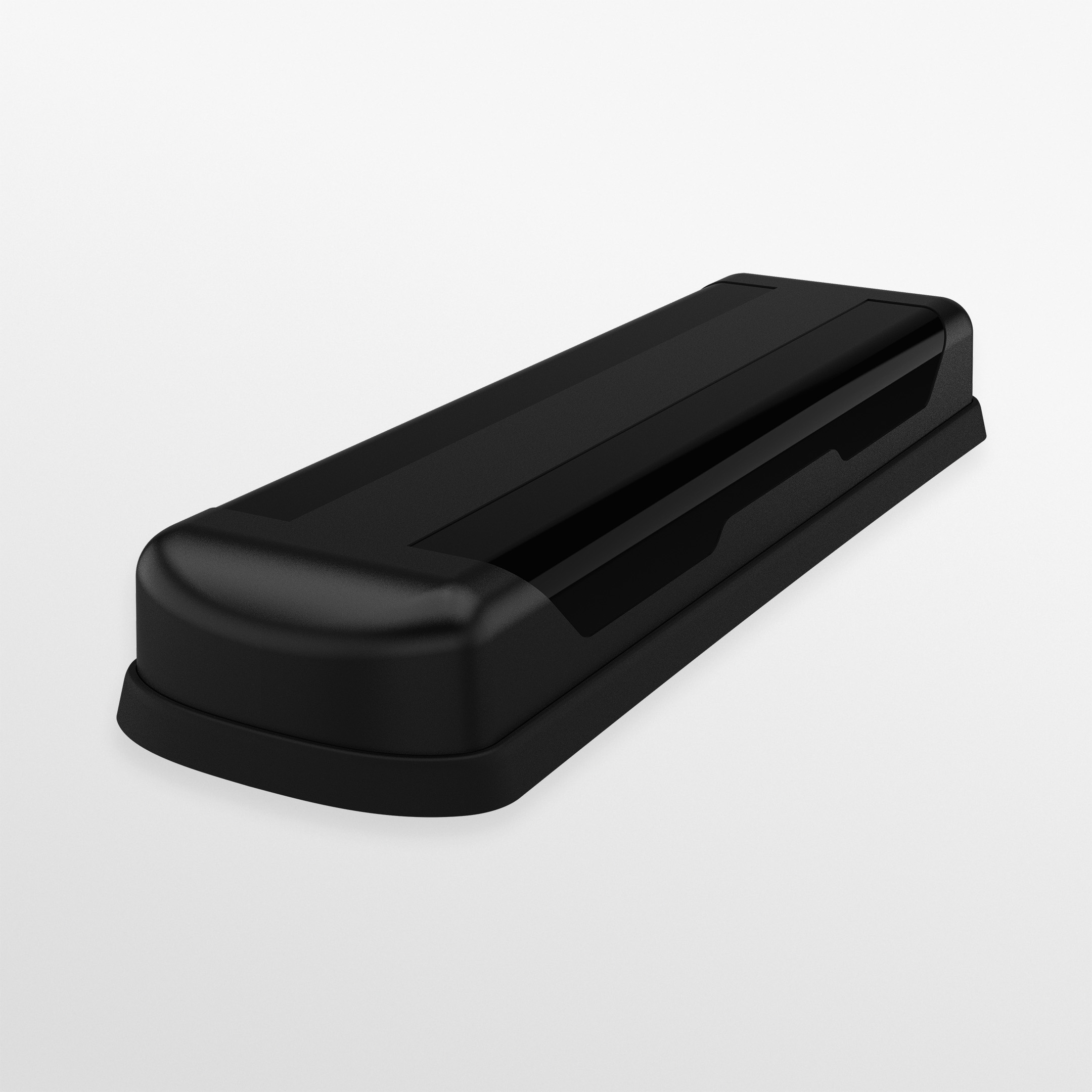

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 8

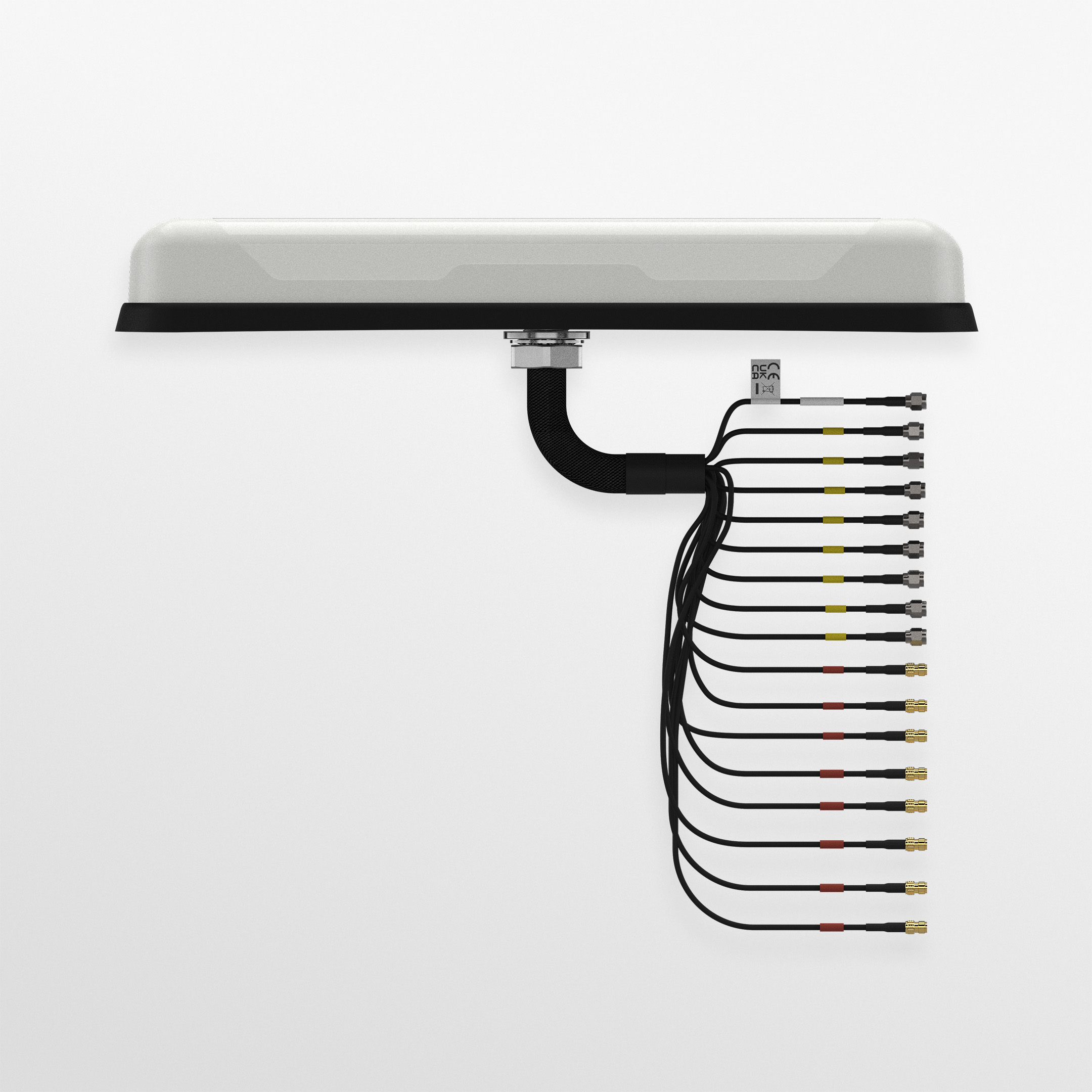

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna - Image 9

L[X]M[X]M8[X]-6-60 | Megalodon® 8x 4G/5G Low Profile Antenna

The industry leading Megalodon® range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with a number of other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only  or L1/L5 frequencies.  This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

Description

The industry leading Megalodon® range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems.

Product overview

The industry leading Megalodon® range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with a number of other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

Product Features

  • 8x 4G/5G elements Up to 8×8 MiMo Dual Band WiFi 6e / 7 Up to 2 GPS/GNSS L1 or L1/L5 bands Meets IK10 and IP69K

Benefits

  • Low height IP69K ingress protection IK10 impact protection UN ECE R118 compliant cable

Application

  • Mobiility First responders Kiosks and devices

Additional information

Colour

Black, White
4G/5G

8×8 – 2x 4×4 MiMo
GPS

1 Module, 2 Modules, No
WIFI MIMO

2 x 2 MIMO, 4 x 4 MIMO, 6 x 6 MIMO, 8×8 MiMo, No
Cable Length

Below 1m, Between 5m & 10m
Connector (LTE)

SMA (m)
Connector (WIFI)

No Connector, Reverse Polarity SMA, SMA (f)
Connector (GPS)

No Connector, SMA (m)
ELECTRICAL DATA
PatternOmnidirectional
Max Input Power(W)50
Typical VSWR<3:1
Frequency Range | GainCheck the part number table
Cellular LTE Elements8×8 – 2x 4×4 MiMo
WIFI ElementsNo; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 8×8 MiMo
UHF ElementsNo
GPS DATA
GPS Frequency Range1559-1612MHz; 1164-1189MHz/1559-1612MHZ
LNA GAIN (dB)26dB; 30dB / 26dB; 30 / 26dB
Number of GPS Elements1 Module; 2 Modules; No
MECHANICAL DATA
ColourBlack; White
Length437 (mm) | 17.20 (in)
Width133 (mm) | 5.24 (in)
Heightmax: 56 (mm) | 2.2 (in)
Operating Temperature-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTEmin: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable length – GPSmin: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Length – WIFImin: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Type (LTE)FR CS32; CS30
Cable Type (GPS)FR CS29; FR RG174
Cable Type (WIFI)FR CS32; CS30
Quantity of Cell Cable8
Quantity of GPS/GNSS Extensionmax: 2
Quantity of WIFI Extensionmax: 6
TERMINATION DATA
Connector (WIFI)Reverse Polarity SMA; SMA (f)
Connector (GPS)SMA (m)
Connector (LTE)SMA (m)
MOUNTING DATA
Mounting Type FixedPanel
Mounting MethodsPanel
APPROVALS DATA
IP RatingIK10; IP69K
Cable FlammabilityUN ECE R118
TECHNOLOGY DATA
TechnologyGPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; FirstNet; GNSS; WIFI 6E; 169MHz

Available selections

ColourBlack White
4G/5G8x8 – 2x 4x4 MiMo
GPS1 Module 2 Modules No
WIFI MIMO2 x 2 MIMO 4 x 4 MIMO 6 x 6 MIMO 8x8 MiMo No
Cable LengthBelow 1m Between 5m & 10m
Connector (LTE)SMA (m)
Connector (WIFI)No Connector Reverse Polarity SMA SMA (f)
Connector (GPS)No Connector SMA (m)

Models and configurations

SKU; Colour | Frequency Range | Gain | Cellular | GPS | WIFI

LG-IN2902
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 2 x 2 MIMO
5m
  • 5m | 5m
SMA (m)
  • SMA (m) | Reverse Polarity SMA
Cables Fitted
  • Cables Fitted | Cables Fitted
LG-IN2902-W
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 2 x 2 MIMO
5m
  • 5m | 5m
SMA (m)
  • SMA (m) | Reverse Polarity SMA
Cables Fitted
  • Cables Fitted | Cables Fitted
LG-IN2904
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 2 Modules | 6 x 6 MIMO
5m
  • 5m | 5m
SMA (m)
  • SMA (m) | Reverse Polarity SMA
Cables Fitted
  • Cables Fitted | Cables Fitted
LG5MDM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 2 x 2 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MDM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 2 x 2 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MHM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 6 x 6 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MHM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 6 x 6 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi | 8×8 – 2x 4×4 MiMo | 1 Module | No
0.3m
  • 0.3m
SMA (m)
  • SMA (m)
LG5MM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi | 8×8 – 2x 4×4 MiMo | 1 Module | No
0.3m
  • 0.3m
SMA (m)
  • SMA (m)
LG5MOM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 8×8 MiMo
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MOM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 8×8 MiMo
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MQM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 4 x 4 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LG5MQM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 4 x 4 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMDM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 2 x 2 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMHM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 6 x 6 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMHM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 6 x 6 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi | 8×8 – 2x 4×4 MiMo | 1 Module | No
0.3m
  • 0.3m
SMA (m)
  • SMA (m)
LGMM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi | 8×8 – 2x 4×4 MiMo | 1 Module | No
0.3m
  • 0.3m
SMA (m)
  • SMA (m)
LGMOM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 8×8 MiMo
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMOM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 8×8 MiMo
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMQM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 4 x 4 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LGMQM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi | 8×8 – 2x 4×4 MiMo | 1 Module | 4 x 4 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
LPMM8-6-60
  • White | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi | 8×8 – 2x 4×4 MiMo | No | No
  • 0.3m
  • SMA (m)
LPMM8B-6-60
  • Black | 617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi | 8×8 – 2x 4×4 MiMo | No | No
  • 0.3m
  • SMA (m)

Accessories

SAB-344 | Megalodon® Magnetic Mount Adaptor SEE MORE
