Model / SKU: MD9G21

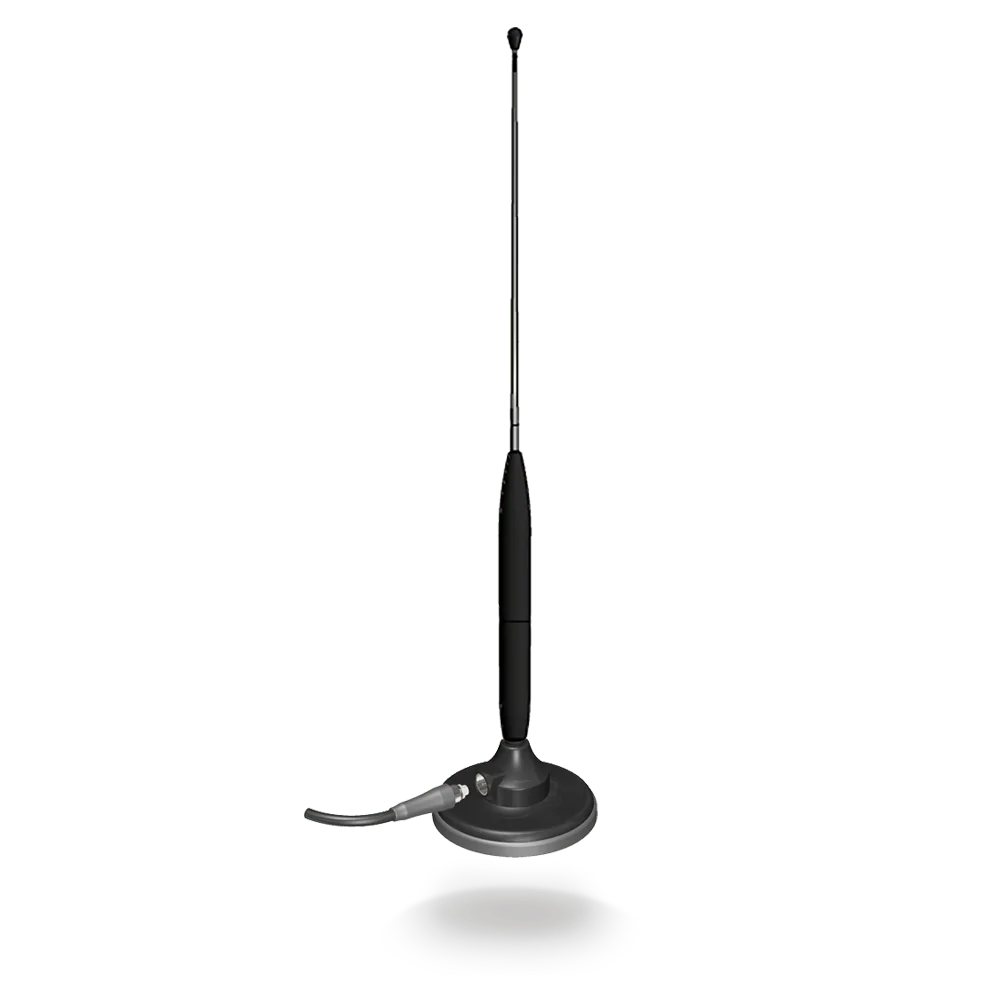

The MD9G21 is a high gain 8/900MHz whip with 18/19/2100MHz fallback mounted on a robust magnetic base. An ideal temporary fit high-performance antenna solution for improving signal strength and data transfer speeds, the MD base, supports a detachable low loss cable providing flexibility and ease of installation.
The MD9G21 is a high gain 8/900MHz whip with 18/19/2100MHz fallback mounted on a robust magnetic base. An ideal temporary fit high-performance antenna solution for improving signal strength and data transfer speeds, the MD base, supports a detachable low loss cable providing flexibility and ease of installation.
Technical Datasheet (official Panorama source)
The MD9G21 is a high gain 8/900MHz whip with 18/19/2100MHz fallback mounted on a robust magnetic base. An ideal temporary fit high-performance antenna solution for improving signal strength and data transfer speeds, the MD base, supports a detachable low loss cable providing flexibility and ease of installation.
| Colour | Black |
|---|---|
| Cable Length | Between 3m & 5m, Between 5m & 10m |
| Connector (VHF/UHF) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 50 |
| Frequency Range | Gain | 800 – 960MHz | 5dBi; 1710 – 2170MHz | 2dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 325 (mm) | 12.80 (in) |
| Diameter | 71.5 (mm) | 2.81 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | min: 3 (m) | 9.84 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | CS23 |
| Quantity of Whip Cable | 1 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic |
| TECHNOLOGY DATA | |
| Technology | UHF |
