Description

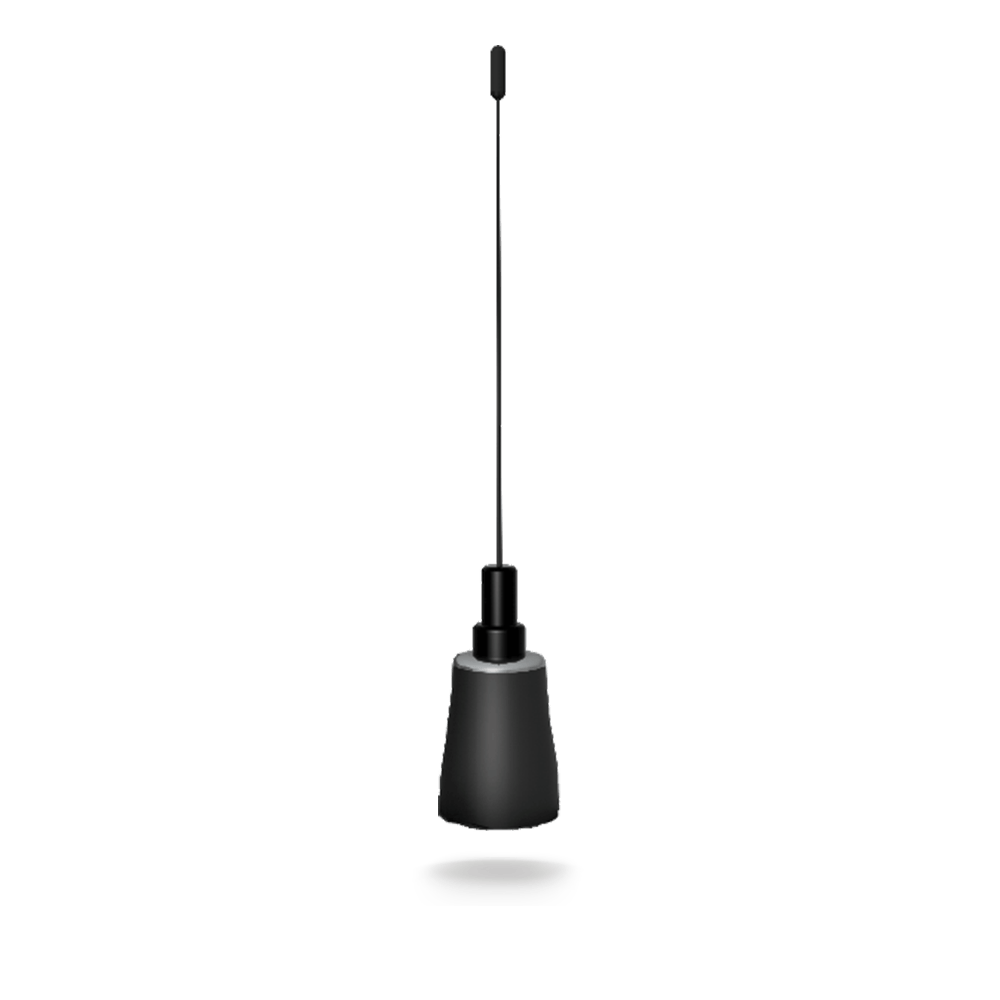

The MUG-NMO is a 1/2 wave UHF antenna offering performance on or off a ground plane across various UHF frequencies with a peak gain of 4dBi. The lack of requirement for a ground plane makes this product attractive for mobile applications with non-conductive panels, such as ambulances, fire trucks and trailers. The antenna features a coil housing moulded over in durable plastic and a flexible 17-7PH stainless steel whip mounted on a hinge which can be collapsed for low clearance scenarios.
Product overview
The MUG-NMO is a 1/2 wave UHF antenna offering performance on or off a ground plane across various UHF frequencies with a peak gain of 4dBi.
The lack of requirement for a ground plane makes this product attractive for mobile applications with non-conductive panels, such as ambulances, fire trucks and trailers.
The antenna features a coil housing moulded over in durable plastic and a flexible 17-7PH stainless steel whip mounted on a hinge which can be collapsed for low clearance scenarios.
Product Features
- UHF Gain Antenna Suitable for NMO Mounts Works without a ground plane
Available selections
| Colour | Black |
|---|
| Frequency Range | 380-430MHz 450-470MHz |
|---|
Models and configurations
SKU; Colour | Height (mm) | UHF | Frequency Range | Gain
| MUG-NMO-S4 | - Black | 347mm | Yes | 450 – 470MHz | 4dBi
|
|---|
| MUG-NMO-TET | - Black | 488mm | Yes | 380 – 430MHz | 4dBi
|
|---|
Configuration options
| Option | Available values |
|---|
| Colour | Black |
|---|
| Frequency Range | 380-430MHz, 450-470MHz |
|---|
