Model / SKU: ODP-[VAR]G6

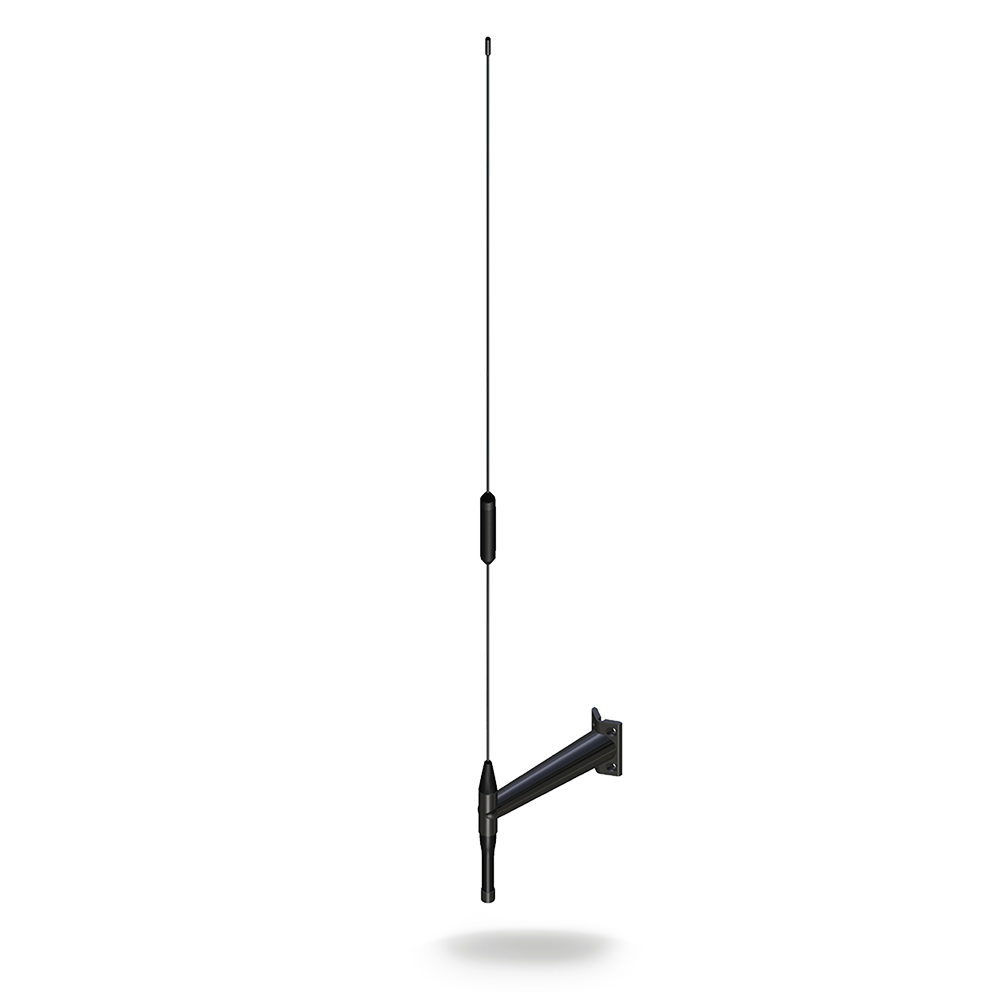

![ODP-[VAR]G6 | 6dBi Gain UHF Offset Dipole](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/PIC_ODP-VARG6.webp "ODP-[VAR]G6 | 6dBi Gain UHF Offset Dipole")
The ODP is a low cost remote antenna solution for fixed radio terminals – ideal of network infill or range extension. With 6dBi gain, this high gain variant is ideal for use in poor signal locations or for network infill applications. Featuring 4 screw holes for mounting, the ODP is waterproof so can be fitted internally or externally.
The ODP is a low cost remote antenna solution for fixed radio terminals – ideal of network infill or range extension. With 6dBi gain, this high gain variant is ideal for use in poor signal locations or for network infill applications. Featuring 4 screw holes for mounting, the ODP is waterproof so can be fitted internally or externally.
The ODP is a low cost remote antenna solution for fixed radio terminals – ideal of network infill or range extension. With 6dBi gain, this high gain variant is ideal for use in poor signal locations or for network infill applications. Featuring 4 screw holes for mounting, the ODP is waterproof so can be fitted internally or externally.
| Colour | Black |
|---|---|
| Cable Length | Between 3m & 5m, Between 5m & 10m |
| Connector (VHF/UHF) | BNC (m) |
| Frequency Range | 380-400MHz, 410-430MHz, 450-470MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 60 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Width | 143 (mm) | 5.63 (in) |
| Height | max: 897 (mm) | 35.31 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | min: 4 (m) | 13.12 (ft); max: 8 (m) | 26.25 (ft) |
| Cable Type (Whip) | RG 58CU |
| Quantity of Whip Cable | 1 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | BNC (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA |
