Model / SKU: ODP

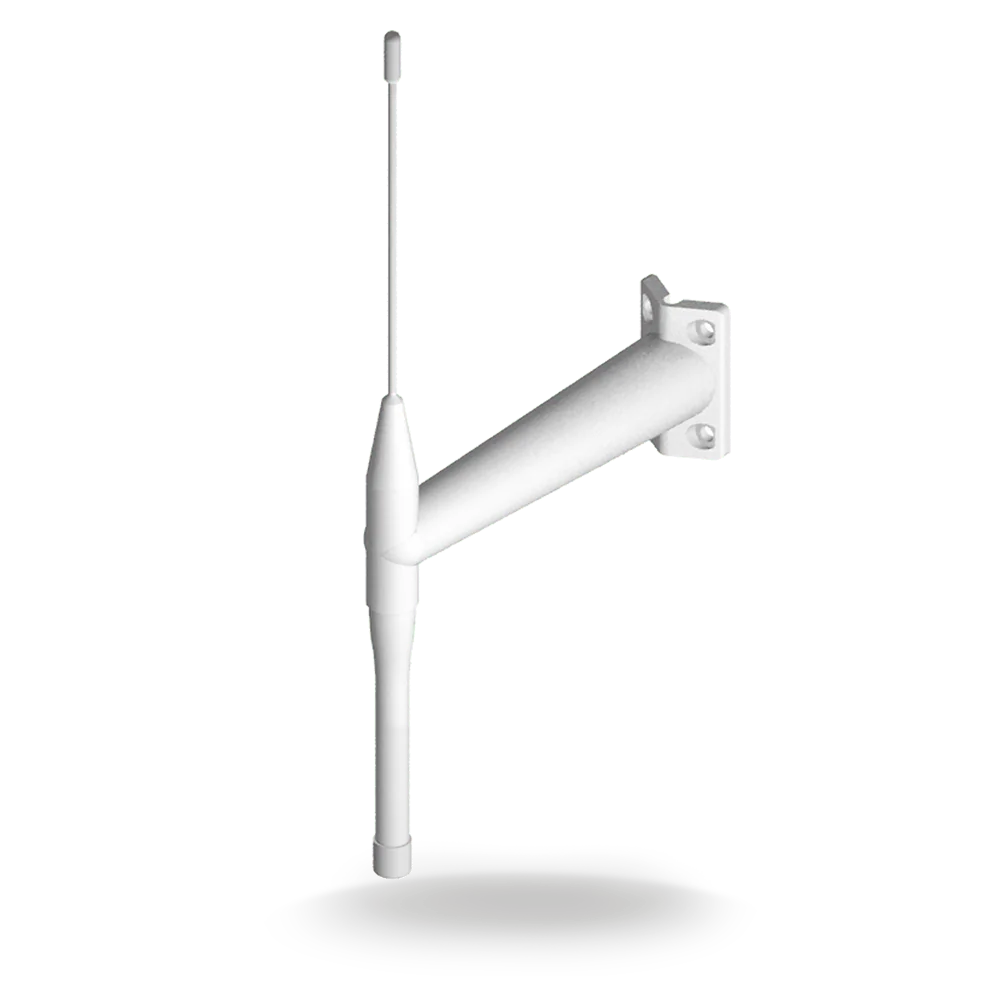

The ODP is a lightweight remote antenna solution for fixed radio terminals – ideal for network infill or range extension.
With 4 holes for mounting, the ODP is waterproof and can be fitted
internally or externally using the wall or mast mount fitment.
The ODP is a lightweight remote antenna solution for fixed radio terminals – ideal for network infill or range extension. With 4 holes for mounting, the ODP is waterproof and can be fitted internally or externally using the wall or mast mount fitment.
The ODP is a lightweight remote antenna solution for fixed radio terminals – ideal for network infill or range extension.
With 4 holes for mounting, the ODP is waterproof and can be fitted internally or externally using the wall or mast mount fitment.
| Colour | Grey |
|---|---|
| Cable Length | Between 1m & 3m, Between 5m & 10m |
| Connector (VHF/UHF) | BNC (m), N (m), SMA (m), TNC (m) |
| Frequency Range | 139-157MHz, 149-159MHz, 156-162MHz, 162-174MHz, 380-430MHz, 406-472MHz, 450-470MHz, 450-512MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 60 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Width | 143 (mm) | 5.63 (in) |
| Height | max: 657 (mm) | 25.87 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F); -30°/ +80°C (-22.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | min: 1 (m) | 3.28 (ft); max: 8 (m) | 26.25 (ft) |
| Cable Type (Whip) | RG 58CU |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | BNC (m); SMA (m); TNC (m); N (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall |
| TECHNOLOGY DATA | |
| Technology | VHF; UHF; TETRA |
