Description
The PWB-24-58-72 antenna is a ground plane independent antenna covering global WiFi 6e bands in the ranges 2400-2485 / 5150-7125MHz.
Product
PWB-24-58-72 | Dual Band 2.4/5.0/7.2GHz WiFi Terminal Paddle Antenna
Model / SKU: PWB-24-58-72
PWB-24-58-72 | Dual Band 2.4/5.0/7.2GHz WiFi Terminal Paddle Antenna

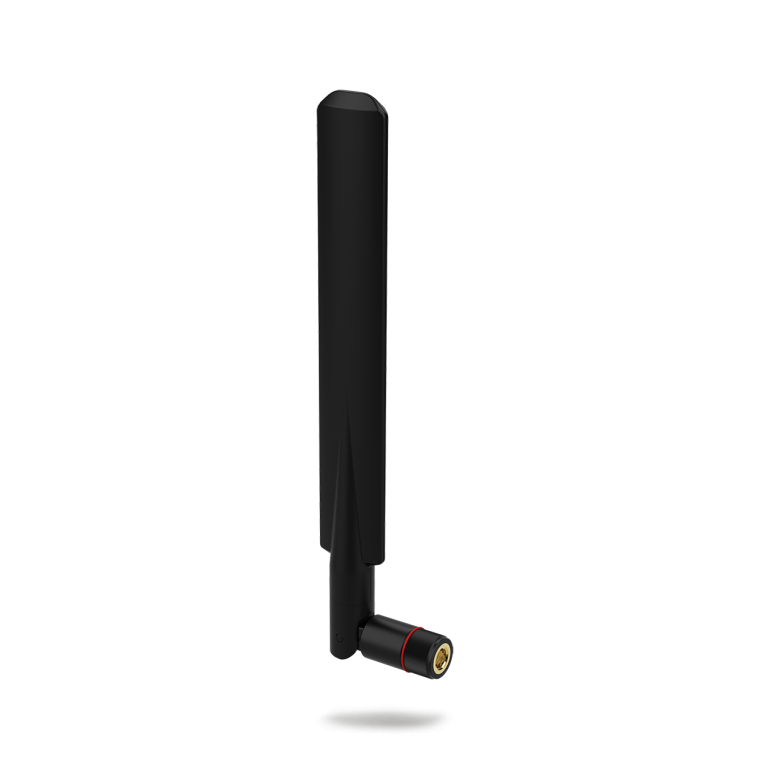

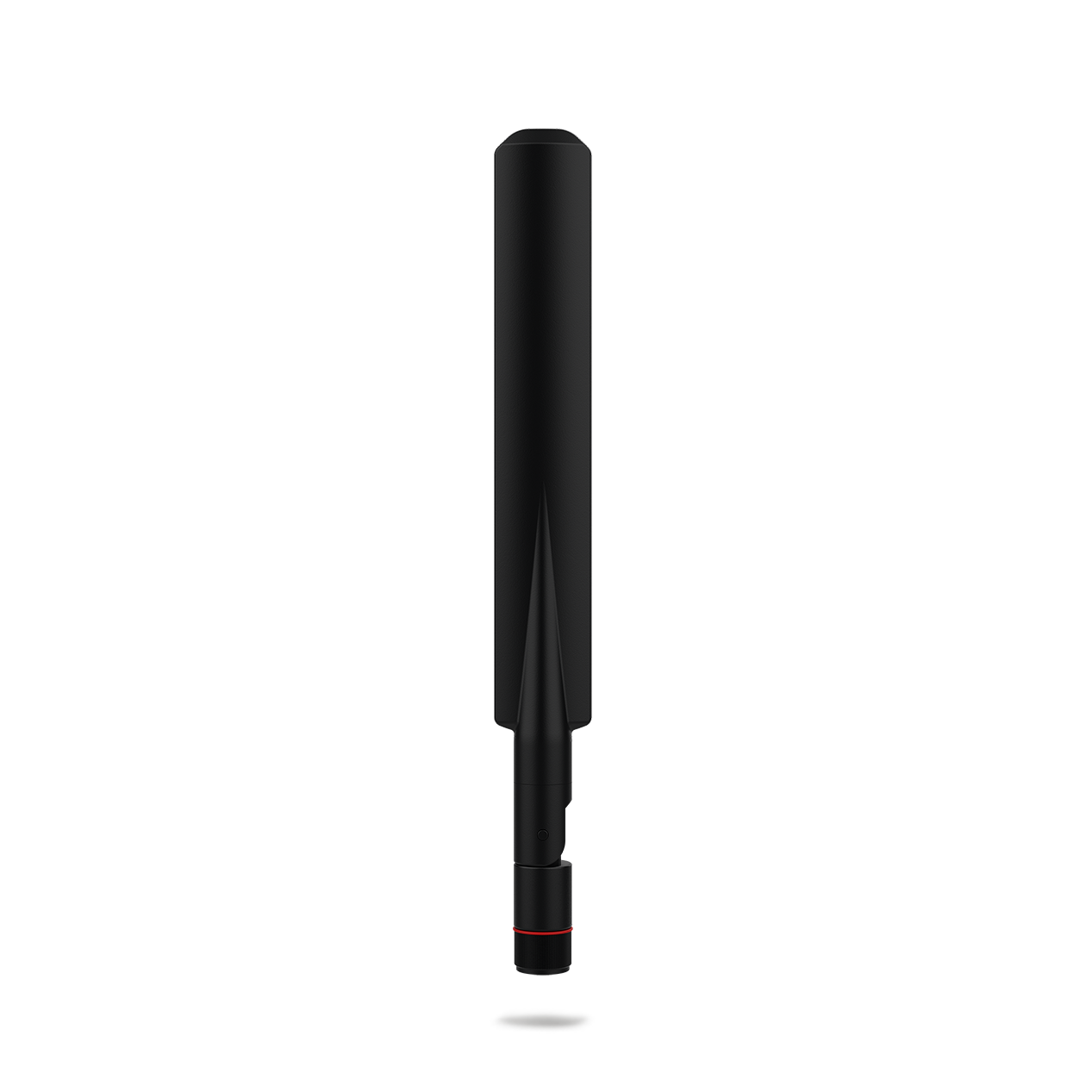

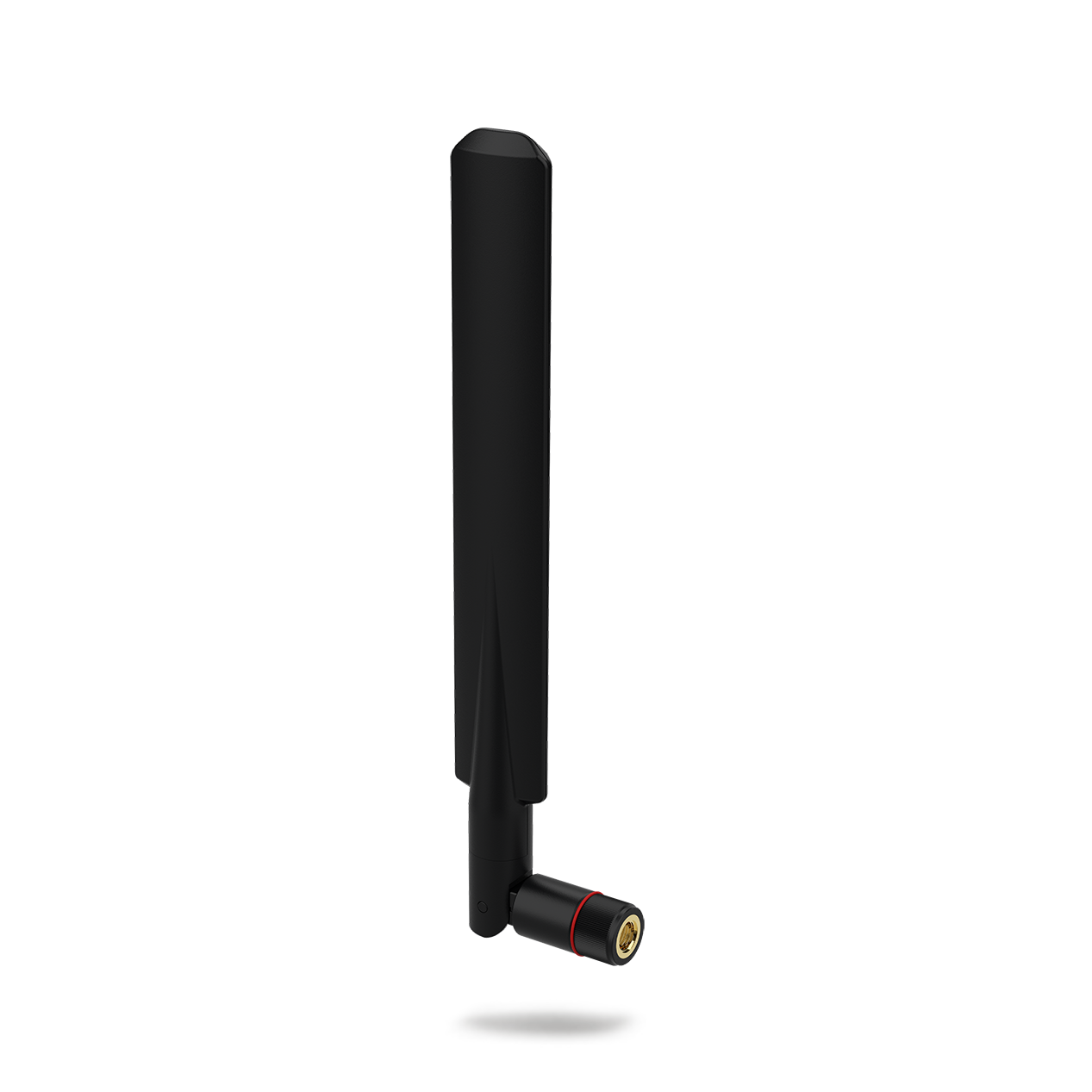

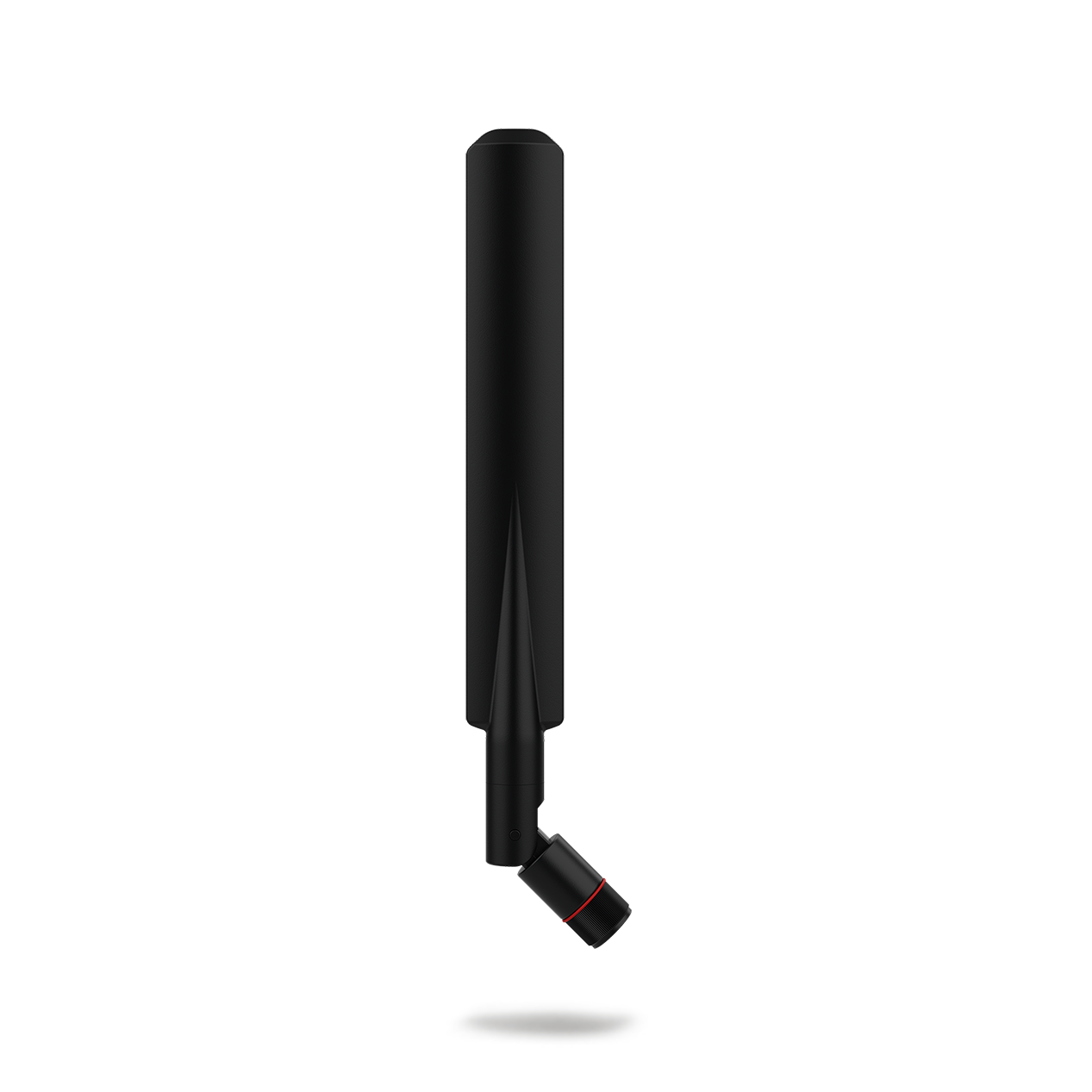

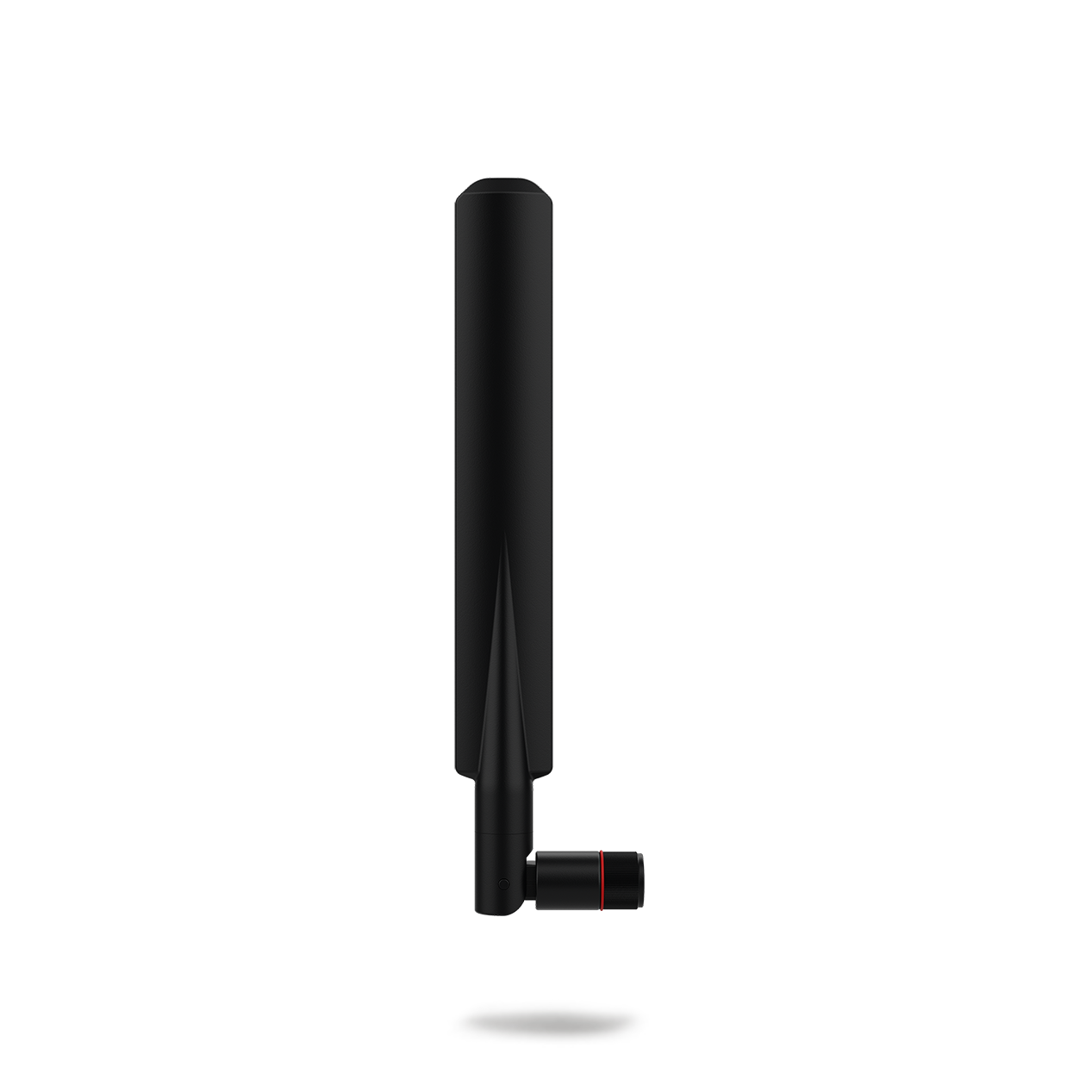

The PWB-24-58-72 antenna is a ground plane independent antenna covering global WiFi 6e bands in the ranges 2400-2485 / 5150-7125MHz. Designed for direct mounting to modems and routers the PWB-24-58-72 range is fitted with either an articulated reverse polarity SMA plug or FAKRA I jack for flexible positioning.
Product overview
The PWB-24-58-72 antenna is a ground plane independent antenna covering global WiFi 6e bands in the ranges 2400-2485 / 5150-7125MHz. Designed for direct mounting to modems and routers the PWB-24-58-72 range is fitted with either an articulated reverse polarity SMA plug or FAKRA I jack for flexible positioning.
Product Features
- Covers 2400-2485/5150-7125GHz WiFi Bands WiFi 6e Paddle Style Antenna Cost-Effective Solution Plug & Play Product Supplied with Right Angle Hinge Joint
Benefits
- Easy to install Covers all WiFi frequencies
Application
- WiFi Router Cellular Routers with WiFi function.
Additional information
| Colour | Black |
|---|---|
| Connector (WIFI) | Articulated FAKRA I, Reverse Polarity SMA |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | 2400 – 2485MHz; 5150 – 7125MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 22 (mm) | 0.87 (in) |
| Width | 7 (mm) | 0.28 (in) |
| Height | 163 (mm) | 6.42 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | Articulated FAKRA I; Reverse Polarity SMA |
| MOUNTING DATA | |
| Mounting Type Temp | Router |
| Mounting Methods | Router |
| TECHNOLOGY DATA | |
| Technology | WIFI; WIFI SISO; Bluetooth; WIFI 6E |
