Model / SKU: PWB-BC3G-38-RFDJ-[TMA]

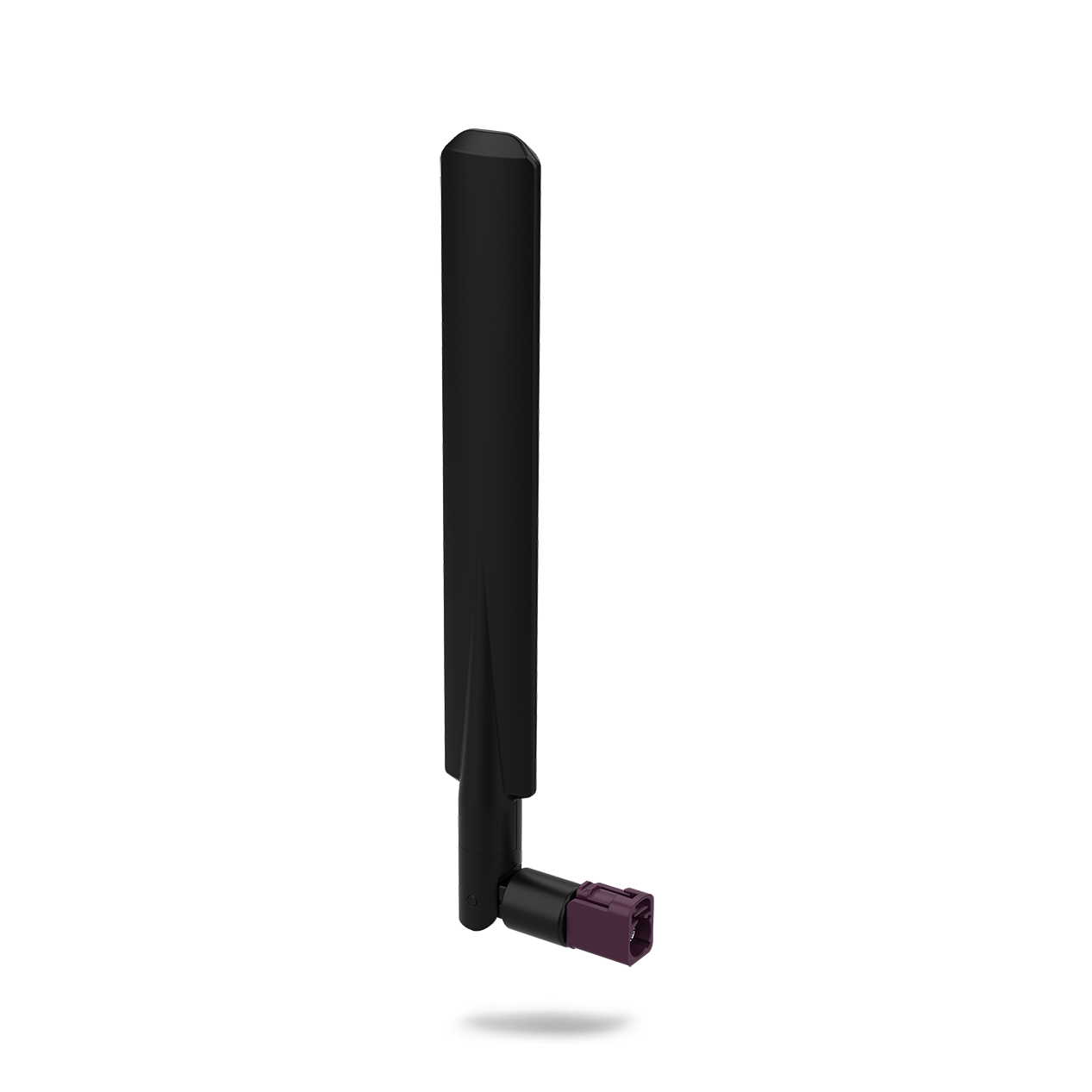

The PWB-BC3G-38-RFDJ Antenna is a ground plane independent antenna covering global 2G/3G/4G/5G bands in the range 698-960/1710-2170/2396-2700 and 3400-3800MHz.

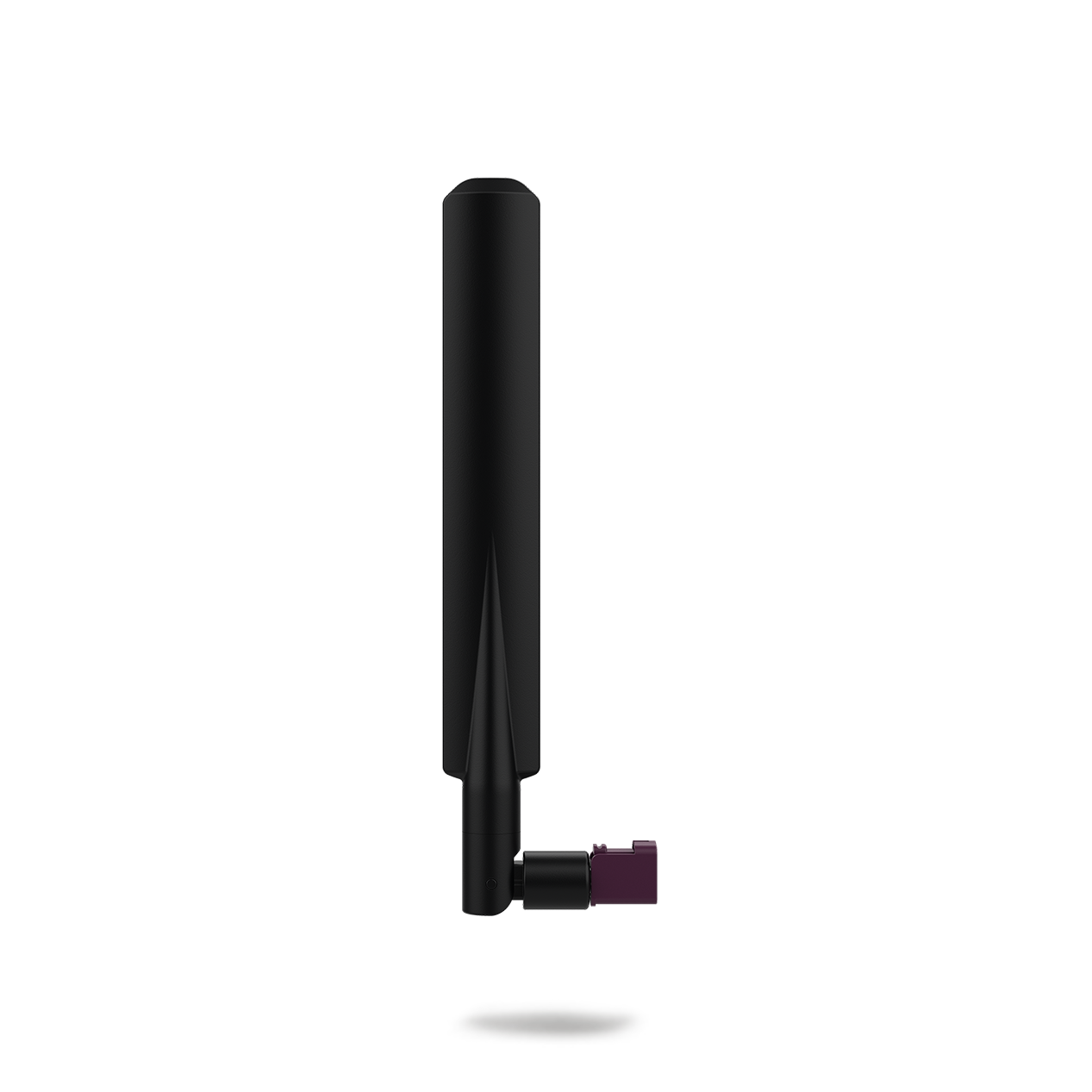

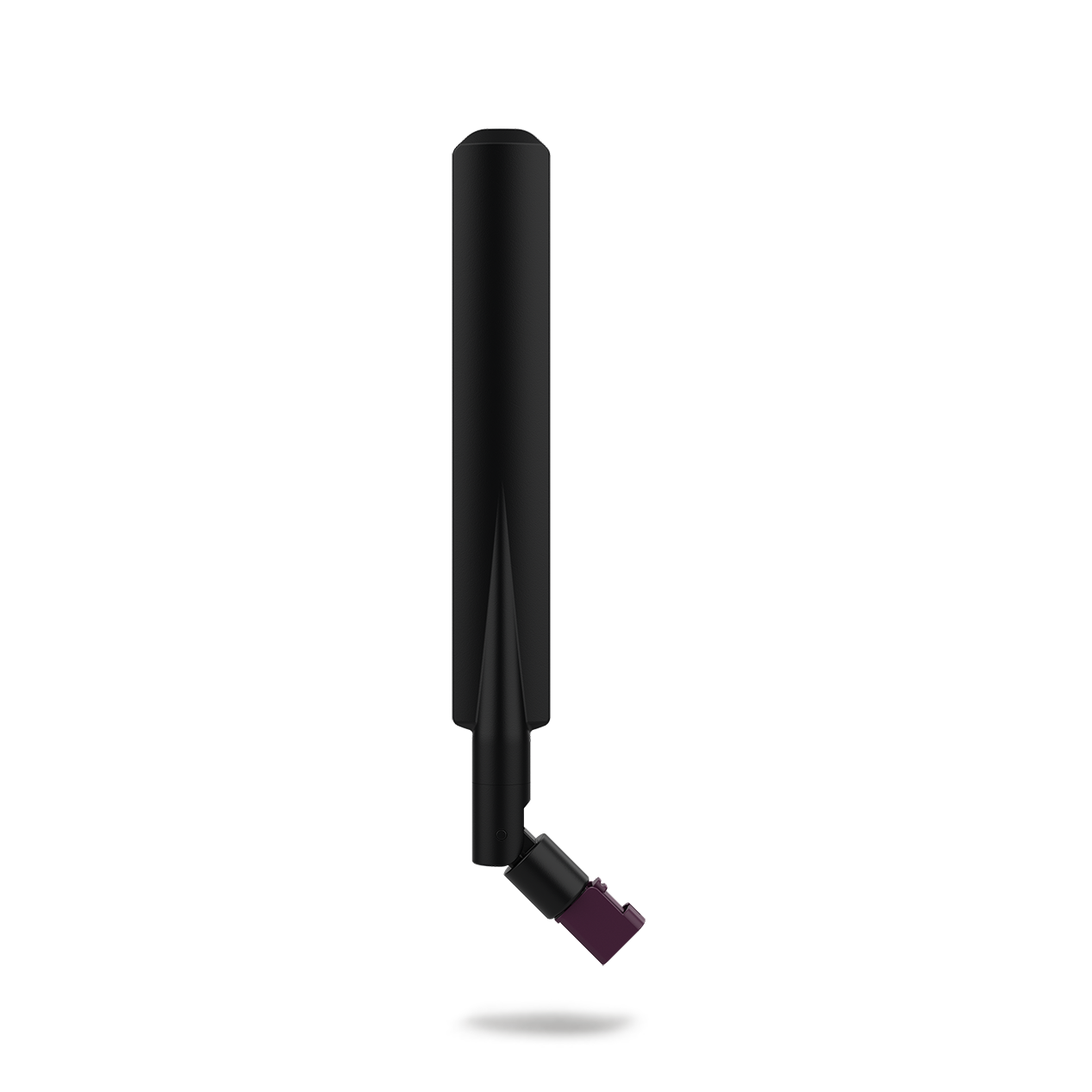

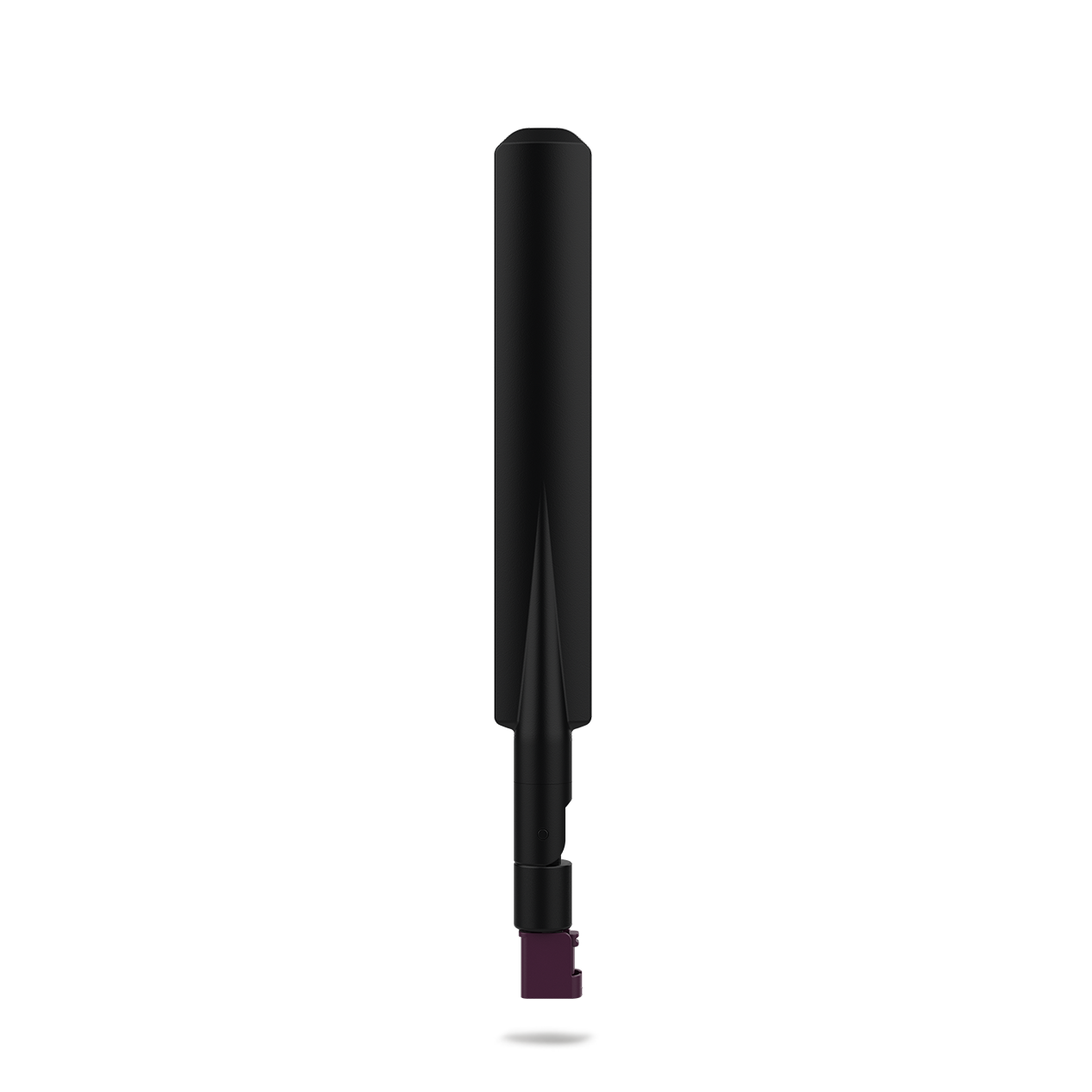

Designed for modems and routers with FAKRA connector, the PWBBC3G-38-RFDJ has an articulated FAKRA D Jack for flexible positioning and a sleek profile for low visual impact.
The PWB-BC3G-38-RFDJ Antenna is a ground plane independent antenna covering global 2G/3G/4G/5G bands in the range 698-960/1710-2170/2396-2700 and 3400-3800MHz. Designed for modems and routers with FAKRA connector, the PWBBC3G-38-RFDJ has an articulated FAKRA D Jack for flexible positioning and a sleek profile for low visual impact.
The PWB-BC3G-38-RFDJ Antenna is a ground plane independent antenna covering global 2G/3G/4G/5G bands in the range 698-960/1710-2170/2396-2700 and 3400-3800MHz.
Designed for modems and routers with FAKRA connector, the PWBBC3G-38-RFDJ has an articulated FAKRA D Jack for flexible positioning and a sleek profile for low visual impact.
| Colour | Black |
|---|---|
| Connector (LTE) | FAKRA D |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 698 – 960MHz | 3dBi; 1710 – 2170MHz | 4dBi; 3400 – 3800MHz | 5dBi |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 163 (mm) | 6.42 (in) |
| Width | 22 (mm) | 0.87 (in) |
| Height | 7 (mm) | 0.28 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (LTE) | FAKRA D |
| TECHNOLOGY DATA | |
| Technology | 5G; 2G/3G; 2G/3G/4G |
