Model / SKU: PWB-BC3G-38-RSMAP-[VAR]

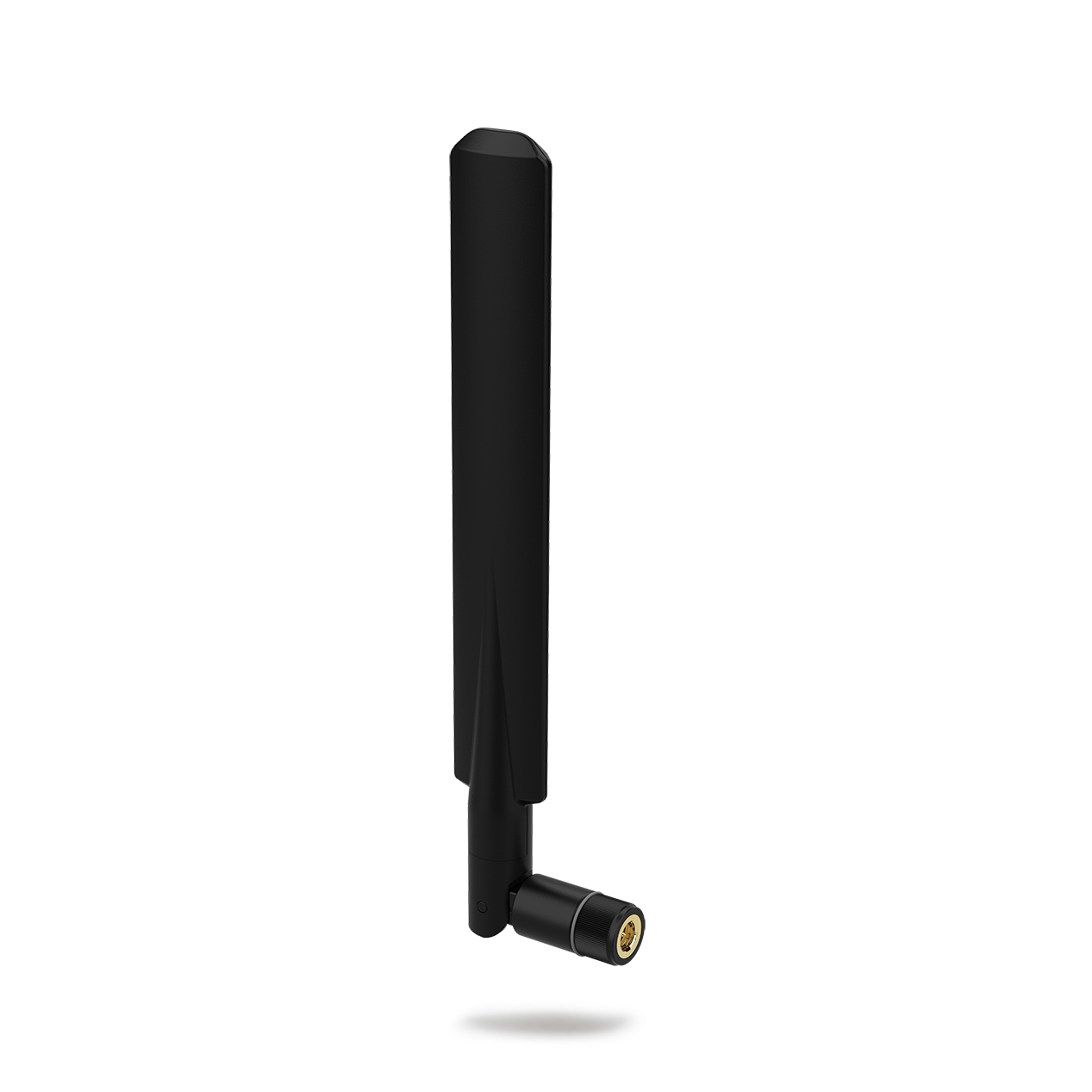

The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G/4G and 3.4-3.8GHz 5G frequencies from 698-960/1710- 2170 /2500-2700/ 3400-3800MHz.

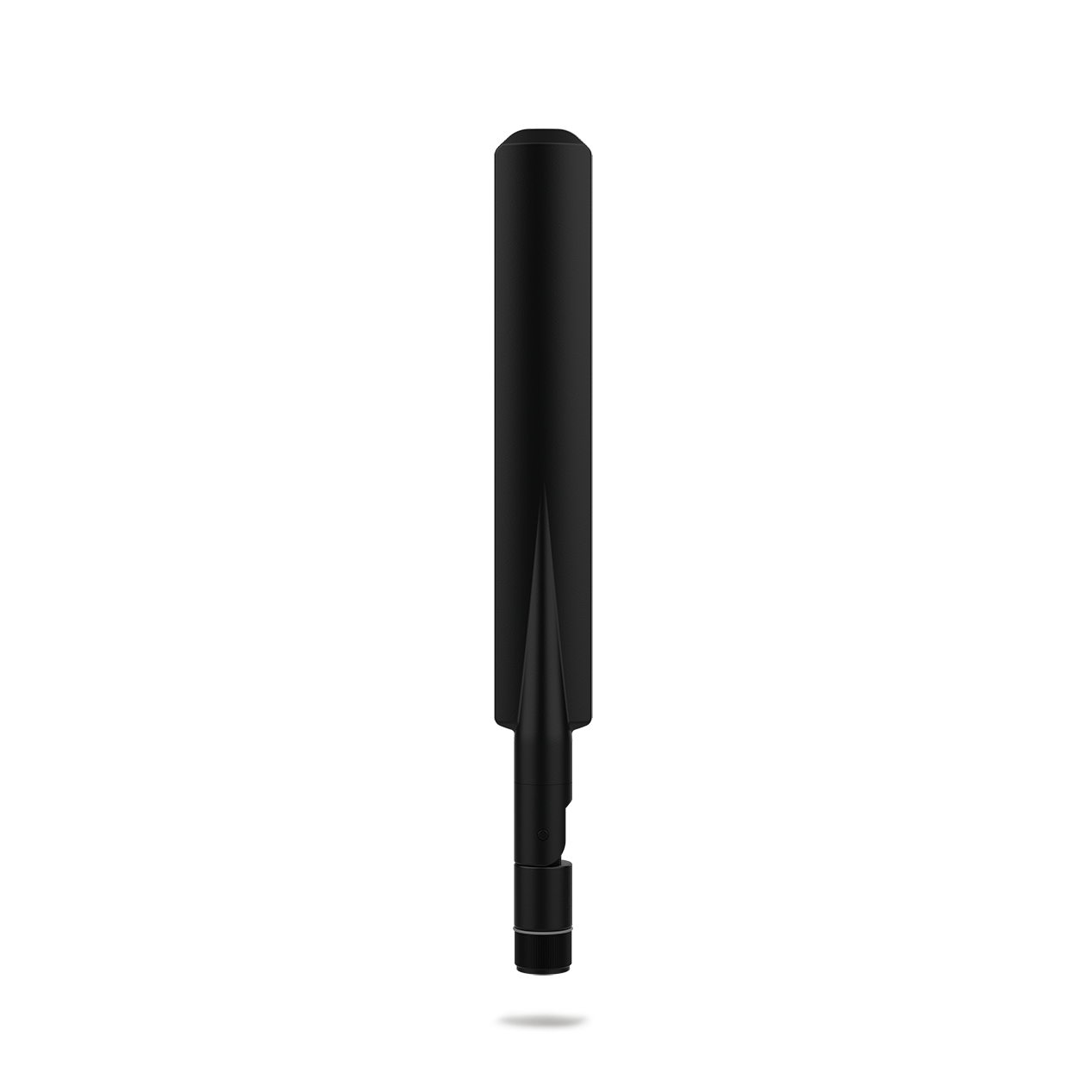

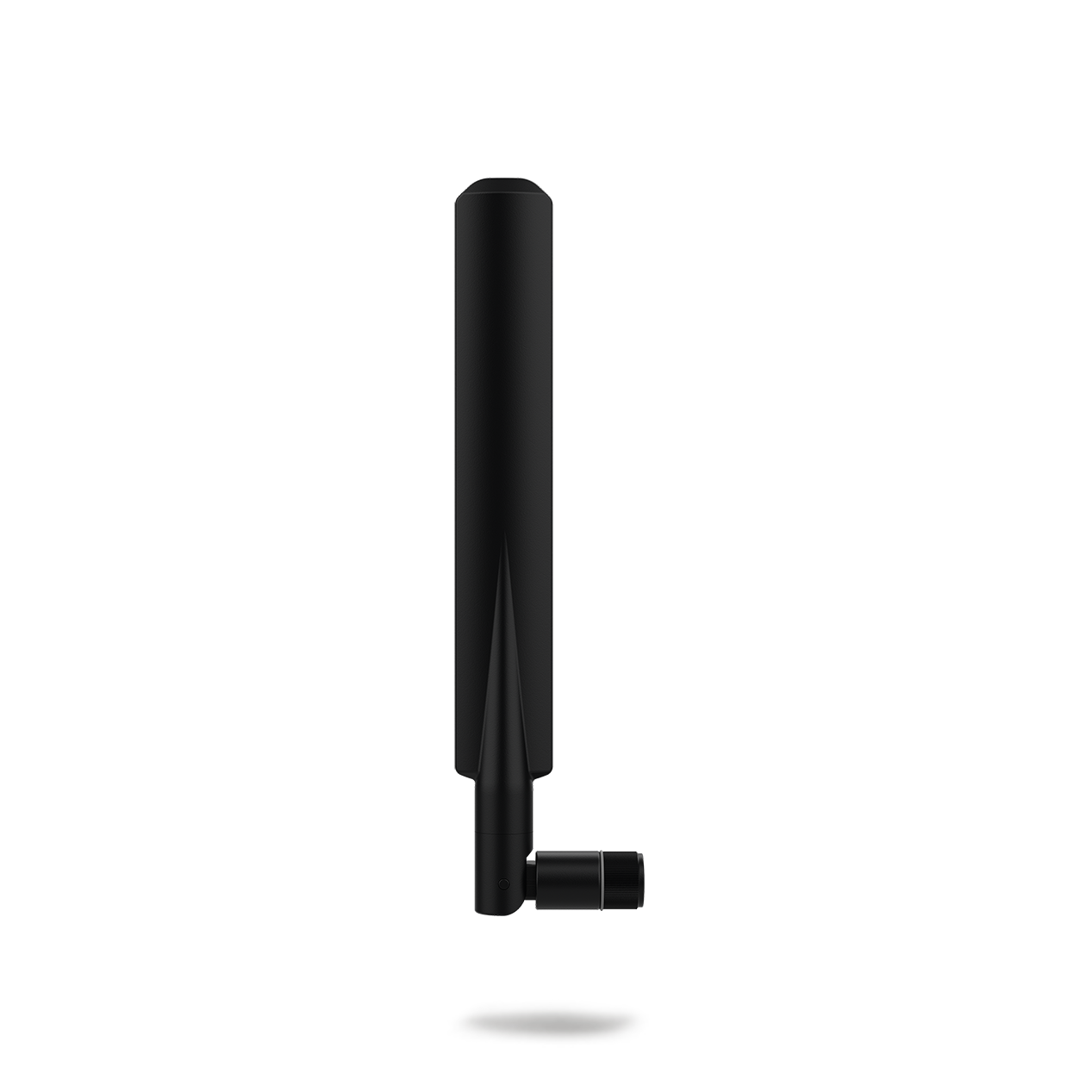

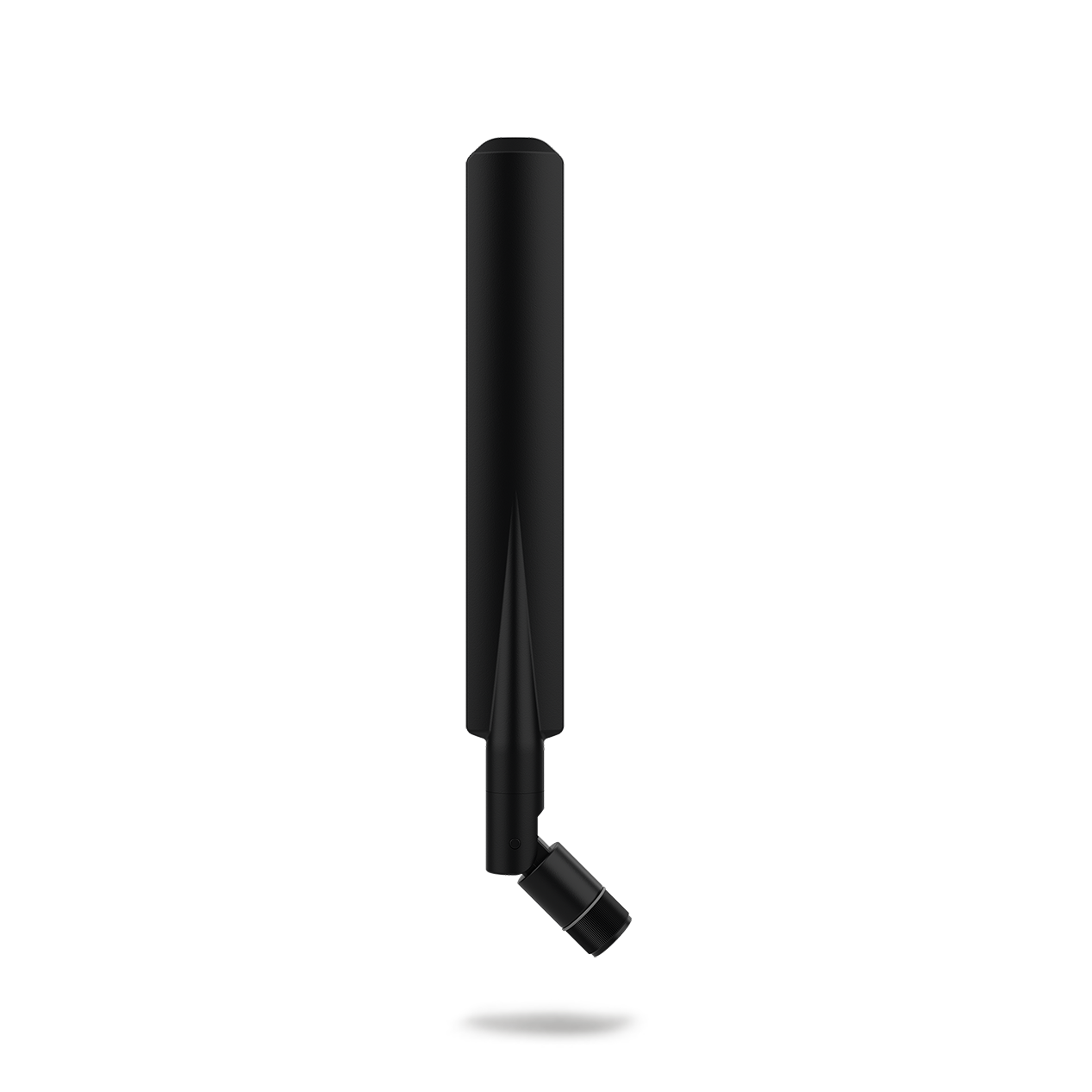

Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.
The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G/4G and 3.4-3.8GHz 5G frequencies from 698-960/1710- 2170 /2500-2700/ 3400-3800MHz. Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.
The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G/4G and 3.4-3.8GHz 5G frequencies from 698-960/1710- 2170 /2500-2700/ 3400-3800MHz.
Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 698 – 960MHz | 3dBi; 1710 – 2700MHz | 4dBi; 3400 – 3800MHz | 5dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 27 (mm) | 1.06 (in) |
| Width | 6 (mm) | 0.24 (in) |
| Height | 163 (mm) | 6.42 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; FirstNet |
