Description
The TK4SP2SPRVGPSME is a complete starter antenna kit for the Ericsson Cradlepoint R1900 / R980 containing all the antennas you need to setup and trial one of these routers.
Product
R1900/R980 Starter Kit 4x Cell 2x WiFi 1x GPS/GNSS
Model / SKU: TK4SP2SPRVGPSME-[X]
R1900/R980 Starter Kit 4x Cell 2x WiFi 1x GPS/GNSS

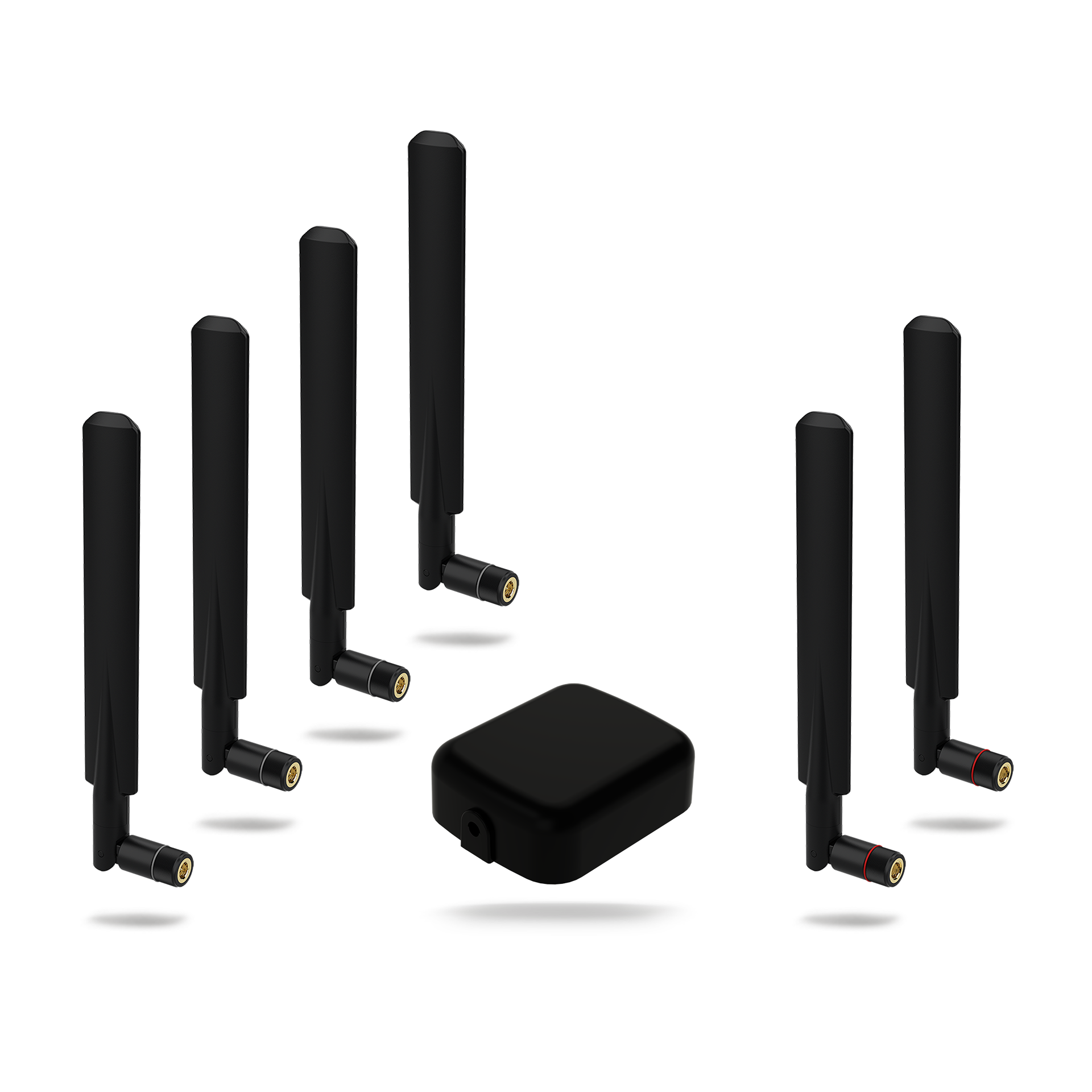

The TK4SP2SPRVGPSME consists of a kit with 4x cellular paddle antennas covering 698-960/1710-3800MHz, 2x WiFi paddle antennas covering 2400-2485/5150-7125MHz and al L1 GPS/GNSS antenna covering 1559-1612MHz.
This kit interfaces with all the antenna ports on the router and allows setup, testing or use of the device. The paddle style antennas are easy to install by hand and the GPS antenna can be positioned near the router thanks to the fitted 200mm (8″) cable assembly.
This complete kit simplifies antenna selection by providing a complete kit of antennas in one handy package.
Product overview
The TK4SP2SPRVGPSME consists of a kit with 4x cellular paddle antennas covering 698-960/1710-3800MHz, 2x WiFi paddle antennas covering 2400-2485/5150-7125MHz and al L1 GPS/GNSS antenna covering 1559-1612MHz.
This kit interfaces with all the antenna ports on the router and allows setup, testing or use of the device. The paddle style antennas are easy to install by hand and the GPS antenna can be positioned near the router thanks to the fitted 200mm (8″) cable assembly.
This complete kit simplifies antenna selection by providing a complete kit of antennas in one handy package.
Product Features
- Complete paddle antenna kit for Ericsson Cradlepoint R1900 / R980 4x 4G/5G cellular paddle antennas 2x dual band WiFi antennas 1x GPS/GNSS antenna
Benefits
- All-in-one antenna kit Suitable for Ericsson Cradlepoint R980 / R1900 Easy installation by hand without tools
Application
- Testing and trials Setup and configuration Desk or rack mount
Additional information
| Colour | Black |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module |
| WIFI MIMO | 2 x 2 MIMO |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | Reverse Polarity SMA |
| Connector (GPS) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | 698 – 960MHz; 1710 – 3800MHz; 2400 – 2485MHz; 5150 – 7125MHz |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | 2 x 2 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26dB |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA |
| Connector (GPS) | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Router; Dash |
| Mounting Methods | Dash; Router |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G/4G; CBRS; ESN; FirstNet; GNSS; WIFI 6E |
