Description
The RAYM2-24-58 range has been designed as a cost effective solution for telematics/asset tracking applications MiMo WIFI.
Product

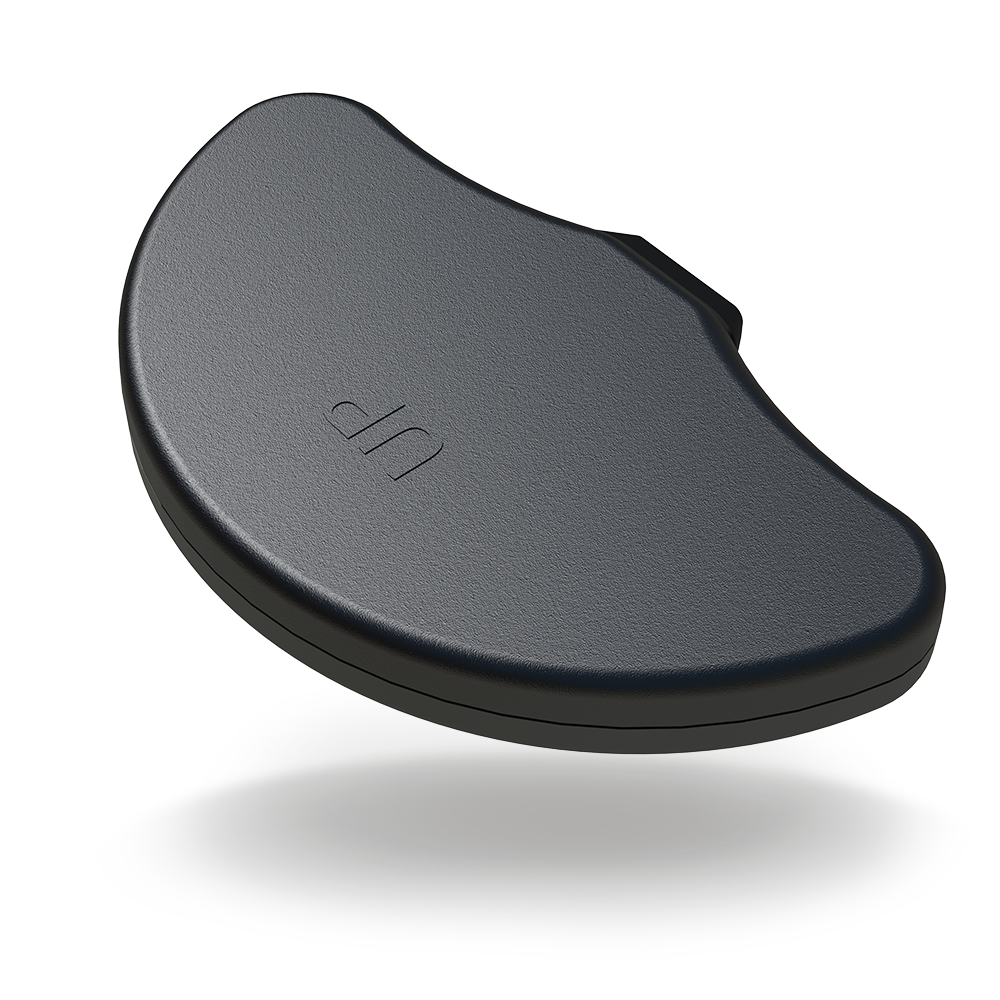

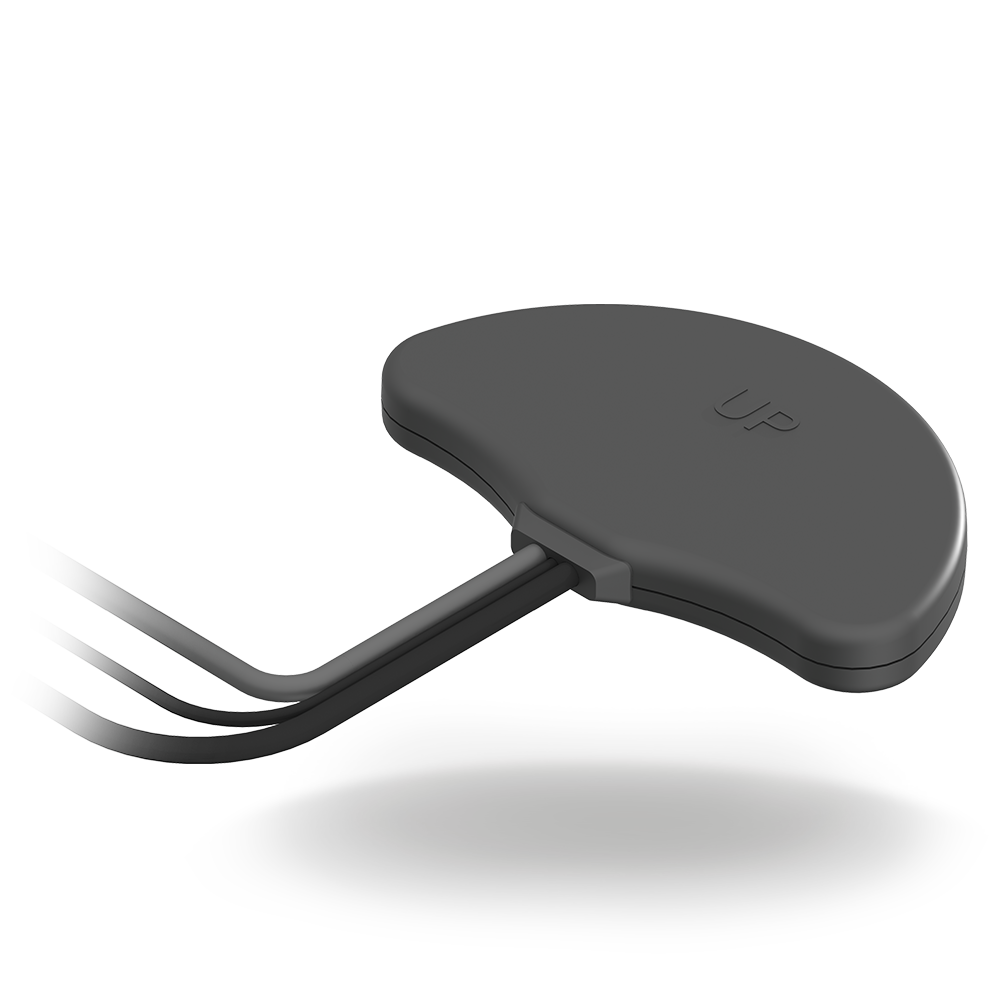

RAYM2-24-58 | Dashboard / Windshield MiMo WiFi Antenna
Model / SKU: RAYM2-24-58-[X]
RAYM2-24-58 | Dashboard / Windshield MiMo WiFi Antenna
The RAYM2-24-58 range has been designed as a cost effective solution for telematics/asset tracking applications MiMo WIFI.
The compact, robust low-profile housing contains two elements providing MiMo WiFi 2.4/5.0GHz coverage.
The antenna can be fitted on or under a vehicle dashboard or on a
windshield using the supplied acrylic adhesive sealing pad. Supplied
with integrated 3m (10’) cables that are compliant with UN ECE R118
and fitted with Rev Pol SMA Plug connectors, the antenna will offer plug
and play connectivity with many different devices.
Product overview
The RAYM2-24-58 range has been designed as a cost effective solution for telematics/asset tracking applications MiMo WIFI.
The compact, robust low-profile housing contains two elements providing MiMo WiFi 2.4/5.0GHz coverage.
The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables that are compliant with UN ECE R118 and fitted with Rev Pol SMA Plug connectors, the antenna will offer plug and play connectivity with many different devices.
Product Features
- Supports 2×2 MiMo WiFi 2.4/5.0GHz Mount on or under the dashboard on the windshield Integrated double shielded low loss cables compliant to UN ECE R118
Benefits
- No-drill installation Easy to Install
Application
- Buses and Coaches Vehicle Interiors
Additional information
| WIFI MIMO | 2 x 2 MIMO |
|---|---|
| Cable Length | Between 3m & 5m |
| Connector (WIFI) | Reverse Polarity SMA |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Typical VSWR | <2:1 |
| Cellular LTE Elements | No |
| WIFI Elements | 2 x 2 MIMO |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Length | 131 (mm) | 5.16 (in) |
| Width | 84.5 (mm) | 3.33 (in) |
| Height | 15 (mm) | 0.59 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – WIFI | 3 (m) | 9.84 (ft) |
| Cable Type (WIFI) | FR CS32 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA |
| MOUNTING DATA | |
| Mounting Type Temp | Dash; Glass Mount; Hook/Loop or Adhesive |
| Mounting Methods | Dash; Glass Mount; Hook/Loop or Adhesive |
| APPROVALS DATA | |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | WIFI MIMO; WIFI |
