Description
The Panorama RM-IN2216 antenna is designed to decrease the lifetime cost of smart metering installations by offering a robust, effective cellular antenna that is easy to install on DIN EN 50022 rails.
Product

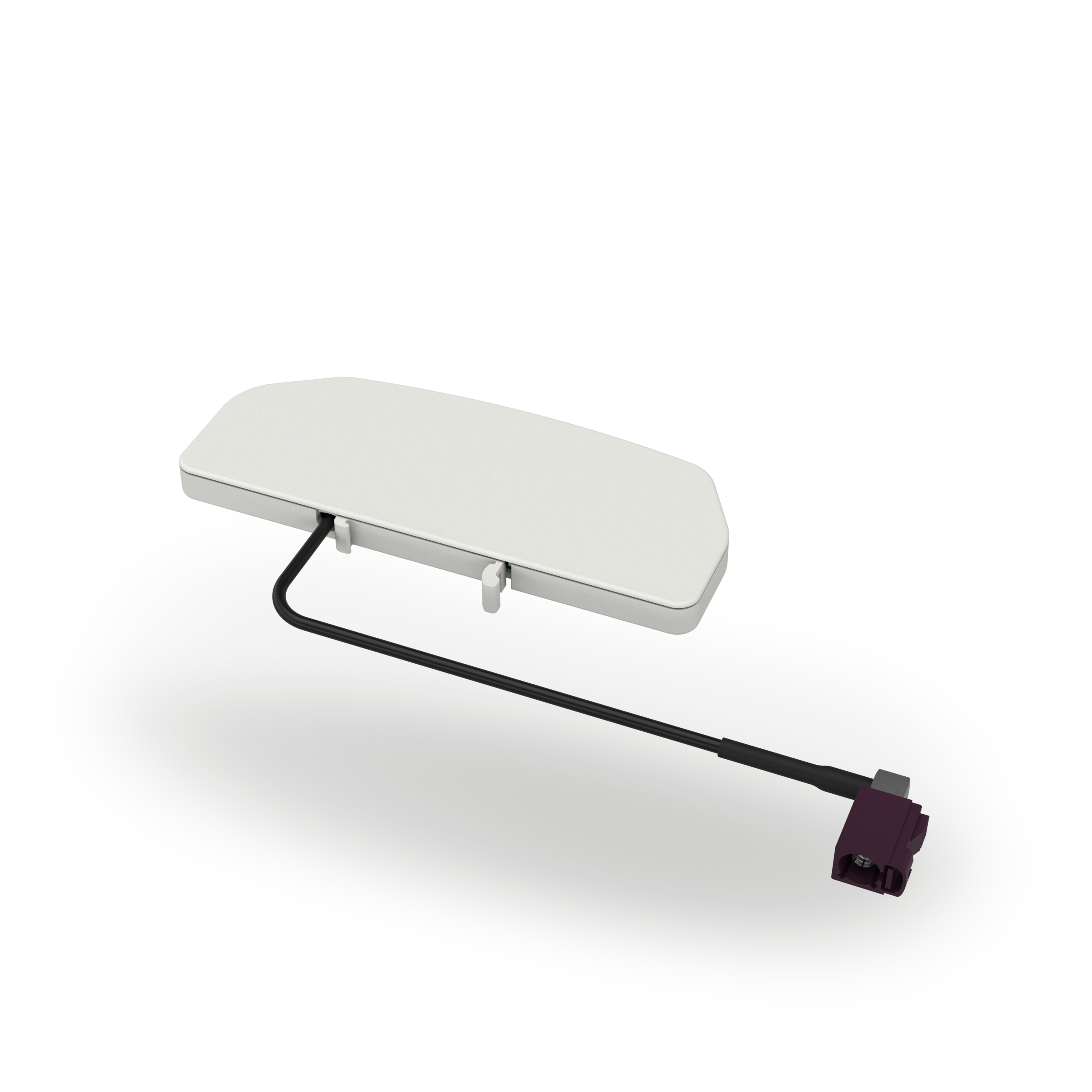

RM-IN2216 | Rail Mount Antenna
Model / SKU: RM-IN2216-[X]
RM-IN2216 | Rail Mount Antenna
The Panorama RM-IN2216 antenna is designed to decrease the lifetime cost of smart metering installations by offering a robust, effective cellular antenna that is easy to install on DIN EN 50022 rails.
The antenna offers ground-plane independent omni-directional performance across the 800-960/1710- 2700MHz bands. The efficient element
design ensures a high firs time connection rate and an ongoing, robust communications link even in many low coverage areas.
The antenna can be installed using the supplied EN50022 rail mount and offers a right angle FAKRA D Jack
Product overview
The Panorama RM-IN2216 antenna is designed to decrease the lifetime cost of smart metering installations by offering a robust, effective cellular antenna that is easy to install on DIN EN 50022 rails.
The antenna offers ground-plane independent omni-directional performance across the 800-960/1710- 2700MHz bands. The efficient element
design ensures a high firs time connection rate and an ongoing, robust communications link even in many low coverage areas.
The antenna can be installed using the supplied EN50022 rail mount and offers a right angle FAKRA D Jack
Product Features
- Low profile design DIN 50022 rail mount Suitable for the 900-960/1710-27000MHz frequency bands Offers ground plane independent omni-directional performance Right angle FAKRA D Jack
Benefits
- Decreases the lifetime cost of smart metering installations Robust and effective antenna Simple installation High first time connection rate even in low coverage areas
Application
- Smart metering DIN EN 50022 rail mounting Cabinet mounting
Additional information
| Colour | Grey |
|---|---|
| Cable Length | Below 1m |
| Connector (LTE) | Right Angle FAKRA D |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 800 – 960MHz | 2dBi; 1710 – 2700MHz | 2dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Length | 122 (mm) | 4.80 (in) |
| Width | 48 (mm) | 1.89 (in) |
| Height | 9 (mm) | 0.35 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 0.5 (m) | 1.64 (ft) |
| Cable Type (LTE) | FR RG174 |
| TERMINATION DATA | |
| Connector (LTE) | Right Angle FAKRA D |
| MOUNTING DATA | |
| Mounting Type Fixed | Rail |
| Mounting Methods | Rail |
| TECHNOLOGY DATA | |
| Technology | 2G/3G; 2G/3G/4G |
