Description
For use with the L[X]A[X]M4-7-42 Clam® antenna series, the SAB-336 is a wall / mast mount bracket solution for fixed site applications.
Product

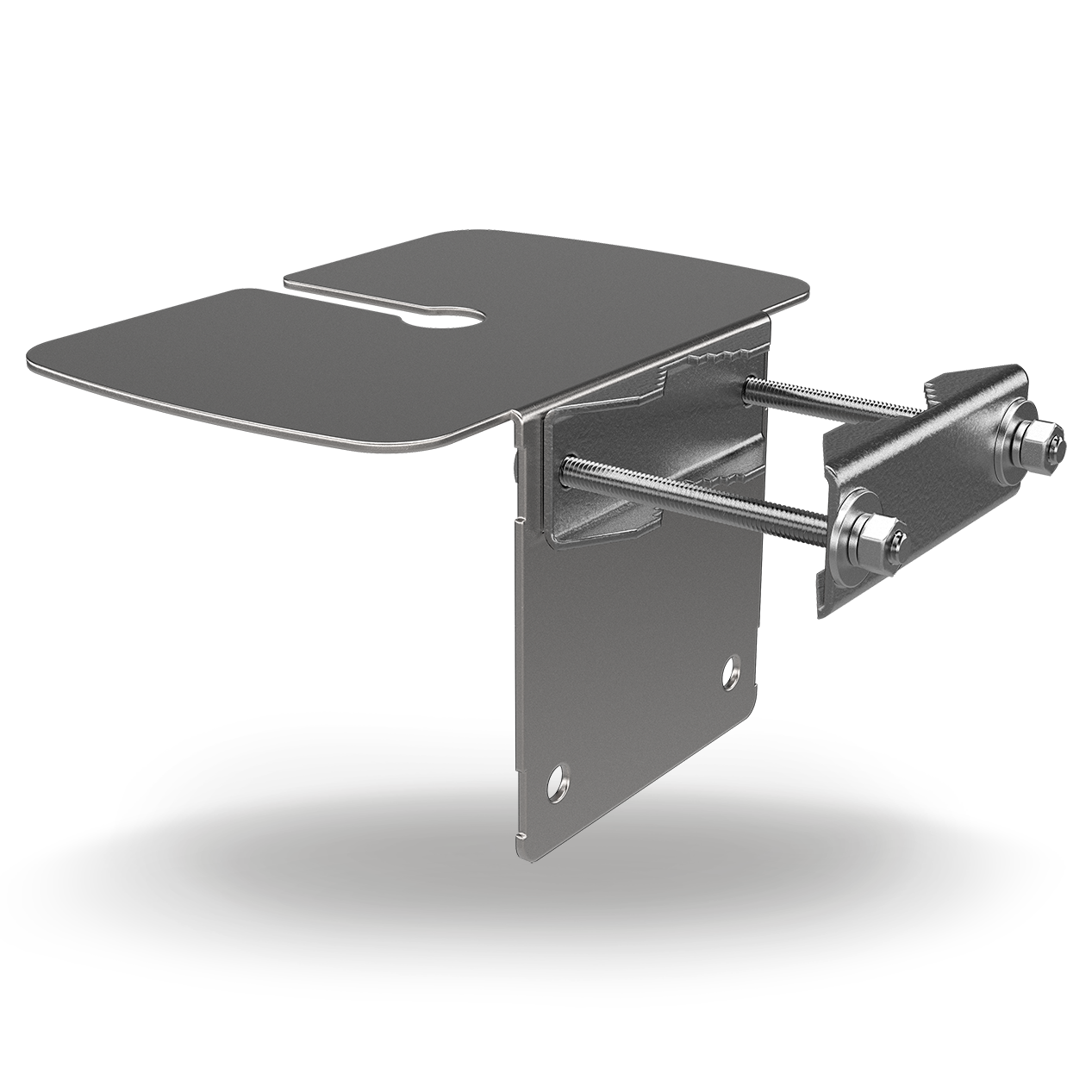

SAB-336 | Clam® Wall/Mast Mount Bracket
Model / SKU: SAB-336[-X]
SAB-336 | Clam® Wall/Mast Mount Bracket
For use with the L[X]A[X]M4-7-42 Clam® antenna series, the SAB-336 is a wall / mast mount bracket solution for fixed site applications.
The robust steel bracket is passivated for corrosion resistance and can be screw mounted to a wall or panel or fixed on a mast using the supplied mast clamps.
SAB-336 is a very easy, simple and quick solution that can permit the L[X]A[X]M4-7-42 Clam® antenna series to be mounted in elevated positions or in locations where a horizontal panel is not available.
When mounting antennas or bracketry above a roofline or in an elevated position in areas prone to lightning it may be prudent to consider lightning or surge protection.
Product overview
For use with the L[X]A[X]M4-7-42 Clam® antenna series, the SAB-336 is a wall / mast mount bracket solution for fixed site applications.
The robust steel bracket is passivated for corrosion resistance and can be screw mounted to a wall or panel or fixed on a mast using the supplied mast clamps.
SAB-336 is a very easy, simple and quick solution that can permit the L[X]A[X]M4-7-42 Clam® antenna series to be mounted in elevated positions or in locations where a horizontal panel is not available.
When mounting antennas or bracketry above a roofline or in an elevated position in areas prone to lightning it may be prudent to consider lightning or surge protection.
Product Features
- Allows the Clam® antenna series to mount to a wall or mast.
- Passivated steel bracket
| MECHANICAL DATA | |
|---|---|
| Length | 168 (mm) | 6.61 (in) |
| Width | 114 (mm) | 4.49 (in) |
| Height | 100 (mm) | 3.94 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall; Pole |
Data material
- Datasheet - SAB-336.pdf (PDF)
