Description
For use with the L[X]M[X]M4[X]-6-60 Mako® and L[X]M[X]M[X]-6-60 5G Great White® antenna series, the SAB-342 provides a simple mounting solution for fitting these product lines to standard 1.5″ / 38mm diameter poles.
Product
SAB-342 | Pole / Mast Mount for Dome Antennas
Model / SKU: SAB-342[-X]
SAB-342 | Pole / Mast Mount for Dome Antennas
For use with the L[X]M[X]M4[X]-6-60 Mako® and L[X]M[X]M[X]-6-60 5G Great White® antenna series, the SAB-342 provides a simple mounting solution for fitting these product lines to standard 1.5″ / 38mm diameter poles.

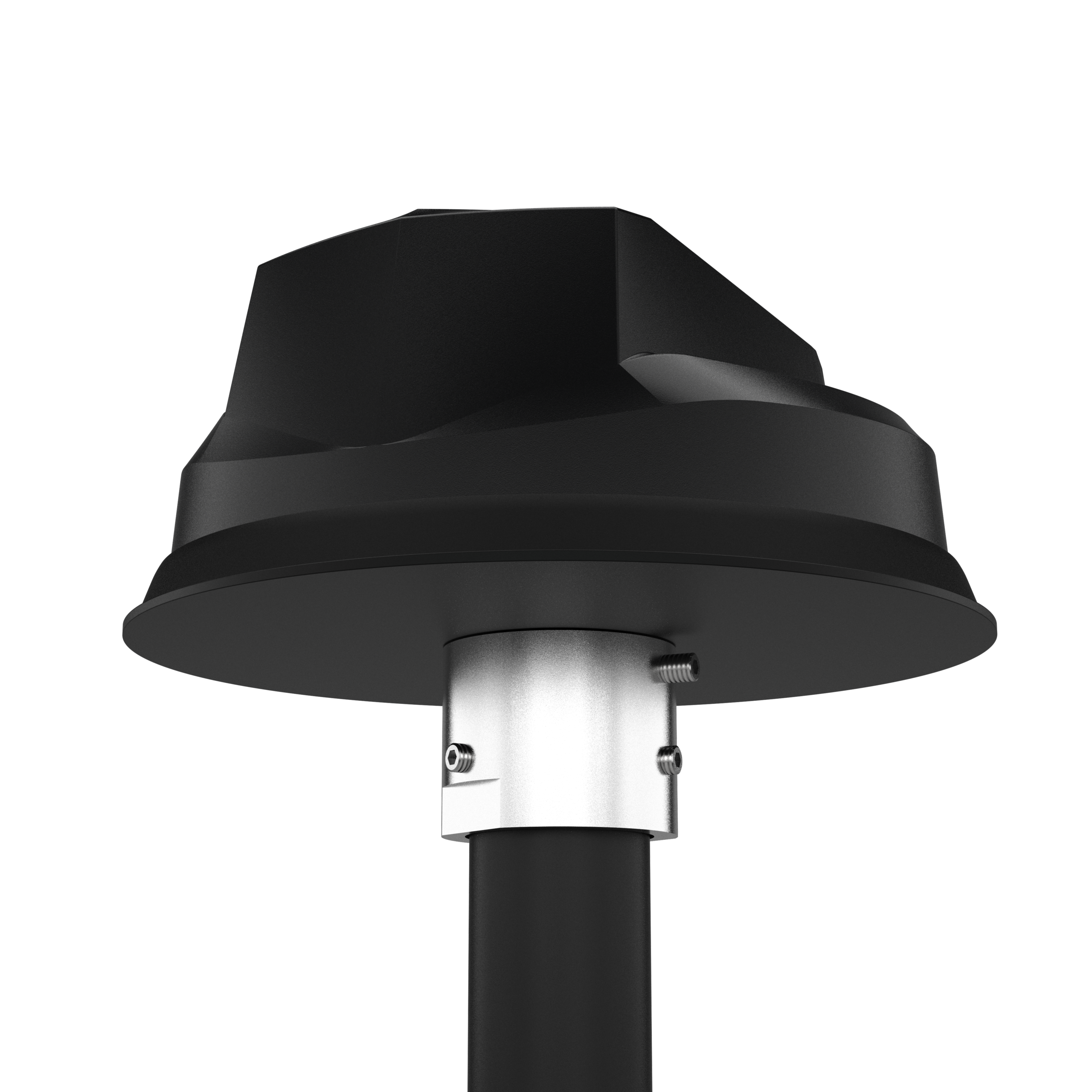

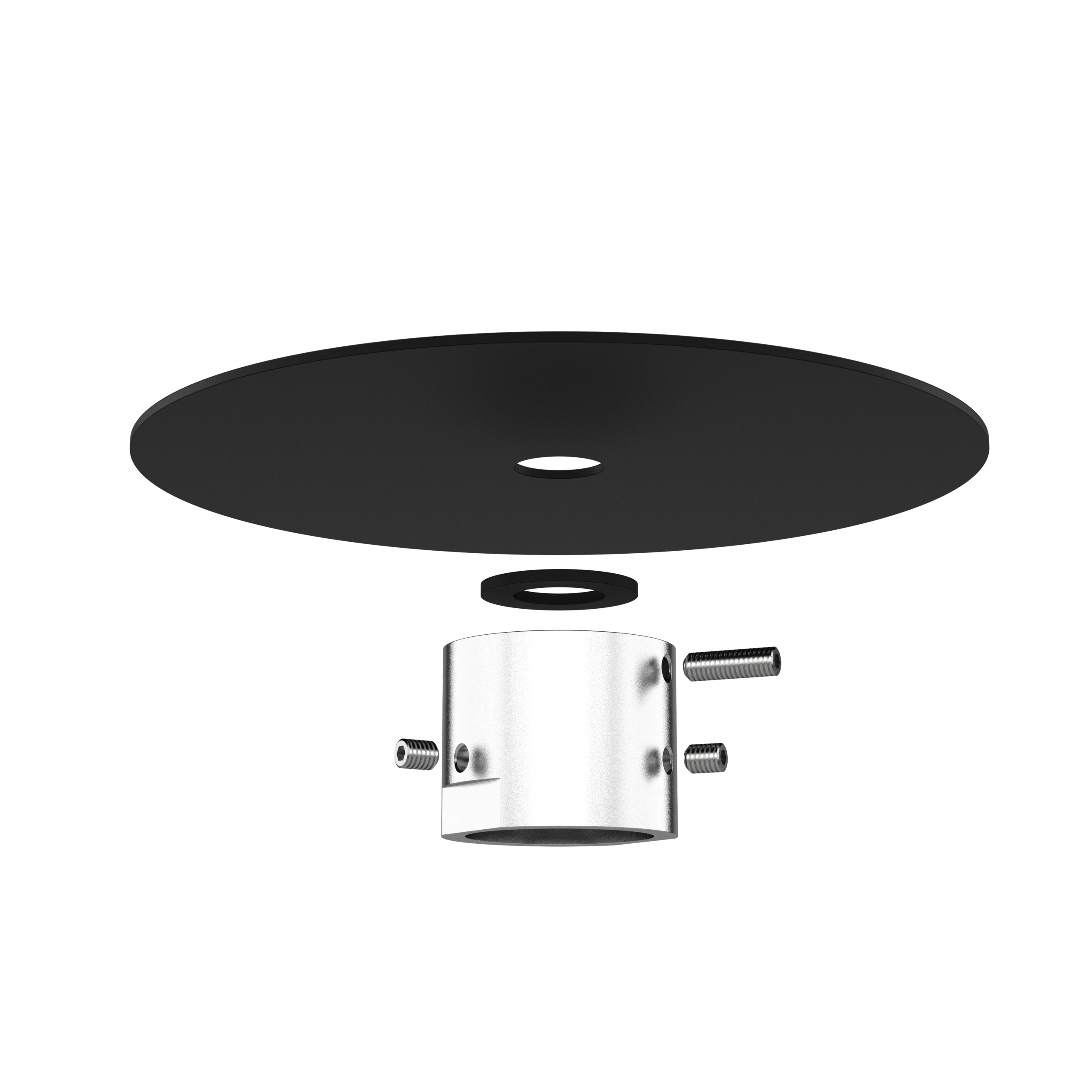

The assembly allows the antenna to be mounted to the top of such a pole with the cables routed inside the pole. The bracket is mounted to the antenna using the M18 mounting thread on the antenna locked in place with a grub screw. The entire assembly is fitted to the 1.5” 38mm pole using 3x additonal grub screws.
Mounting these omni-directional antennas on a pole allows for increased elevation and clearance from buildings or other obstructions.
When mounting antennas or bracketry above a roofline or in an elevated position in areas prone to lightning it may be prudent to consider lightning or surge protection.
Product overview
For use with the L[X]M[X]M4[X]-6-60 Mako® and L[X]M[X]M[X]-6-60 5G Great White® antenna series, the SAB-342 provides a simple mounting solution for fitting these product lines to standard 1.5″ / 38mm diameter poles.
The assembly allows the antenna to be mounted to the top of such a pole with the cables routed inside the pole. The bracket is mounted to the antenna using the M18 mounting thread on the antenna locked in place with a grub screw. The entire assembly is fitted to the 1.5” 38mm pole using 3x additonal grub screws.
Mounting these omni-directional antennas on a pole allows for increased elevation and clearance from buildings or other obstructions.
When mounting antennas or bracketry above a roofline or in an elevated position in areas prone to lightning it may be prudent to consider lightning or surge protection.
Product Features
- Pole mount for Mako® and 5G Great White® Fits standard 1.5″ / 38mm diameter poles Easy to install Allows antennas to be elevated clear of buildings or other obstructions
Benefits
- Easy to Install Prevents significant ingress into pole Adapts dome type antennas to fixed site applications
Application
- Fixed site / failover Retail / Branch IOT
| MECHANICAL DATA | |
|---|---|
| Height | 42 (mm) | 1.65 (in) |
| Diameter | 187 (mm) | 7.36 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast |
| Mounting Methods | Mast; Pole |
