Description
For use with the L[X]M[X]M8[X]-6-60 and L[X]M[X]M6[X]-6-60 Megalodon® antenna series, the SAB-344 provides a simple temporary magnetic mounting solution drive testing and evaluation.
Product
SAB-344 | Megalodon® Magnetic Mount Adaptor
Model / SKU: SAB-344[-X]
SAB-344 | Megalodon® Magnetic Mount Adaptor
For use with the L[X]M[X]M8[X]-6-60 and L[X]M[X]M6[X]-6-60 Megalodon® antenna series, the SAB-344 provides a simple temporary magnetic mounting solution drive testing and evaluation.

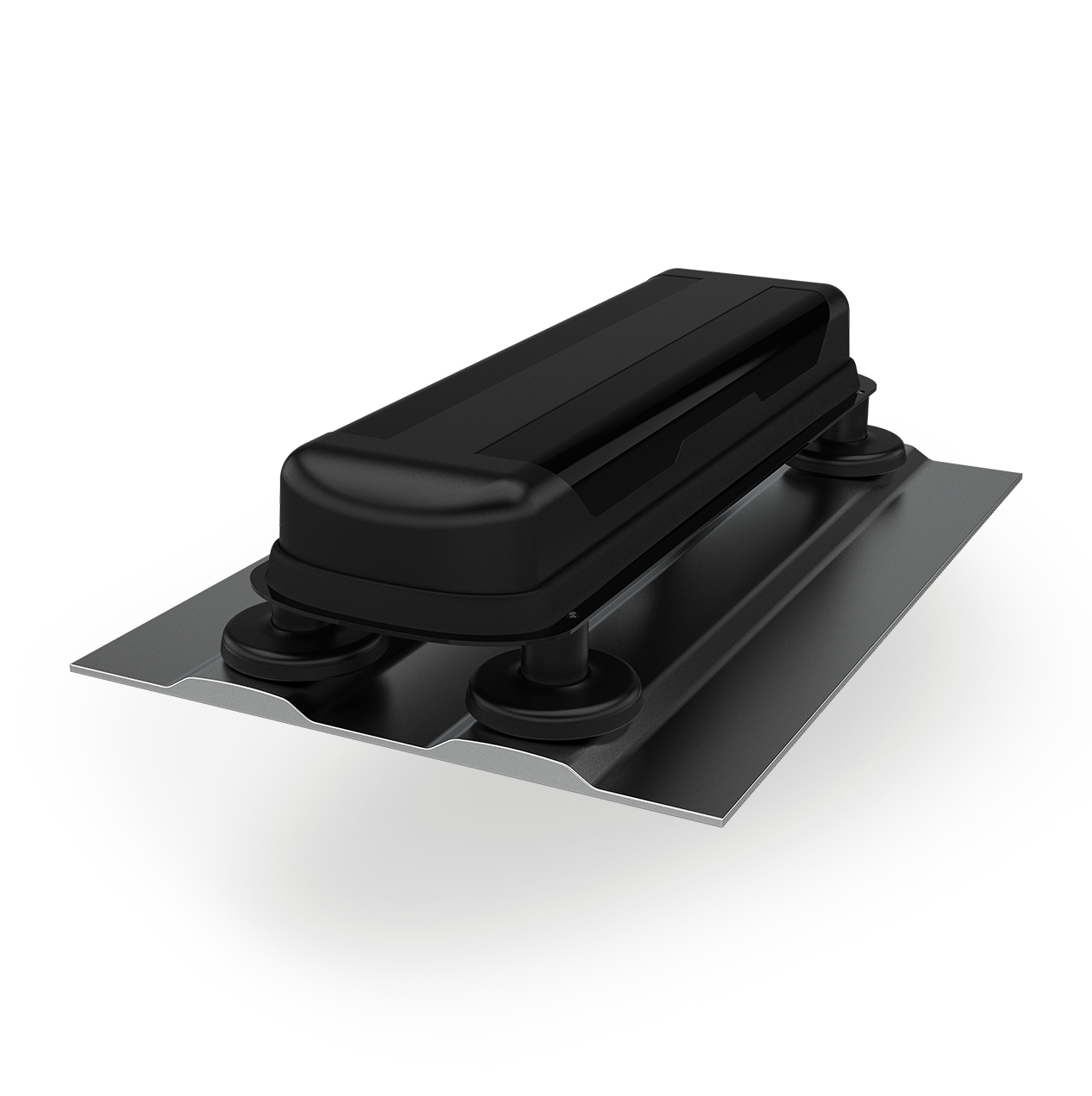

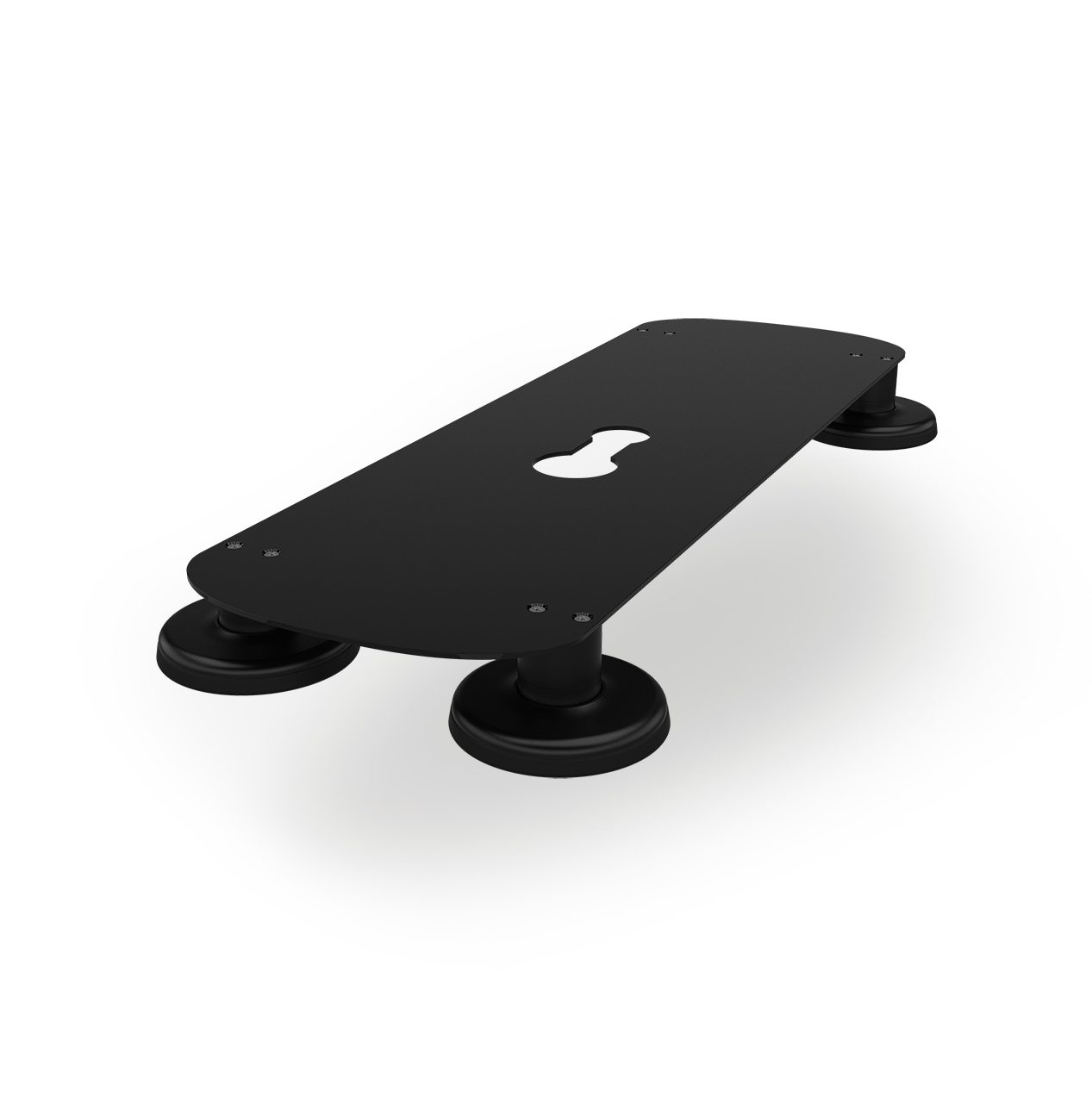

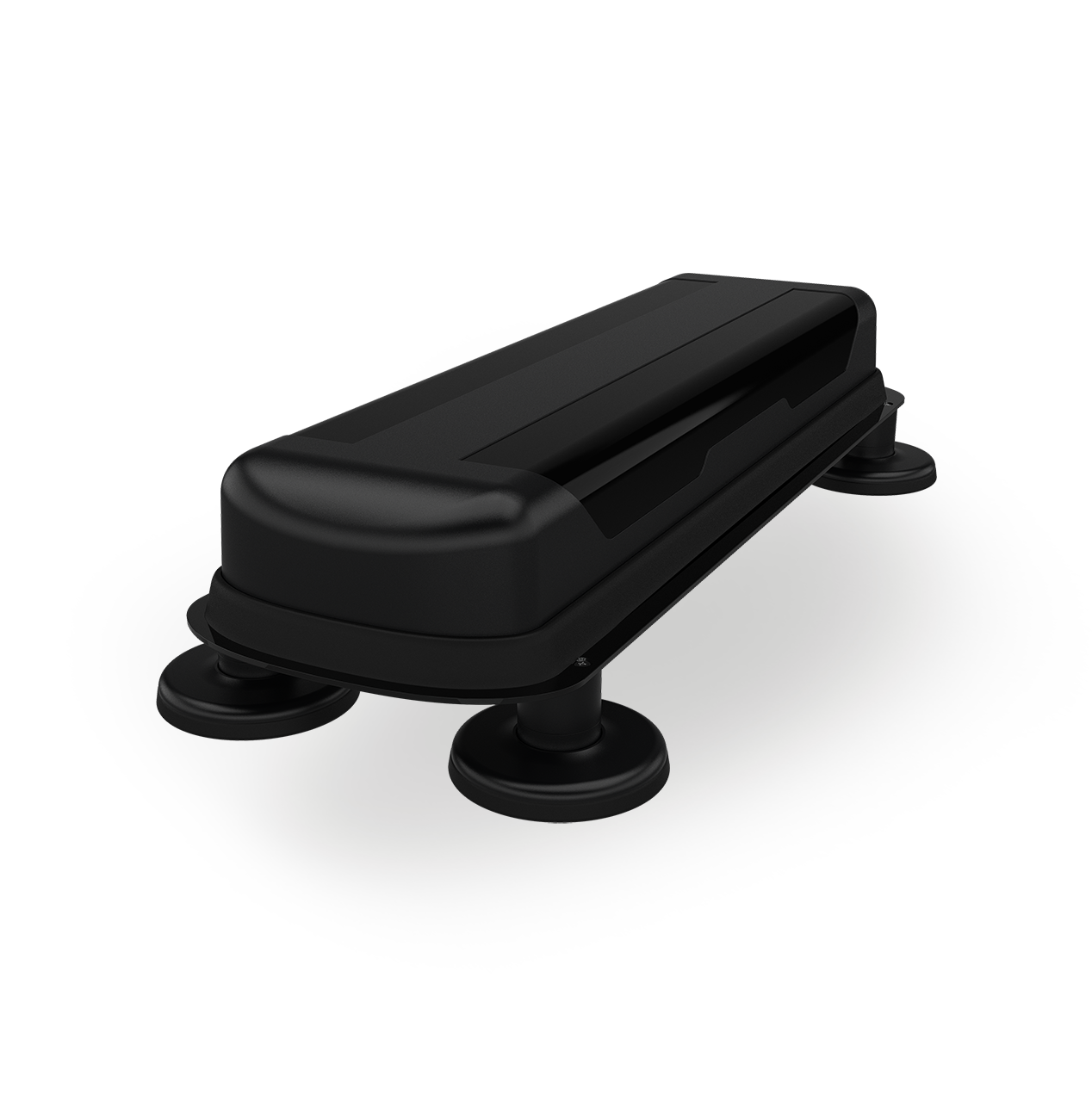

Using four heavy duty magnets fitted to a stainless steel metal plate, this is a very easy, simple and quick solution that can be fitted anywhere on the vehicle to evaluate the antennas performance without drilling any holes.
Product overview
For use with the L[X]M[X]M8[X]-6-60 and L[X]M[X]M6[X]-6-60 Megalodon® antenna series, the SAB-344 provides a simple temporary magnetic mounting solution drive testing and evaluation.
Using four heavy duty magnets fitted to a stainless steel metal plate, this is a very easy, simple and quick solution that can be fitted anywhere on the vehicle to evaluate the antennas performance without drilling any holes.
Product Features
- Magnetic mount adapter plate for Megaloldon® range For temporary mounting
Benefits
- Strong magentic retention No drill installation
Application
- Drive testing and evaluation Temporary fitment
Additional information
| Colour | Black |
|---|
| MECHANICAL DATA | |
|---|---|
| Colour | Black |
| Length | 453 (mm) | 17.83 (in) |
| Width | 191.5 (mm) | 7.54 (in) |
| Height | 42 (mm) | 1.65 (in) |
| Operating Temperature | -45°/ +80°C (-49.0°/ +176.0°F) |
| MOUNTING DATA | |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic |
Data material
- Datasheet - SAB-344.pdf (PDF)
