Description

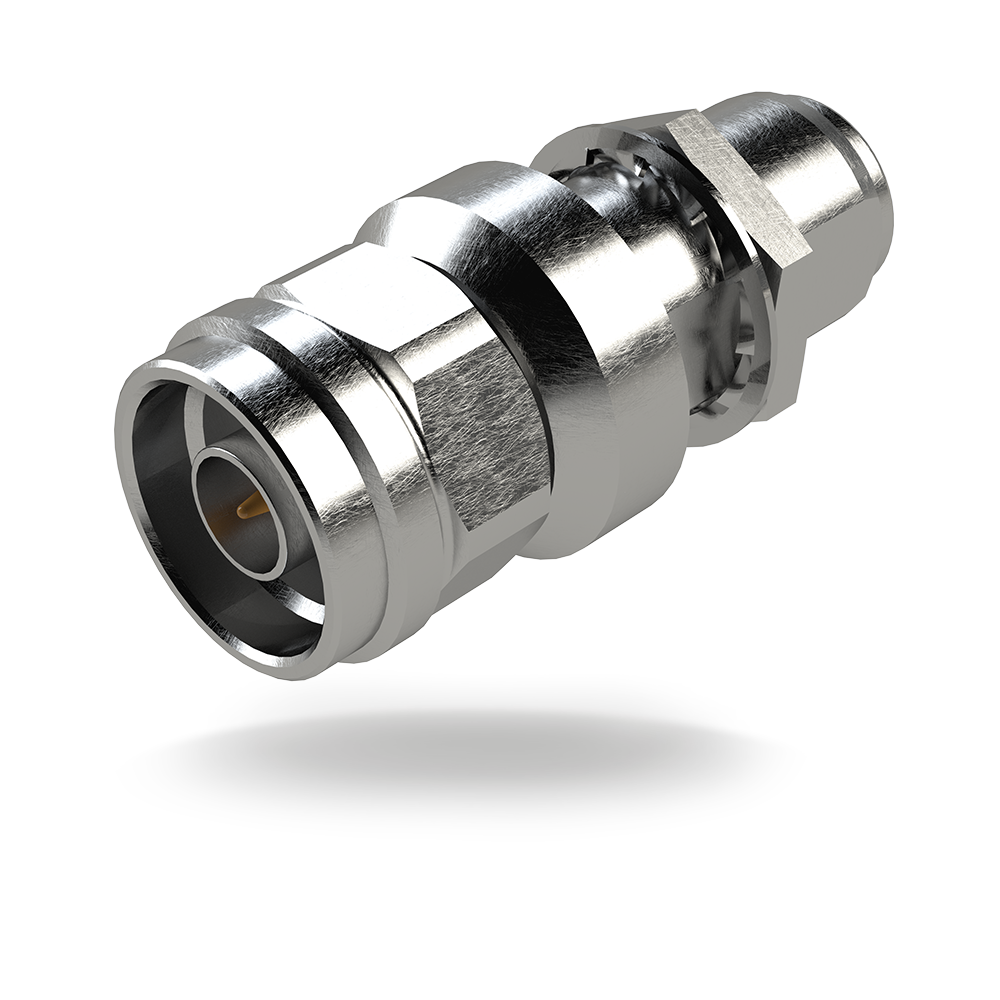

This multi surge arrester offers a flexible light duty surge protection solution using N connectors allowing it to be mounted in line between antennas and feeder cables or coaxial cables and radio / router devices. The surge arrester can operate between 0-6GHz with low return and insertion loss. The surge arrester is fitted with a bulkhead feature which can be used to mount and earth the device to conductive earth bars / panels of max 6.5mm (0.25”) thickness, alternatively this feature can accept a heavy duty earth tag.
Product overview
This multi surge arrester offers a flexible light duty surge protection solution using N connectors allowing it to be mounted in line between antennas and feeder cables or coaxial cables and radio / router devices.
The surge arrester can operate between 0-6GHz with low return and insertion loss. The surge arrester is fitted with a bulkhead feature which can be used to mount and earth the device to conductive earth bars / panels of max 6.5mm (0.25”) thickness, alternatively this feature can accept a heavy duty earth tag.
Product Features
- Operates between 0-6GHz Fitted with bulkhead type panel mounting N surge suppressor (m-f) Light duty surge protector
Benefits
- Flexible light duty surge protection Low return and insertion loss Can accept heavy duty earth tag
Application
- Protection of radio equipment from surges Ideal for elevated and fixed site antennas in at risk areas Protection from EMP caused by lightning strikes
