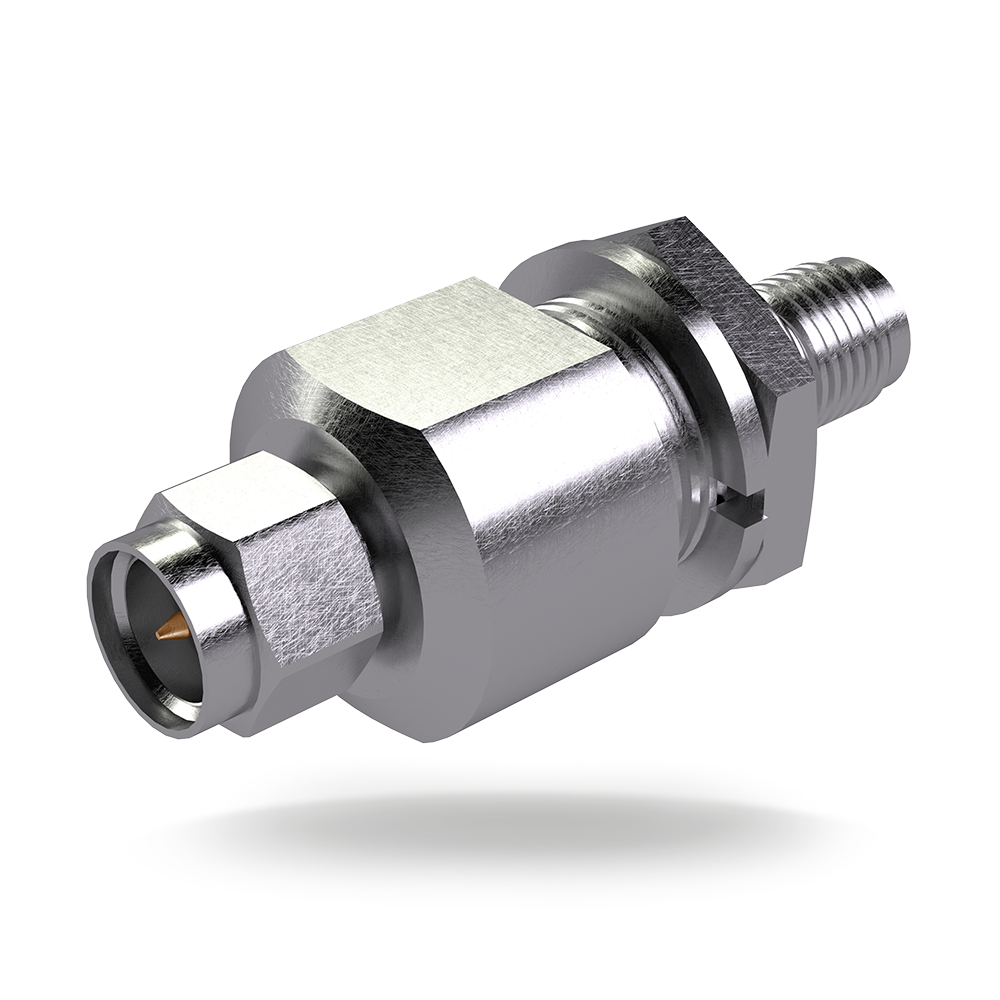

Model / SKU: SAMS-SP-SMABJ-[X]
This multi surge arrester offers a flexible light duty surge
protection solution using SMA connectors allowing it to be mounted in line
between antennas and feeder cables or coaxial cables and radio / router
devices.
The surge arrester can operate between 0-6GHz with low return and
insertion loss. The surge arrester is fitted with a bulkhead feature
which can be used to mount and earth the device to conductive earth bars
/ panels of max 6.5mm (0.25”) thickness, alternatively this feature can
accept a heavy duty earth tag.
This multi surge arrester offers a flexible light duty surge protection solution using SMA connectors allowing it to be mounted in line between antennas and feeder cables or coaxial cables and radio / router devices. The surge arrester can operate between 0-6GHz with low return and insertion loss.
This multi surge arrester offers a flexible light duty surge protection solution using SMA connectors allowing it to be mounted in line between antennas and feeder cables or coaxial cables and radio / router devices.
The surge arrester can operate between 0-6GHz with low return and insertion loss. The surge arrester is fitted with a bulkhead feature which can be used to mount and earth the device to conductive earth bars / panels of max 6.5mm (0.25”) thickness, alternatively this feature can accept a heavy duty earth tag.
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 25 |
| Typical VSWR | <1.5:1 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Length | 35.3 (mm) | 1.39 (in) |
| Diameter | 15 (mm) | 0.59 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
