Description
4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family.
Product

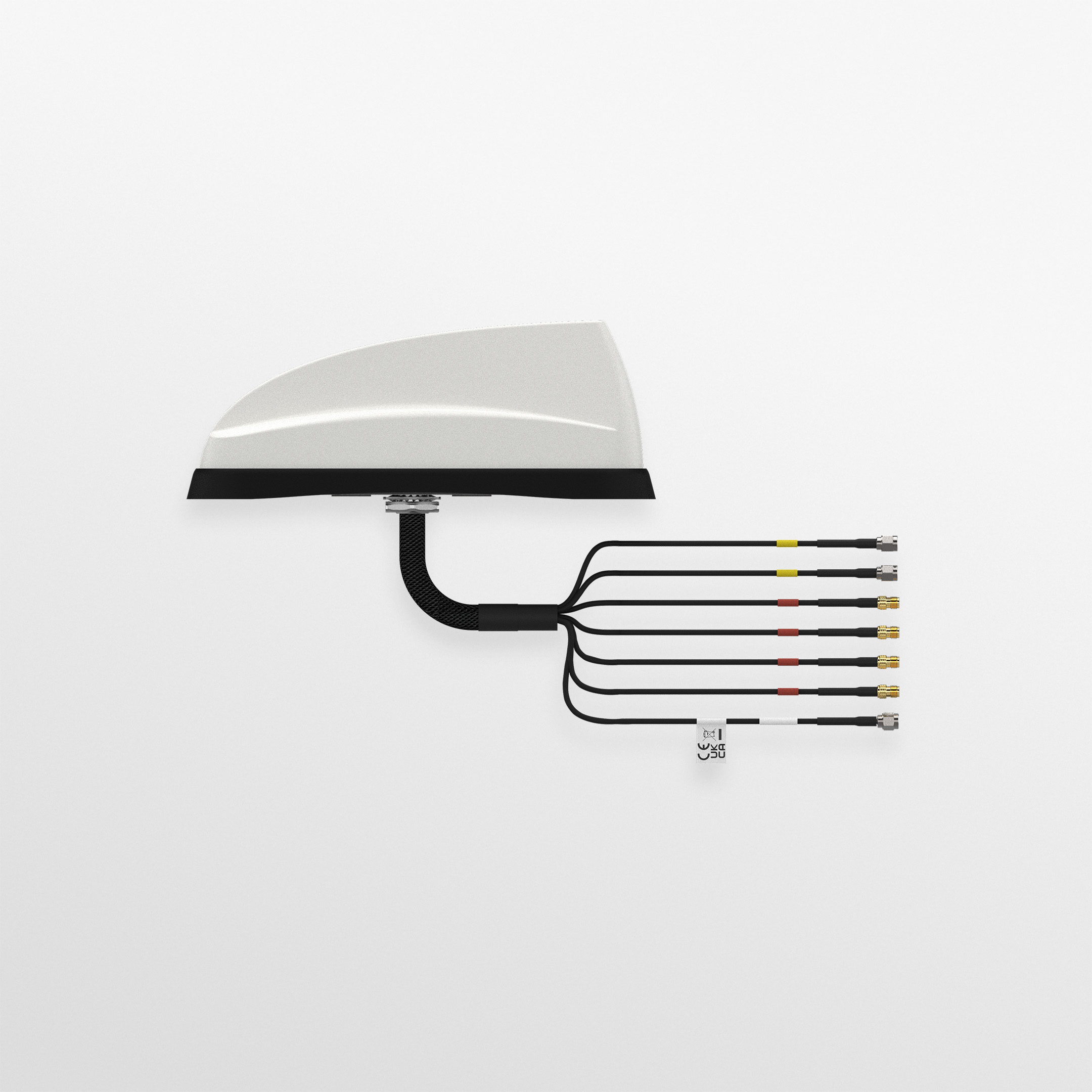

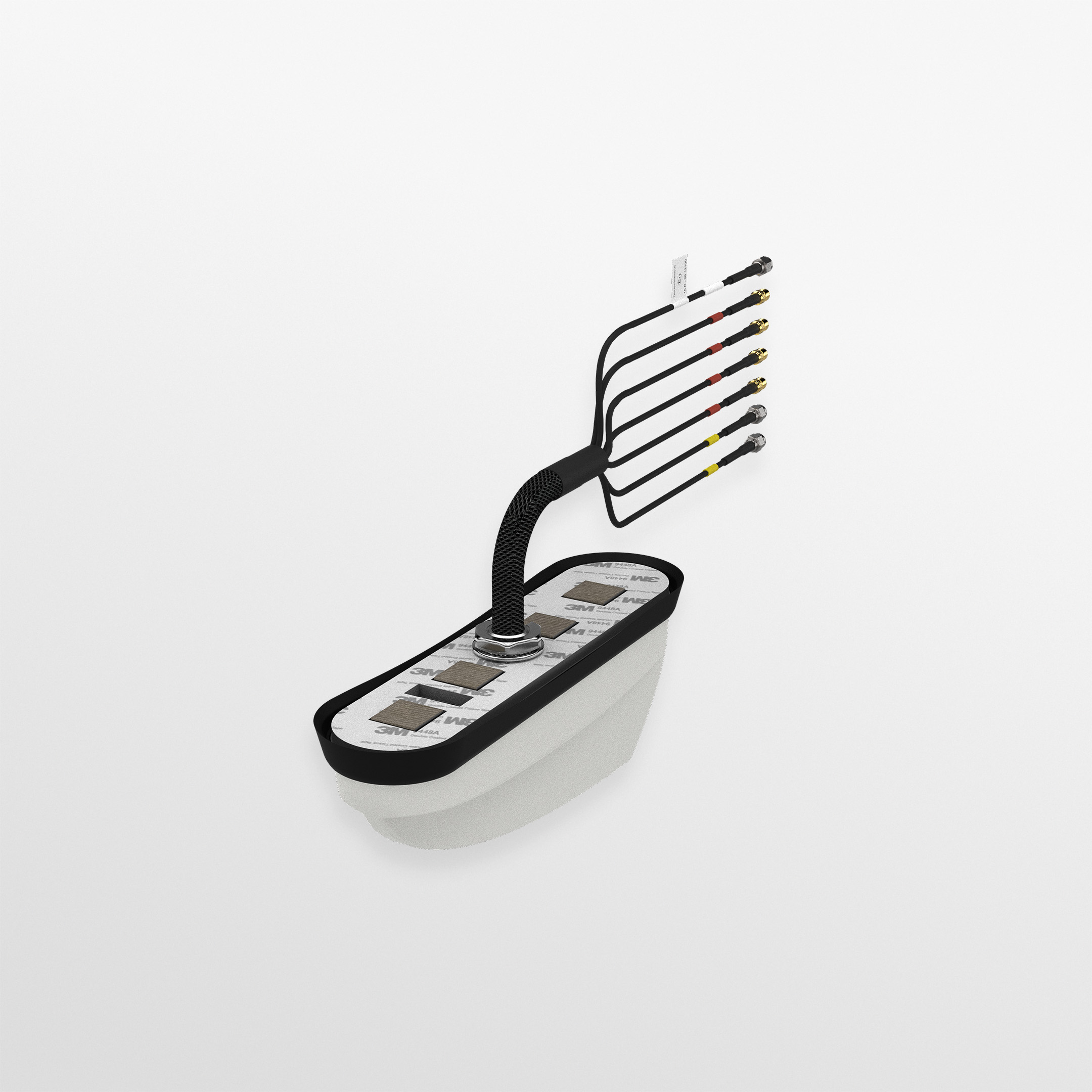

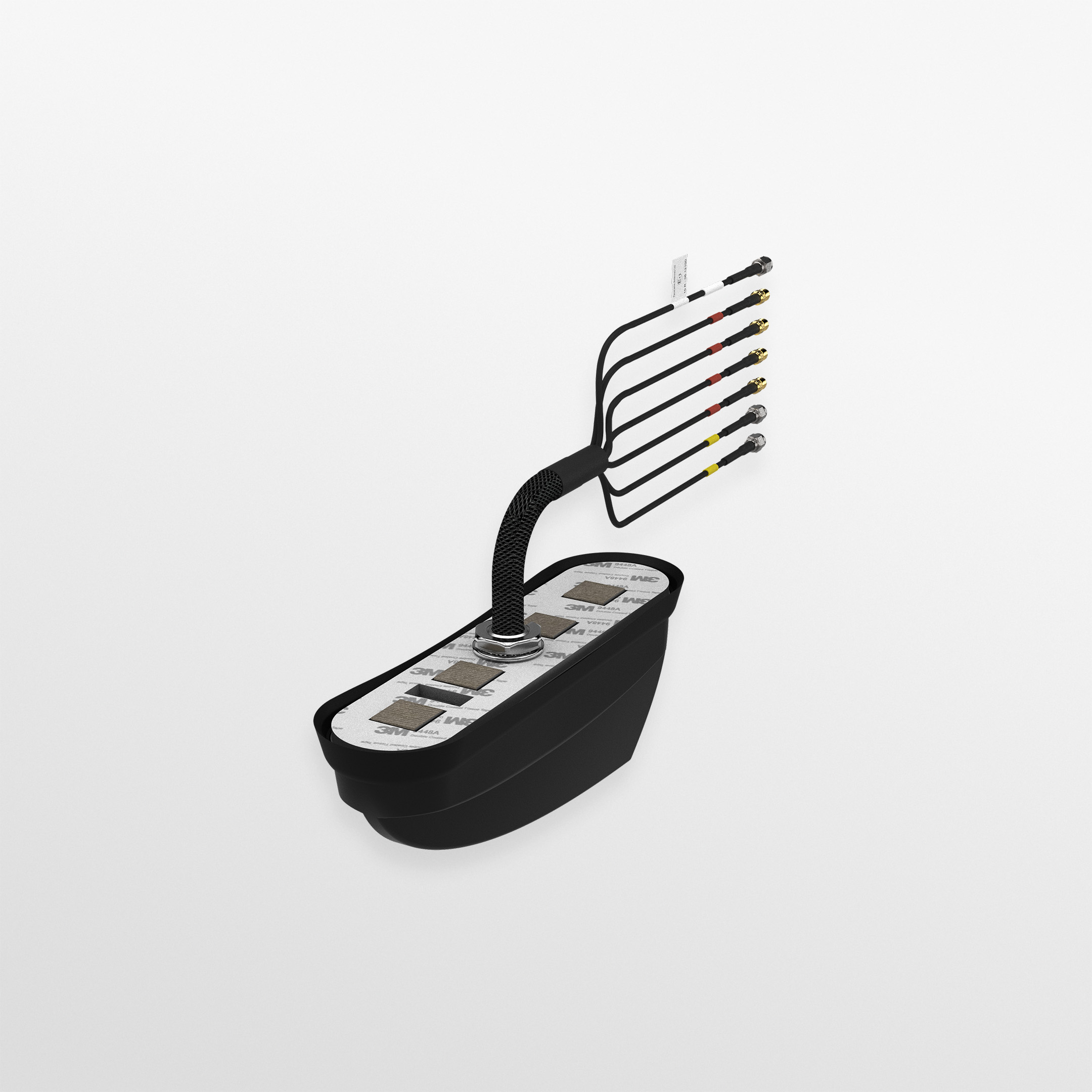

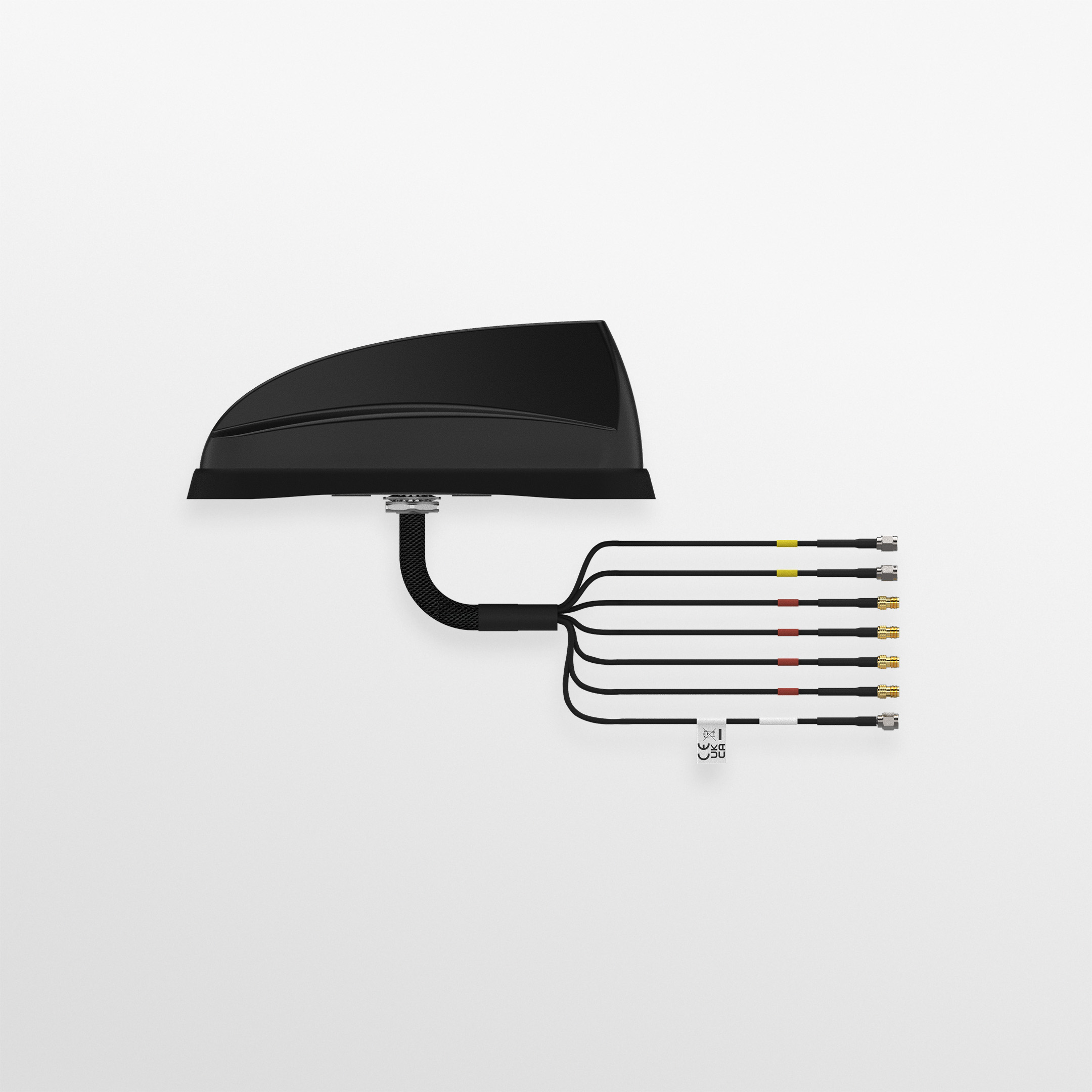

SHKG-6-60 | 4G/5G MiMo ‘Sharkee®’ – OEM, 2×2 MiMo, Optional GPS/GNSS, Up to 4x MiMo WiFi
Model / SKU: SHKG-6-60[-VAR]
SHKG-6-60 | 4G/5G MiMo ‘Sharkee®’ – OEM, 2×2 MiMo, Optional GPS/GNSS, Up to 4x MiMo WiFi
4G/5G MiMo Antenna Discrete OEM Style Sharkfin.
The SHKG ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family.
The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance.
The OEM style shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
Product overview
4G/5G MiMo Antenna Discrete OEM Style Sharkfin.
The SHKG ‘
Sharkee®
’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family.
The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance.
The OEM style shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
Product Features
- Discreet automotive OEM SharkFin design Multiple antenna functions in a single housing Single hole mounting – reduces vehicle damage, installation time & cost Can be mounted on a metallic or non-metallic panel surface Will fit between roof ribs on all major vehicle manufacturers Can be retrofitted to a vehicle replacing the factory fitted antenna 2×2 MiMo Cellular – 617-960 / 1710-6000MHz GPS/GNSS with advanced filtering for LTE Band 13/14 Optional 2×2, 3×3, or 4×4 MiMo WiFi 2.4/4.9-7.2GHz UN ECE R118 Compliant Cable Feeds
Application
- Police & Law Enforcement EMS & Fire Mass Transit buses and coaches Utility Vehicles
Additional information
| Colour | Black, White |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module |
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, Reverse Polarity SMA, SMA (f) |
| Connector (GPS) | FME (f), SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 617 – 960MHz | 5dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No; 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black; White |
| Length | 243 (mm) | 9.57 (in) |
| Width | 63 (mm) | 2.48 (in) |
| Height | 90 (mm) | 3.54 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Length – WIFI | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR RG174 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR RG174 |
| Quantity of Cell Cable | 2 |
| Quantity of GPS/GNSS Extension | 1 |
| Quantity of WIFI Extension | max: 4 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA; SMA (f) |
| Connector (GPS) | SMA (m); FME (f) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic; Panel |
| APPROVALS DATA | |
| IP Rating | IP69K |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI |
