Model / SKU: SHK[X]4-7-49[X]
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-White-and-Black.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-1-Black-Main-Image.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-2-White-Main-Image.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDX4-7-49X-3-Black-Front-View.jpg "GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDX4-7-49X-4-White-Front-view-2.jpg "GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 6](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-5-Black-Side-image.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 7](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-6-White-Side-image-1.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 8](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-7-Black-Underside-image-1.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")
![SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 9](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHKX4-7-49X-8-White-Underside-image.jpg "SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna")

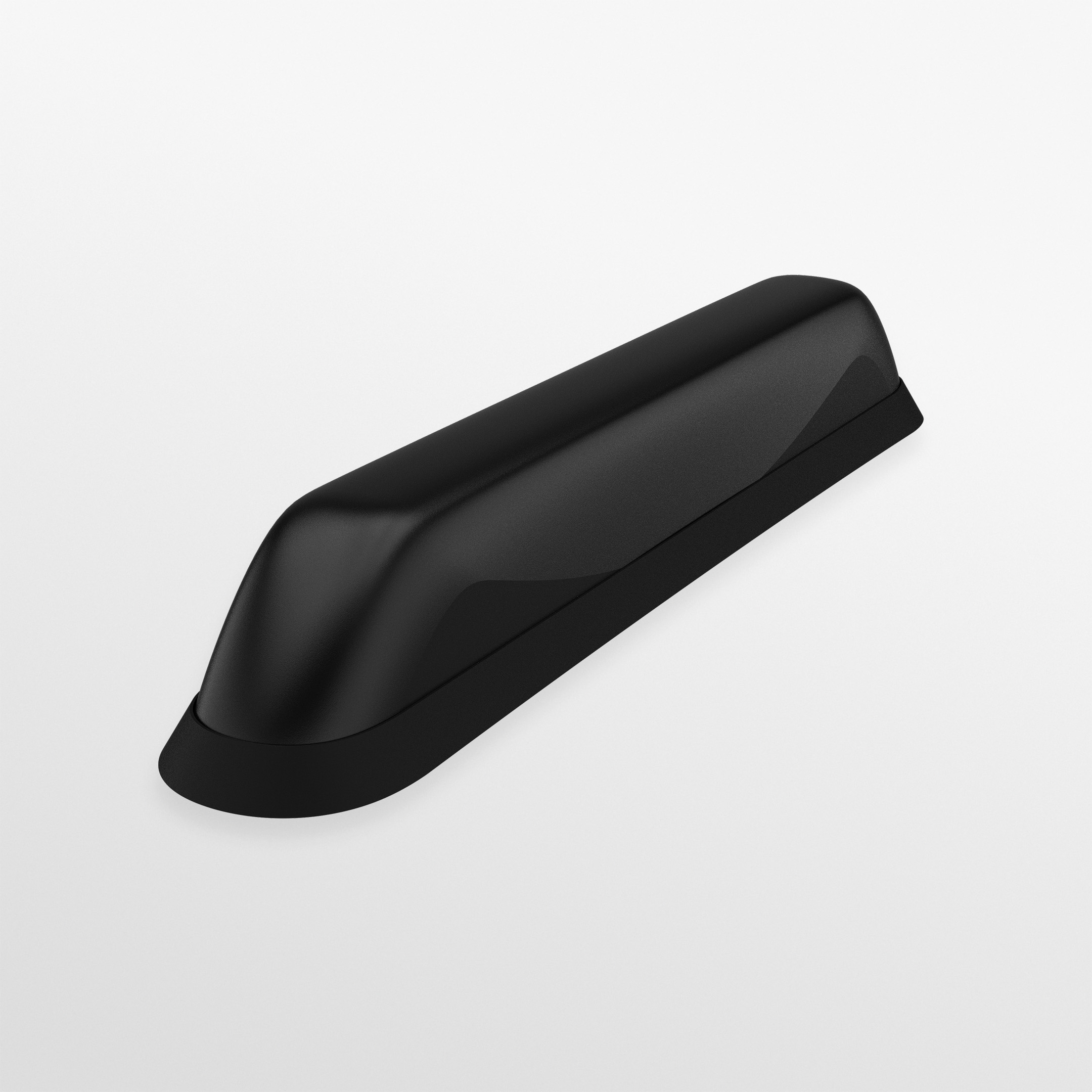

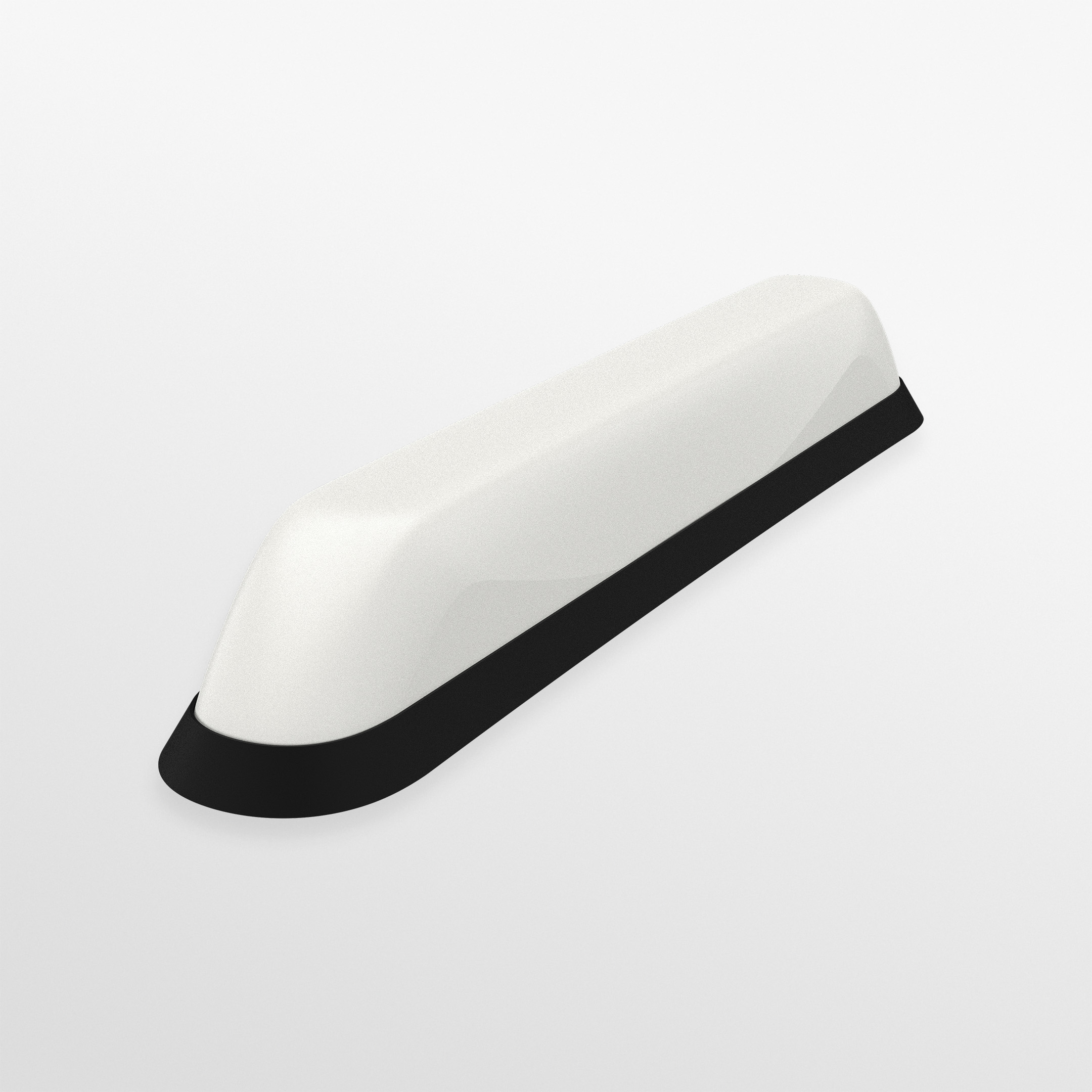

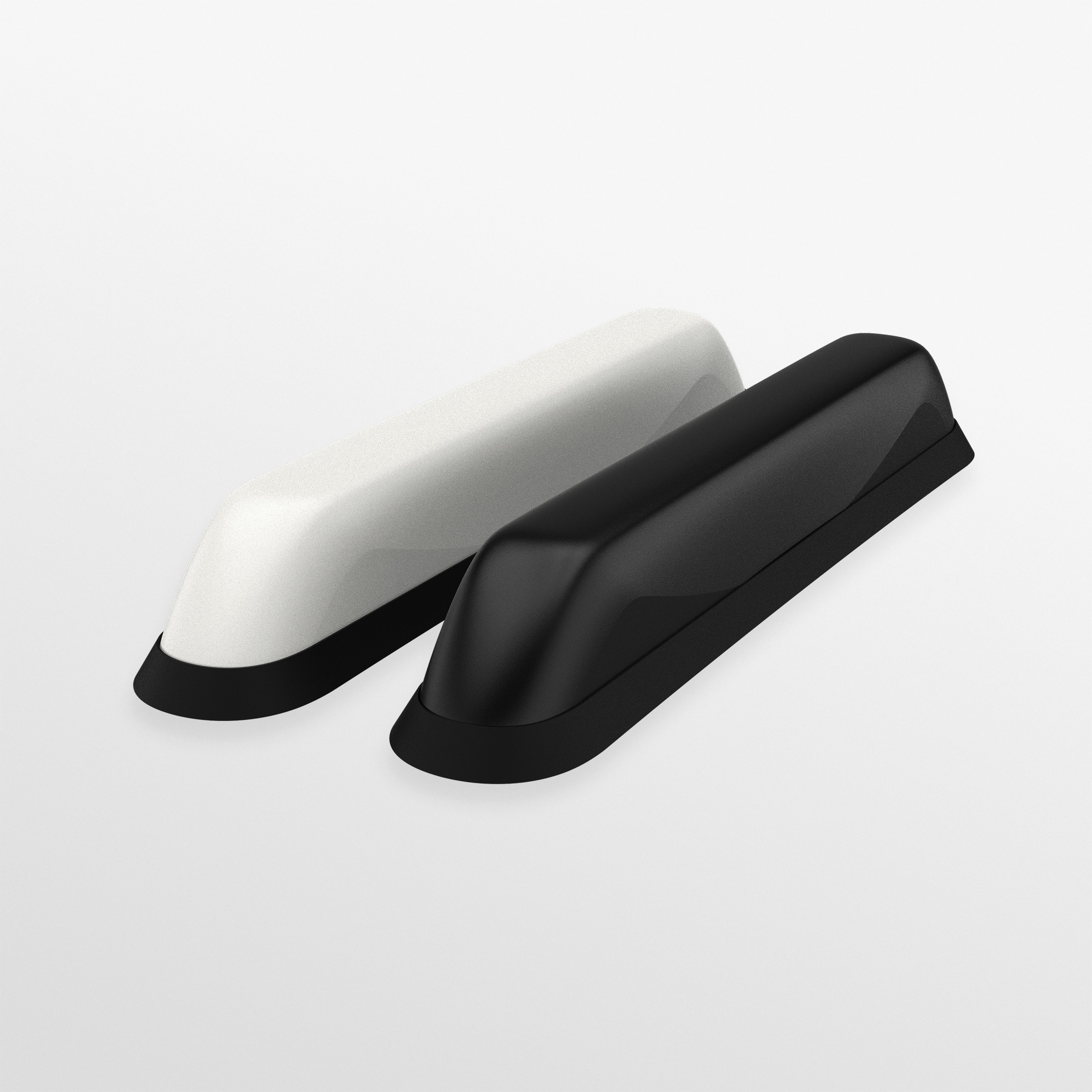

The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.
The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

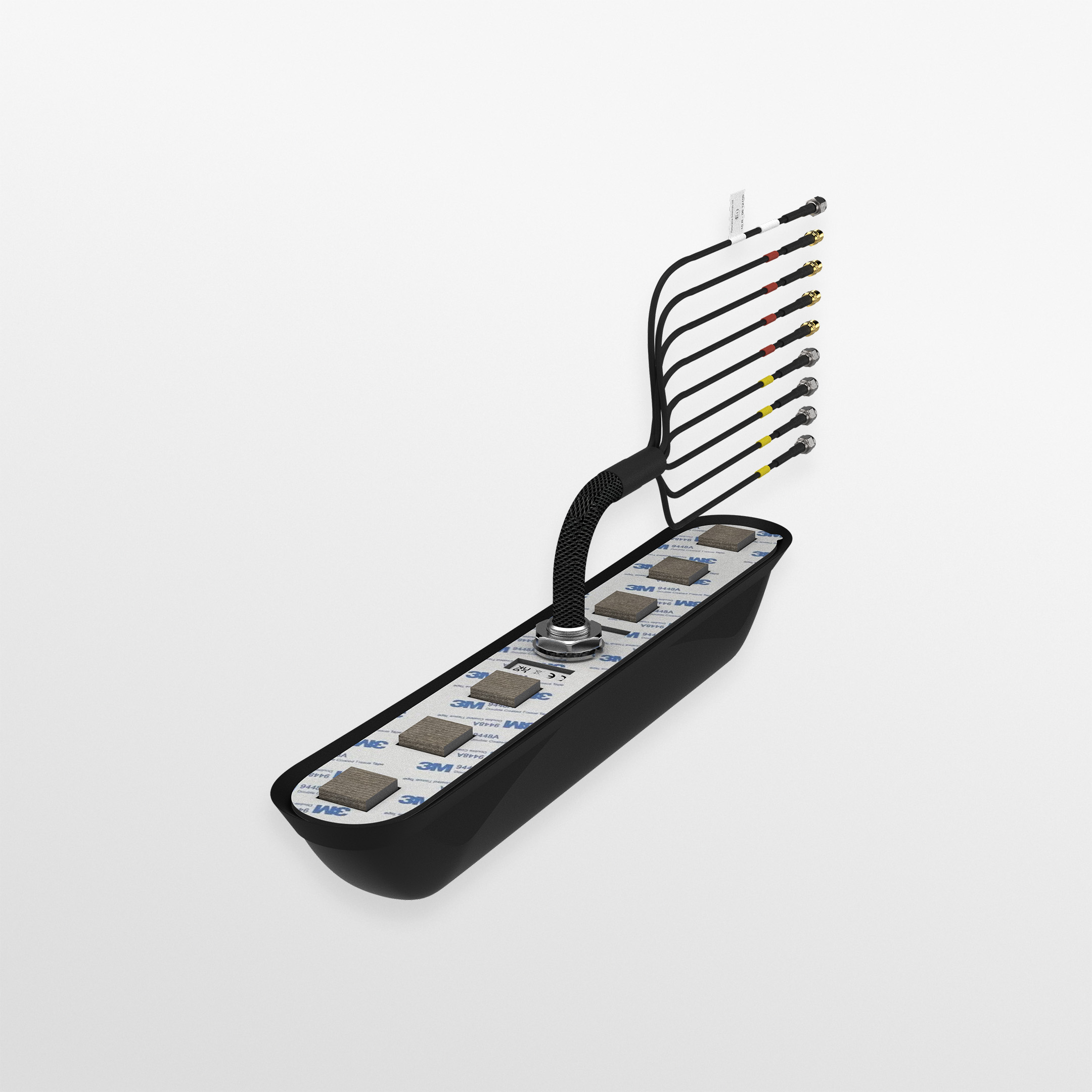

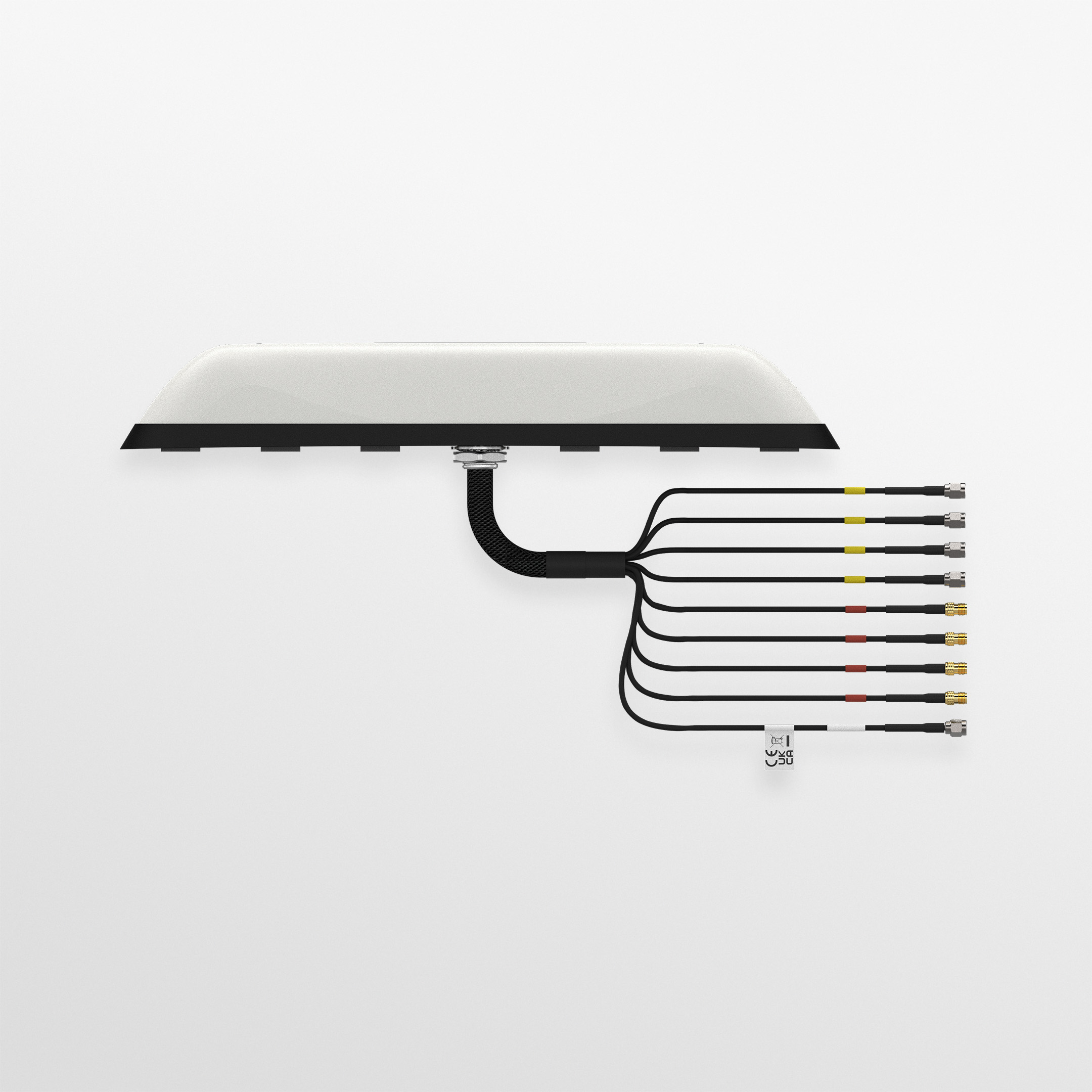

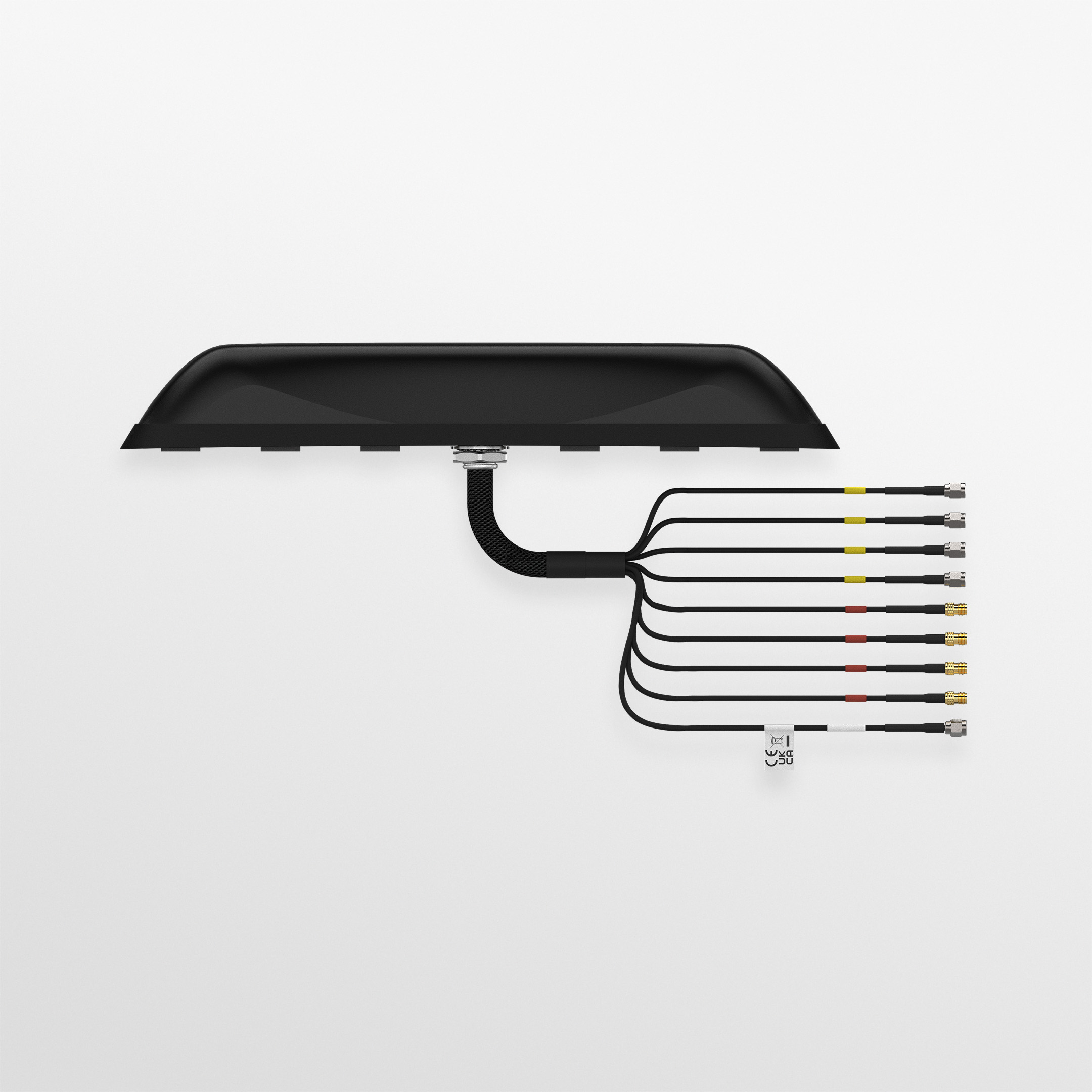

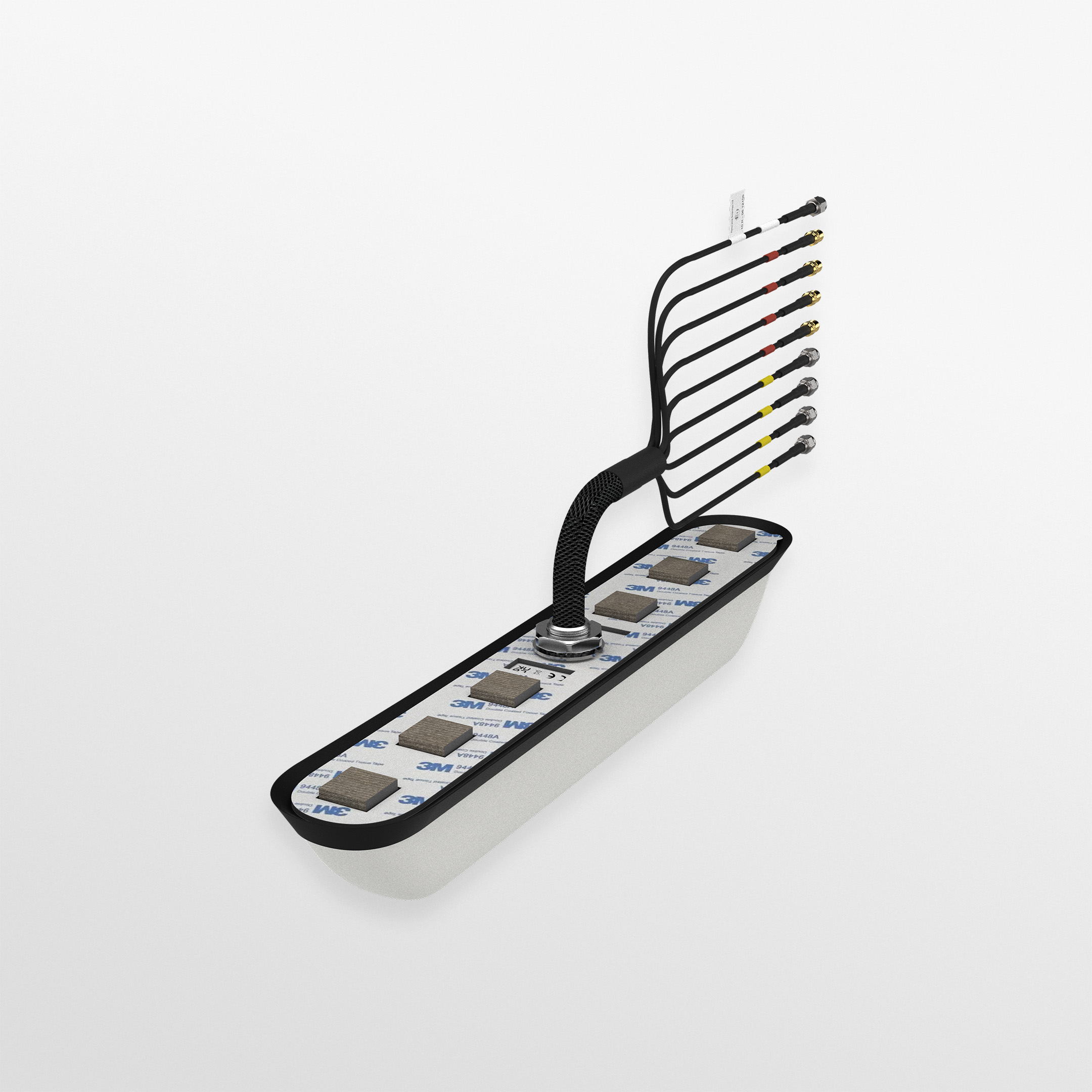

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.
The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panel.
The SHK[X]4-7-49[X]MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional
WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.
The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.
The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.
The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.
The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panel.
| Colour | Black |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, SMA (f), SMA Rev Pol |
| Connector (GPS) | No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | 2 x 2 MIMO; 4 x 4 MIMO; No; 3 x 3 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz; 1164-1189MHz/1559-1612MHZ |
| LNA GAIN (dB) | 26dB; 30dB / 26dB |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 365 (mm) | 14.37 (in) |
| Width | 60 (mm) | 2.36 (in) |
| Height | max: 52 (mm) | 2.05 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Length – WIFI | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR CS32; CS30 |
| Cable Type (GPS) | FR CS29; RG174 |
| Cable Type (WIFI) | FR CS32; CS30 |
| Quantity of Cell Cable | 4 |
| Quantity of GPS/GNSS Extension | 1 |
| Quantity of WIFI Extension | 3 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA Rev Pol; SMA (f) |
| Connector (GPS) | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP69K |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; CBRS; GNSS; WIFI 6E |
