Model / SKU: SHK[X]4[X]-6-60[-X]
![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-2-White-Main-View.jpg "SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")
![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-3-Black-Front-View.jpg)
![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSD4-6-60-Black-and-White.jpg)
![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSD4-6-60-1-Black-Main-View-3.jpg "GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")
![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-4-White-Front-View.jpg "SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")

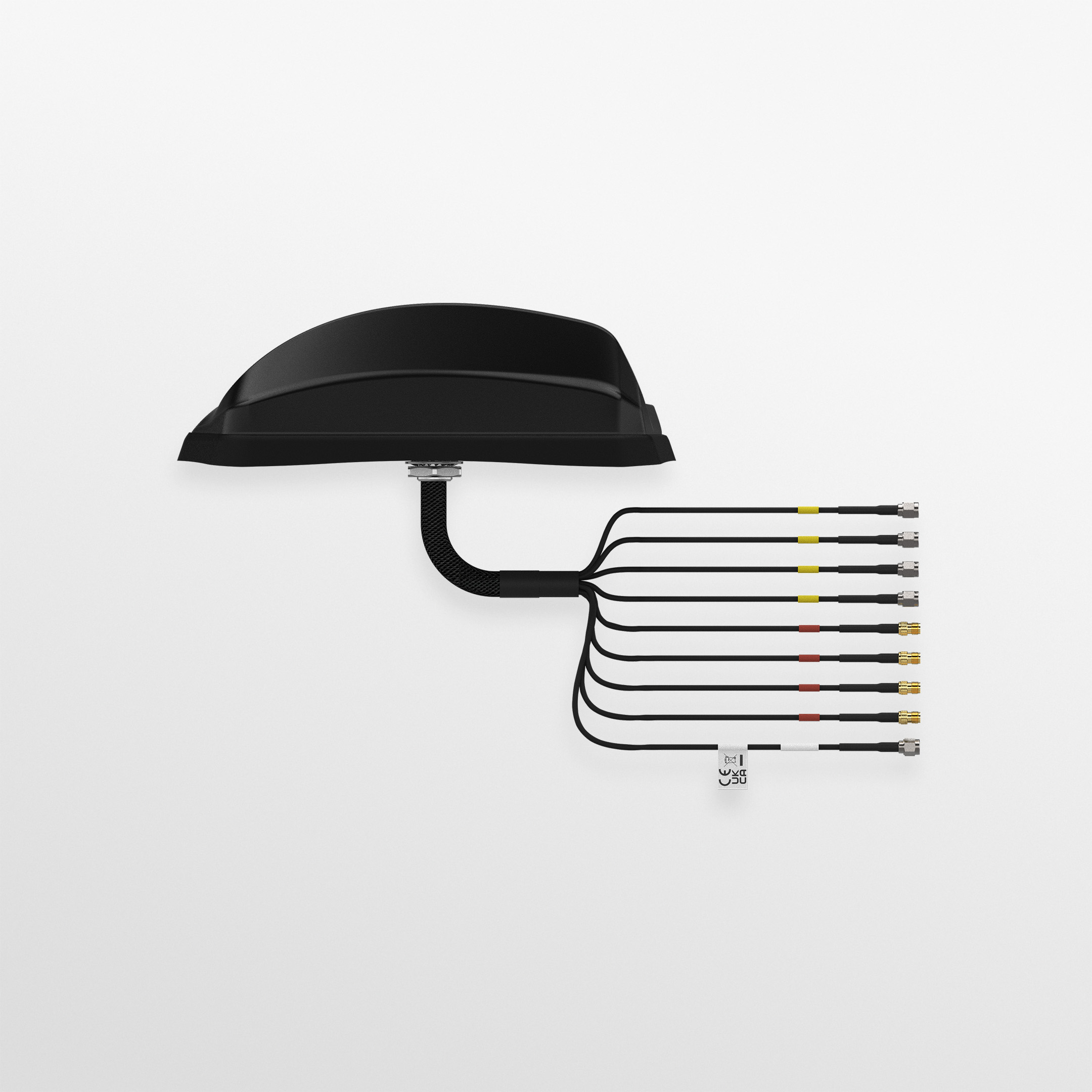

![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 6](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-5-Black-Side-View.jpg "SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")

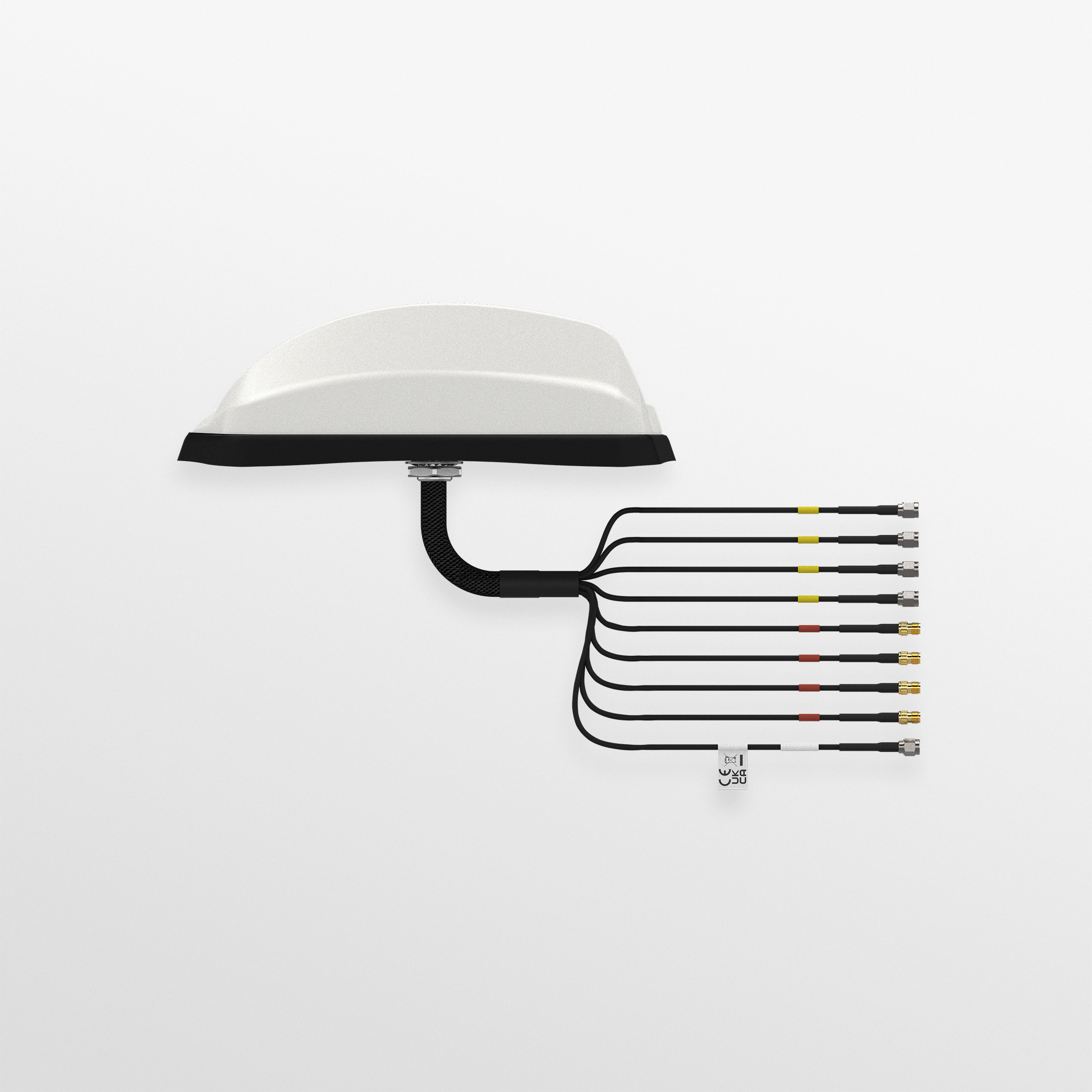

![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 7](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-6-White-Side-View.jpg "SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")

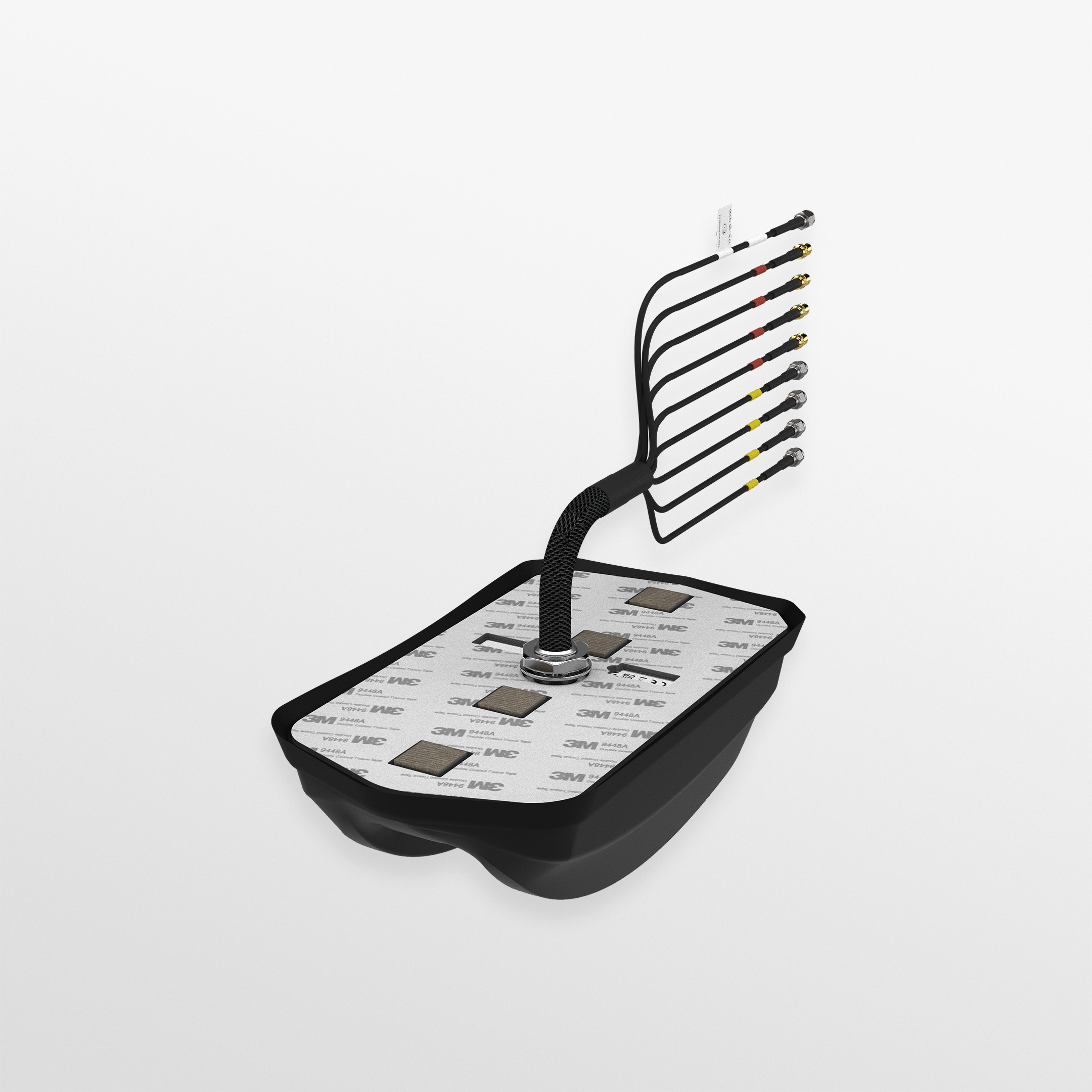

![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 8](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-7-Black-Underside-View.jpg "SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")

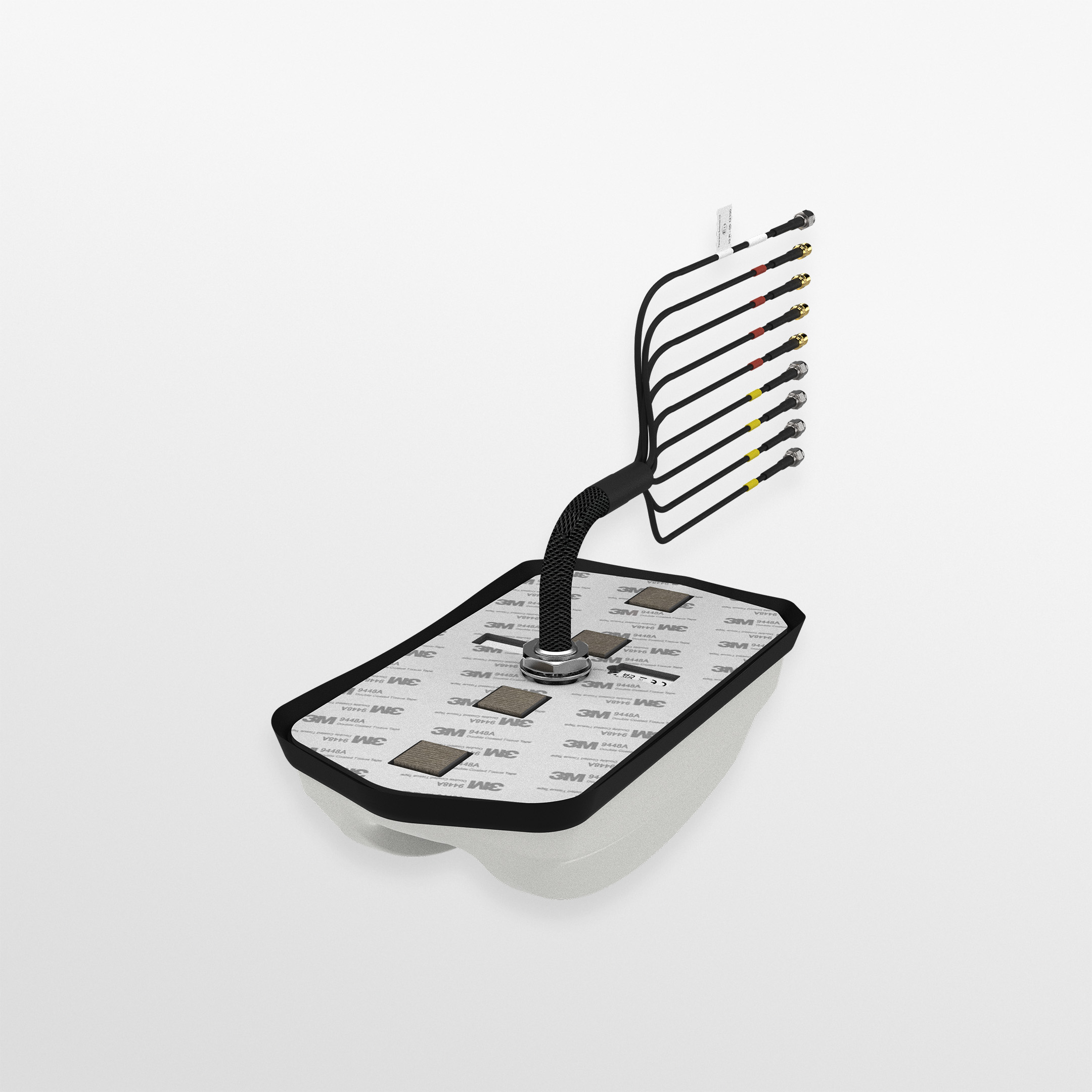

![SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 9](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/SHK4-6-60-8-White-Underside-View.jpg "SHK[X]4[X]-6-60[-X] | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna")
The SHK[X]4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.
The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.
The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle’s resale value.
The SHK[X]4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.
The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.
The SHK[X]4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.
The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.
The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle’s resale value.
| Colour | Black, White |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module |
| WIFI MIMO | 2 x 2 MIMO, 4 x 4 MIMO, 6 x 6 MIMO, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, Reverse Polarity SMA, SMA (f) |
| Connector (GPS) | FME (f), SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | 4 x 4 MIMO; 2 x 2 MIMO; No; 6 x 6 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26dB |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black; White |
| Length | 253 (mm) | 9.96 (in) |
| Width | 142 (mm) | 5.59 (in) |
| Height | max: 85 (mm) | 3.35 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Length – WIFI | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR CS32; FR RG174 |
| Cable Type (GPS) | FR CS29; FR RG174 |
| Cable Type (WIFI) | FR CS32; FR RG174 |
| Quantity of Cell Cable | 4 |
| Quantity of GPS/GNSS Extension | 1 |
| Quantity of WIFI Extension | 6 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA; SMA (f) |
| Connector (GPS) | SMA (m); FME (f) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP69K |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; ESN; FirstNet; GNSS; WIFI 6E |
