Description

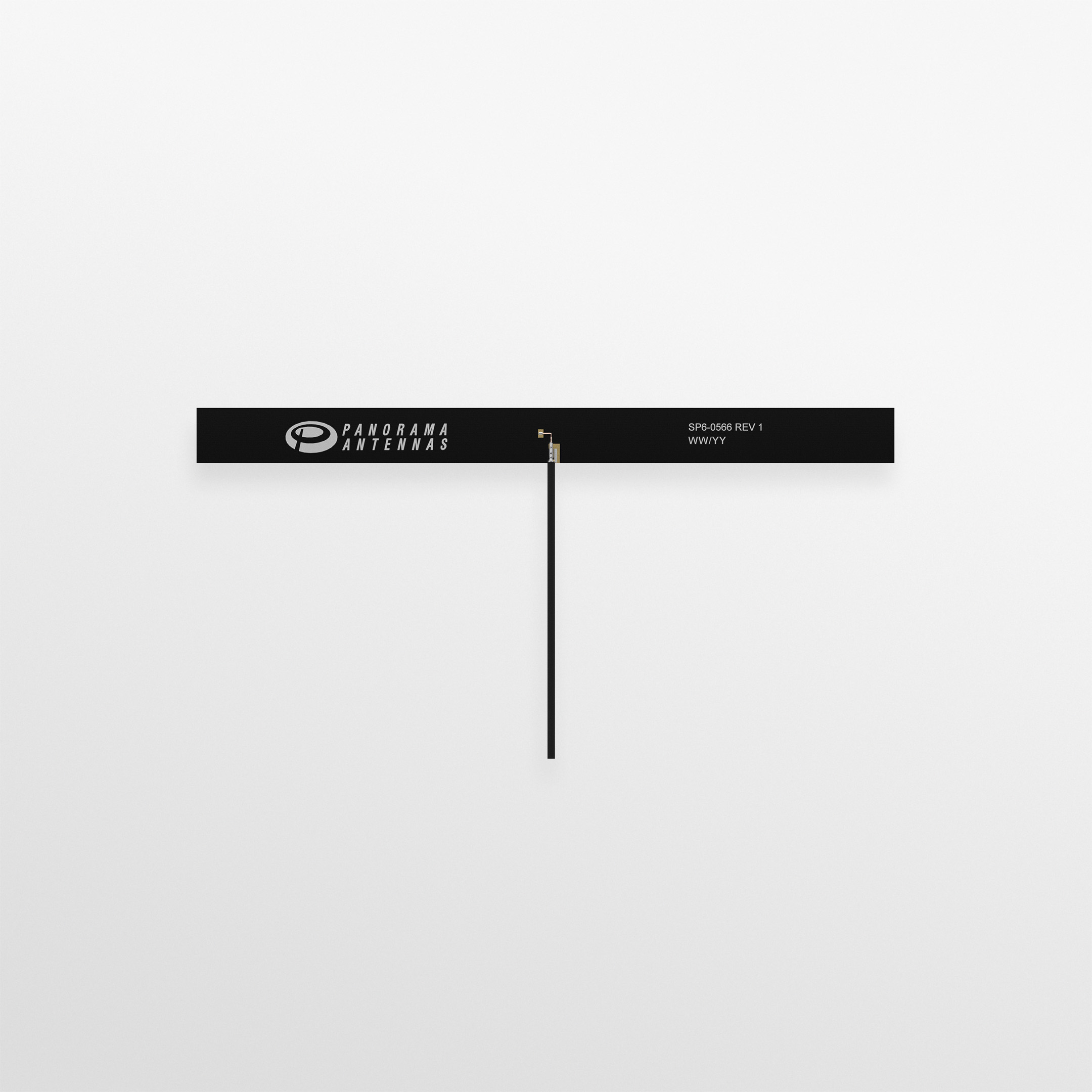

The TFD-7-60[-X] antenna is a ground plane independent flexible PCB (FPCB) dipole antenna with a compact footprint covering global cellular frequencies (698-960/1710-6000MHz) developed for embedded applications.
Product
TFD-7-60 | 4G/5G Compact Flexible PCB Embedded Antenna
Model / SKU: TFD-7-60
TFD-7-60 | 4G/5G Compact Flexible PCB Embedded Antenna
The TFD-7-60[-X] antenna is a ground plane independent flexible PCB (FPCB) dipole antenna with a compact footprint covering global cellular frequencies (698-960/1710-6000MHz) developed for embedded applications.

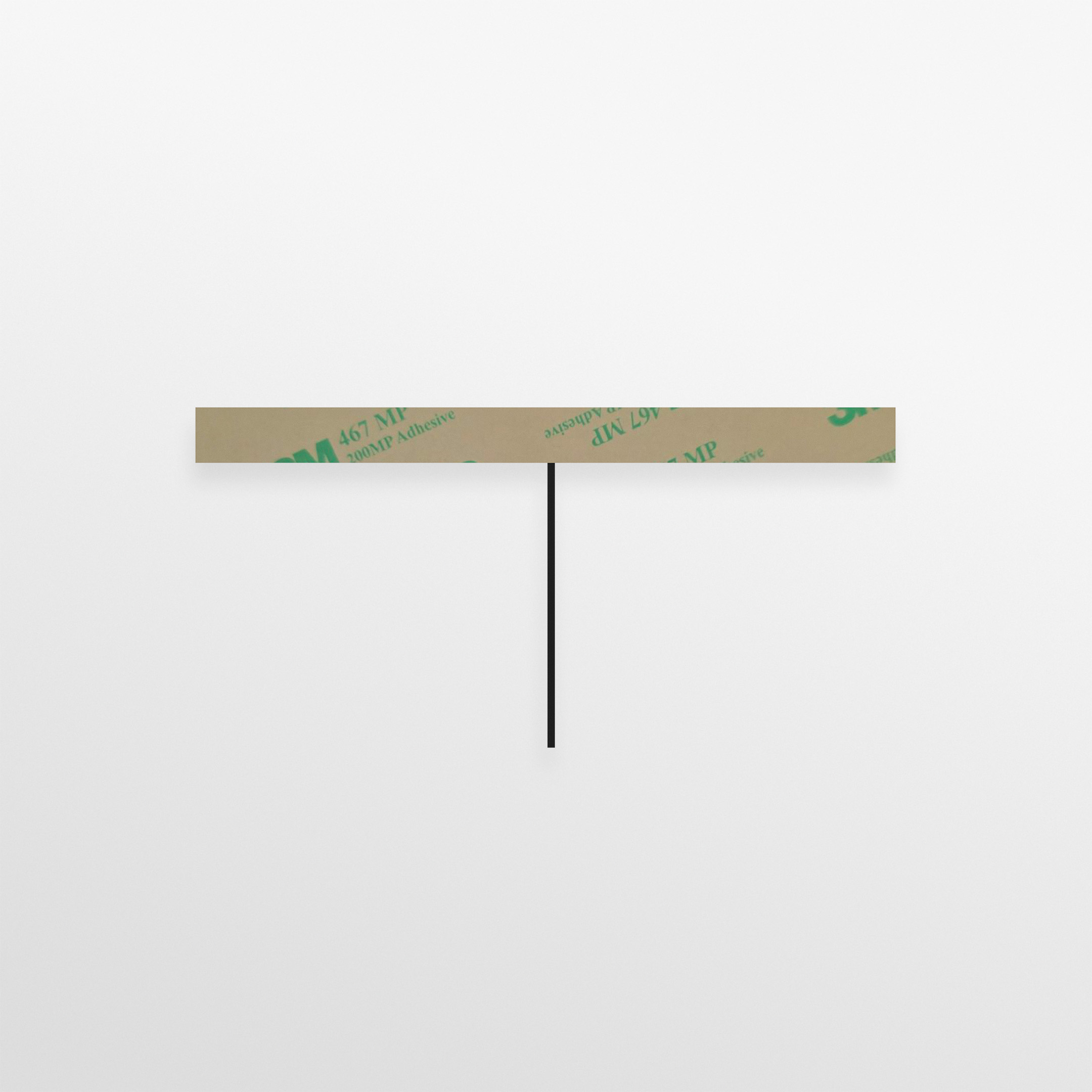

Designed for mounting on non-conductive surfaces the TFD-7-60[-X] range is installed via a high-performance adhesive backing layer and is supplied with integrated C113 cable fitted with a right angle UFL plug.
Product overview
The TFD-7-60[-X] antenna is a ground plane independent flexible PCB (FPCB) dipole antenna with a compact footprint covering global cellular frequencies (698-960/1710-6000MHz) developed for embedded applications.
Designed for mounting on non-conductive surfaces the TFD-7-60[-X] range is installed via a high-performance adhesive backing layer and is supplied with integrated C113 cable fitted with a right angle UFL plug.
Product Features
- Ultra-flexible embedded PCB antenna
- Covers 698–960 / 1710–6000 MHz
- Supports global 4G and 5G frequencies
- Adhesive mounted
- 1.13 mm diameter coaxial cable
Benefits
- Small size and compact footprint for space-constrained applications
- Ultra-flexible substrate conforms to any mounting surface
- Supports global cellular frequencies
- Easy self-adhesive installation
- Variety of cable lengths to fit different device configurations
Application
- Embedded OEMs and device manufacturers
- 4G LTE / 5G NR
- Smart metering
Additional information
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Below 1m |
| Connector (LTE) | UFL / MHF1 |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 5 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | 698 – 960MHz | ; 1710 – 6000MHz | |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 126 (mm) | 4.96 (in) |
| Width | 10 (mm) | 0.39 (in) |
| Height | 1.6 (mm) | 0.06 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.05 (m) | 0.16 (ft); max: 0.2 (m) | 0.66 (ft) |
| Cable Type (LTE) | C113 |
| TERMINATION DATA | |
| Connector (LTE) | UFL / MHF1 |
| MOUNTING DATA | |
| Mounting Type Fixed | Ceiling |
| Mounting Type Temp | Hook/Loop or Adhesive |
| Mounting Methods | Hook/Loop or Adhesive; Ceiling |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; CBRS |
