The TFM2-24-58-72 antenna is a ground plane independent flexible PCB (FPCB) antenna offering two elements covering 2.4GHz WiFi (2400-2485/5150-7125MHz) developed for embedded applications.
Product

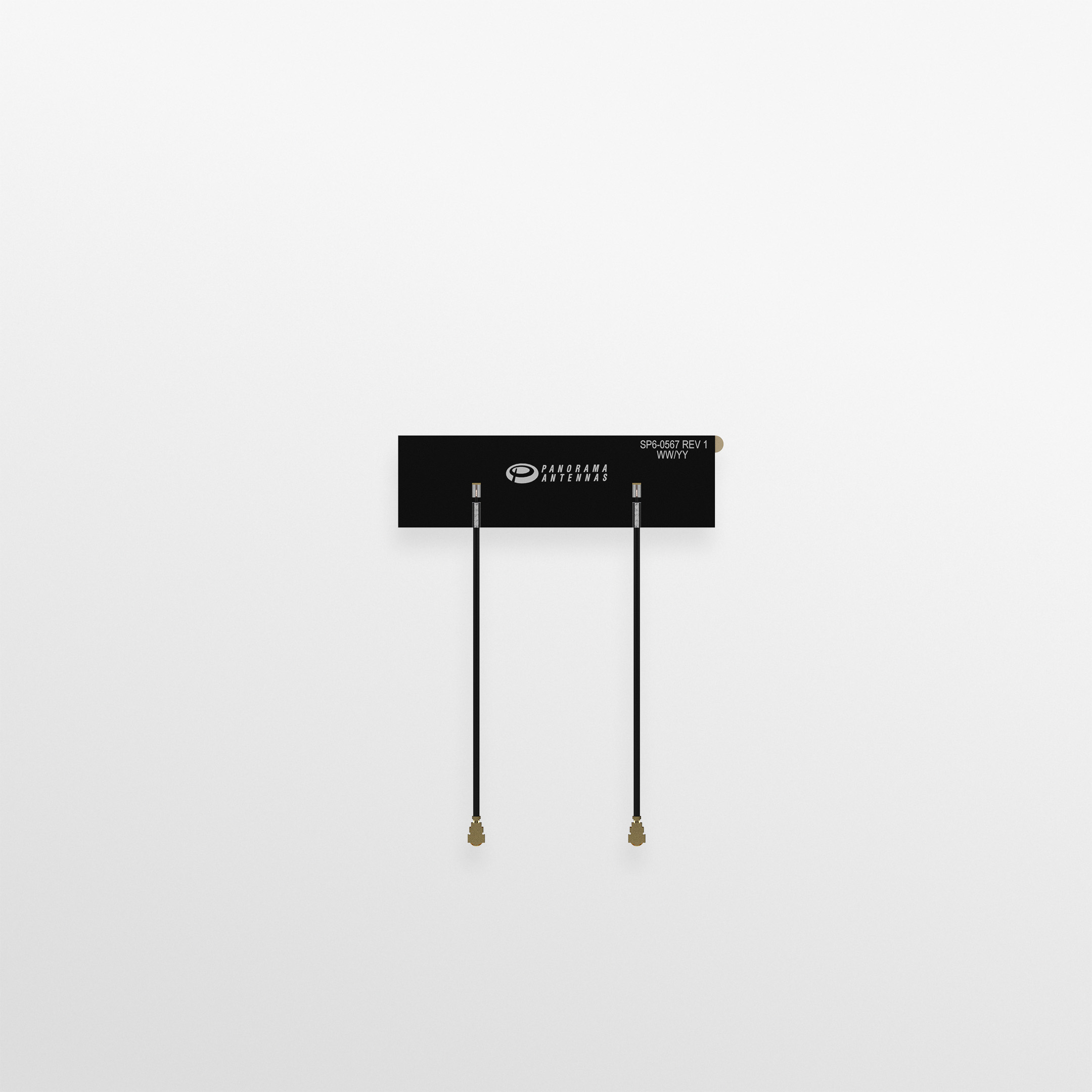

TFM2-24-58-72 | 2×2 MiMo WiFi Embedded Antenna
Model / SKU: TFM2-24-58-72-[X]
TFM2-24-58-72 | 2×2 MiMo WiFi Embedded Antenna
The TFM2-24-58-72[-X] antenna is a ground plane independent flexible PCB (FPCB) dipole antenna covering WiFi 6e/7 (2400-2485/5150-7125MHz) developed for embedded applications.
Using a 2×2 MiMo antenna instead of two SiSo antennas helps reduce space requirements while controlling performance and simplifies the installlation process.

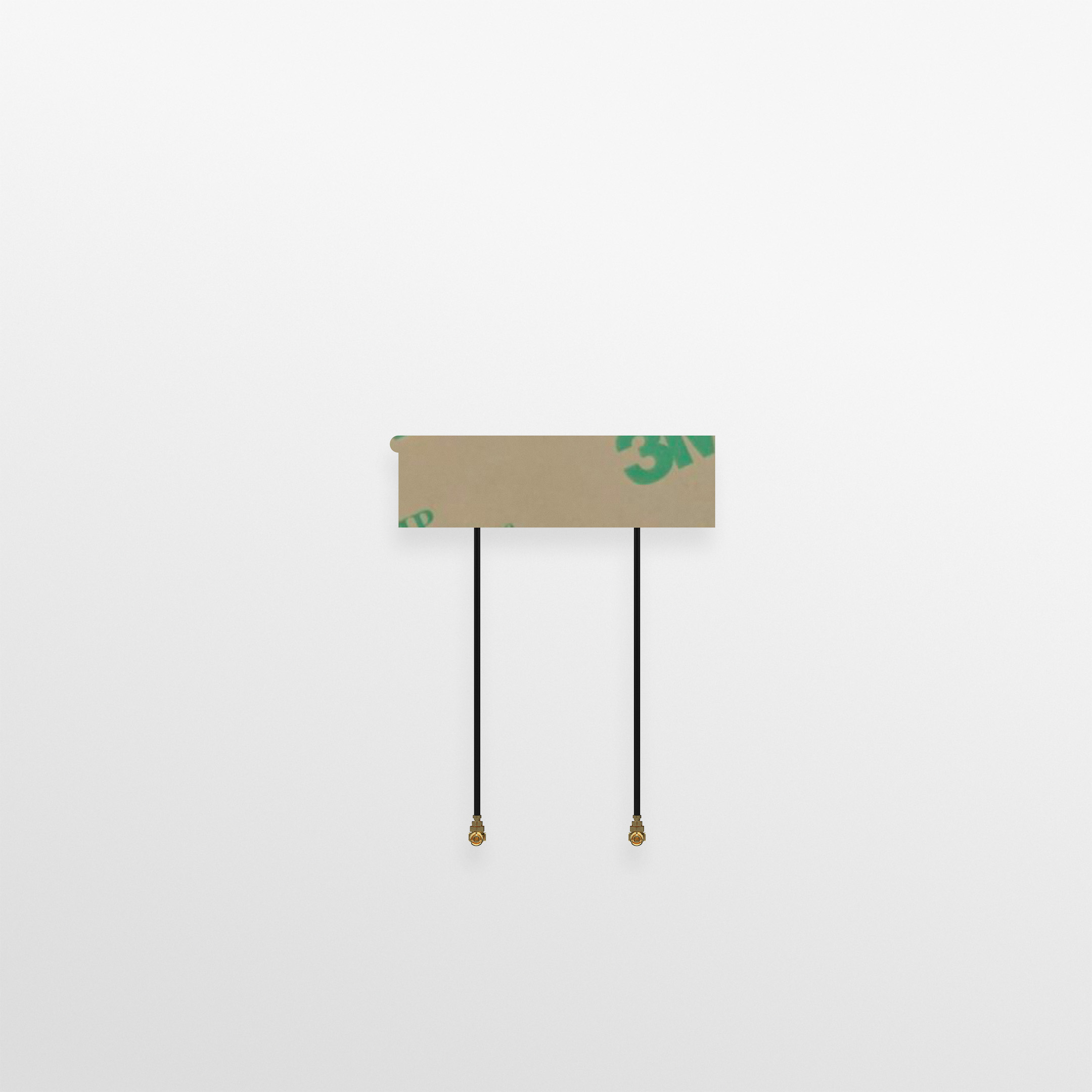

Designed for mounting on non-conductive surfaces the TFM2-24-58-72[-X] range is installed via a high performance adhesive backing layer and is supplied with integrated C113 cable fitted with a right angle UFL plug.
Product overview
The TFM2-24-58-72[-X] antenna is a ground plane independent flexible PCB (FPCB) dipole antenna covering WiFi 6e/7 (2400-2485/5150-7125MHz) developed for embedded applications.
Using a 2×2 MiMo antenna instead of two SiSo antennas helps reduce space requirements while controlling performance and simplifies the installlation process.
Designed for mounting on non-conductive surfaces the TFM2-24-58-72[-X] range is installed via a high performance adhesive backing layer and is supplied with integrated C113 cable fitted with a right angle UFL plug.
Product Features
- 2×2 MiMo WiFi 6e/7 FPCB antenna Supports WiFi 2.4/5.0/7.2GHz Ultra flexible Adhesive mounted 1.13mm diameter coaxial cable
Benefits
- Ultra-flexible substrate conforms to any mounting surface Supports latest WiFi standards MiMo capability in a controlled package for consistent performance Easy self-adhesive installation Variety of cable lengths to fit different device configurations Reduced space requirement
Application
- Embedded OEMs and device manufacturers WiFi Smart metering
Additional information
| Colour | Black |
|---|---|
| WIFI MIMO | 2 x 2 MIMO |
| Cable Length | Below 1m |
| Connector (WIFI) | UFL / MHF1 |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <2.5:1; 2.5:1 |
| Frequency Range | Gain | 2400 – 2485MHz; 5150 – 7125MHz |
| Cellular LTE Elements | No |
| WIFI Elements | 2 x 2 MIMO |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 55 (mm) | 2.17 (in) |
| Width | 16 (mm) | 0.63 (in) |
| Height | 1.6 (mm) | 0.06 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – WIFI | min: 0.05 (m) | 0.16 (ft); max: 0.2 (m) | 0.66 (ft) |
| Cable Type (WIFI) | C113 |
| TERMINATION DATA | |
| Connector (WIFI) | UFL / MHF1 |
| MOUNTING DATA | |
| Mounting Type Temp | Hook/Loop or Adhesive |
| Mounting Methods | Hook/Loop or Adhesive |
| TECHNOLOGY DATA | |
| Technology | WIFI MIMO; WIFI; Bluetooth; WIFI 6E |
