Description
The Panorama Triplexer can either combine the signals from 3 antennas to a single multiband radio or split the signal from a tri-band radio to three radios.
Product

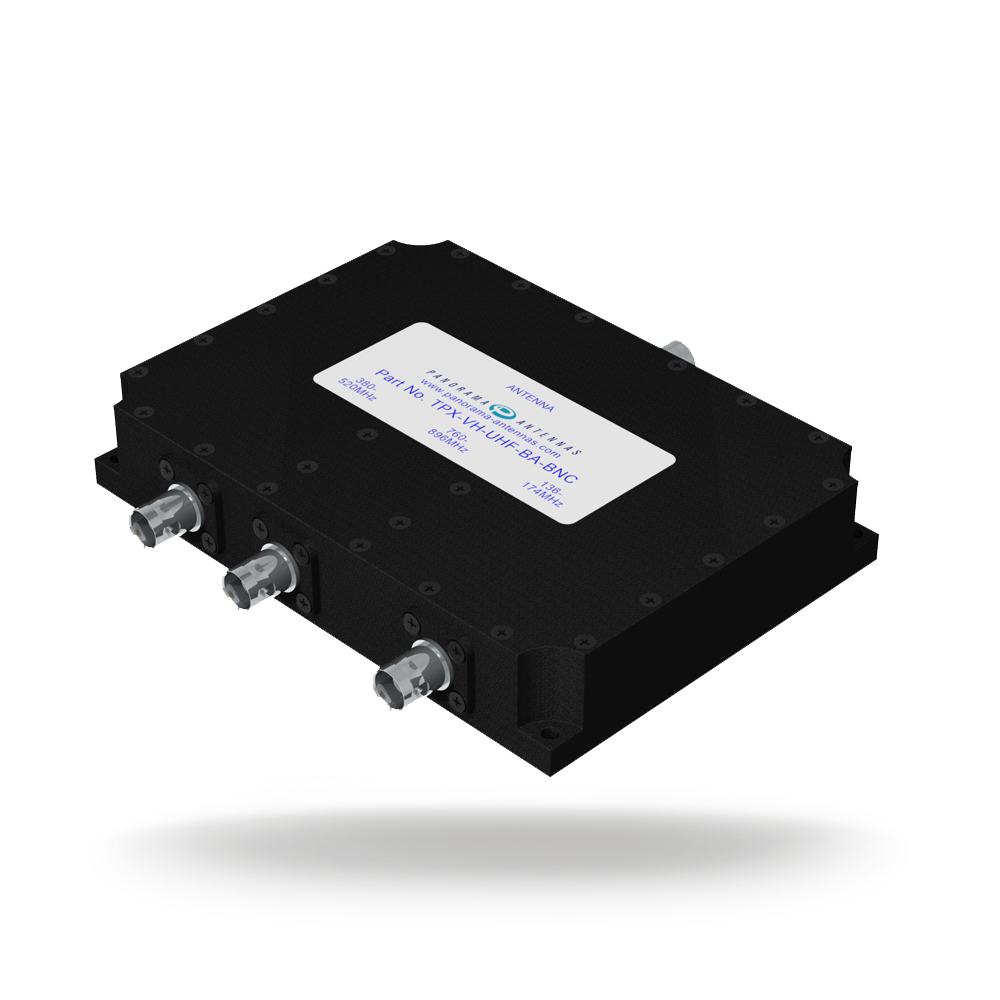

TPX-VH-UHF-BA-TNC | VHF/UHF/7/800MHz Triplexer
Model / SKU: TPX-VH-UHF-BA-TNC[-X]
TPX-VH-UHF-BA-TNC | VHF/UHF/7/800MHz Triplexer
The Panorama Triplexer can either combine the signals from 3 antennas to a single multiband radio or split the signal from a tri-band radio to three radios.
There is no need for switching or matching as the TPX-VH-UHF-BA-BNC will automatically split or combine UHF and VHF to route them to separate radios.
This compact unit requires no power cables and can easily be installed in the roof lining of any vehicle or mounted next to the radio.
The TPX-VH-UHF-BA-BNC is ideal for tri-band and multifrequency installations.
Product overview
The Panorama Triplexer can either combine the signals from 3 antennas to a single multiband radio or split the signal from a tri-band radio to three radios.
There is no need for switching or matching as the TPX-VH-UHF-BA-BNC will automatically split or combine UHF and VHF to route them to separate radios.
This compact unit requires no power cables and can easily be installed in the roof lining of any vehicle or mounted next to the radio.
The TPX-VH-UHF-BA-BNC is ideal for tri-band and multifrequency installations.
Product Features
- Use one antenna for up to three radios Splits VHF, UHF & 7/800MHz Low insertion loss High port-to-port isolation
Benefits
- Can easily be installed in the roof lining of any vehicle Ideal for multi-frequency installations Requires no power cables Compact design Suitable for radios operating up to 150W
Application
- Public Safety First Responders Government Agencies
Additional information
| Colour | Black |
|---|---|
| Connector (VHF/UHF) | TNC (f) |
| Frequency Range | 136-174MHz |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 150 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 140 (mm) | 5.51 (in) |
| Width | 100 (mm) | 3.94 (in) |
| Height | 25 (mm) | 0.98 (in) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | TNC (f) |
| TECHNOLOGY DATA | |
| Technology | VHF; UHF |
