Model / SKU: TRNC[G]-7-60

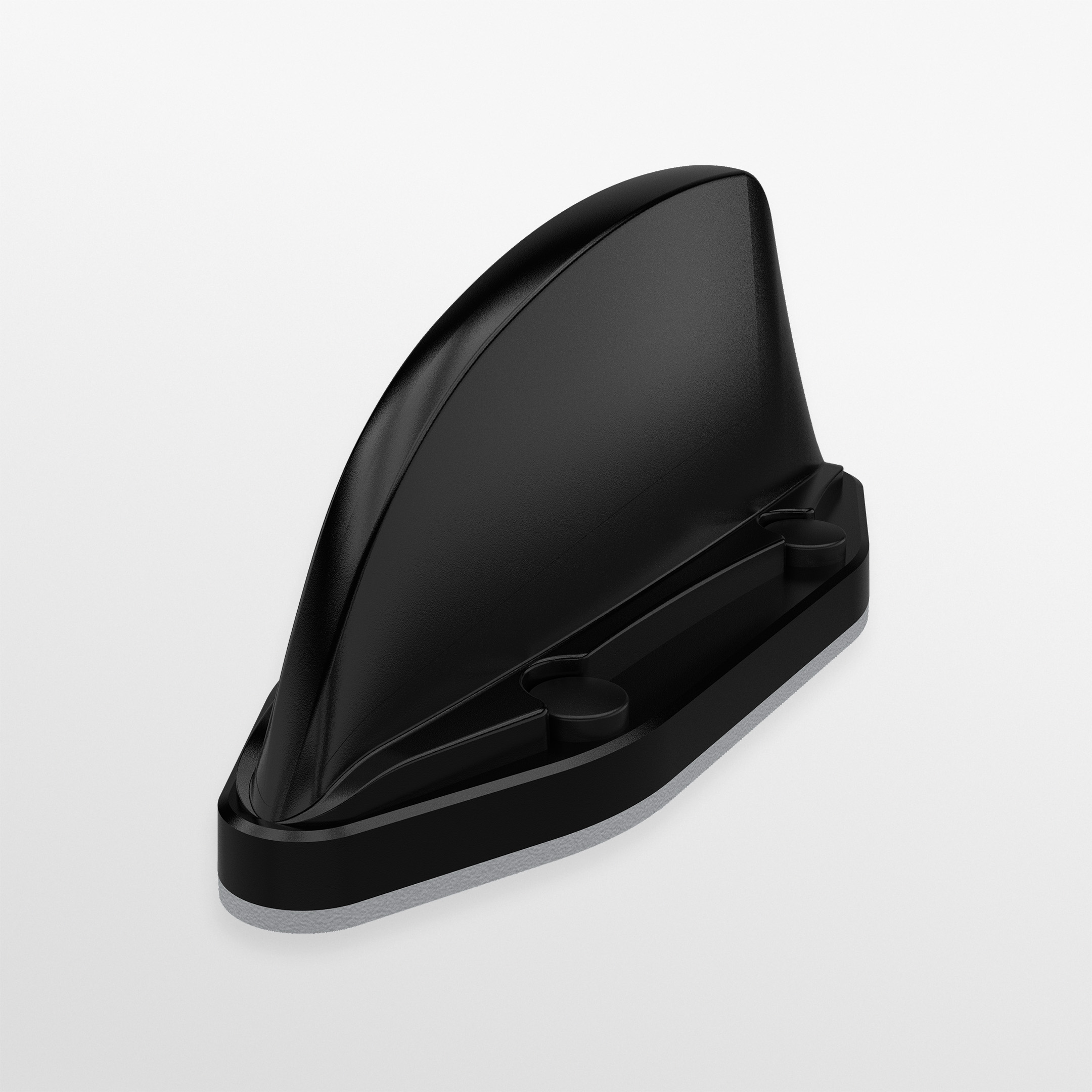

![TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNCG-7-60-1-Main-View.jpg "TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS")

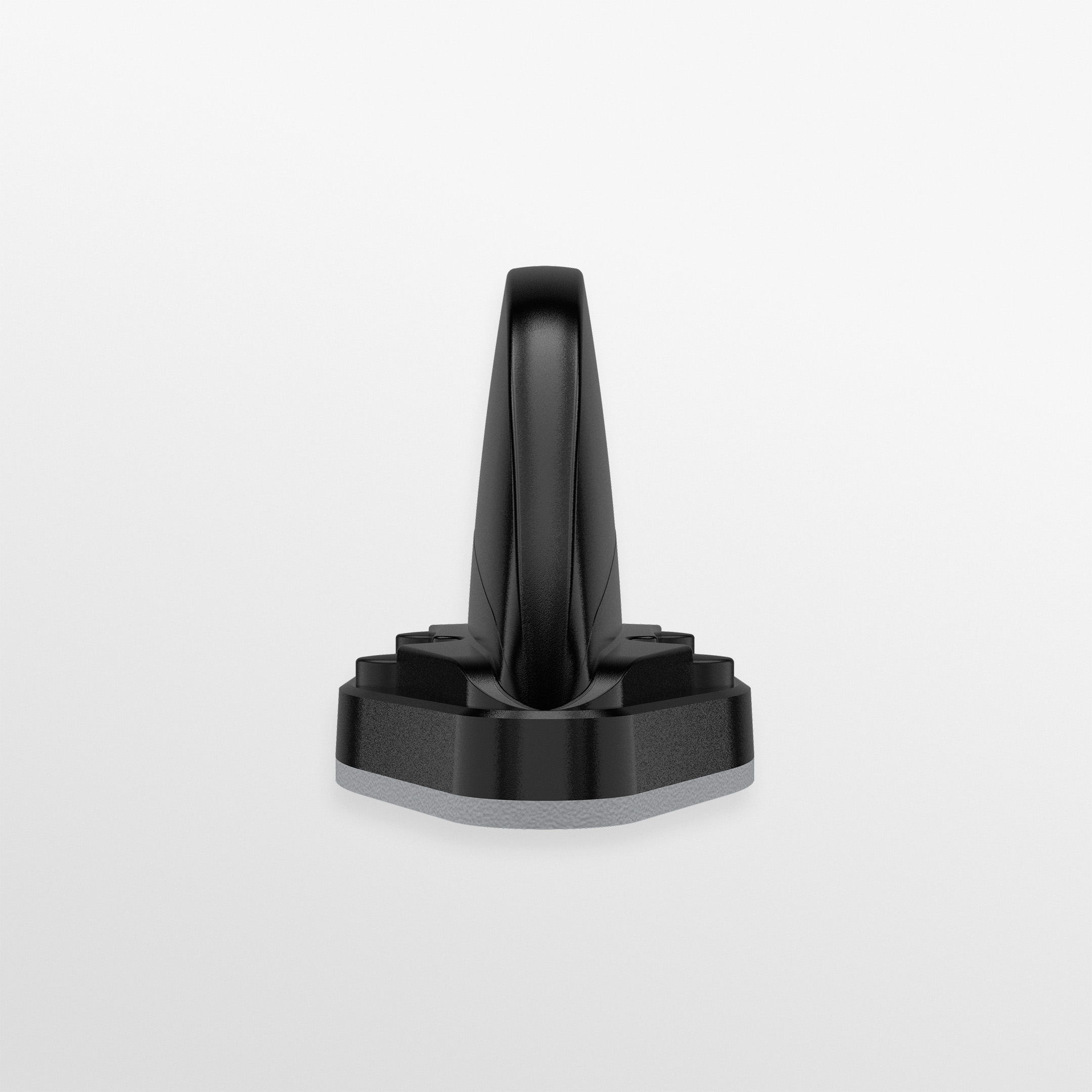

![TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNCG-7-60-2-Front-View.jpg "TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS")

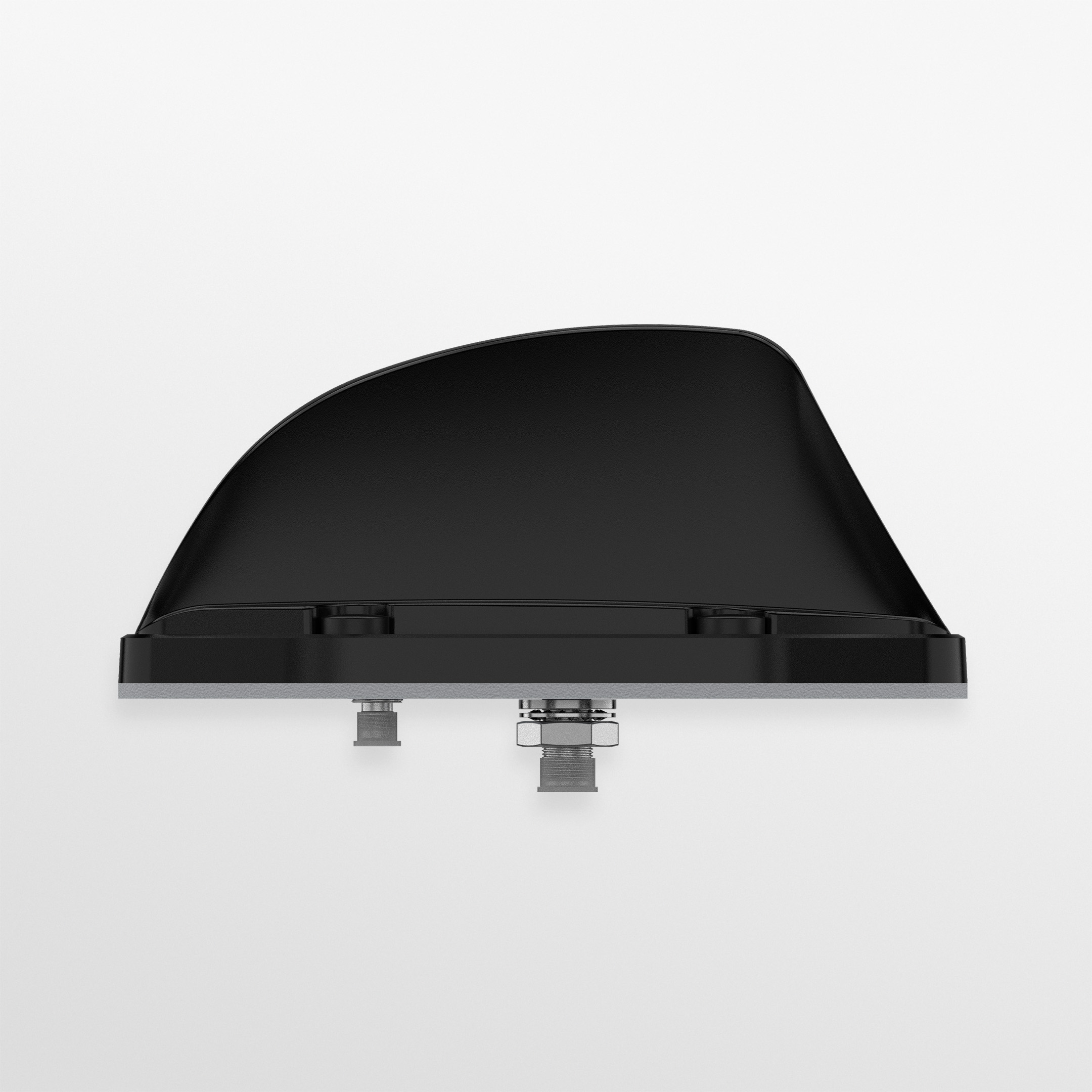

![TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNCG-7-60-3-Side-View.jpg "TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS")

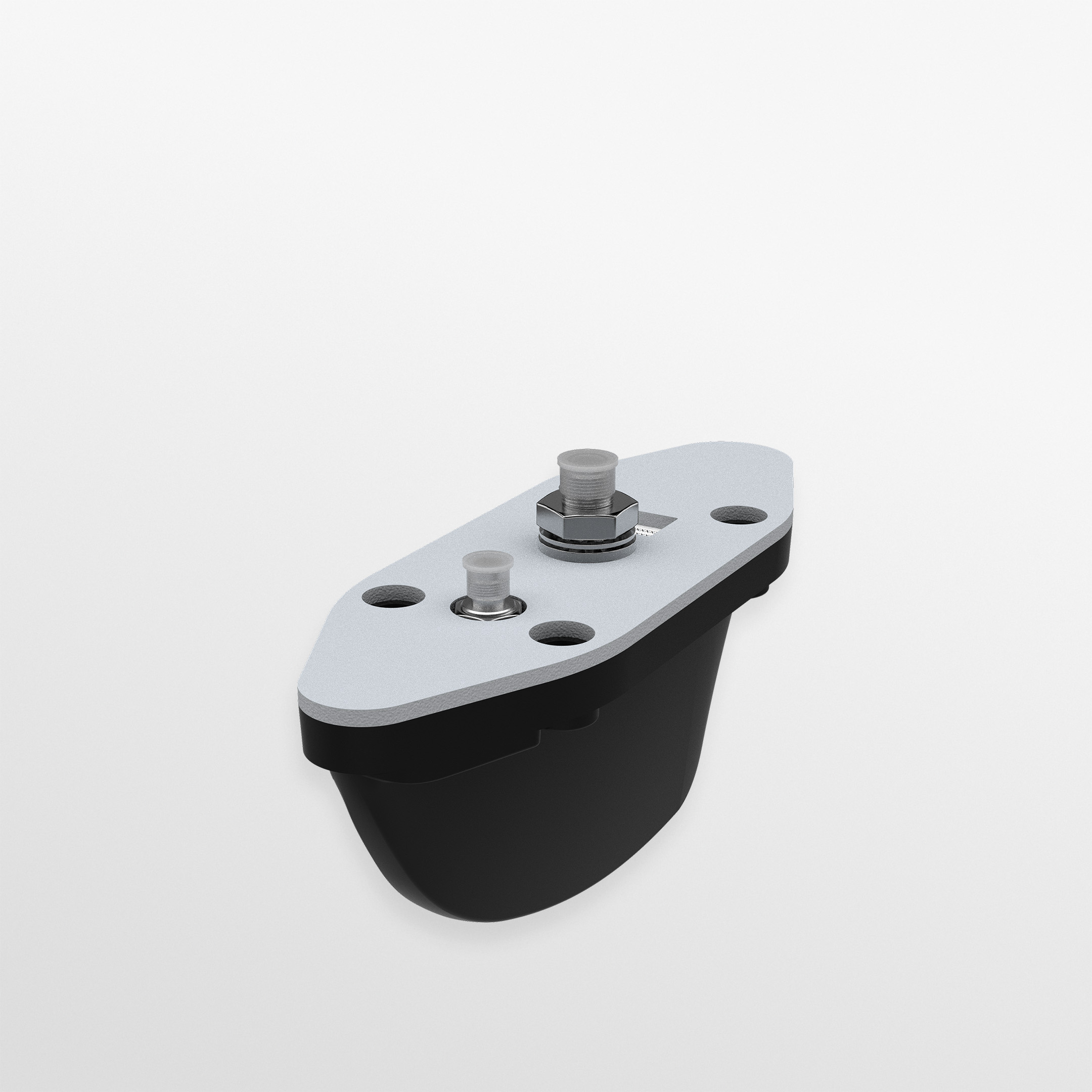

![TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNCG-7-60-4-Underside-View.jpg "TRNC[G]-7-60 | 2G/3G/4G Rail Antenna with optional GNSS")
The TRNC[G] antenna series has been designed specifically for use on trains, trams and buses operating on surface or underground systems.
The TRNC[G]-7-60 range covers 698-960/1427-6000MHz for global 5G/4G/LTE operation and the radiating element is DC grounded.
The TRNCG-7-60 variant also incorporates an active GPS/GNSS antenna for GPS/ GLONASS/Galileo/BeiDou systems with a 26dB gain LNA, advanced filtering and a gas discharge surge arrestor.
Housed in a high impact, flame retardant Ultem housing, the TRNC[G] series is weatherproof ensuring that the antenna’s performance is never compromised.
The TRNC[G]-7-60 meets stringent industry standards including EN50155, EN45545-2 (HL1-3), EN50124 (40 KA 100 MS) and the iinstallation is ingress protected to IP69K when correctly installed.
The TRNC[G] antenna series has been designed specifically for use on trains, trams and buses operating on surface or underground systems. The TRNC[G]-7-60 range covers 698-960/1427-6000MHz for global 5G/4G/LTE operation and the radiating element is DC grounded.
The TRNC[G] antenna series has been designed specifically for use on trains, trams and buses operating on surface or underground systems.
The TRNC[G]-7-60 range covers 698-960/1427-6000MHz for global 5G/4G/LTE operation and the radiating element is DC grounded.
The TRNCG-7-60 variant also incorporates an active GPS/GNSS antenna for GPS/ GLONASS/Galileo/BeiDou systems with a 26dB gain LNA, advanced filtering and a gas discharge surge arrestor.
Housed in a high impact, flame retardant Ultem housing, the TRNC[G] series is weatherproof ensuring that the antenna’s performance is never compromised.
The TRNC[G]-7-60 meets stringent industry standards including EN50155, EN45545-2 (HL1-3), EN50124 (40 KA 100 MS) and the iinstallation is ingress protected to IP69K when correctly installed.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| GPS | 1 Module, No |
| Connector (LTE) | N (f) |
| Connector (GPS) | No Connector, TNC (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 60 |
| Typical VSWR | <2.5:1; 2.5:1 |
| Frequency Range | Gain | 698 – 960MHz; 1427 – 6000MHz |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | No; 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 260 (mm) | 10.24 (in) |
| Width | 87 (mm) | 3.43 (in) |
| Height | 110 (mm) | 4.33 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F); -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (GPS) | TNC (f) |
| Connector (LTE) | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP69K; IP67 |
| Cable Flammability | EN45545-2 HL3 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; CBRS; GPS; GNSS |
