TRNC[G]-[UHF] | UHF Rail Antenna with optional GNSS

Model / SKU: TRNC[G]-[UHF]

TRNC[G]-[UHF] | UHF Rail Antenna with optional GNSS

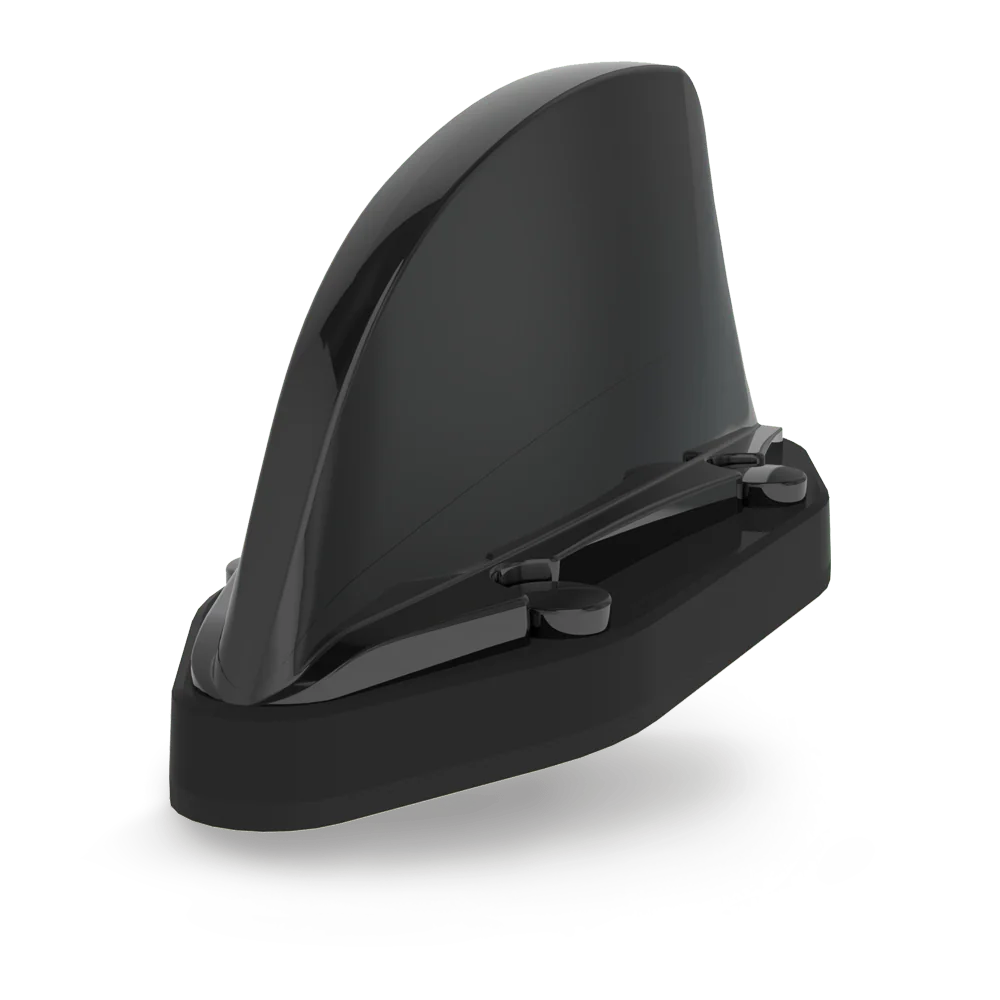

The TRNC[G] antenna series has been designed specifically for use on trains, trams and buses underground or over ground.

The TRNC[G]-[UHF] range offers versions tuned to various UHF bands including TET (380-430MHz), S2 (410-430MHz) and S4 (450-470MHz). Versions are available with an optional GPS/GNSS antenna with a 26dB LNA and advanced filtering. The radiating element is DC grounded and, in versions with a GPS module it is protected by a gas discharge surge arrestor.

Housed in a high impact, flame retardant Ultem housing, the TRNC[G] series is weatherproof ensuring that the antenna’s performance is never compromised.

The TRNC[G] meets stringent industry standards including EN50155, EN45545-2 (HL1-3) and is ingress protected to IP69K when properly installed.

Description

The TRNC[G] antenna series has been designed specifically for use on trains, trams and buses underground or over ground.

Product overview

The TRNC[G] antenna series has been designed specifically for use on trains, trams and buses underground or over ground.

Housed in a high impact, flame retardant Ultem housing, the TRNC[G] series is weatherproof ensuring that the antenna’s performance is never compromised.

The TRNC[G] meets stringent industry standards including EN50155, EN45545-2 (HL1-3) and is ingress protected to IP69K when properly installed.

Product Features

UHF transit antenna Heavy duty rail certified antenna Built to the standard 4-hole fixing position Covers various UHF frequencies Optional GNSS version available DC grounded antenna Certified to EN50155, EN45545 (HL 1-3), and IP69K

Benefits

Ideal antenna for trains, trams, light rail and buses Low profile combination antenna

Application

Mass transit Rail Rolling Stock

Additional information

Colour	Black
4G/5G	No, SiSo
GPS	1 Module, No
Connector (VHF/UHF)	N (f)
Connector (GPS)	No Connector, TNC (f)
Frequency Range	380-430MHz, 410-430MHz, 450-470MHz

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	60
Typical VSWR	<2.5:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	No; SiSo
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	No; 1 Module
MECHANICAL DATA
Colour	Black
Length	260 (mm) \| 10.24 (in)
Width	87 (mm) \| 3.43 (in)
Height	110 (mm) \| 4.33 (in)
Operating Temperature	-40°/ +85°C (-40.0°/ +185.0°F); -40°/ +80°C (-40.0°/ +176.0°F)
TERMINATION DATA
Connector (GPS)	TNC (f)
Connector (VHF/UHF) Whip	N (f)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Methods	Panel
APPROVALS DATA
IP Rating	IP69K; IP67
Cable Flammability	EN45545-2 HL3
TECHNOLOGY DATA
Technology	UHF; TETRA; 4G/5G; 5G; GPS; GNSS

Available selections

Colour	Black
4G/5G	No SiSo
GPS	1 Module No
Connector (VHF/UHF)	N (f)
Connector (GPS)	No Connector TNC (f)
Frequency Range	380-430MHz 410-430MHz 450-470MHz

Models and configurations

TRNC-S2	Black \| 410 – 430MHz \| 5dBi \| Yes \| No \| No N (f)
TRNC-S4	Black \| 450 – 470MHz \| 5dBi \| Yes \| SiSo \| No
N (f)	No Connector
TRNC-TET	Black \| 380 – 430MHz \| 5dBi \| Yes \| No \| No N (f)
TRNCG-S2	Black \| 410 – 430MHz \| 5dBi \| Yes \| No \| 1 Module
N (f)	TNC (f)
TRNCG-S4	Black \| 450 – 470MHz \| 5dBi \| Yes \| No \| 1 Module
N (f)	TNC (f)
TRNCG-TET	Black \| 380 – 430MHz \| 5dBi \| Yes \| No \| 1 Module
N (f)	TNC (f)

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	No, SiSo
Gps	1 Module, No
Connector Vhf Uhf	N (f)
Connector Gps	No Connector, TNC (f)
Frequency Range	380-430MHz, 410-430MHz, 450-470MHz
