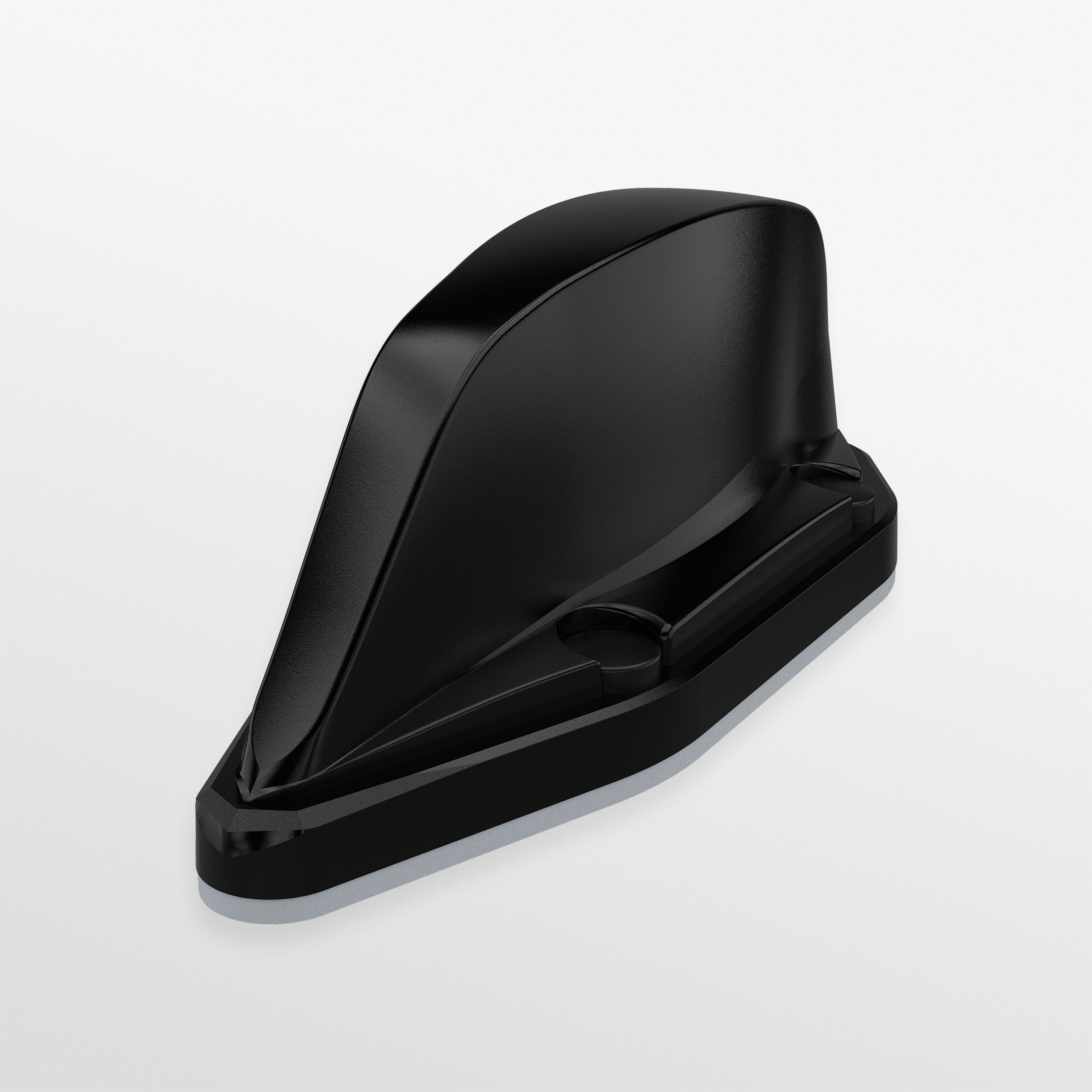

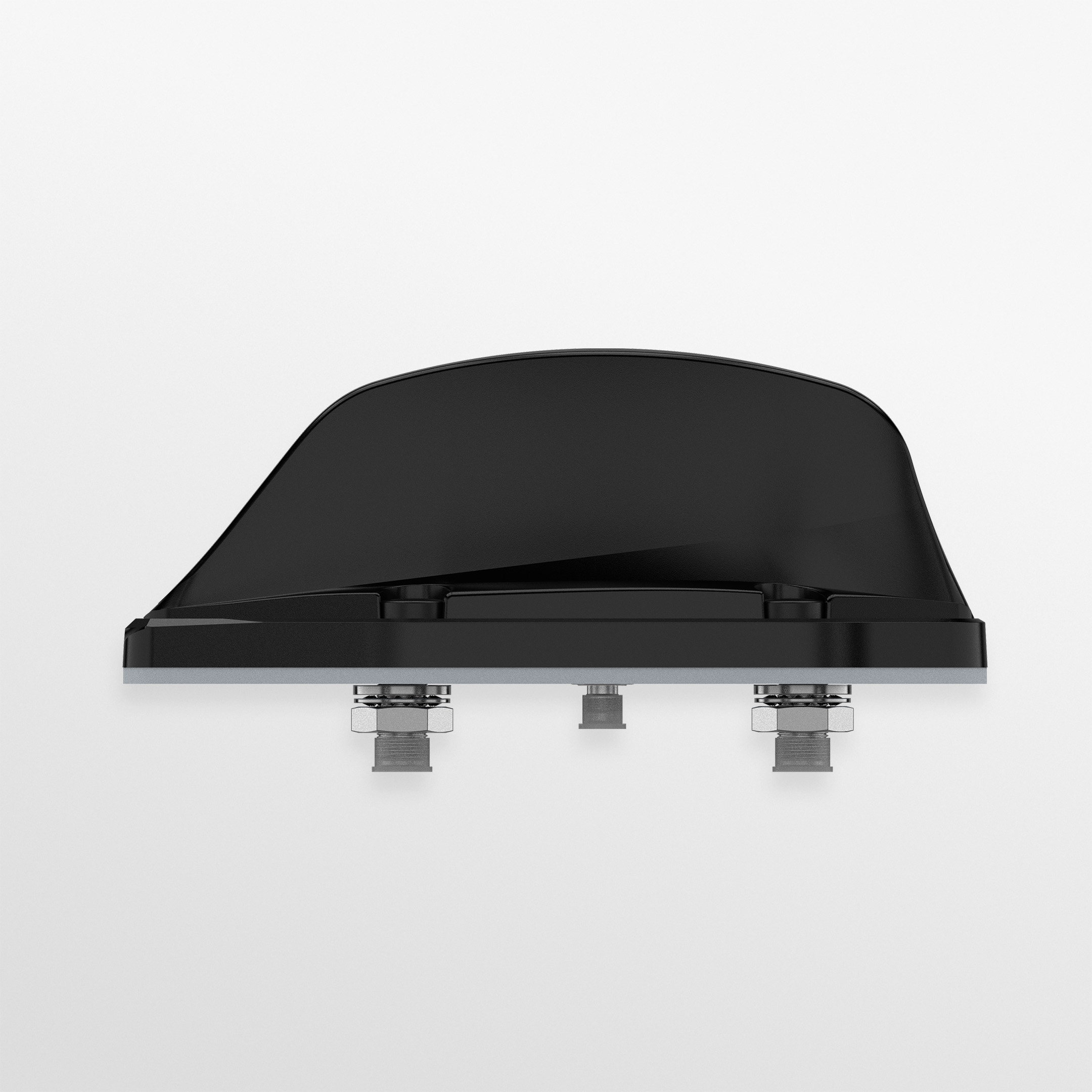

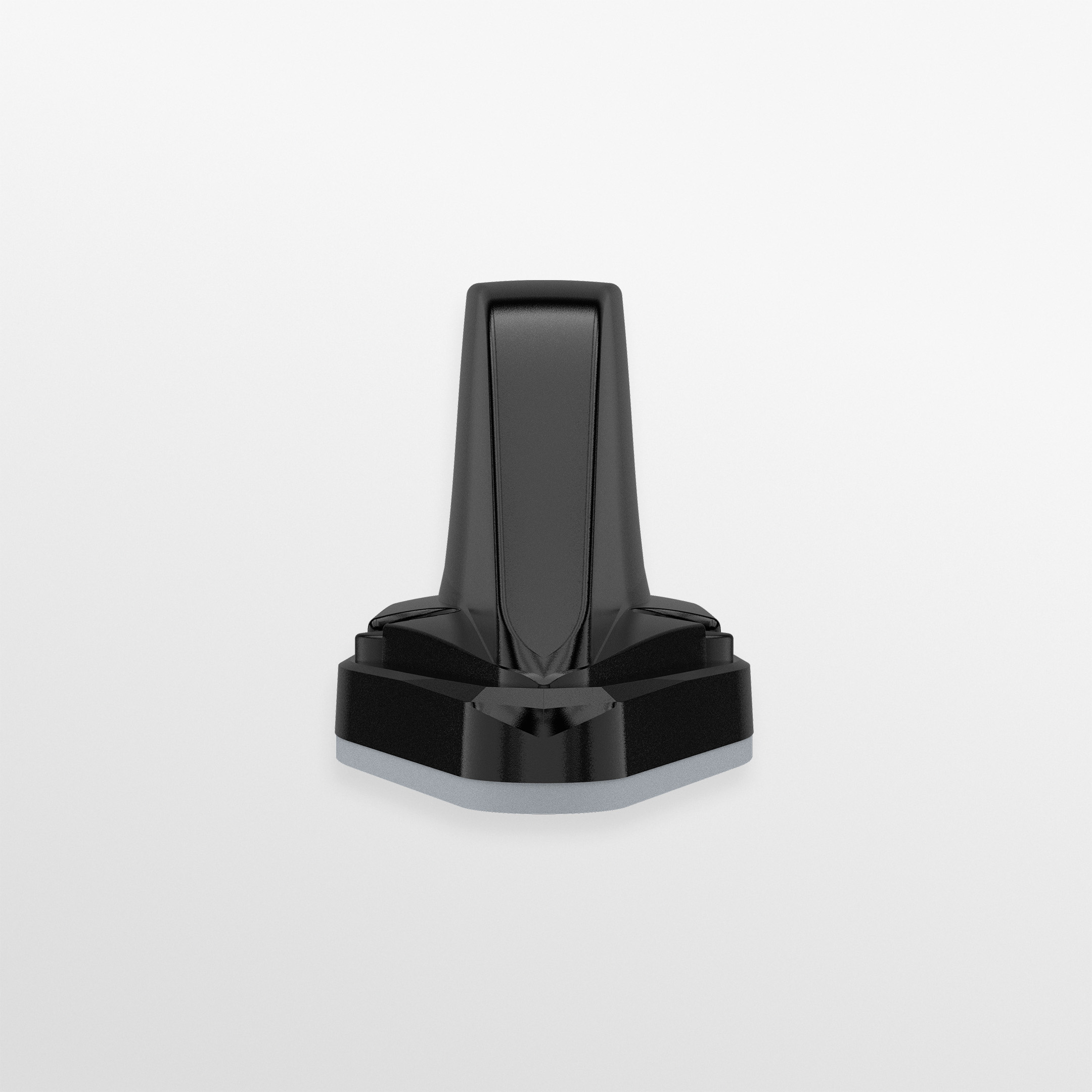

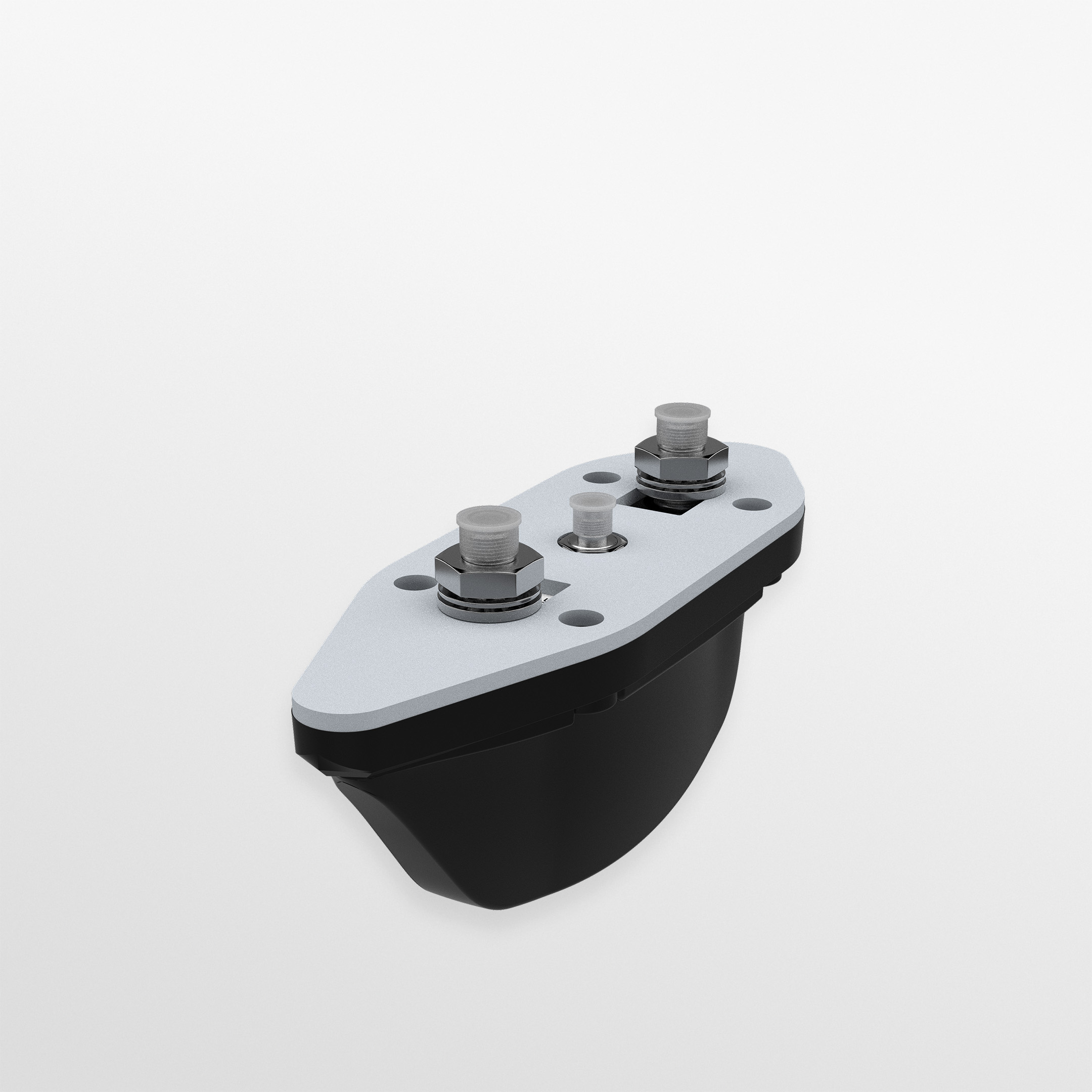

TRNM[G]-7-60-NJ | MiMo 2G/3G/4G Rail Antenna with optional GNSS

Model / SKU: TRNM[G]-7-60-NJ

TRNM[G]-7-60-NJ | MiMo 2G/3G/4G Rail Antenna with optional GNSS - Image 2

TRNM[G]-7-60-NJ | MiMo 2G/3G/4G Rail Antenna with optional GNSS

The TRNM[G] MiMo antenna series is designed specifically for use on trains, trams and buses underground or overground.

Incorporating two elements operating wideband across all frequencies from 698MHz to 6000MHz the TRNM[G] range is versatile and future proof. The TRNM[G] series supports 2×2 MiMo across 4G/ 5G LTE frequencies from 698MHz to 6000MHz all in one housing. Alternatively, the main elements can be used for 2.4/5.0 GHz WLAN.

The TRNM[G] has two DC grounded radiating elements, in versions with a GPS module it is protected by a gas discharge surge arrestor. Housed in a high impact, flame retardant Ultem housing, the TRNM[G] series is weatherproof ensuring that the antenna’s performance is never compromised.

The TRNM[G] antenna meets stringent industry standards including EN50155, EN45545-2 (HL 1-3), EN50124-1 (40 KA / 100 MS) and is ingress protected to IP69k when properly installed.

Description

The TRNM[G] MiMo antenna series is designed specifically for use on trains, trams and buses underground or overground. Incorporating two elements operating wideband across all frequencies from 698MHz to 6000MHz the TRNM[G] range is versatile and future proof.

Product overview

The TRNM[G] MiMo antenna series is designed specifically for use on trains, trams and buses underground or overground.

The TRNM[G] antenna meets stringent industry standards including EN50155, EN45545-2 (HL 1-3), EN50124-1 (40 KA / 100 MS) and is ingress protected to IP69k when properly installed.

Product Features

2×2 MiMo Wideband Cellular LTE Antenna Heavy Duty & Fully Rail Certified Antenna Built to the Standard 4-hole Fixing Position Covers Wideband 700-6000MHz for Cellular LTE GSM-R and WiFi Optional GNSS Version Avaialble DC Grounded Antenna Certified to EN50155, EN45545 (HL 1-3), EN50124-1 (40KA / 100ms) and IP69K

Benefits

Standard 4 hole fixing Rail approved Wideband coverage

Application

Mass Transit Rail Rolling Stock

Additional information

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module, No
Cable Length	Between 5m & 10m
Connector (LTE)	N (f)
Connector (GPS)	No Connector, TNC (f)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	60
Typical VSWR	<2.5:1
Frequency Range \| Gain	698 – 960MHz \| 6dBi; 1427 – 4200MHz \| 8dBi; 4900 – 6000MHz \| 9dBi
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	No; 1 Module
MECHANICAL DATA
Colour	Black
Length	265 (mm) \| 10.43 (in)
Width	87 (mm) \| 3.43 (in)
Height	98 (mm) \| 3.86 (in)
Operating Temperature	-40°/ +85°C (-40.0°/ +185.0°F)
CABLE DATA
Cable Length – LTE	5 (m) \| 16.40 (ft)
TERMINATION DATA
Connector (GPS)	TNC (f)
Connector (LTE)	N (f)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Methods	Panel
APPROVALS DATA
IP Rating	IP69K; IP67
TECHNOLOGY DATA
Technology	4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GPS; GNSS

Available selections

Colour	Black
4G/5G	2 x 2 MIMO
GPS	1 Module No
Cable Length	Between 5m & 10m
Connector (LTE)	N (f)
Connector (GPS)	No Connector TNC (f)

Models and configurations

SKU; Colour | Cellular | GPS

TRNM-7-60-NJ	Black \| 2 x 2 MIMO \| No N (f)
TRNMG-7-60-NJ	Black \| 2 x 2 MIMO \| 1 Module
5m	No Cable
N (f)	TNC (f)

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	2 x 2 MIMO
Gps	1 Module, No
Cable Length	Between 5m & 10m
Connector Lte	N (f)
Connector Gps	No Connector, TNC (f)
