Description
A 4×4 MiMo cellular 617 960/1710 6000, L1 GPS/GNSS , up to 4×4 MiMo WiFi transit antenna.
Product
TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna
Model / SKU: TRNM[X]4-6-60-[X]

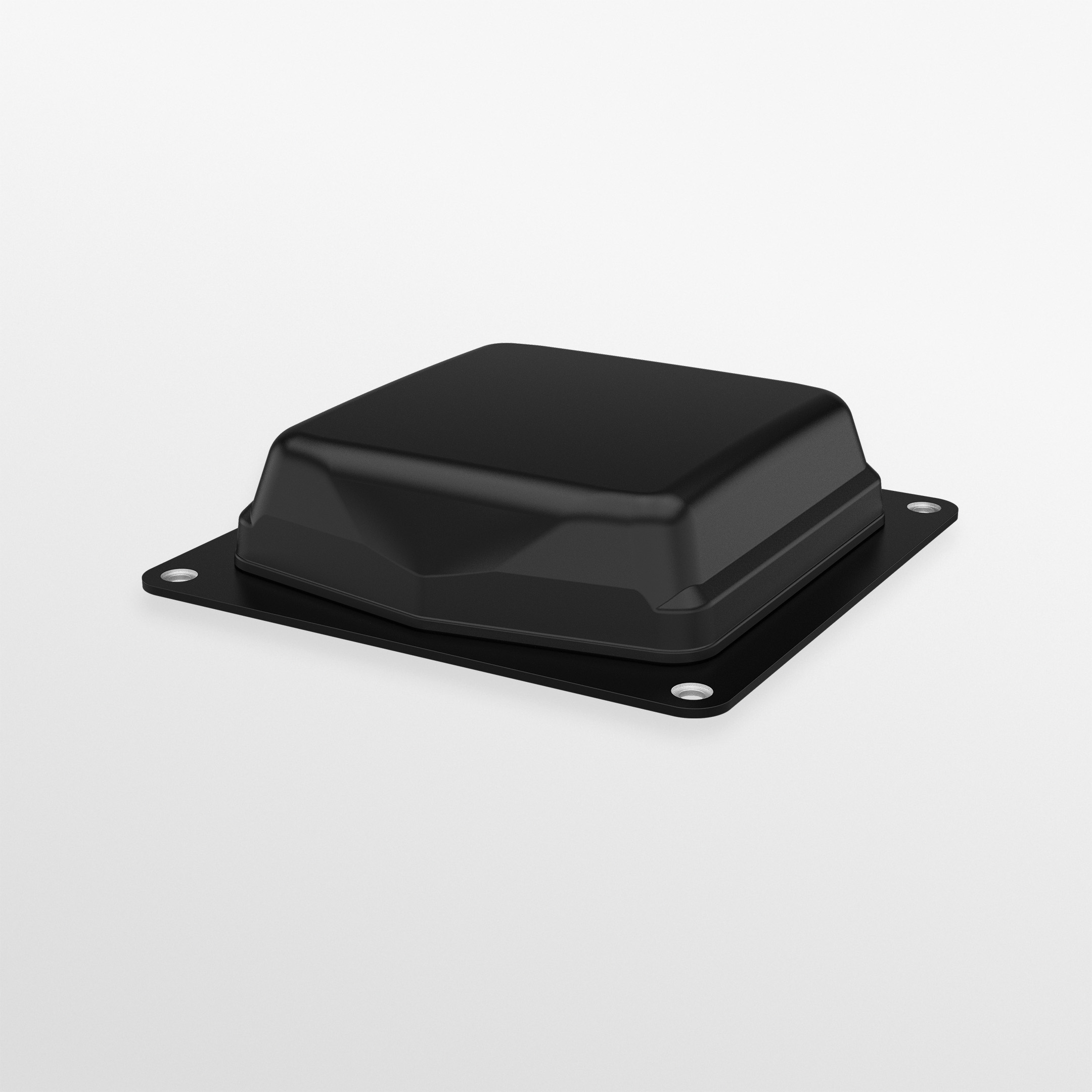

![TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNMX4-6-60-3-Main-View-Plate-only.jpg "TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna")

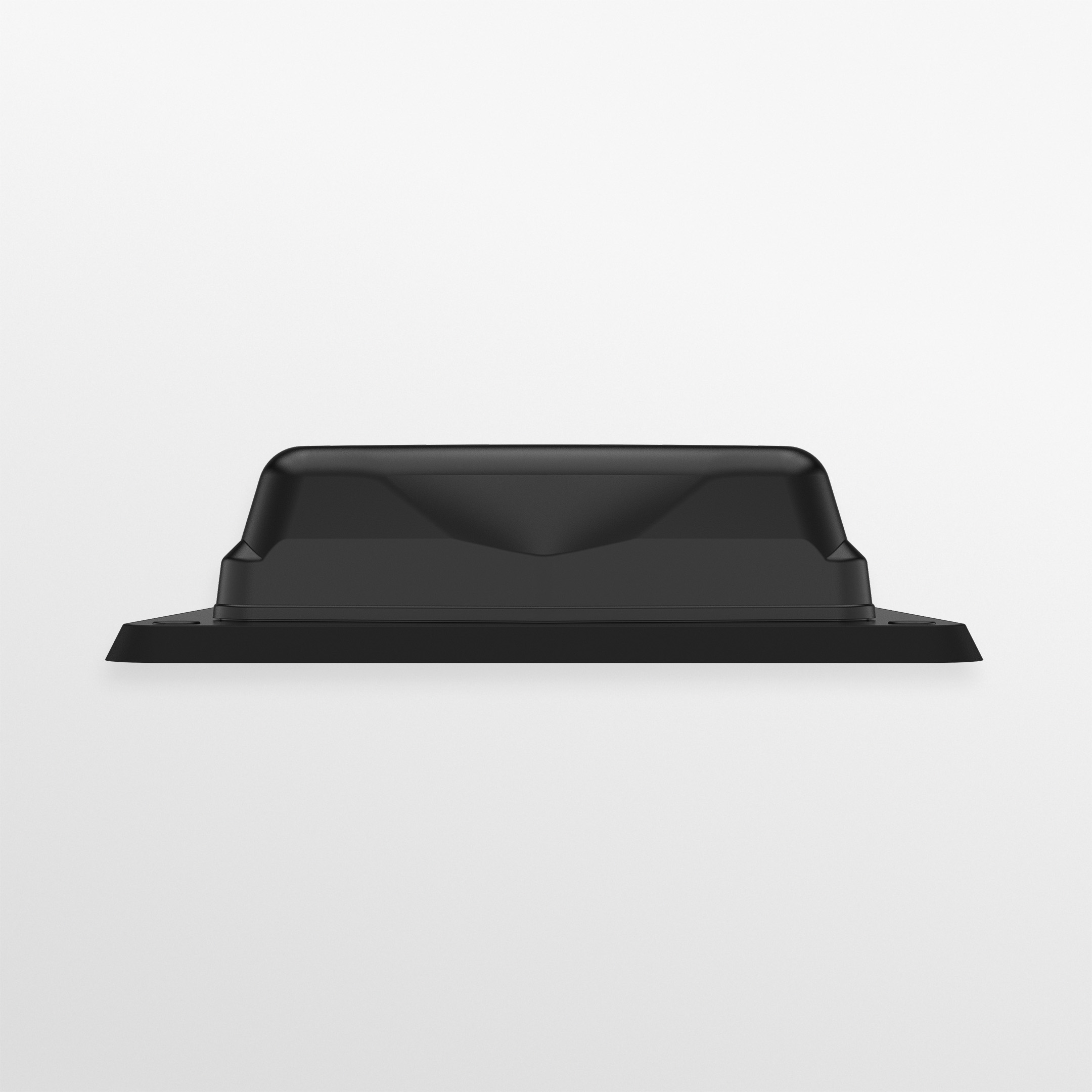

![TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNMX4-6-60-4-Front-View.jpg)

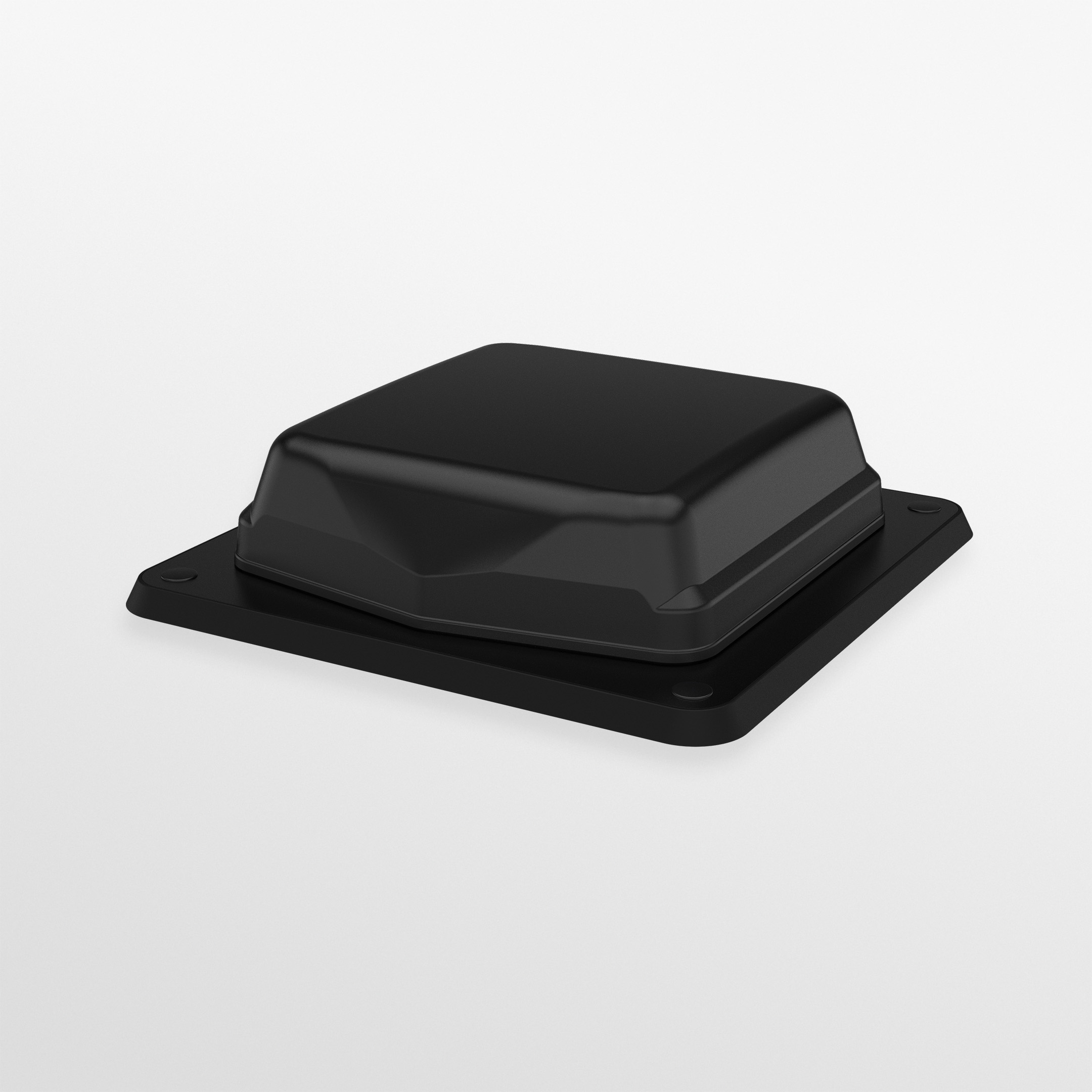

![TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNMX4-6-60-1-Main-View.jpg "TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna")

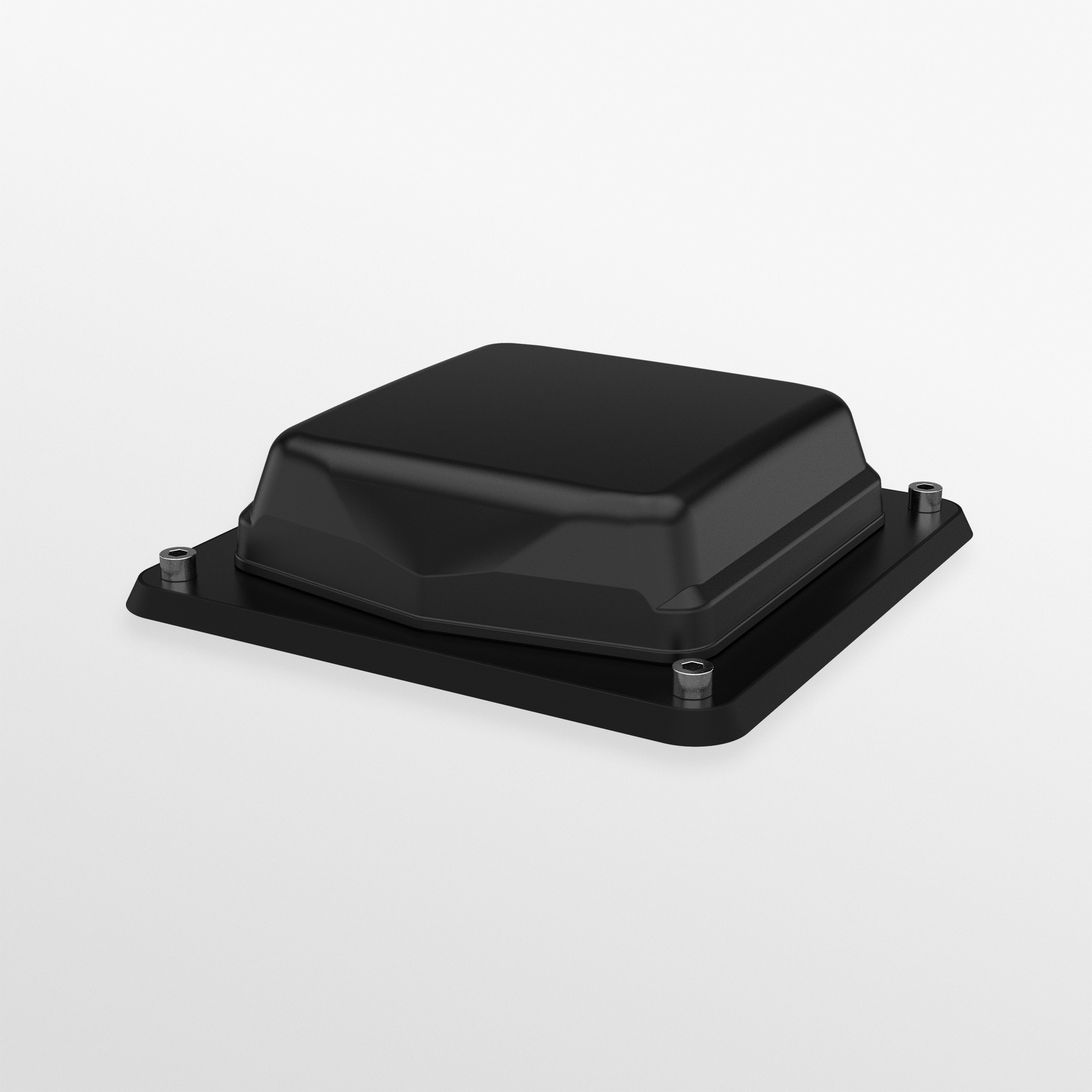

![TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNMX4-6-60-2-Main-View-Bolt-Mounted.jpg "TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna")

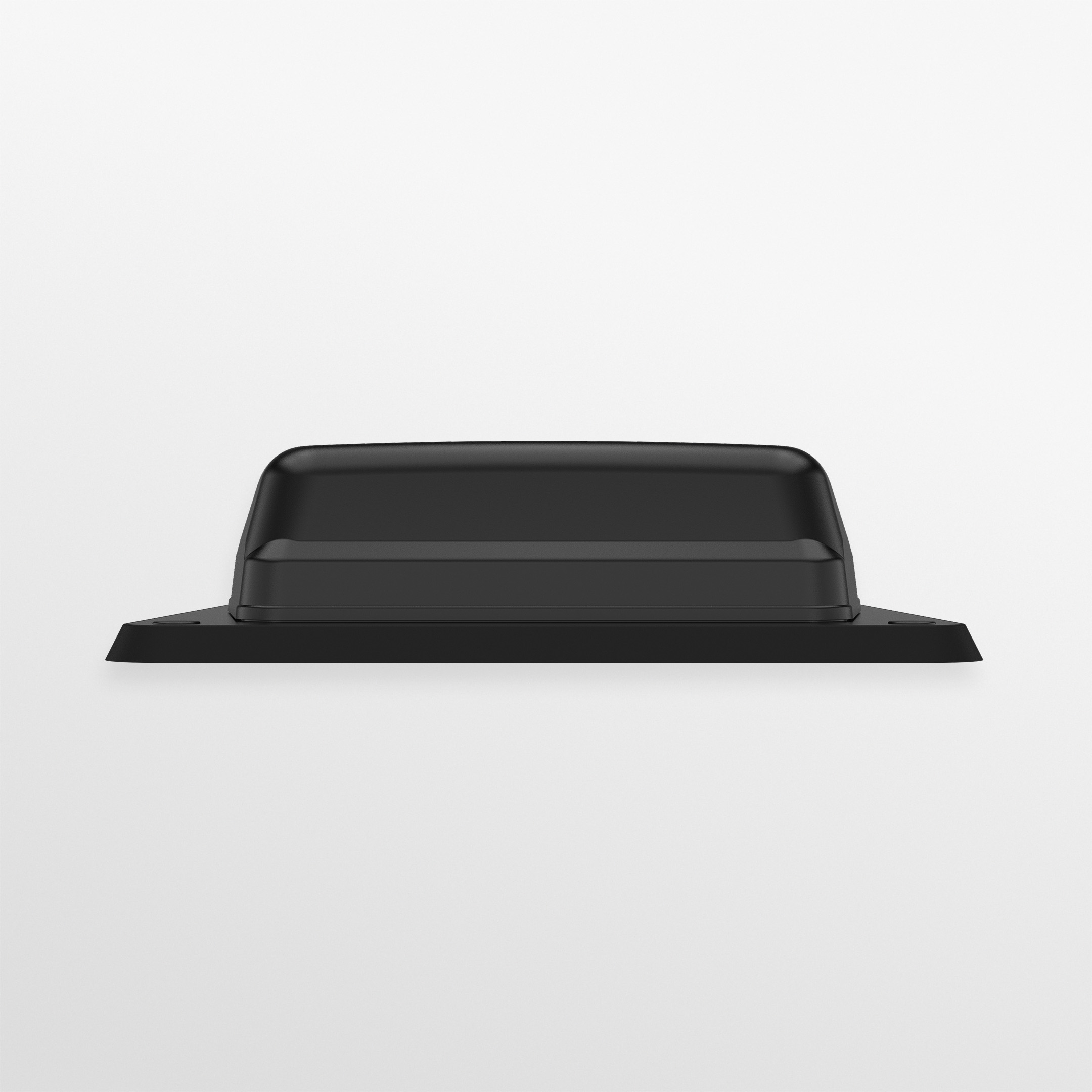

![TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/TRNMX4-6-60-5-Side-View.jpg "TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna")
TRNM[X]4-6-60-[X] | 4×4 MiMo Rail Antenna
A 4×4 MiMo cellular 617-960/1427-6000, L1/L2/L5 or L1 GPS/GNSS , up to 4×4 MiMo WiFi transit antenna.
The TRNM[X]4-6-60-[X] MiMo antenna series is designed for use on trains, trams and buses underground or overground. Incorporating four wide band elements covering the frequency range 617MHz to 6000MHz, the TRNM[X]4-6-60-[X] series is versatile and future proof. The TRNM[X]4-6-60-[X] series covers global 4G/5G frequencies with 4×4 MiMo, optional up to 4×4 MiMo Wifi 6e and optional GPS/GNSS.
Product overview
A 4×4 MiMo cellular 617-960/1427-6000, L1/L2/L5 or L1 GPS/GNSS , up to 4×4 MiMo WiFi transit antenna.
The TRNM[X]4-6-60-[X] MiMo antenna series is designed for use on trains, trams and buses underground or overground. Incorporating four wide band elements covering the frequency range 617MHz to 6000MHz, the TRNM[X]4-6-60-[X] series is versatile and future proof. The TRNM[X]4-6-60-[X] series covers global 4G/5G frequencies with 4×4 MiMo, optional up to 4×4 MiMo Wifi 6e and optional GPS/GNSS.
Product Features
- Low Profile Transit Antenna 4×4 MiMo 617-960/1427-6000MHz Up to 4×4 MiMo WiFi 6e Covers global 4G/5G frequencies Optional active GPS/GNSS
Benefits
- Meets Railway Standards EN50155, EN45545-2 and EN50124-1 IP69K Housed in a high impact Flame retardant Weatherproofing
Application
- Trains Trams Underground or overground Buses
Additional information
| Colour | Black |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 4 x 4 MIMO, No |
| Connector (LTE) | N (f) |
| Connector (WIFI) | N (f), No Connector |
| Connector (GPS) | No Connector, TNC (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 60 |
| Typical VSWR | <2:1 |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | 4 x 4 MIMO; 2 x 2 MIMO; No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz; 1562-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | No; 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 350 (mm) | 13.78 (in) |
| Width | 350 (mm) | 13.78 (in) |
| Height | 85 (mm) | 3.35 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | N (f) |
| Connector (GPS) | TNC (m) |
| Connector (LTE) | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP69K |
| Cable Flammability | EN45545-2 HL3 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; GPS; 2G/3G/4G; Band 71 600MHz ready; CBRS; GNSS; WIFI MIMO; WIFI; WIFI 6E |
