Model / SKU: VCD

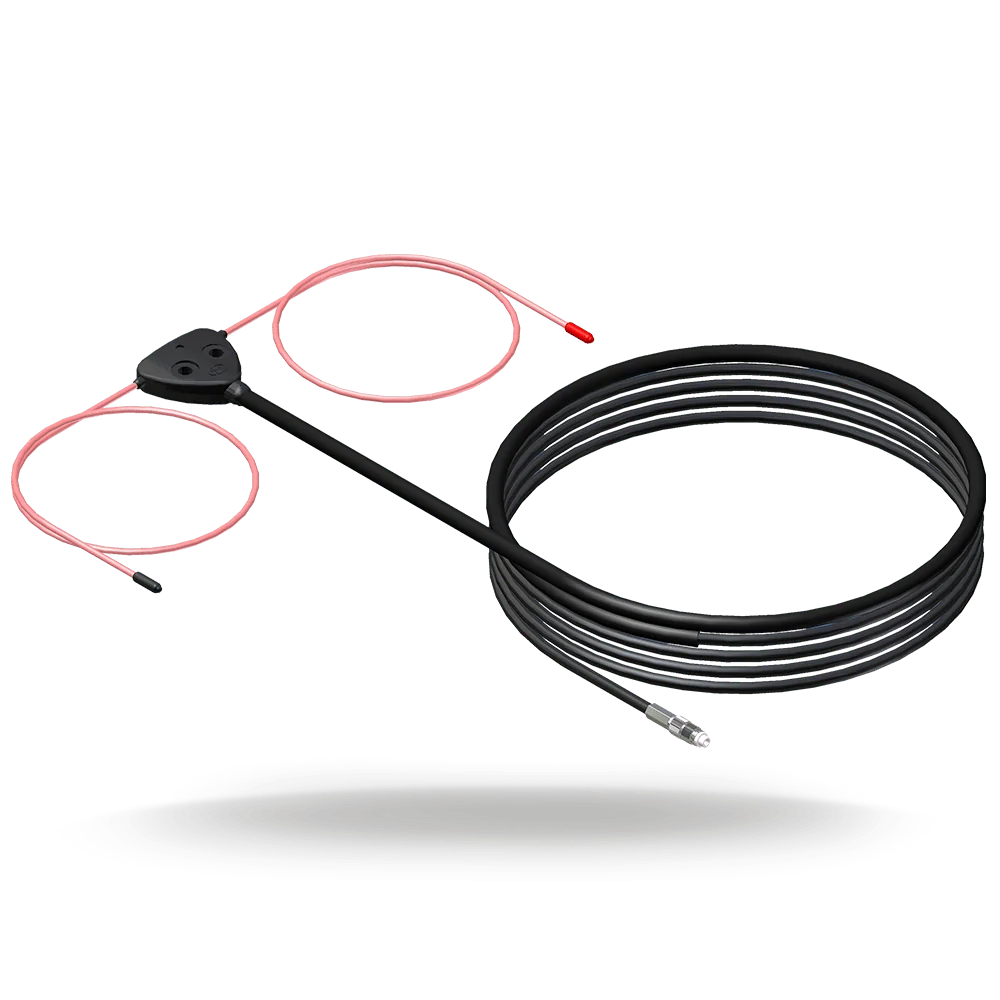

The Panorama VCD range is a covert dipole antenna which can be mounted to any plastic surface such as a vehicle bumper (fender) and is ideal for covert applications. The antenna is designed to be tuned on the vehicle or in the installation location. Two antennas can be used on a vehicle together with an HPDPD power divider to achieve more omni-directional coverage.
The Panorama VCD range is a covert dipole antenna which can be mounted to any plastic surface such as a vehicle bumper (fender) and is ideal for covert applications. The antenna is designed to be tuned on the vehicle or in the installation location. Two antennas can be used on a vehicle together with an HPDPD power divider to achieve more omni-directional coverage.
The Panorama VCD range is a covert dipole antenna which can be mounted to any plastic surface such as a vehicle bumper (fender) and is ideal for covert applications. The antenna is designed to be tuned on the vehicle or in the installation location. Two antennas can be used on a vehicle together with an HPDPD power divider to achieve more omni-directional coverage.
| Colour | Black |
|---|---|
| Cable Length | Between 5m & 10m |
| Connector (VHF/UHF) | BNC (m), FME (f) |
| Frequency Range | 130-175MHz, 380-400MHz, 380-430MHz, 410-430MHz, 450-470MHz, 68-88MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 100 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 38 (mm) | 1.50 (in) |
| Width | 52.5 (mm) | 2.07 (in) |
| Diameter | 12 (mm) | 0.47 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 5 (m) | 16.40 (ft) |
| Cable Type (Whip) | CS23 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | FME (f); BNC (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Bumper |
| Mounting Methods | Bumper |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA; VHF |
