Model / SKU: W24-58-CP-9-[X]

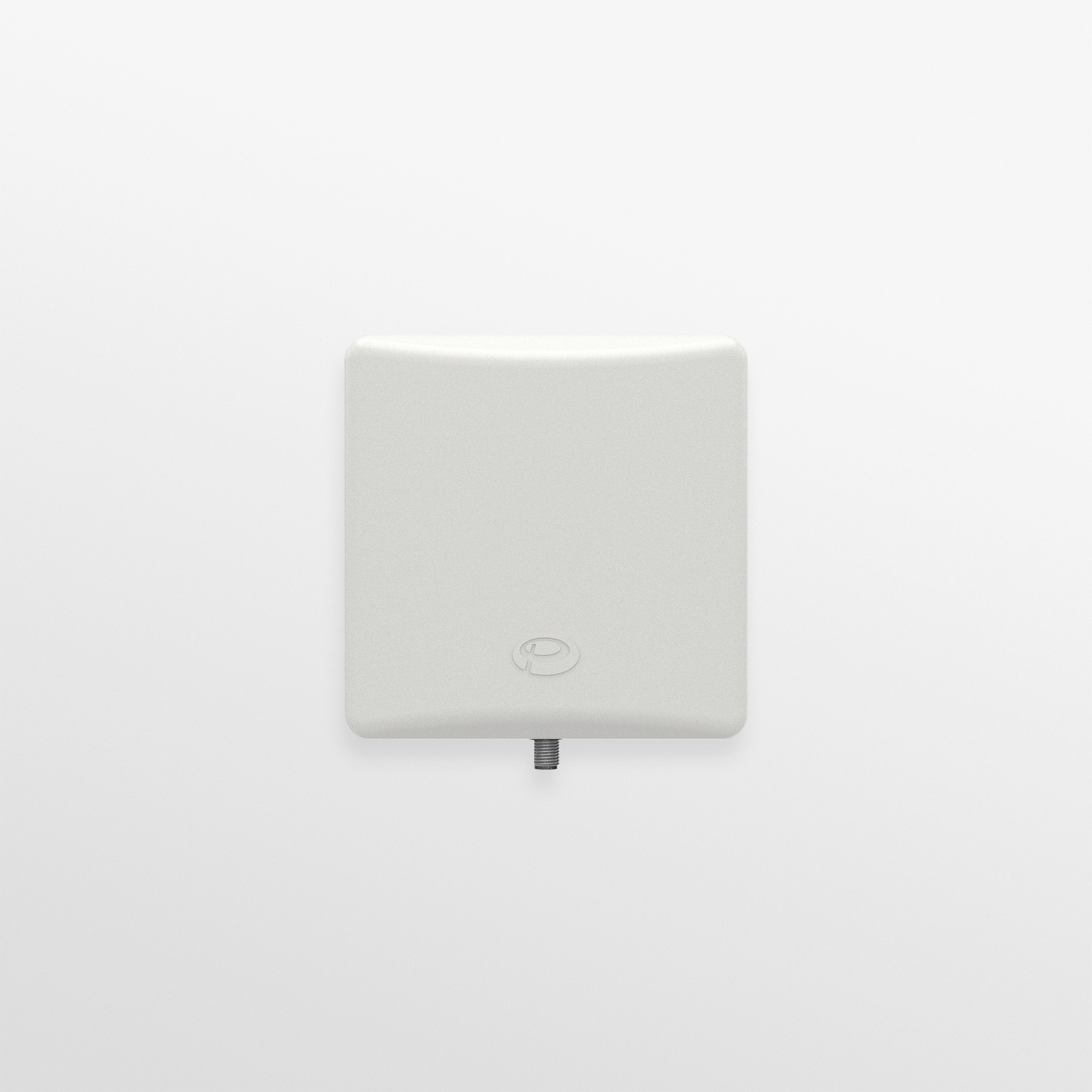

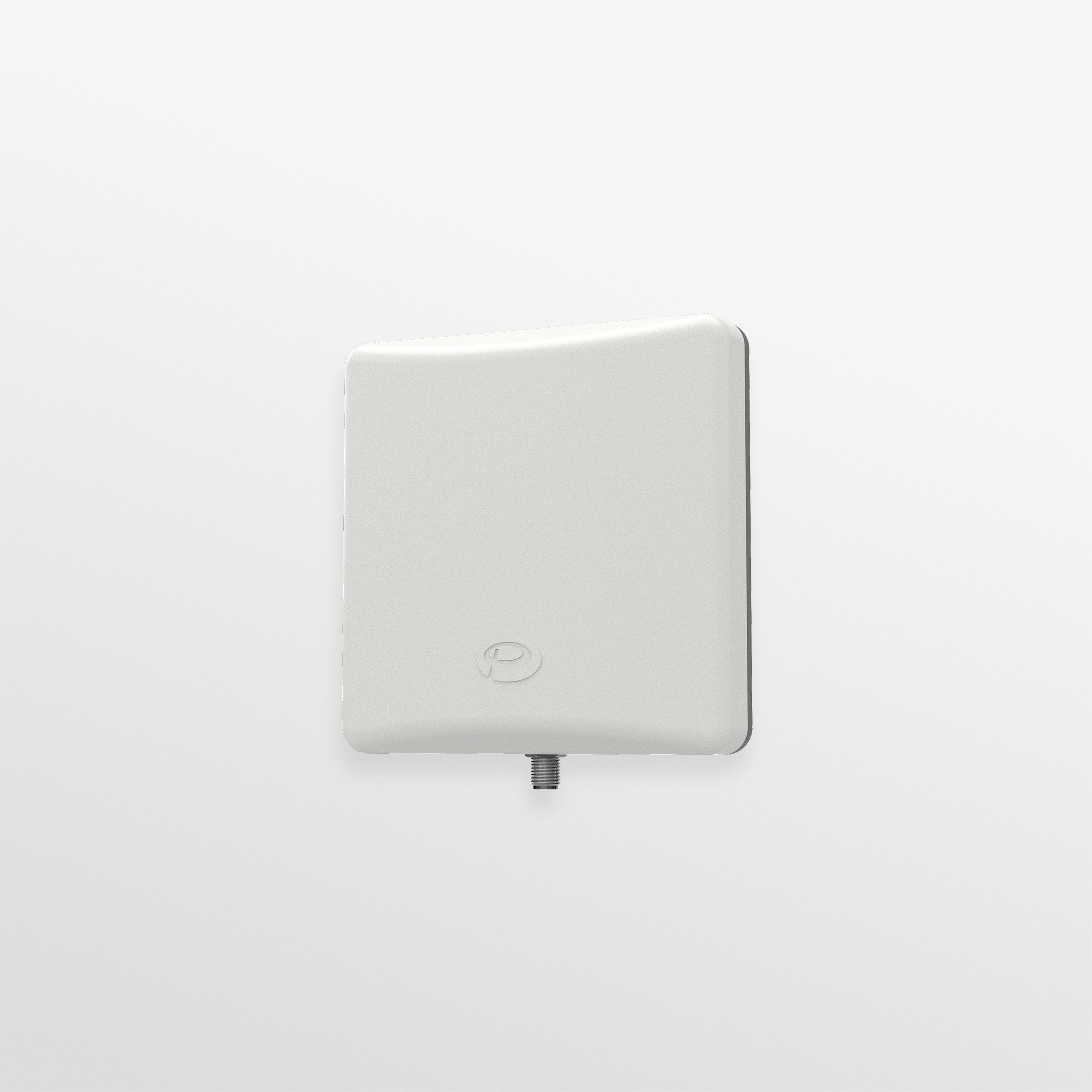

The Panorama client patch antenna is a directional wall or mast mount antenna covering 2.4 & 5GHz for WiFi / WLAN applications.
This antenna is ideal for point to point communications or can be used to cover a wide area thanks to its relatively wide beamwidth in the horizontal and vertical planes. Several of these antennas can be used to provide sectored coverage.

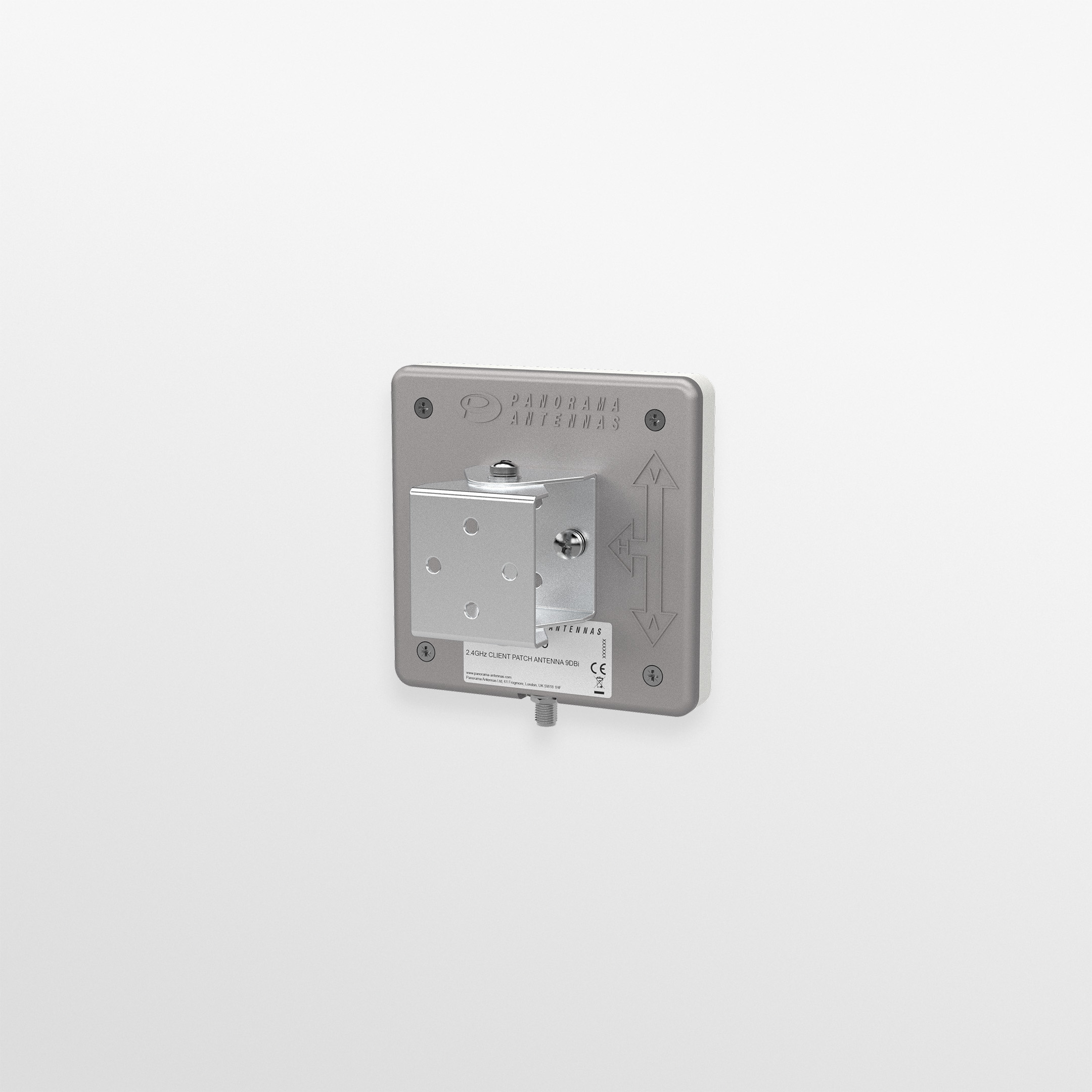

This antenna is supplied with a 90 degree adjustable wall/mast mount
angle bracket to give optimal mounting flexibility and it is fitted with
an SMA female connector to allow for connection of a variety of cable
assemblies.
The Panorama client patch antenna is a directional wall or mast mount antenna covering 2.4 & 5GHz for WiFi / WLAN applications. This antenna is ideal for point to point communications or can be used to cover a wide area thanks to its relatively wide beamwidth in the horizontal and vertical planes. Several of these antennas can be used to provide sectored coverage.
Technical Datasheet (official Panorama source)
The Panorama client patch antenna is a directional wall or mast mount antenna covering 2.4 & 5GHz for WiFi / WLAN applications.
This antenna is ideal for point to point communications or can be used to cover a wide area thanks to its relatively wide beamwidth in the horizontal and vertical planes. Several of these antennas can be used to provide sectored coverage.
This antenna is supplied with a 90 degree adjustable wall/mast mount angle bracket to give optimal mounting flexibility and it is fitted with an SMA female connector to allow for connection of a variety of cable assemblies.
| Colour | White |
|---|---|
| Connector (WIFI) | SMA (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Directional |
| Max Input Power(W) | 50 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 2400 – 2485MHz | 9dBi; 5150 – 5925MHz | 9dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 93 (mm) | 3.66 (in) |
| Width | 93 (mm) | 3.66 (in) |
| Height | 25 (mm) | 0.98 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall; Pole |
| APPROVALS DATA | |
| Material Flammability | UL746C-F1, UL94-V0 |
| TECHNOLOGY DATA | |
| Technology | WIFI; WIFI SISO; Bluetooth |
