Model / SKU: W36-CP-9-[VAR]
The Panorama client patch antenna is a directional wall or mast mount
antenna covering 3,4-3.8GHz for CBRS / LTE 5G applications.
This antenna is ideal for point communications or can be used to cover a wide area thanks to its its relatively wide beamwidth in the horizontal and vertical planes.
Several of these antennas can be used to provide sectored coverage.
This

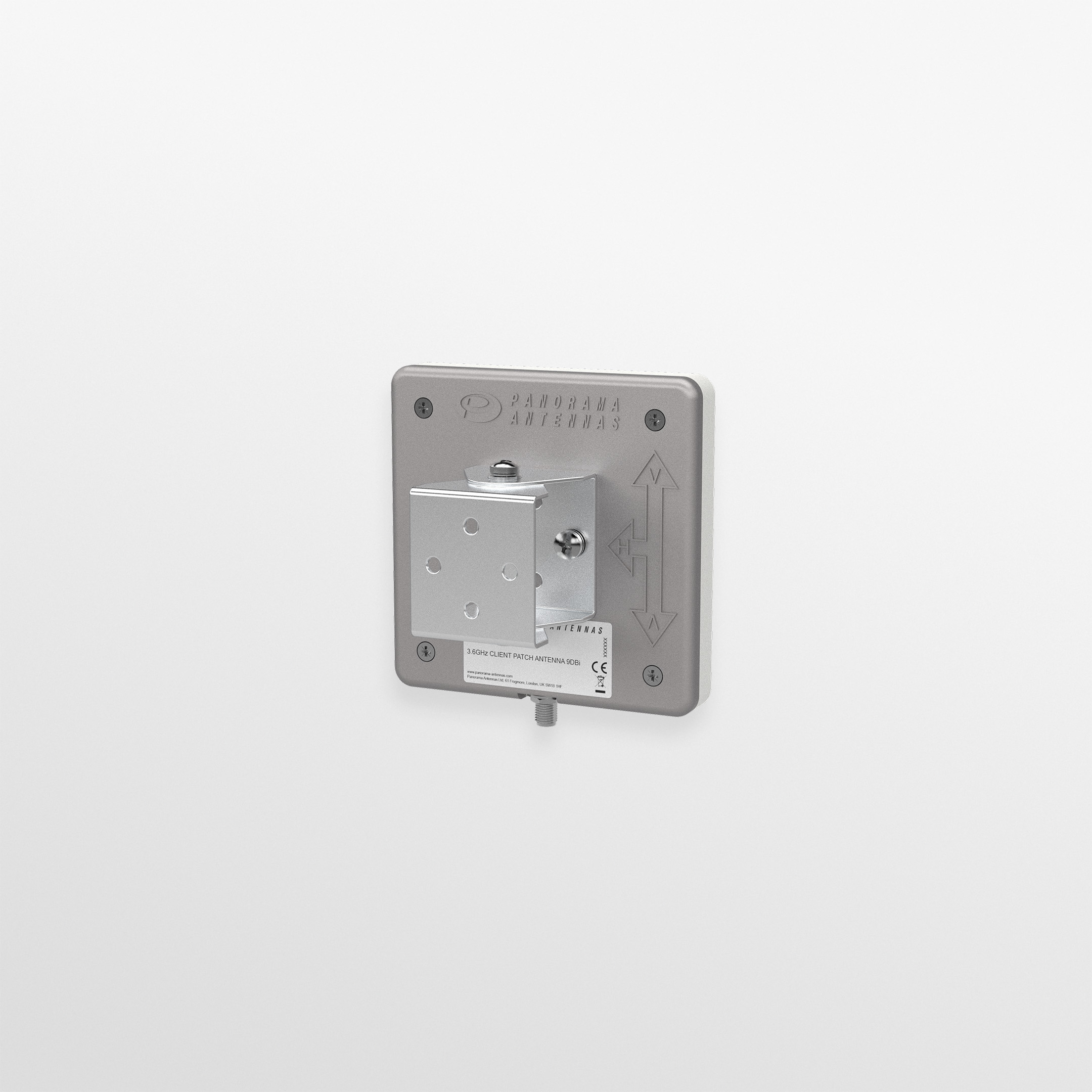

antennas is supplied with a 90 degree adjustable wall/mast mount angle
bracket to give optimal mounting flexibility and it is fitted with an
SMA female connector to allow for connection of a variety of cable
assemblies.
The Panorama client patch antenna is a directional wall or mast mount antenna covering 3,4-3.8GHz for CBRS / LTE 5G applications. This antenna is ideal for point to point communications or can be used to cover a wide area thanks to its relatively wide beamwidth in the horizontal and vertical planes. Several of these antennas can be used to provide sectored coverage.
The Panorama client patch antenna is a directional wall or mast mount antenna covering 3,4-3.8GHz for CBRS / LTE 5G applications.
This antenna is ideal for point communications or can be used to cover a wide area thanks to its its relatively wide beamwidth in the horizontal and vertical planes. Several of these antennas can be used to provide sectored coverage.
This antennas is supplied with a 90 degree adjustable wall/mast mount angle bracket to give optimal mounting flexibility and it is fitted with an SMA female connector to allow for connection of a variety of cable assemblies.
| Colour | White |
|---|---|
| Connector (WIFI) | SMA (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Directional |
| Max Input Power(W) | 20 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 93 (mm) | 3.66 (in) |
| Width | 25 (mm) | 0.98 (in) |
| Height | 93 (mm) | 3.66 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f) |
| TECHNOLOGY DATA | |
| Technology | WIFI; WIFI SISO; CBRS |
