WS-96WIR004 Broomstick Antenna

Model / SKU: WS-96WIR004

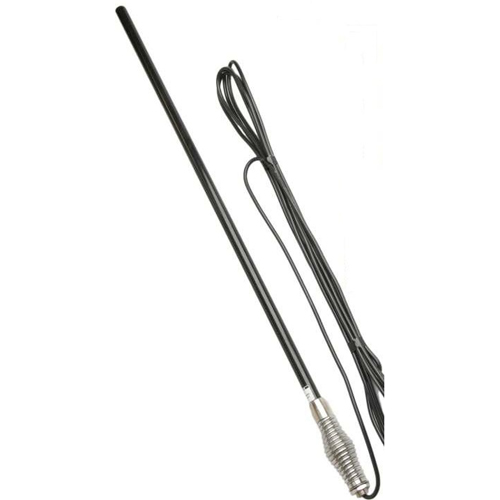

WS-96WIR004 Broomstick Antenna

The WS-96WIR is a “broomstick style” multi-band antenna intended for coverage across multiple networks, including the 4G LTE 700MHz, Next G 850 / 3G 900 / GSM 900/1800, PCS 1900, 3G 2100 bands. The antenna does away with the need for three separate antennas whilst maintaining specifically high gain across the 698-960Mhz band.

It also offers performance for WiFi and 2.6GHz.

Description

The antenna utilises a 5m low loss cable lead directly attached to the antenna which allows allows ease of installation. The antenna is light weight, robust in design and fitted to a stainless steel spring making it perfect for fixed and mobile data applications.

  • Multi Band Performance
  • 7.0dBi Gain @ 698-960 MHz
  • 3.0dBi Gain @ 1710-2700 MHZ
  • Light Weight and Easy to install
  • Fibreglass & Thick walled Radome

WS-96WIR004 Specifications
