Description
A versatile high gain directional antenna ideal for indoor and outdoor deployment, Panorama’s WM8E range allows businesses and individual users to boost or distribute 2G/3G and 4G signal from their router or repeater.
Product

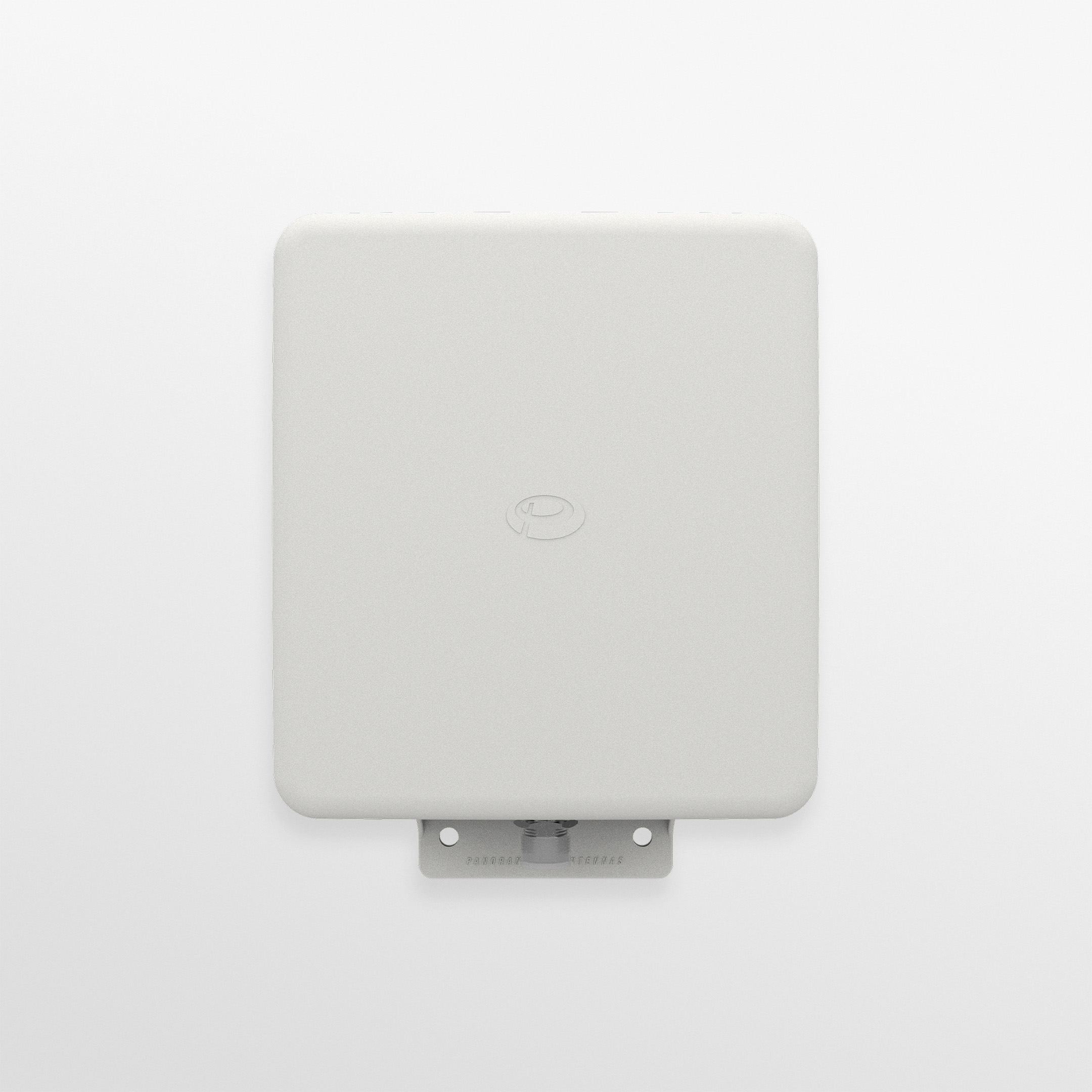

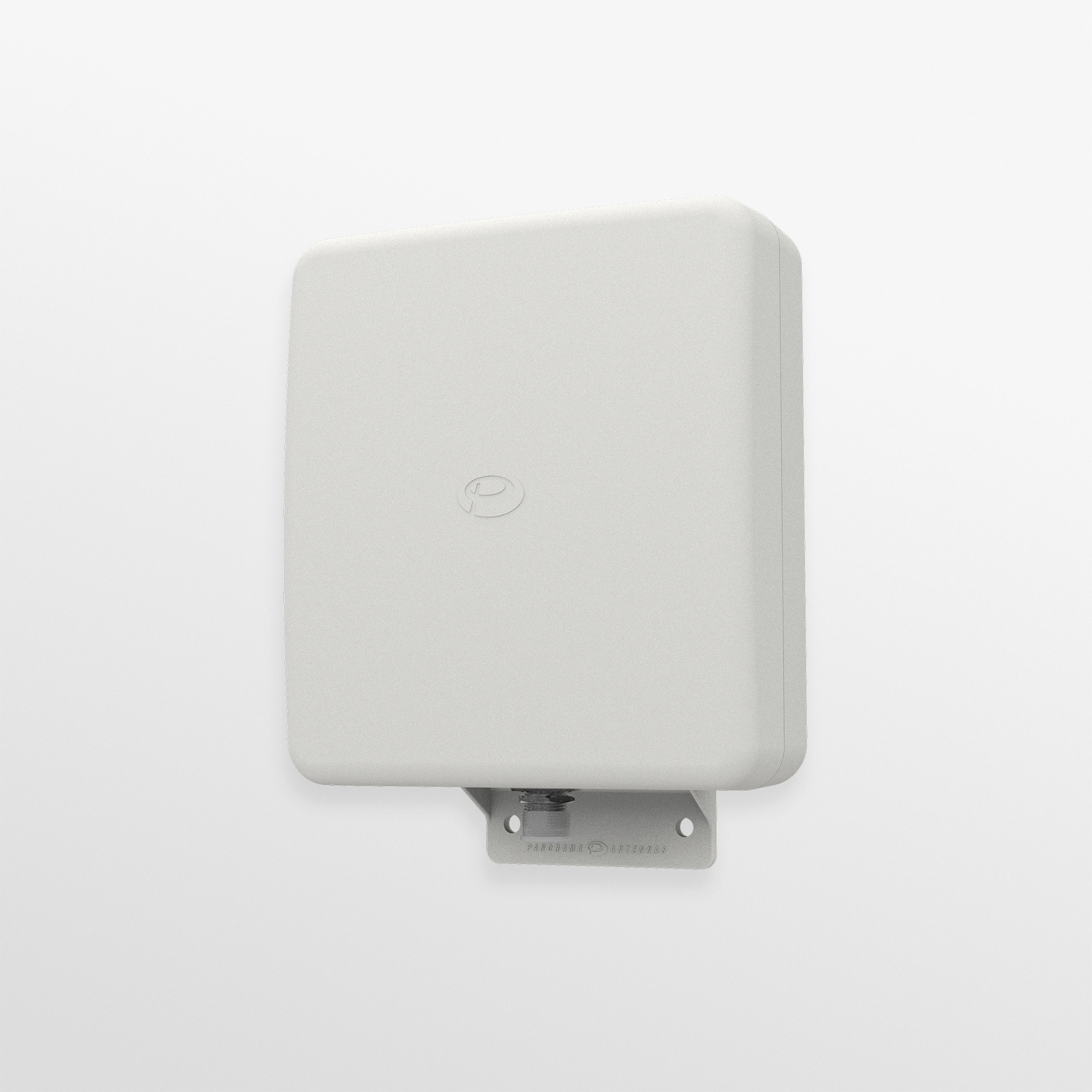

WM8E-BADEP3G-26-NJ | Wall Mount Directional Gain Antenna
Model / SKU: WM8E-BADEP3G-26-NJ-[X]
WM8E-BADEP3G-26-NJ | Wall Mount Directional Gain Antenna
A versatile high gain directional antenna ideal for indoor and outdoor deployment, Panorama’s WM8E range allows businesses and individual users to boost or distribute 2G/3G and 4G signal from their router or repeater.
The WM8E-BADEP3G-26-NJ supports 2G, 3G, 3G+ and 4G technologies including LTE, AMPS, PCS, GSM, UMTS & AWS with lower gain coverage of WIFI 2.4GHz and LTE 2.6GHz.
The WM8E range is housed in impact resistant, UV light stabilised plastic. The features a heavy duty N female connector suitable for kitting with a range of cable extensions.
Product overview
A versatile high gain directional antenna ideal for indoor and outdoor deployment, Panorama’s WM8E range allows businesses and individual users to boost or distribute 2G/3G and 4G signal from their router or repeater.
The WM8E-BADEP3G-26-NJ supports 2G, 3G, 3G+ and 4G technologies including LTE, AMPS, PCS, GSM, UMTS & AWS with lower gain coverage of WIFI 2.4GHz and LTE 2.6GHz.
The WM8E range is housed in impact resistant, UV light stabilised plastic. The features a heavy duty N female connector suitable for kitting with a range of cable extensions.
Product Features
- High-gain antenna solution Ready for 2G/3G/4G technologies Mast mount or wall mount Supports 698-960MHz, 1710-2700MHz frequency bands Ideal for indoor and outdoor deployment
Benefits
- SAR tested to EN50385:2002 Versatile high-gain directional antenna Integrate wireless services into one antenna Housed in an impact resistant plastic Includes a heavy duty N female connector suitable for various cable extensions
Application
- In-building Deployment Enterprise / Branch / Failover
Additional information
| Colour | White |
|---|---|
| Connector (LTE) | N (f) |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 50 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 698 – 960MHz | 6.5dBi; 1710 – 2170MHz | 9dBi; 2400 – 2700MHz | 6dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 94 (mm) | 3.70 (in) |
| Width | 180 (mm) | 7.09 (in) |
| Height | 230 (mm) | 9.06 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (LTE) | N (f) |
| MOUNTING DATA | |

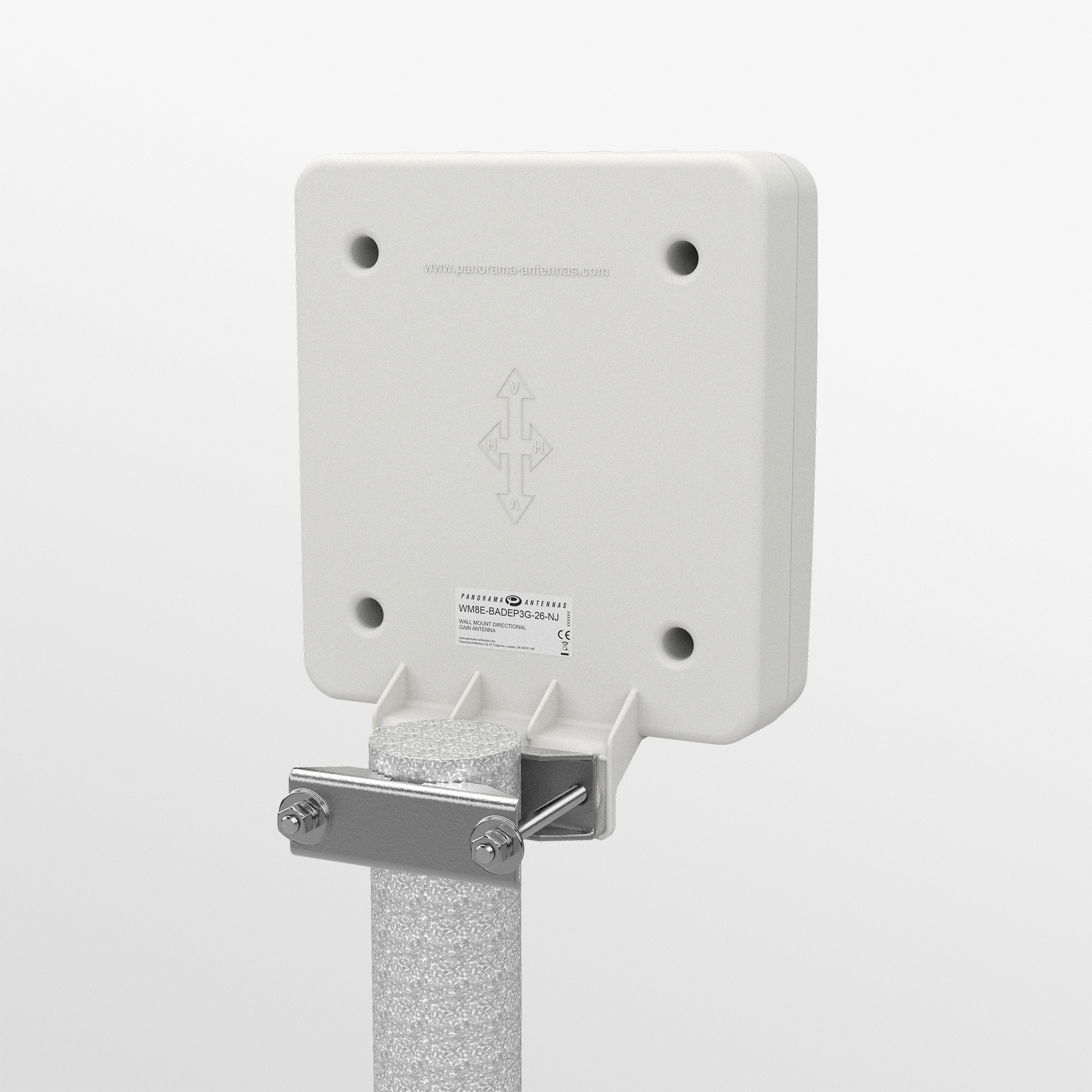

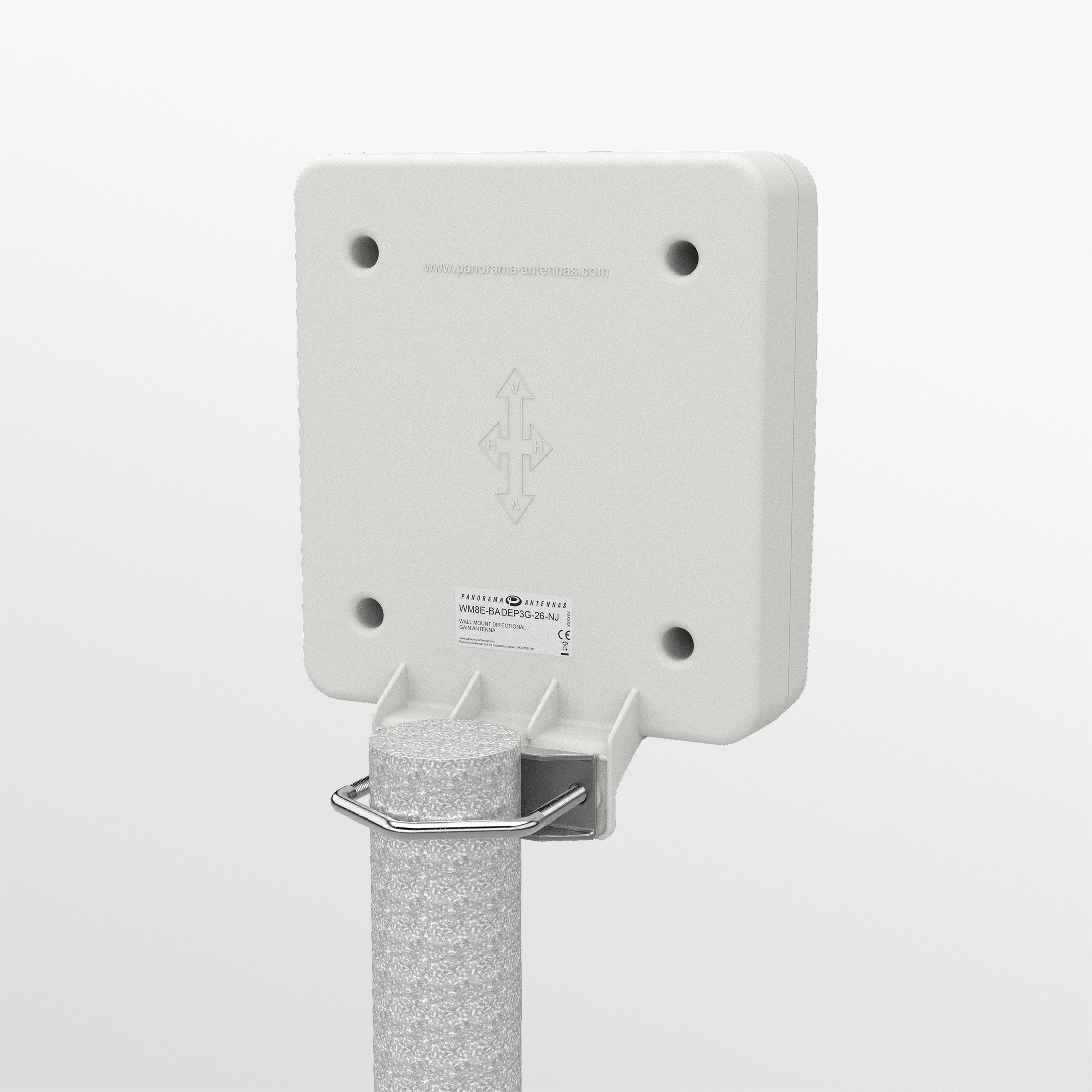

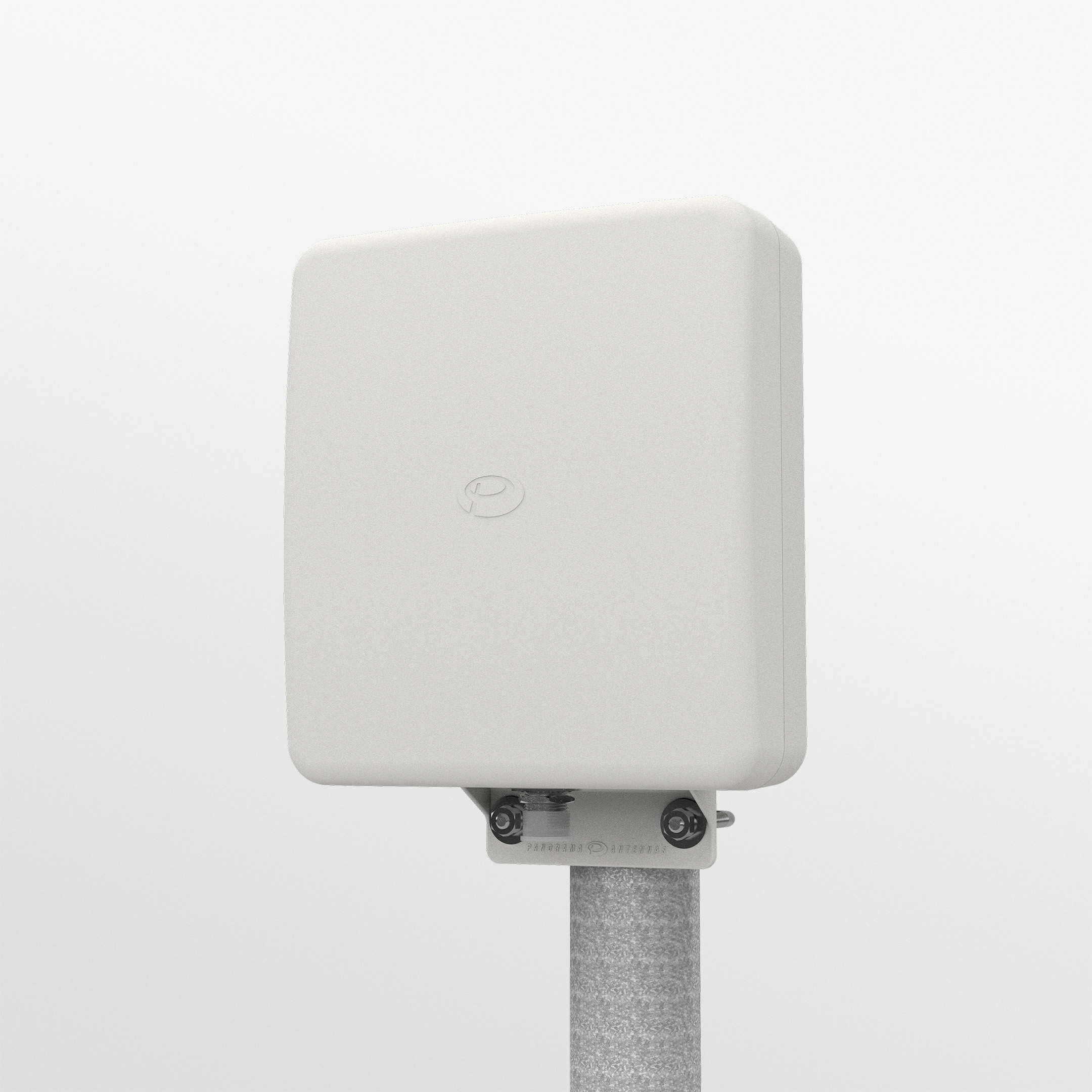

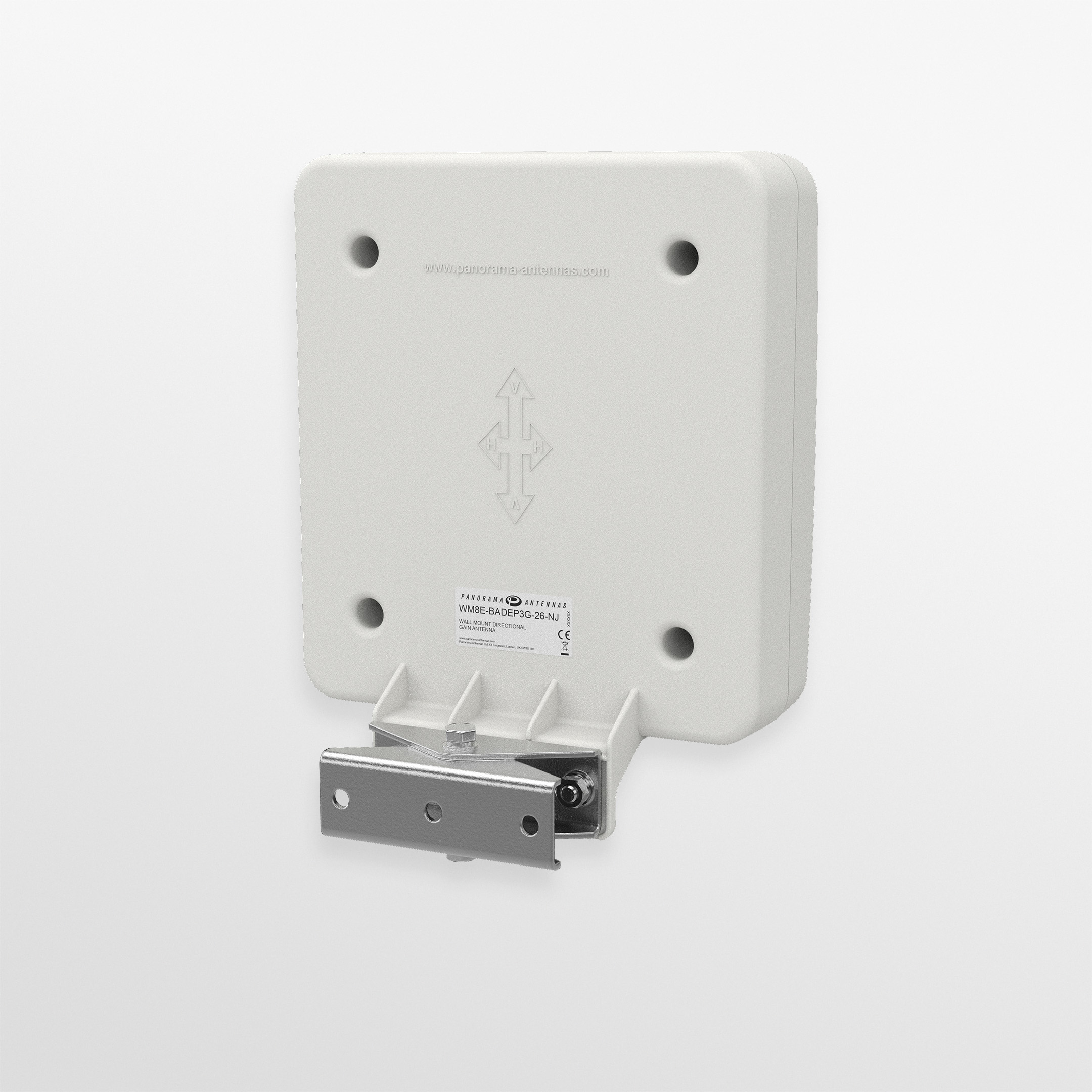

| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall |
| TECHNOLOGY DATA | |
| Technology | 2G/3G; 2G/3G/4G |
