WMM 5G | W[X]MM-6-60-[X] 2×2 MiMo 4G/5G Wall/Mast-Mount Antenna

Model / SKU: W[X]MM-6-60-[X]

WMM 5G | W[X]MM-6-60-[X] 2×2 MiMo 4G/5G Wall/Mast-Mount Antenna - Image 2

WMM 5G | W[X]MM-6-60-[X] 2×2 MiMo 4G/5G Wall/Mast-Mount Antenna - Image 3

WMM 5G | W[X]MM-6-60-[X] 2×2 MiMo 4G/5G Wall/Mast-Mount Antenna - Image 4

WMM 5G | W[X]MM-6-60-[X] 2×2 MiMo 4G/5G Wall/Mast-Mount Antenna - Image 5

WMM 5G | W[X]MM-6-60-[X] 2×2 MiMo 4G/5G Wall/Mast-Mount Antenna

The W[X]MM-6-60-[X] antenna provides a future proof solution for 4G and 5G connectivity. Incorporating two separately fed, ultra wideband elements in a single housing, it provides a client side 2×2 MiMo antenna system and optional L1 GPS/GNSS antenna for the networks of today and tomorrow.

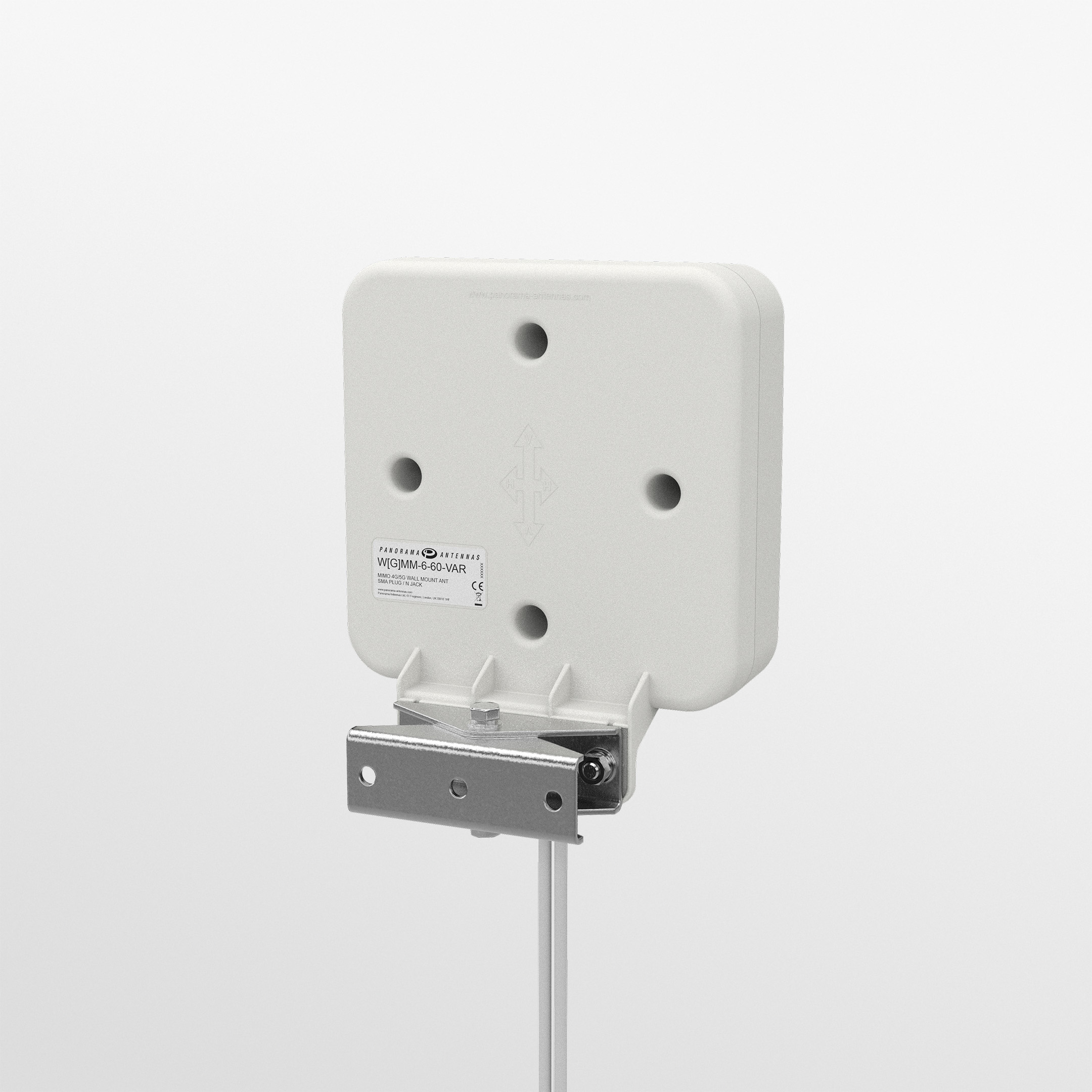

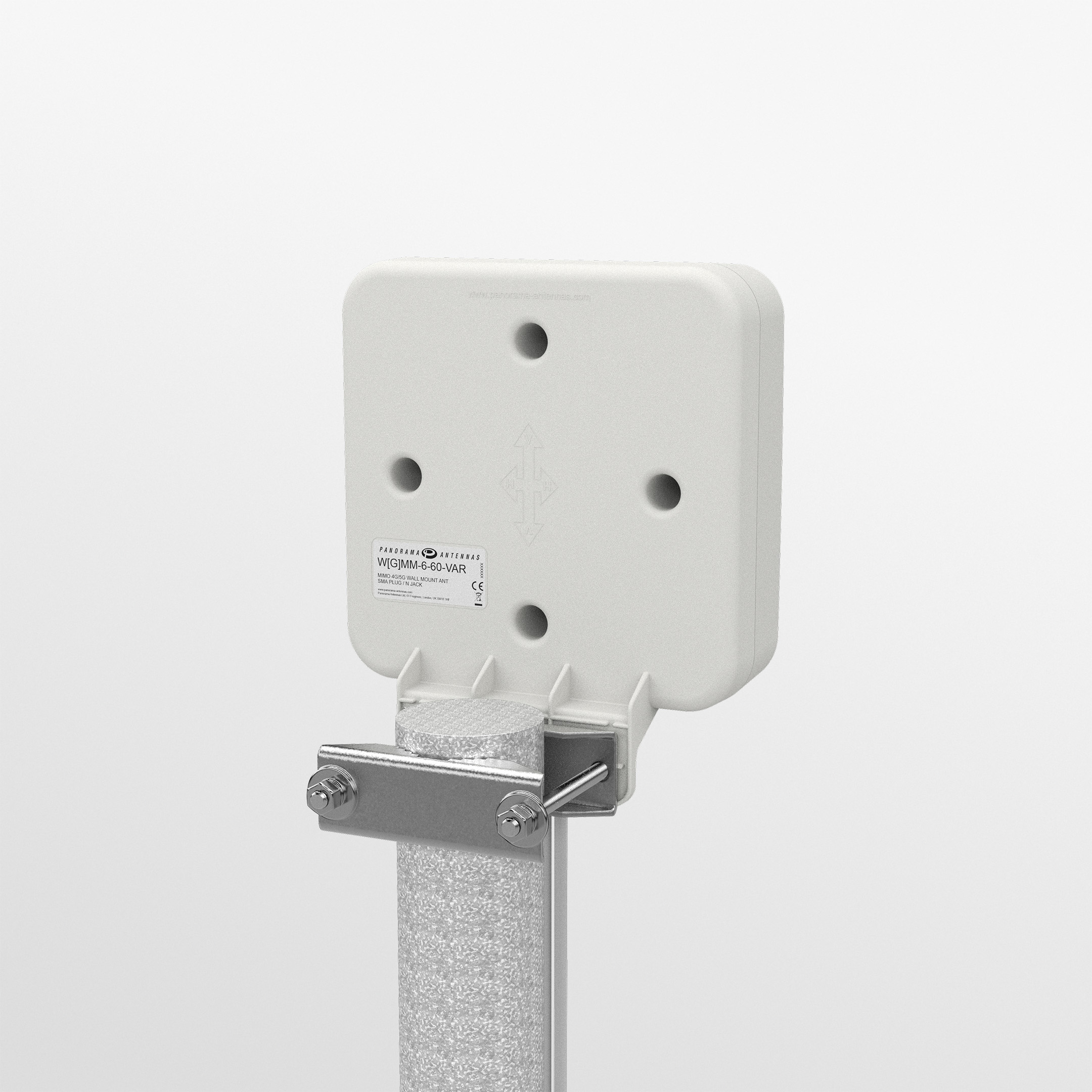

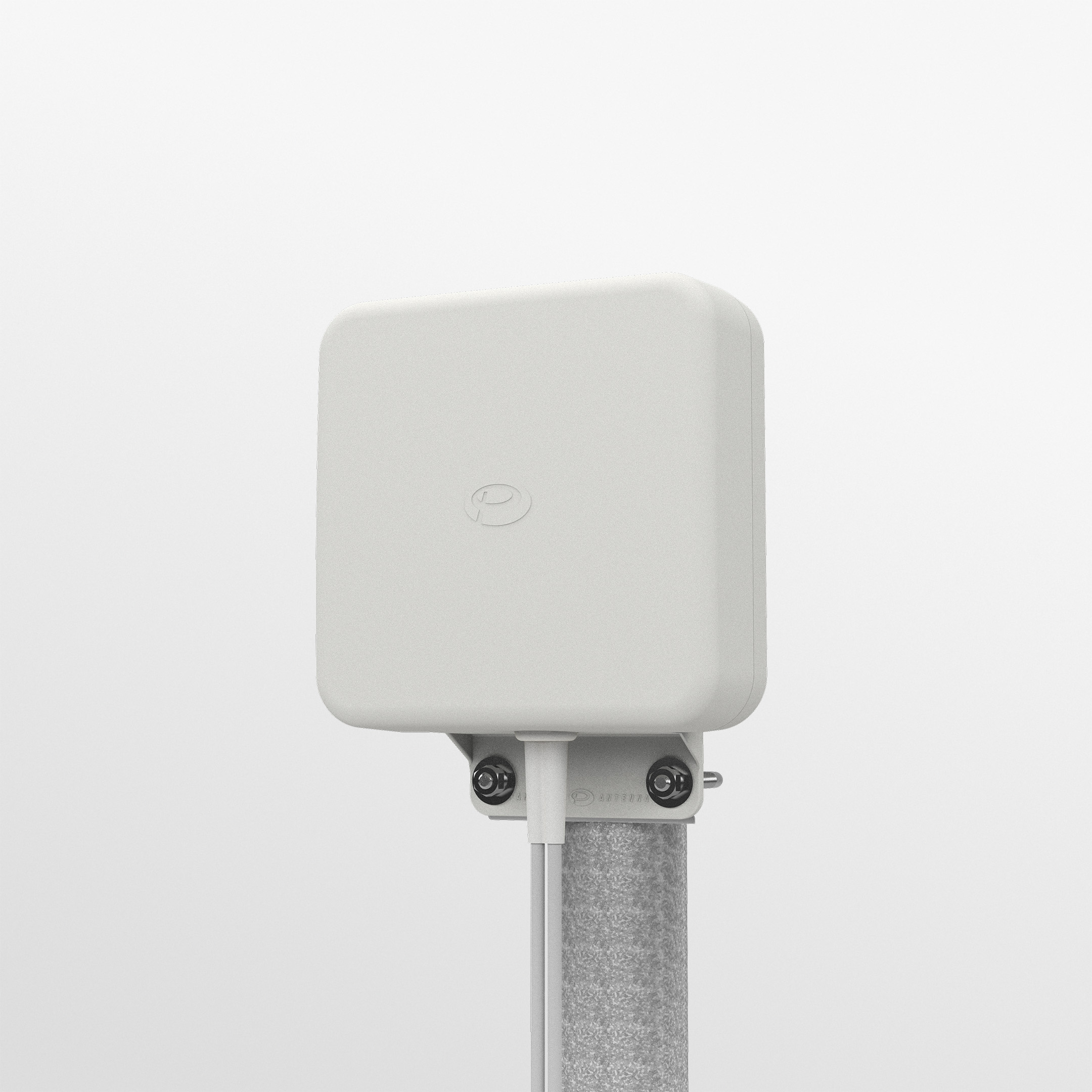

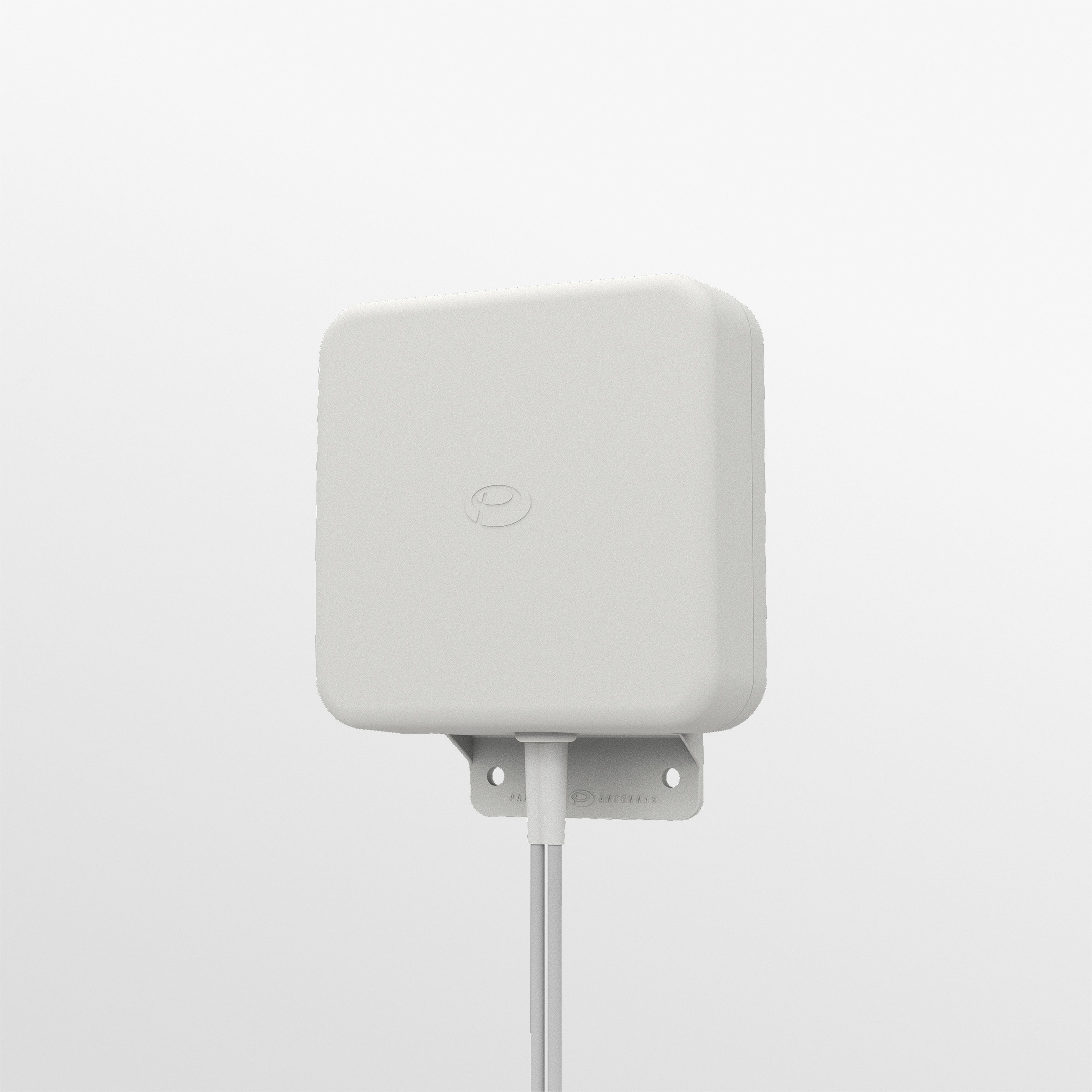

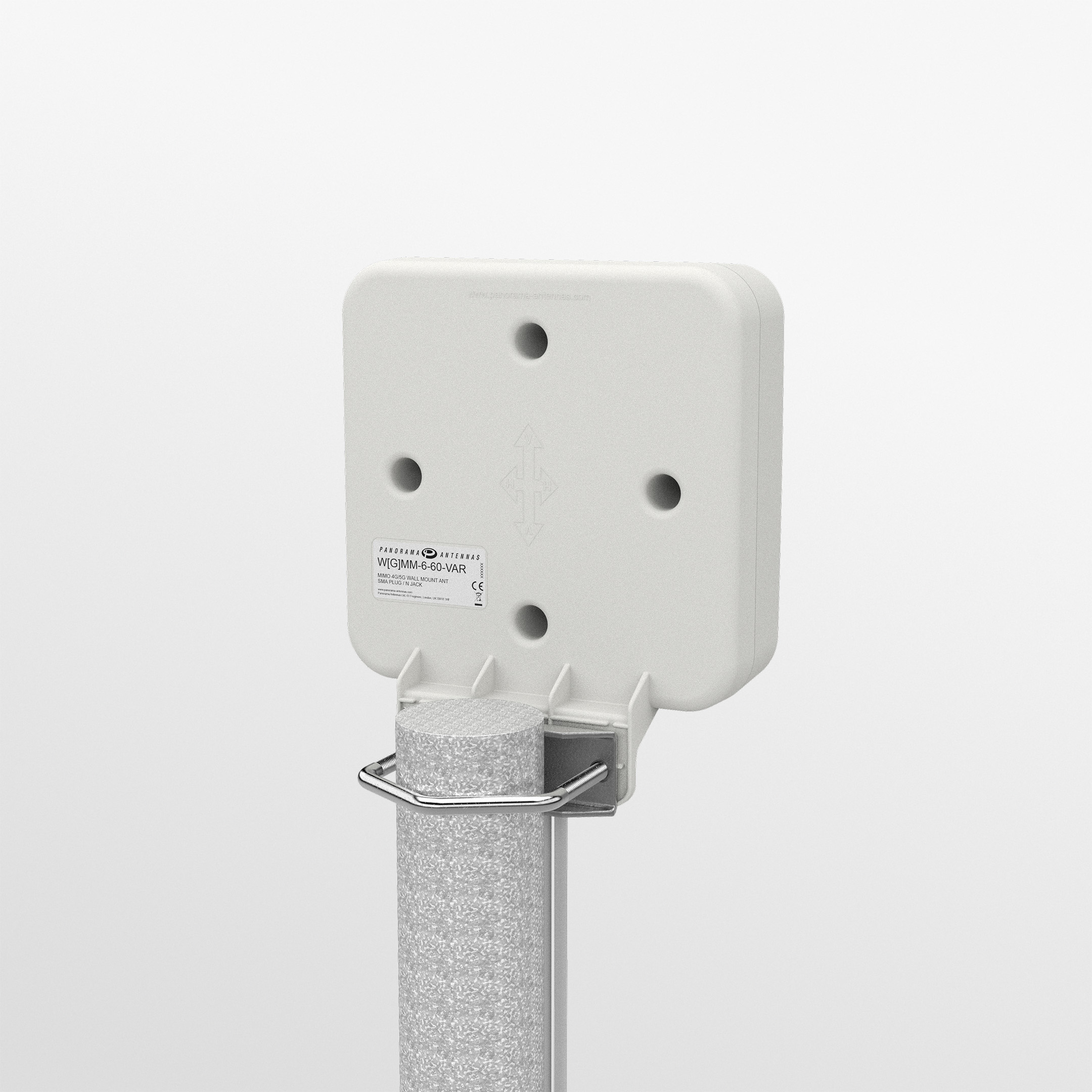

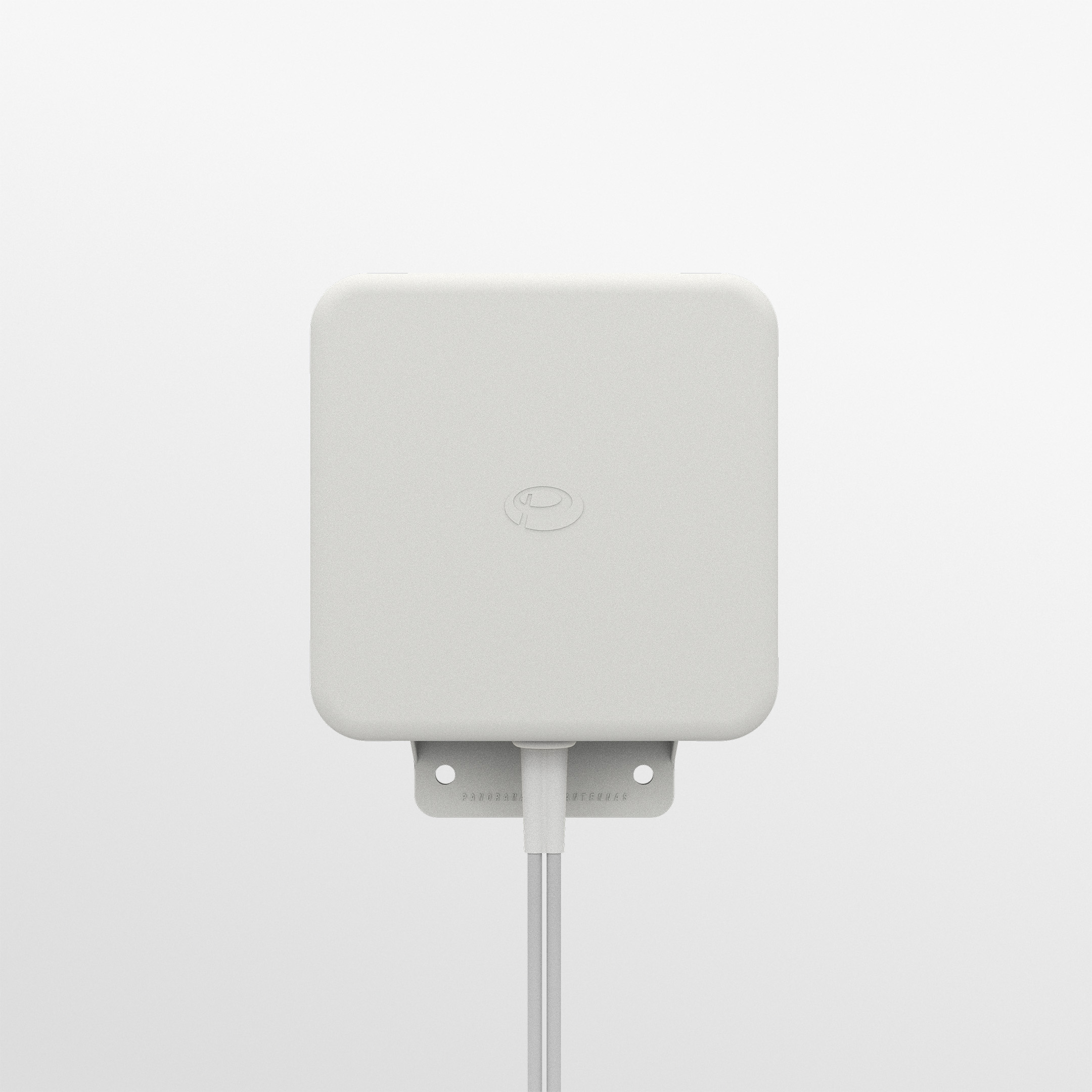

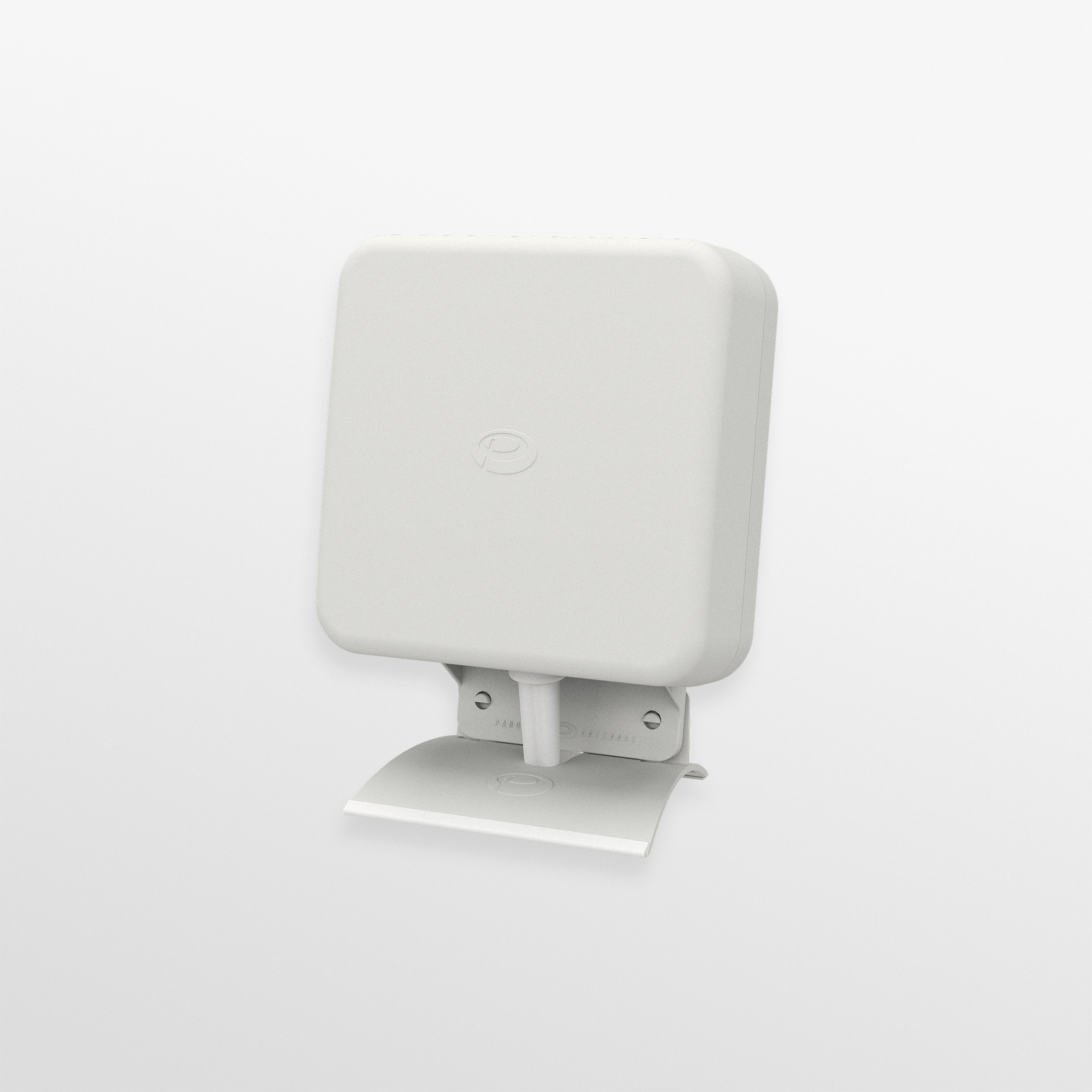

The rugged, weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be easily used out of the box and installed internally.

The antenna is supplied with integrated 5m length ultra-low loss, double shielded, solid core CS32 coaxial cables which are halogen free, low smoke, flame retardant and meets the EU CPR with a Dca s2 d1 a1 classification, terminated with SMA plugs.

The W[X]MM-6-60-[X] is a cost effective value added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers, improving satisfaction and retention.

Description

Product overview

Product Features

2×2 MiMo 4G/5G – 617-960/1427-6000MHz Compact housing Wall, mast or desk mounting Integrated low loss coaxial cable

Benefits

Very compact housing Highly efficient element design Flexible mounting options Indoor or outdoor use IP65 enclosure

Application

Fixed site / failover 4G/5G Fixed line broadband replacement Small / home office SoHo Site offices / construction Enterprise

Additional information

Colour	White
4G/5G	2 x 2 MIMO
GPS	1 Module, No
Cable Length	Below 1m, Between 5m & 10m
Connector (LTE)	N (f), SMA (m)
Connector (GPS)	N (f), No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	10
Typical VSWR	<2.5:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26dB
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	White
Length	155 (mm) \| 6.10 (in)
Width	155 (mm) \| 6.10 (in)
Height	75 (mm) \| 2.95 (in)
Operating Temperature	-30°/ +80°C (-22.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	min: 0.5 (m) \| 1.64 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	min: 0.5 (m) \| 1.64 (ft); max: 5.5 (m) \| 18.04 (ft)
Cable Type (LTE)	CS32
Cable Type (GPS)	FR RG174
TERMINATION DATA
Connector (GPS)	N (f); SMA (m)
Connector (LTE)	N (f); SMA (m)
MOUNTING DATA
Mounting Type Fixed	Desk; Mast; Wall
Mounting Methods	Desk; Mast; Wall; Pole
APPROVALS DATA
IP Rating	IP65
TECHNOLOGY DATA
Technology	GPS; 4G/5G; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; GNSS

Available selections

Colour	White
4G/5G	2 x 2 MIMO
GPS	1 Module No
Cable Length	Below 1m Between 5m & 10m
Connector (LTE)	N (f) SMA (m)
Connector (GPS)	N (f) No Connector SMA (m)

Models and configurations

SKU; Colour | Frequency Range | Gain | Cellular | GPS

WGMM-6-60-05NJ	Colour: White Frequency Range \| Gain: 617 – 960MHz \| ; 1427 – 6000MHz \| ; 1559 – 1612MHz \| Cellular: 2 x 2 MIMO 0.5m N (f) GPS: 1 Module 0.5m N (f)
WGMM-6-60-5SP	Colour: White Frequency Range \| Gain: 617 – 960MHz \| ; 1427 – 6000MHz \| ; 1559 – 1612MHz \| Cellular: 2 x 2 MIMO 5m SMA (m) GPS: 1 Module 5.5m SMA (m)
WMM-6-60-05NJ	Colour: White Frequency Range \| Gain: 617 – 960MHz \| ; 1427 – 6000MHz \| Cellular: 2 x 2 MIMO 0.5m N (f) GPS: No
WMM-6-60-5SP	Colour: White Frequency Range \| Gain: 617 – 960MHz \| ; 1427 – 6000MHz \| Cellular: 2 x 2 MIMO 5m SMA (m) GPS: No

Configuration options

Option	Available values
Colour	White
4G 5G Mimo	2 x 2 MIMO
Gps	1 Module, No
Cable Length	Below 1m, Between 5m & 10m
Connector Lte	N (f), SMA (m)
Connector Gps	N (f), No Connector, SMA (m)
