WMM4-7-49[-X] – 4×4 MiMo Wall / Mast Mount Antenna

Model / SKU: WMM4-7-49-[X]

WMM4-7-49[-X] – 4×4 MiMo Wall / Mast Mount Antenna - Image 2

WMM4-7-49[-X] – 4×4 MiMo Wall / Mast Mount Antenna - Image 3

WMM4-7-49[-X] – 4×4 MiMo Wall / Mast Mount Antenna - Image 4

WMM4-7-49[-X] – 4×4 MiMo Wall / Mast Mount Antenna

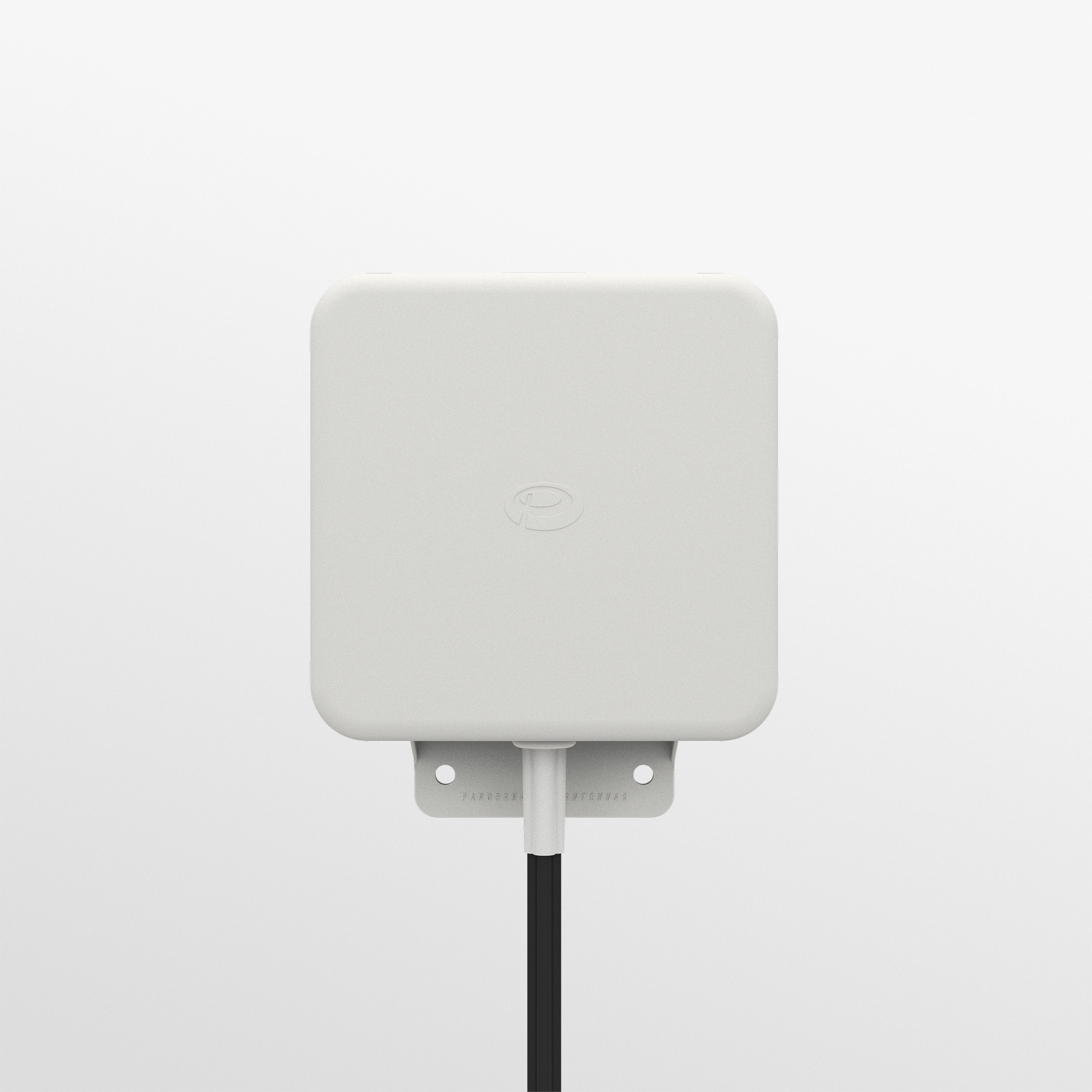

The WMM4-7-49 antenna provides 4×4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz. Incorporating four separately fed, ultra wideband elements within an IP rated compact housing, the WMM4-7-49 is suitable for a wide range of 4G Cat 18/20 and 5G fixed site and failover applications.

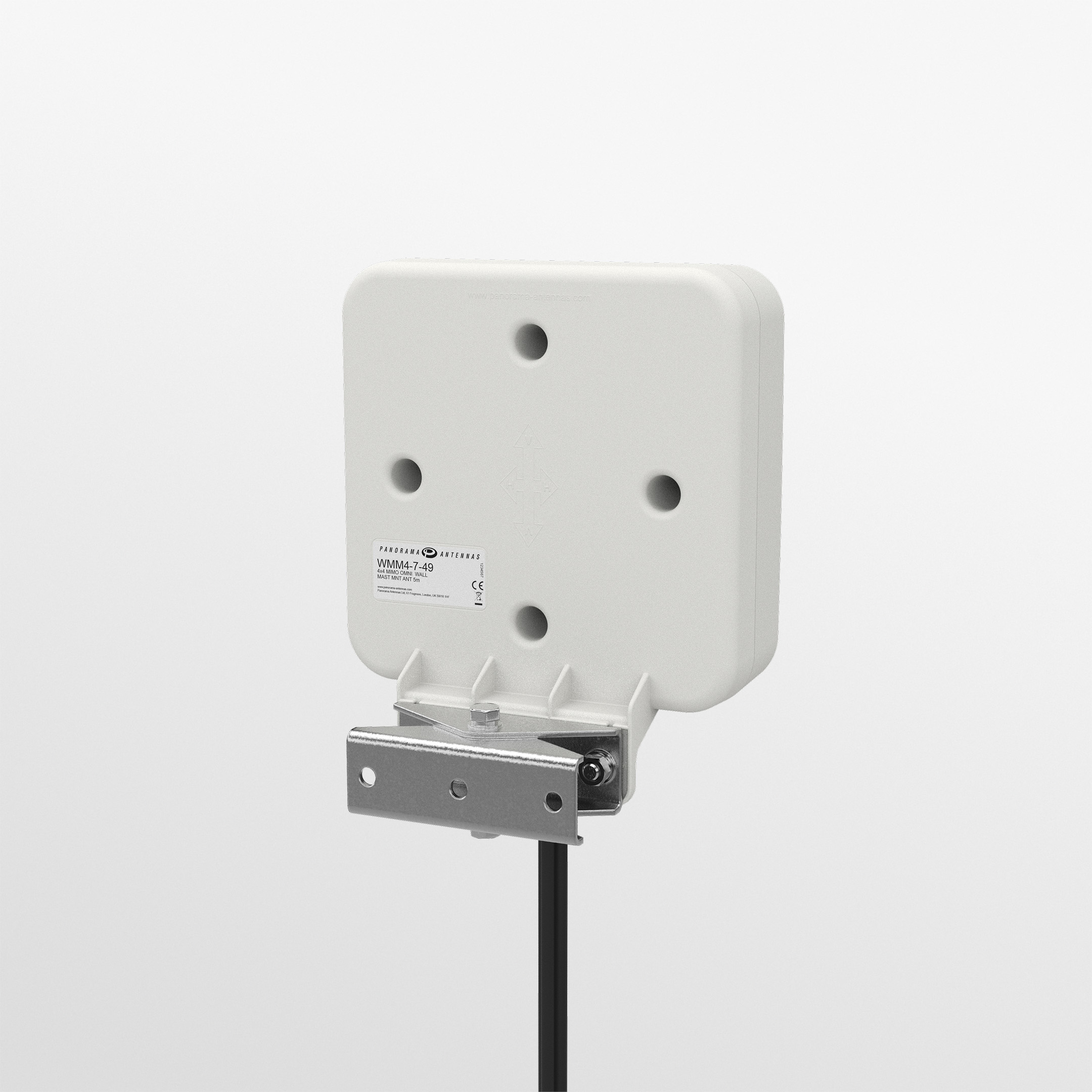

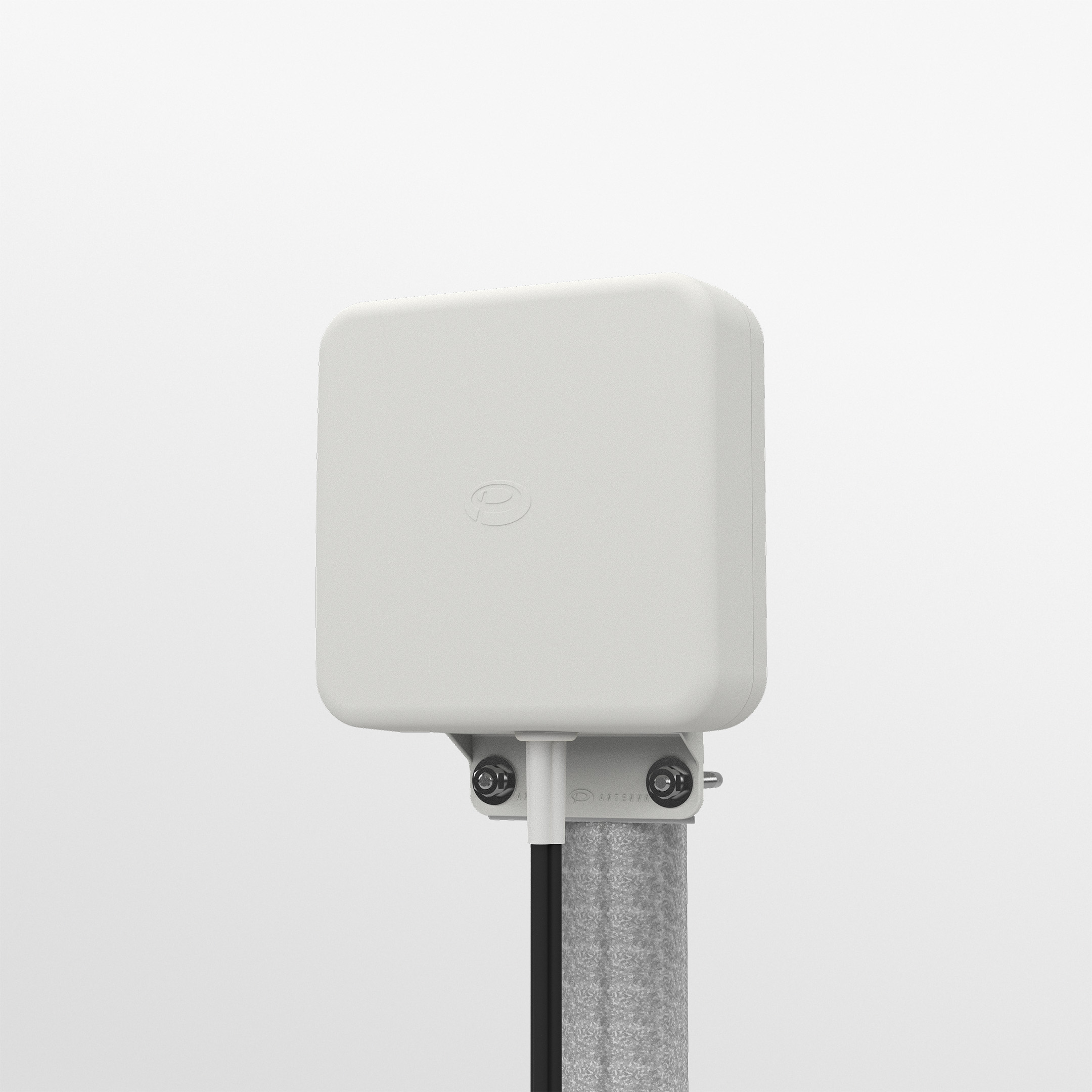

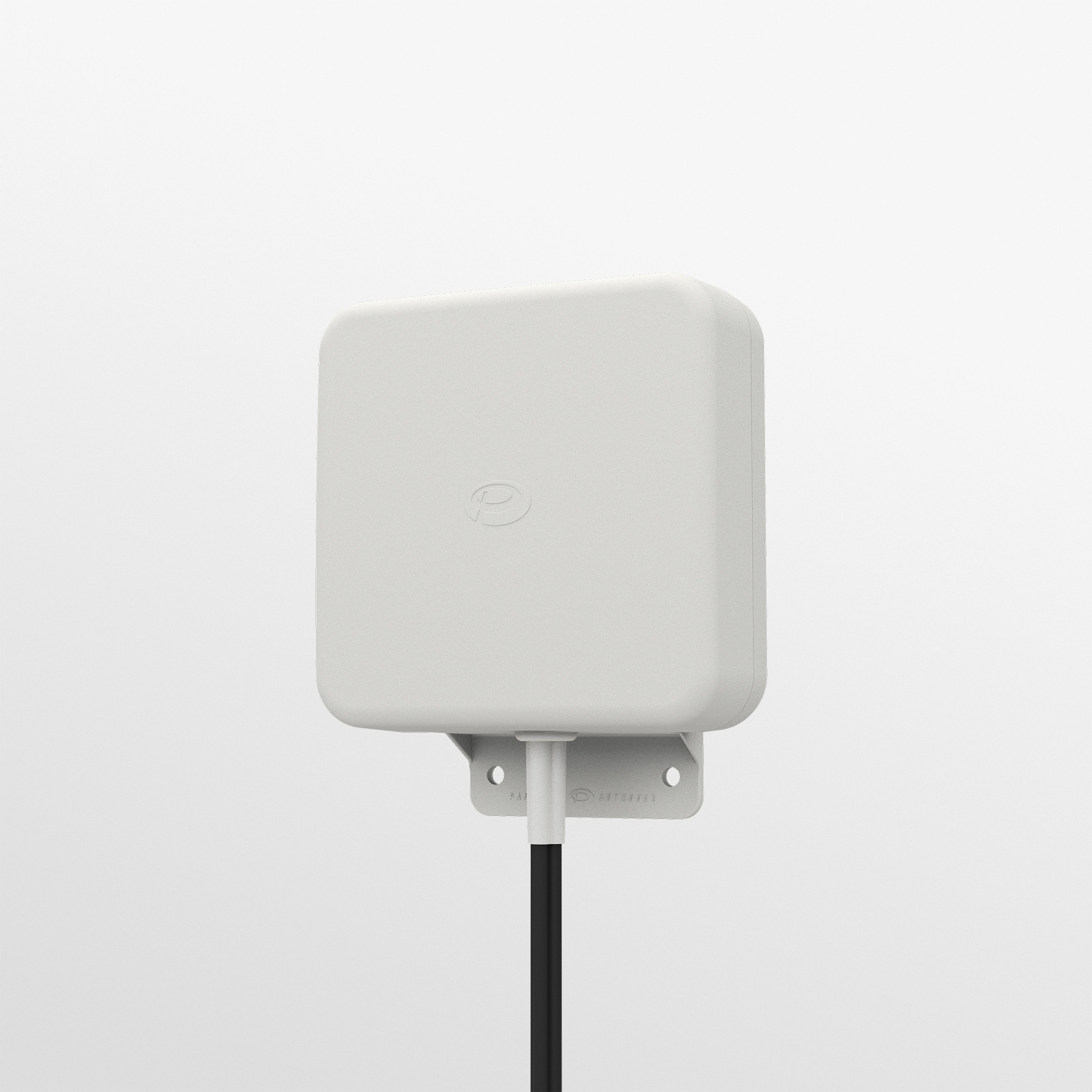

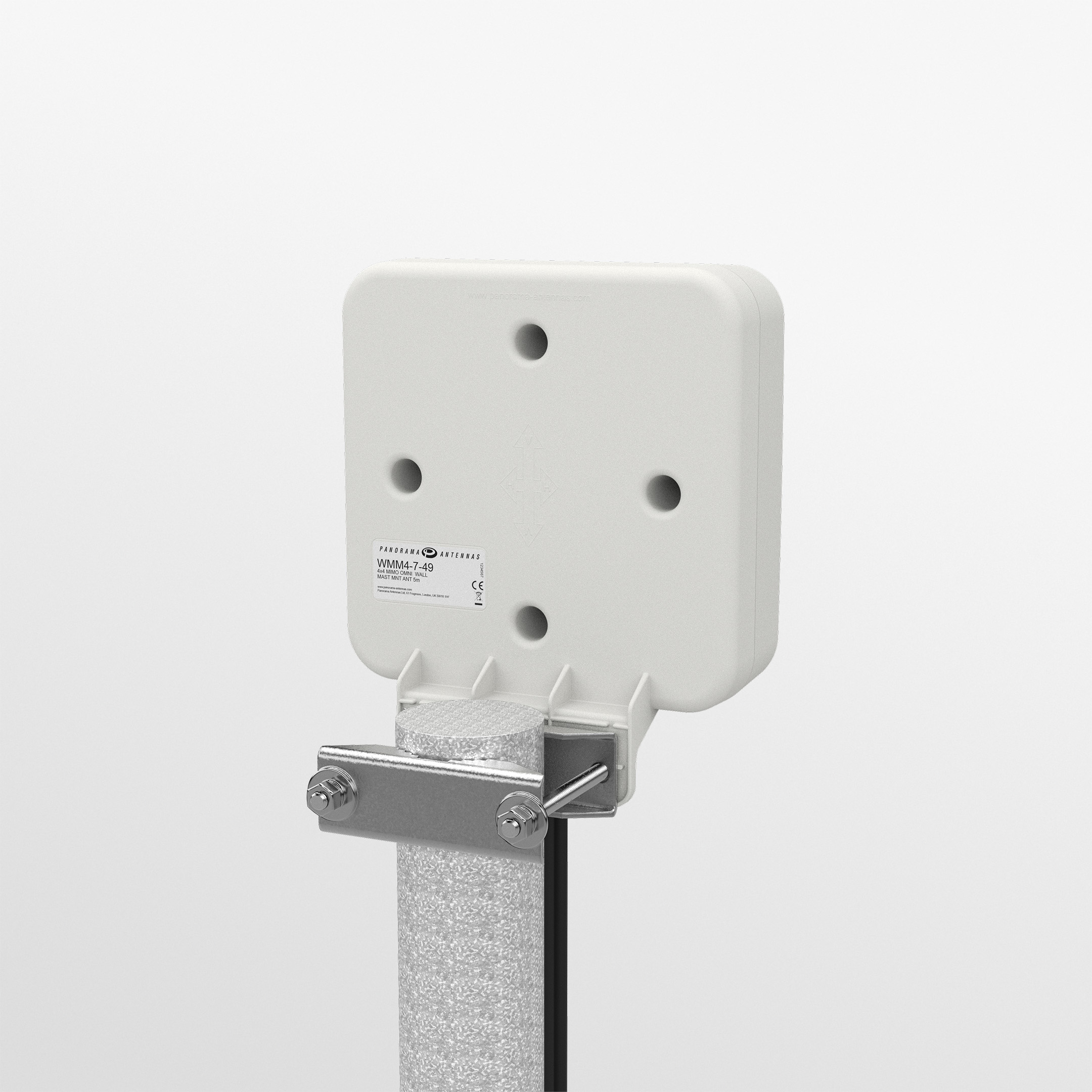

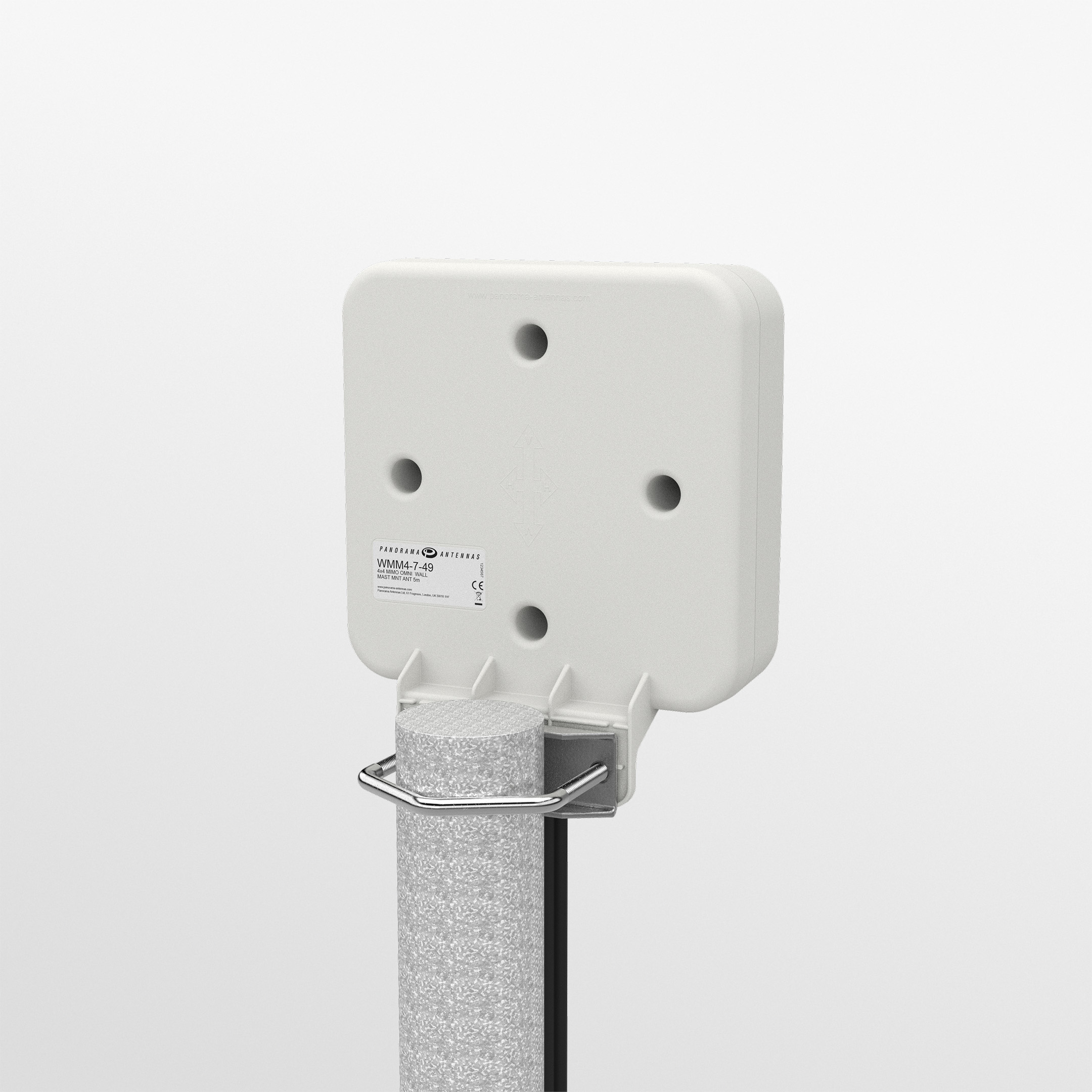

The supplied mounting bracket enables simple wall mounting or mast mounting using the supplied clamp. The omni-directional radiation pattern allows easy placement of the antenna without requiring any directional alignment.

The antenna has integrated ultra-low loss, double shielded CS29 cable which eliminates exposed connection points and simplifies cable management for quick and easy installation. Various connector types and configurations are available to suit different installation requirements and user device.

Description

Product overview

Product Features

4×4 MiMo 4G/5G – 698-960/1710-4900MHz Compact housing Wall or mast mounting Integrated low loss coaxial cable

Benefits

Very compact IP rated housing Integrated coaxial cables – plug and play connectivity Flexible mounting options

Application

Fixed site / failover 4G/5G Fixed line broadband replacement Small / home office SoHo Site offices / construction

Additional information

Colour	White
4G/5G	4 x 4 MIMO
Cable Length	Below 1m, Between 5m & 10m
Connector (LTE)	FAKRA D, N (f), SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	10
Typical VSWR	<3:1
Frequency Range \| Gain	698 – 960MHz; 1710 – 4900MHz
Cellular LTE Elements	4 x 4 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
Number of GPS Elements	No
MECHANICAL DATA
Colour	White
Length	155 (mm) \| 6.10 (in)
Width	155 (mm) \| 6.10 (in)
Height	75 (mm) \| 2.95 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	min: 0.5 (m) \| 1.64 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (LTE)	CS29
TERMINATION DATA
Connector (LTE)	N (f); FAKRA D; SMA (m)
MOUNTING DATA
Mounting Type Fixed	Mast; Wall
Mounting Methods	Mast; Wall; Pole
APPROVALS DATA
IP Rating	IP55
TECHNOLOGY DATA
Technology	4G/5G; 5G; 2G/3G/4G; CBRS

Available selections

Colour	White
4G/5G	4 x 4 MIMO
Cable Length	Below 1m Between 5m & 10m
Connector (LTE)	FAKRA D N (f) SMA (m)

Models and configurations

SKU; Colour | Cellular

WMM4-7-49-05NJ	White \| 4 x 4 MIMO 0.5m N (f)
WMM4-7-49-5FKDJ	White \| 4 x 4 MIMO 5m FAKRA D
WMM4-7-49-5SP	White \| 4 x 4 MIMO 5m SMA (m)

Configuration options

Option	Available values
Colour	White
4G 5G Mimo	4 x 4 MIMO
Cable Length	Below 1m, Between 5m & 10m
Connector Lte	FAKRA D, N (f), SMA (m)
