Description
The WMM48GB-17-42 range has been desiged to provide directional 4×4 MiMo coverage for 4G & 5G including S-Band and CBRS networks in a low profile wall or mast mount package.
Product
WMM48GB-17-42 | 4×4 MiMo Directional Antenna
Model / SKU: WMM48GB-17-42-[X]
WMM48GB-17-42 | 4×4 MiMo Directional Antenna

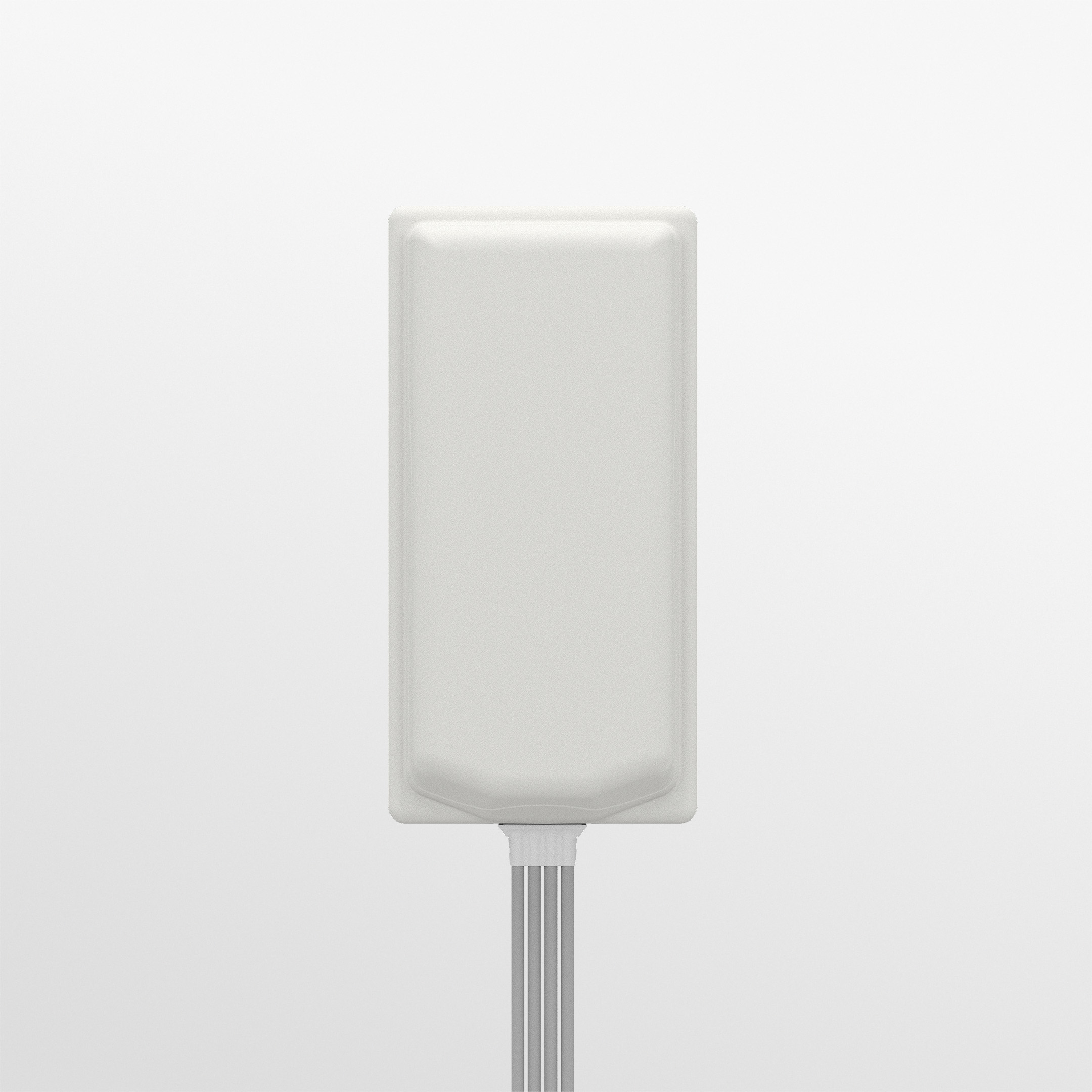

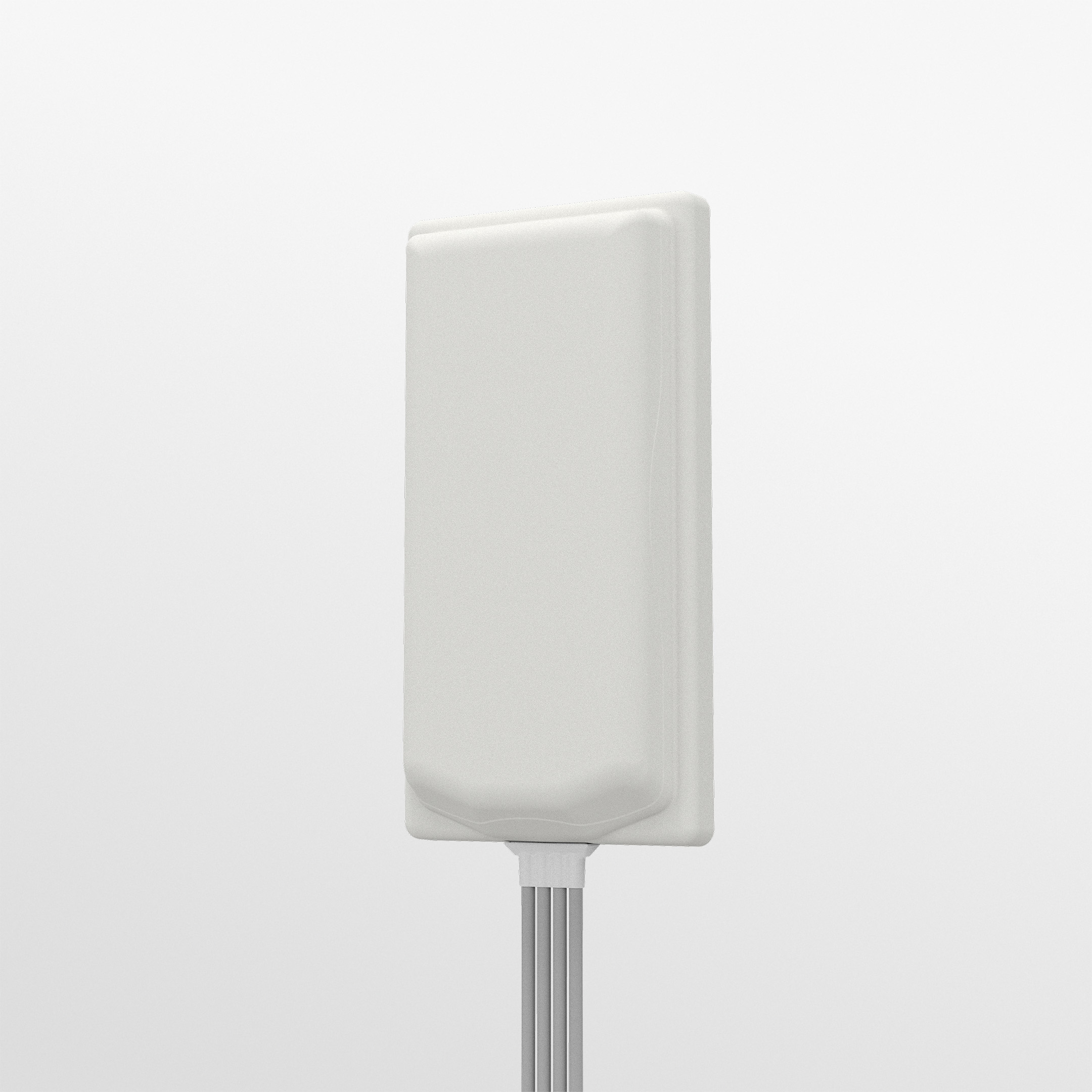

The WMM48GB-17-42 range has been desiged to provide directional 4×4 MiMo coverage for 4G & 5G including S-Band and CBRS networks in a low profile wall or mast mount package. The compact, robust low-profile housing contains four antenna elements with effective isolation and low correlation covering 1710-4200MHz with over 7dBi peak gain.
Product overview
The WMM48GB-17-42 range has been desiged to provide directional 4×4 MiMo coverage for 4G & 5G including S-Band and CBRS networks in a low profile wall or mast mount package. The compact, robust low-profile housing contains four antenna elements with effective isolation and low correlation covering 1710-4200MHz with over 7dBi peak gain.
Product Features

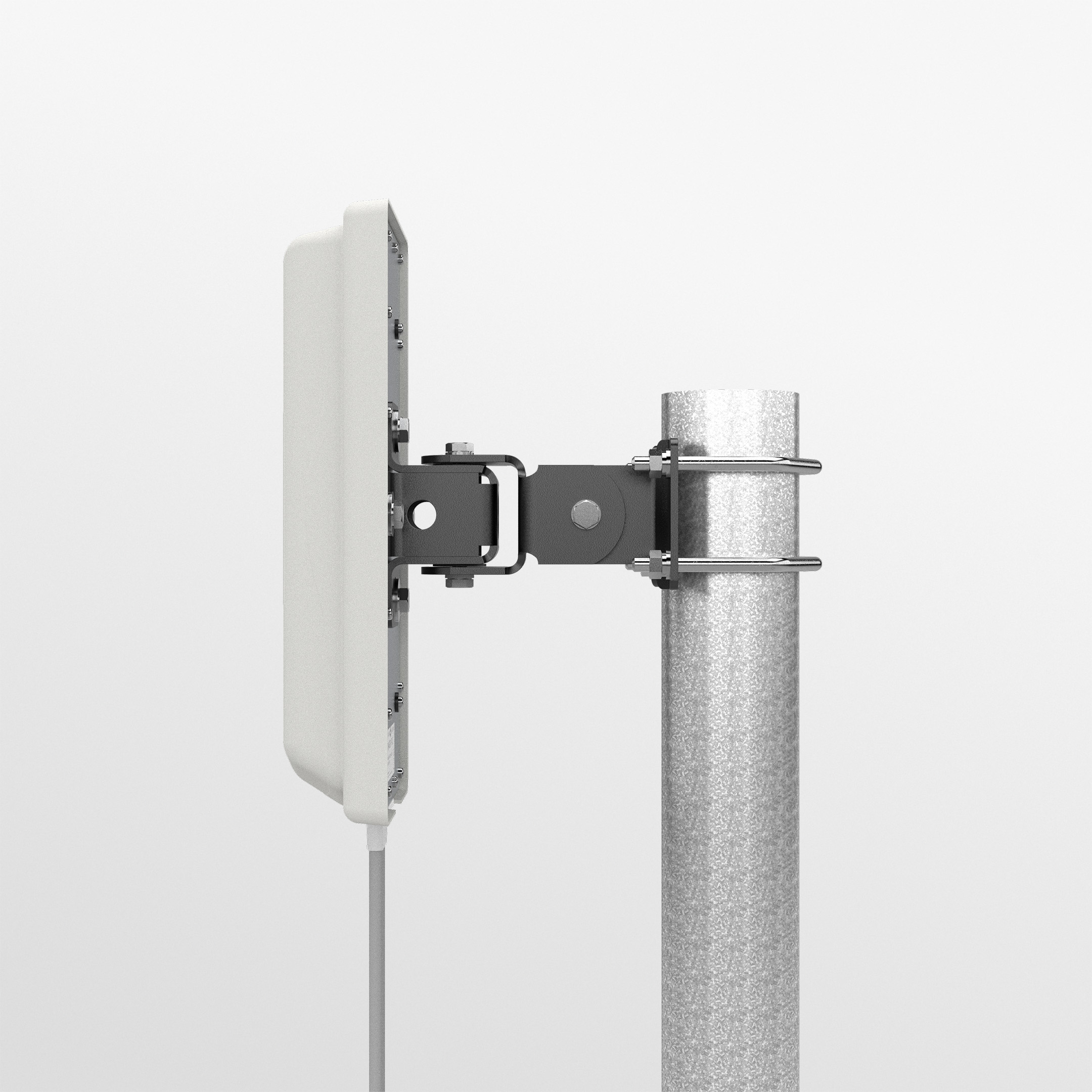

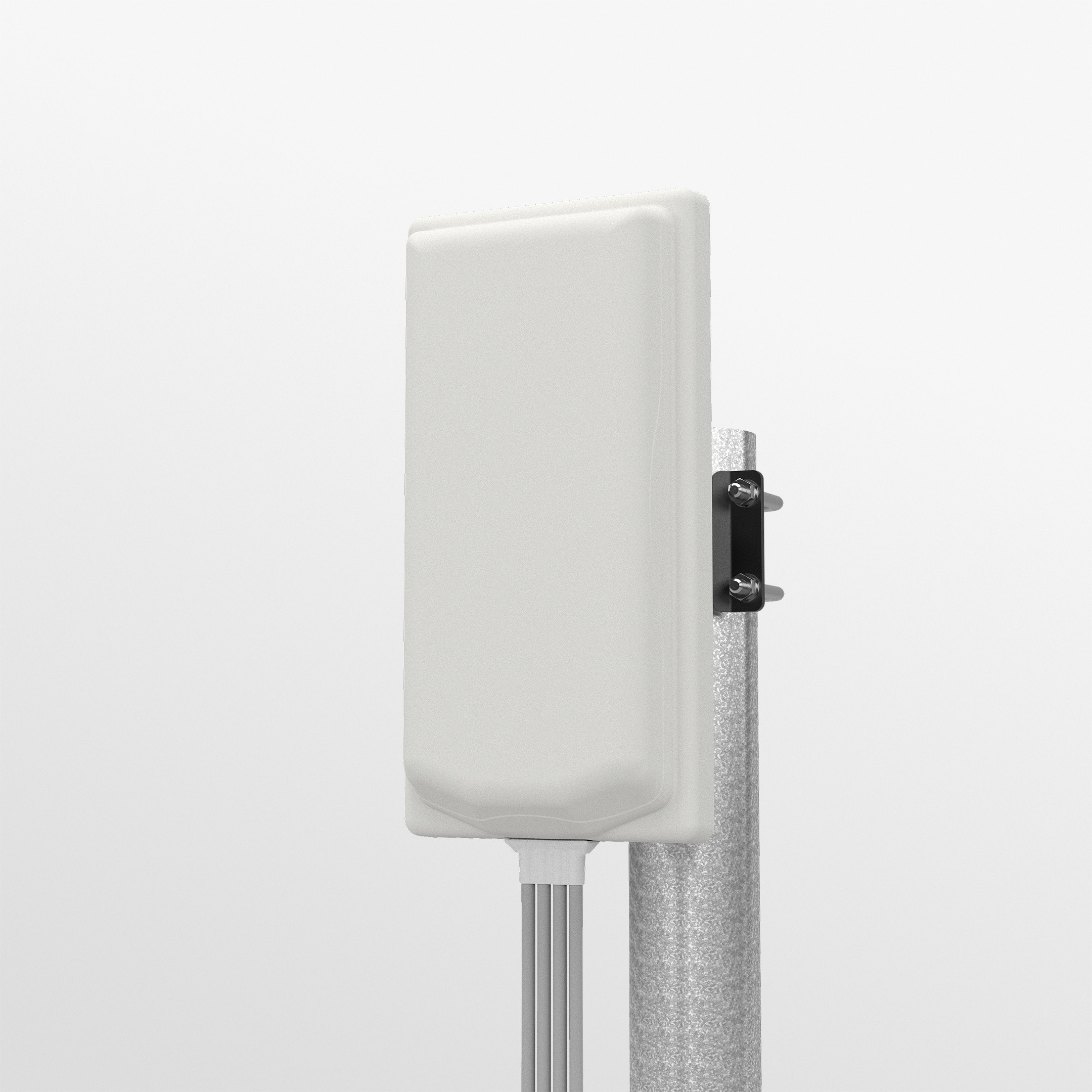

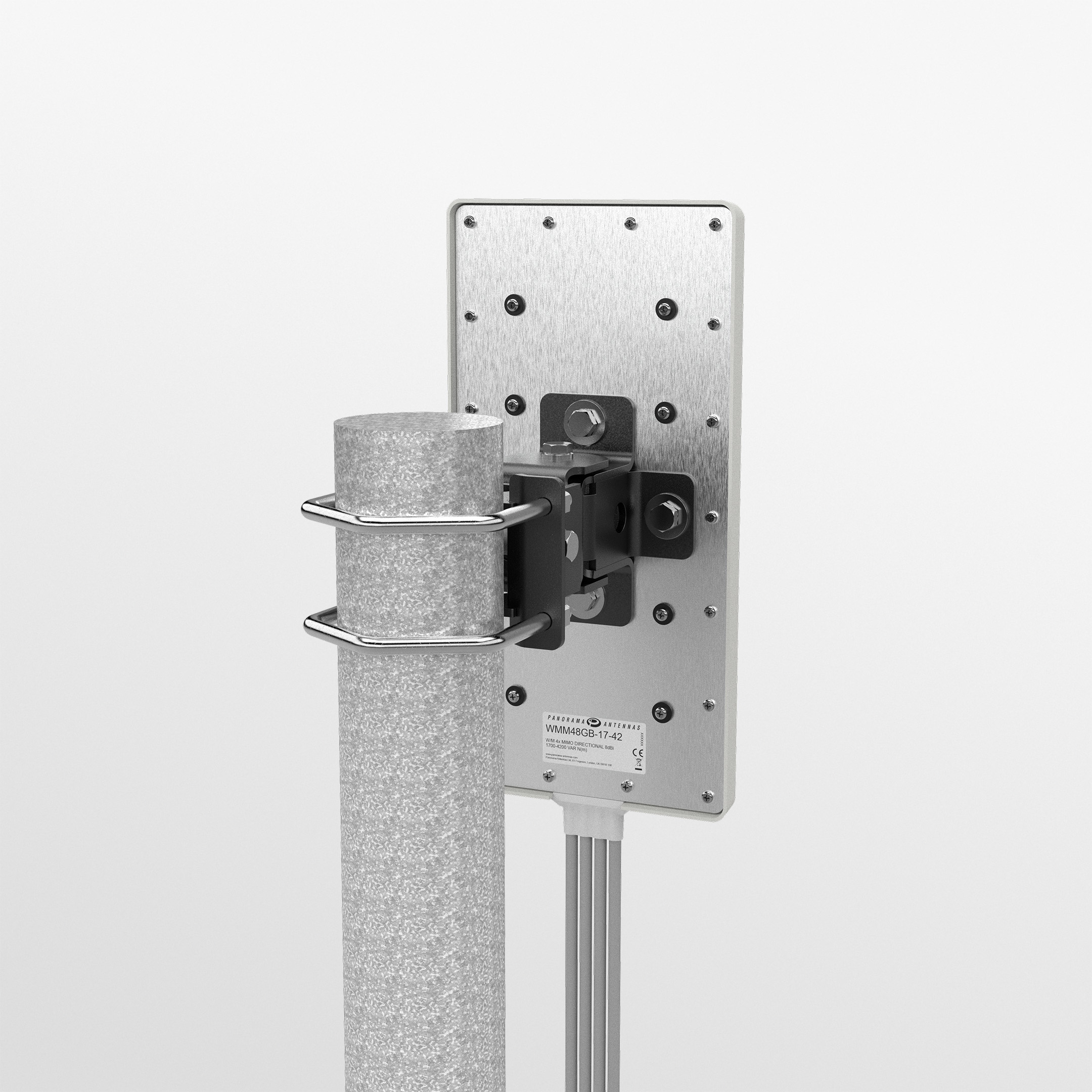

- 4×4 MiMo 4G/5G high band / S-band wall mount antenna Low profile and unobtrusive design Supplied with integrated low loss flame retardant cable Optional multi-tilt mast/wall bracket for adjustable vertical and horizontal tilt
Benefits
- Improved signal strength for 4G and 5G networks Low profile design is unobtrusive and blends in with surroundings Integrated cable reduces clutter and simplifies installation Adjustable tilt for optimal signal reception
Application

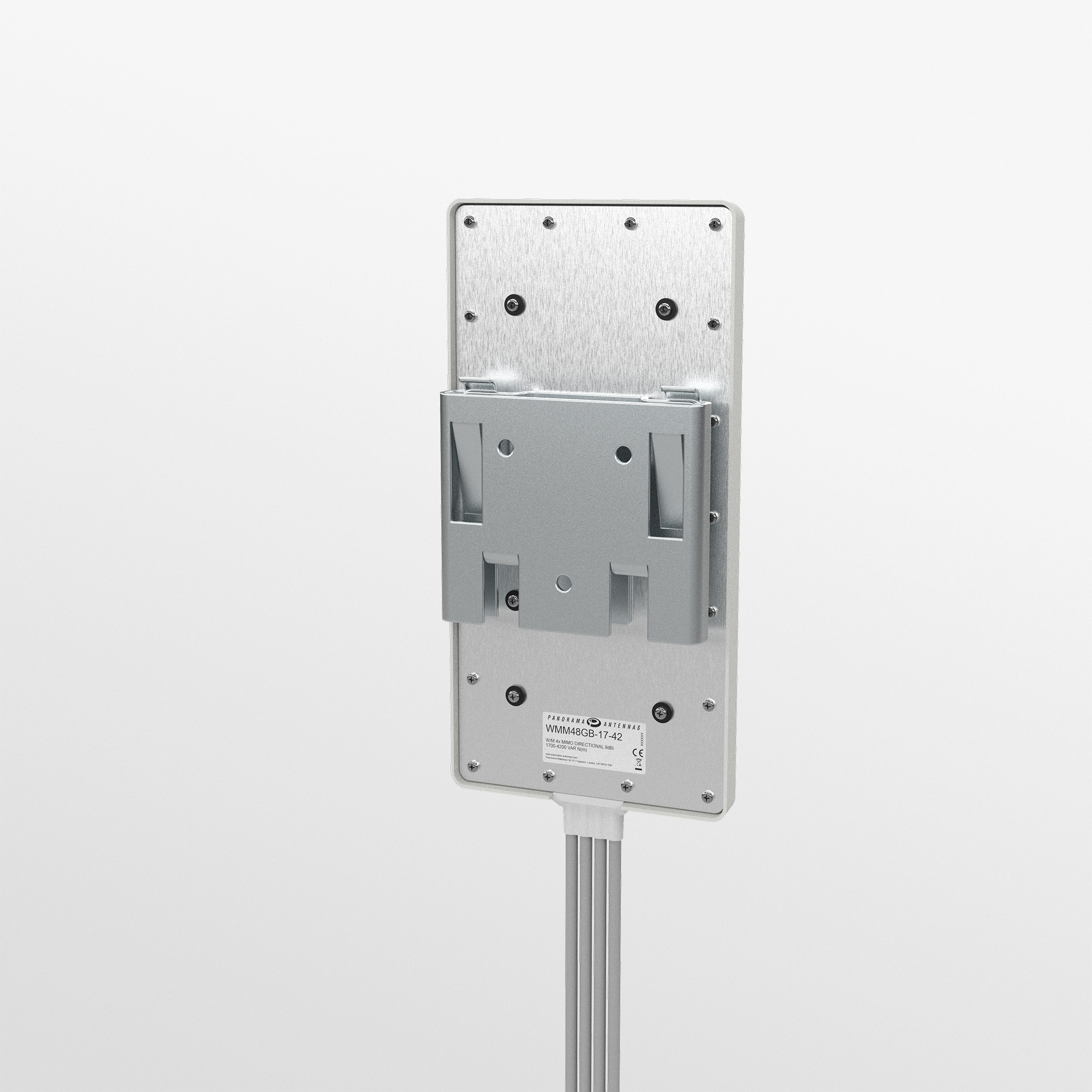

- Ideal for residential and commercial use where improved signal strength is needed Can be mounted on walls or panels for discrete placement Suitable for both indoor and outdoor use Perfect for use with mobile devices, routers, and other wireless equipment
Additional information
| Colour | White |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| Cable Length | Between 1m & 3m, Between 5m & 10m |
| Connector (LTE) | N (m), SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Directional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 1710 – 2170MHz | 7dBi; 2170 – 2700MHz | 6.5dBi; 2700 – 4200MHz | 7dBi |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 243 (mm) | 9.57 (in) |
| Width | 123 (mm) | 4.84 (in) |
| Height | 54 (mm) | 2.13 (in) |
| Diameter | 5 (mm) | 0.20 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 1 (m) | 3.28 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | CS23 |
| TERMINATION DATA | |
| Connector (LTE) | N (m); SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; CBRS |
