WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna

Model / SKU: WMM4G[G]-6-60

WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna - Image 2

WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna - Image 3

WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna - Image 4

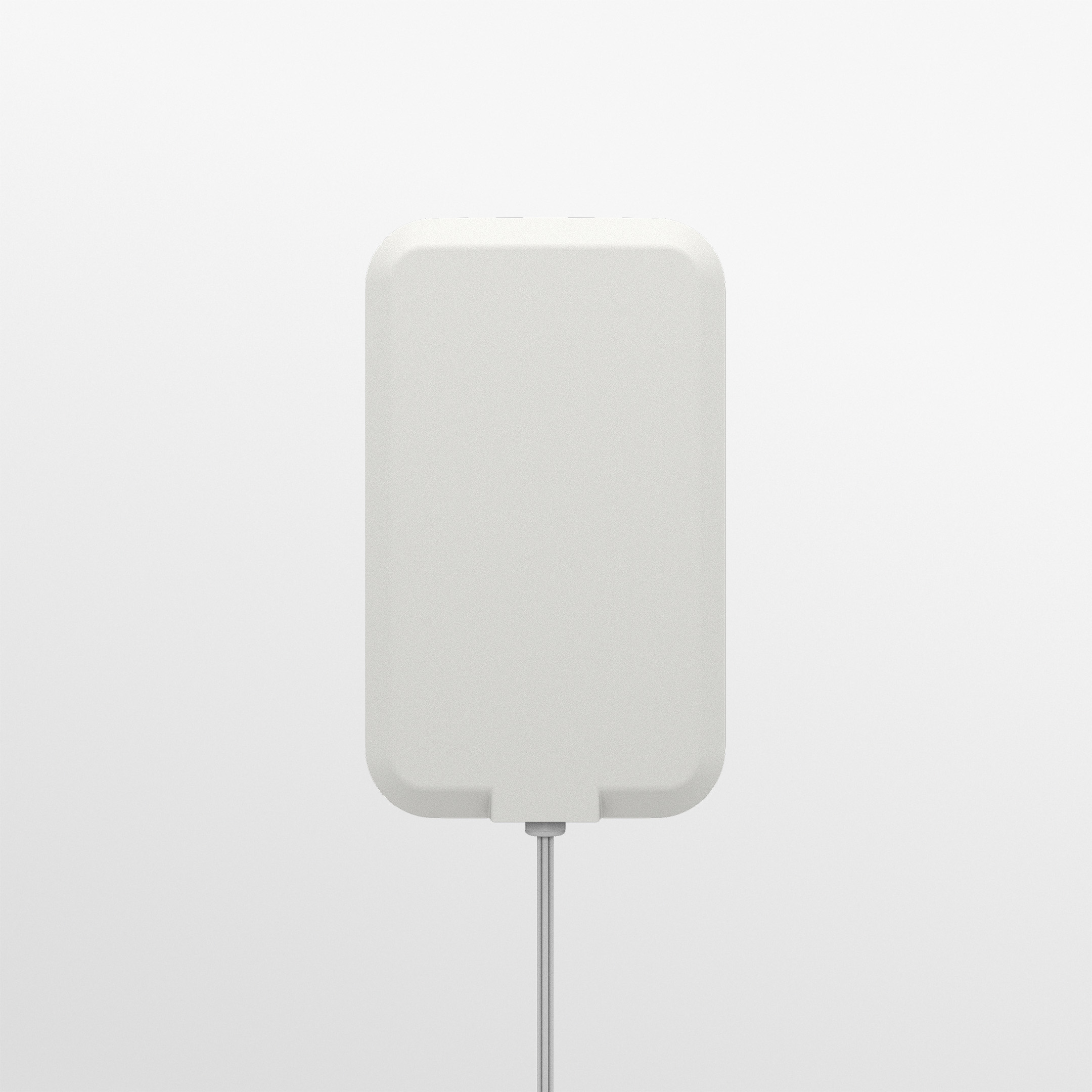

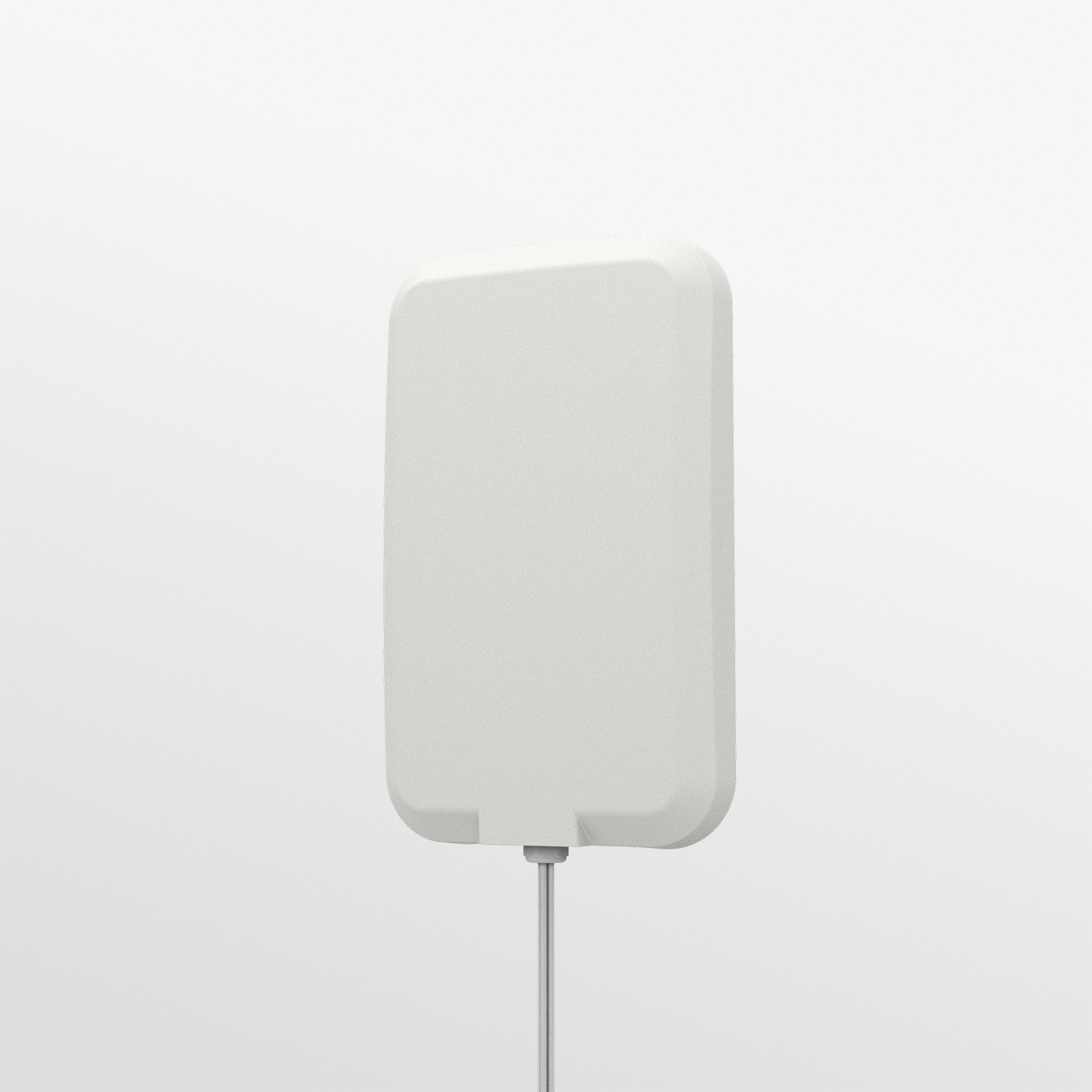

WMM4G[G]-6-60 | 4×4 MiMo 4G/5G Directional Antenna

The WMM4G[G]-6-60 is a high directional gain 4×4 MiMo signal boosting
antenna for 4G and 5G networks. Incorporating four separately fed
wideband element assemblies in a single housing the WMM4G[G]-6-60 is
equipped to provide client side MiMo support for 4G and 5G networks
offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at
1710-6000MHz.

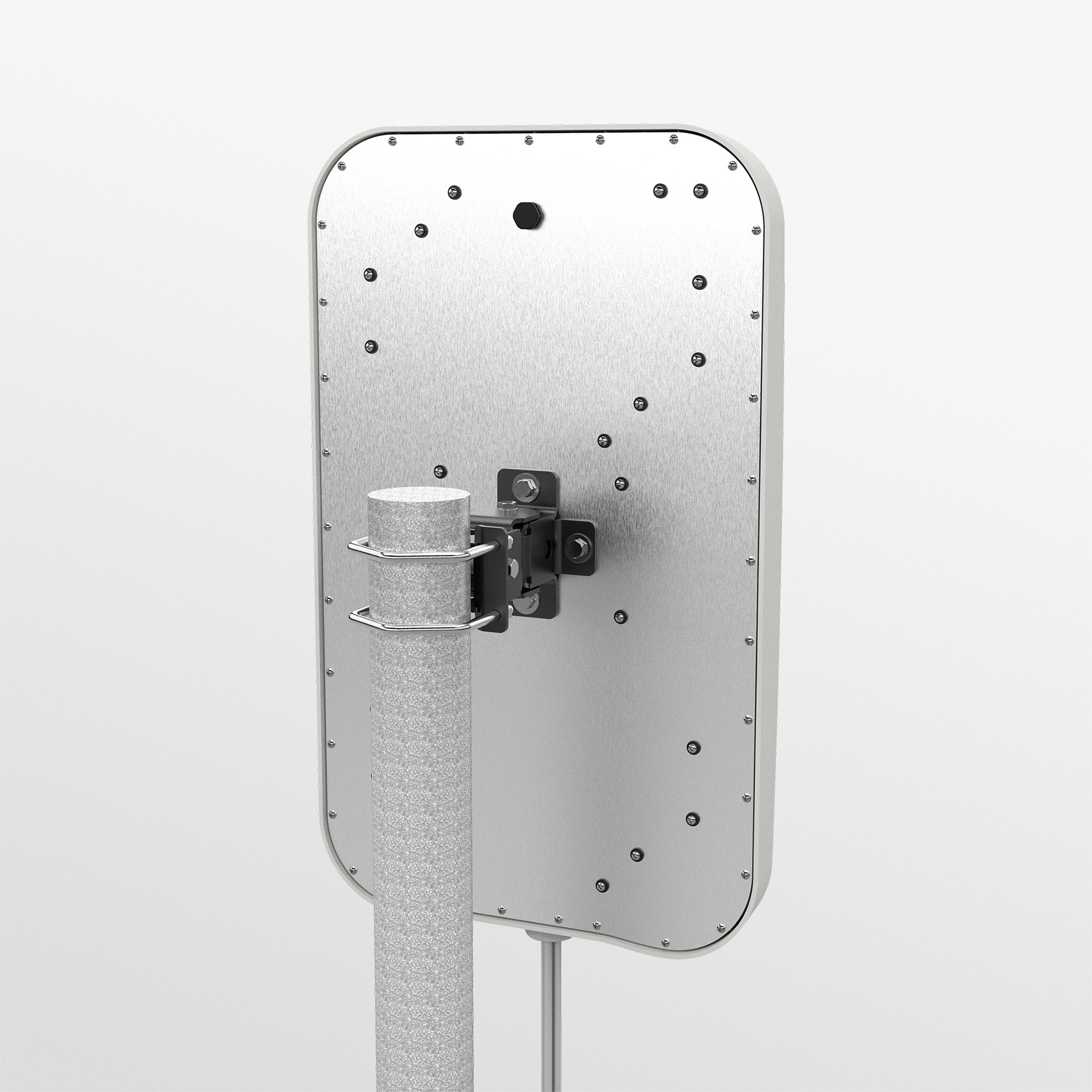

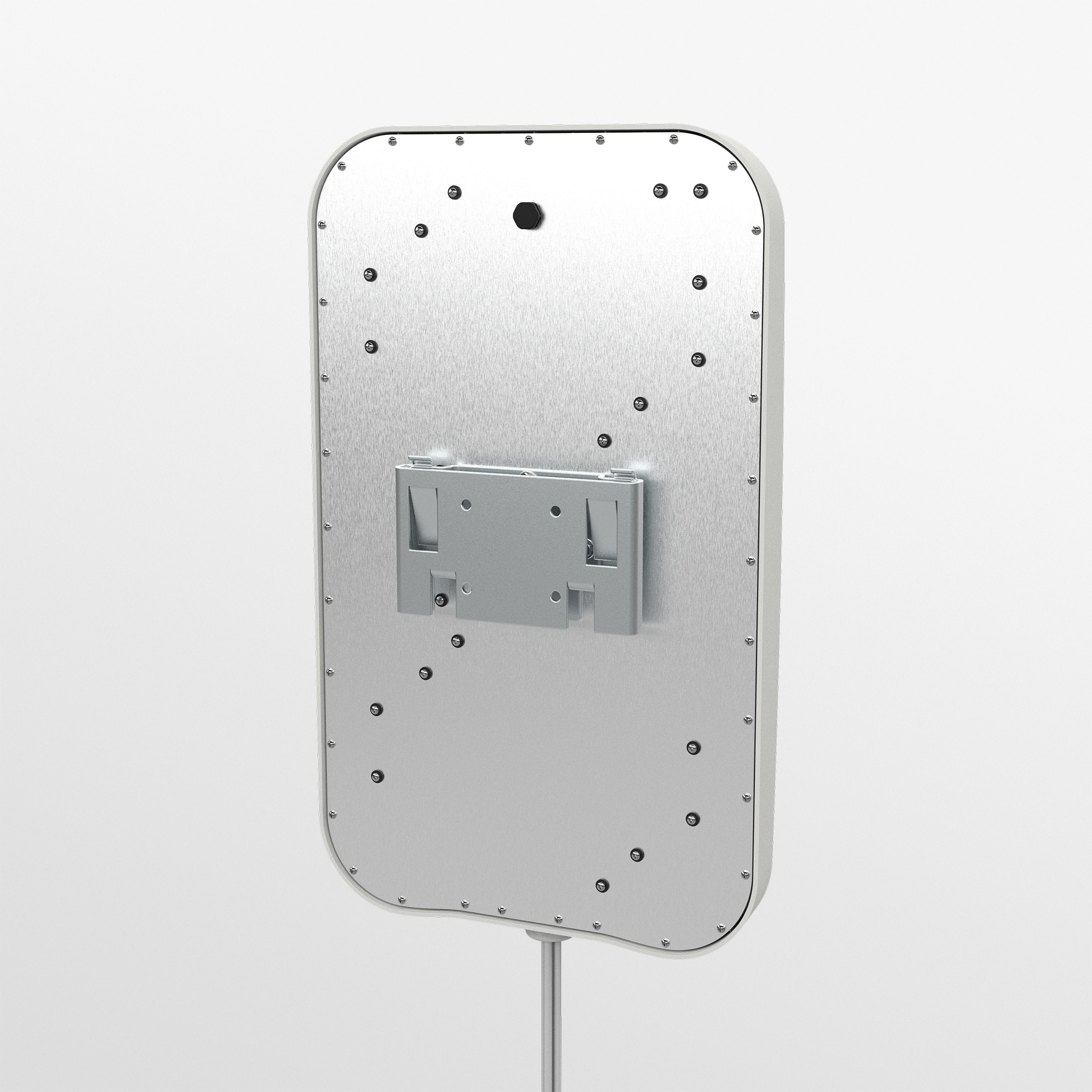

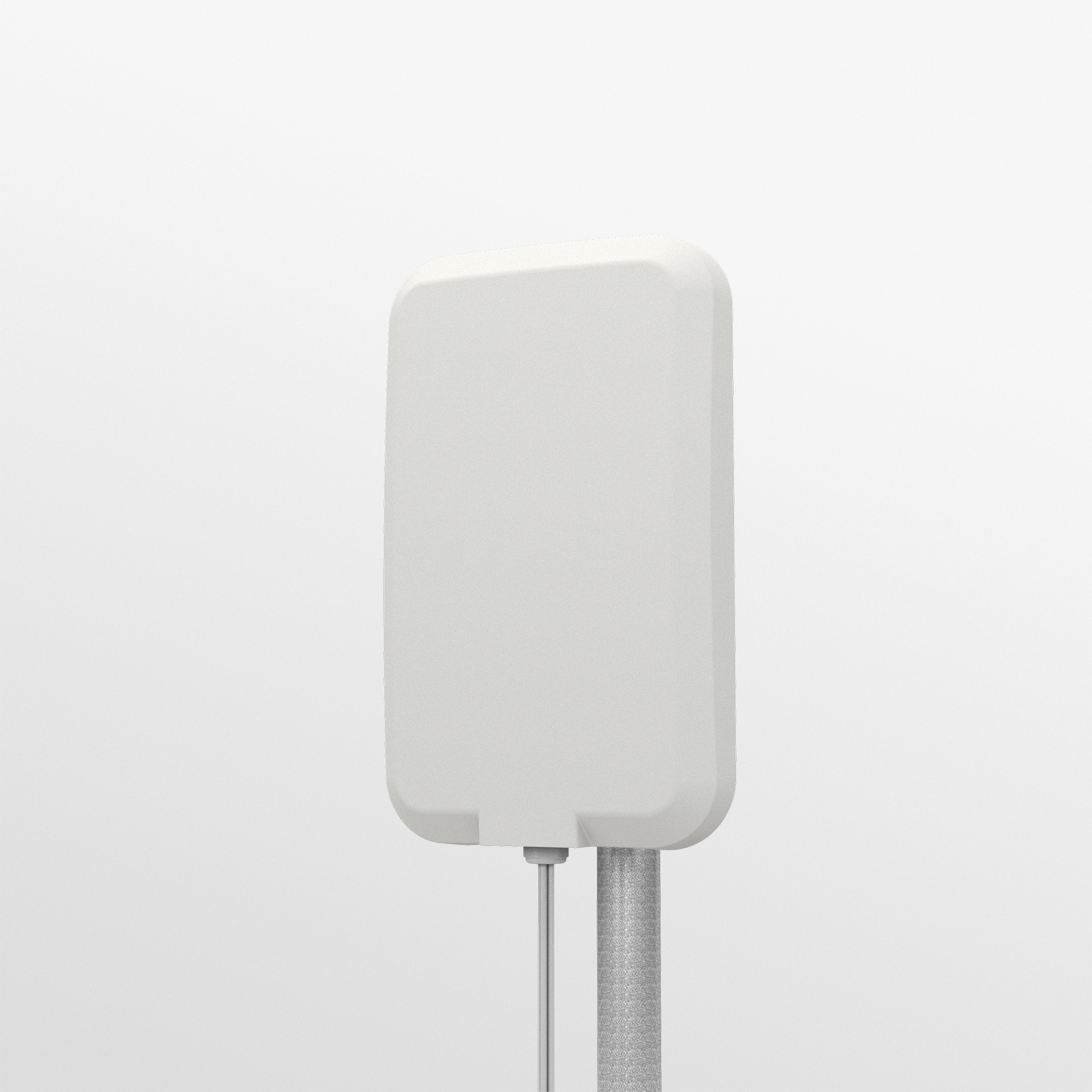

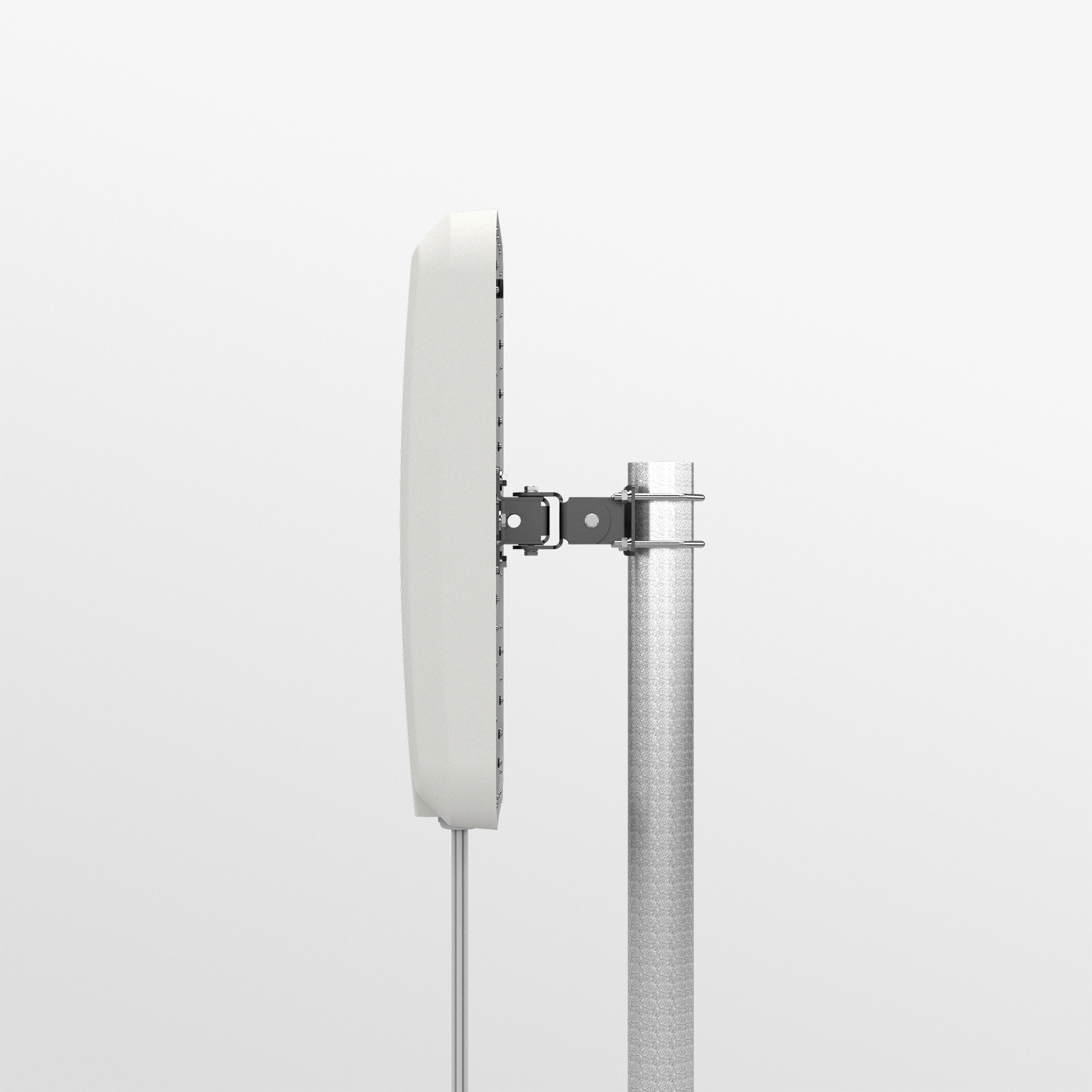

The weather resistant housing is designed for wall mounting and
wall and mast mount brackets are provided. Supplied with fitted low loss
double shielded cable for cellular/LTE the WMM4G[G]-6-60 minimises exposed
connector joints and simplifies cable management for easy installation.

Description

The WMM4G[G]-6-60 is a high directional gain 4×4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

Technical Datasheet (official Panorama source)

Product overview

The WMM4G[G]-6-60 is a high directional gain 4×4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G[G]-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G[G]-6-60 minimises exposed connector joints and simplifies cable management for easy installation.

Product Features

High gain directional antenna Wall or mast mount IP66 rated for outdoor use 4×4 MiMo wideband 600-6000MHz 4G/5G ready antenna 6-9dBi peak gain

Benefits

Supports LTE CAT18/20 routers Ideal for branch networks or failover Weather resistant product

Application

Branch network Failover Rural broadband

Additional information

Colour	White
4G/5G	4 x 4 MIMO
GPS	1 Module, No
Cable Length	Below 1m, Between 5m & 10m
Connector (LTE)	FAKRA D, N (f), N (m), SMA (m)
Connector (GPS)	FAKRA D, N (f), No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Directional
Max Input Power(W)	50
Cellular LTE Elements	4 x 4 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1560-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	No; 1 Module
MECHANICAL DATA
Colour	White
Length	307 (mm) \| 12.09 (in)
Width	85 (mm) \| 3.35 (in)
Height	507 (mm) \| 19.96 (in)
Operating Temperature	-45°/ +80°C (-49.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	min: 0.5 (m) \| 1.64 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	5 (m) \| 16.40 (ft)
Cable Type (LTE)	FR CS32
Cable Type (GPS)	CS29
TERMINATION DATA
Connector (GPS)	N (f); FAKRA D; SMA (m)
Connector (LTE)	N (f); FAKRA D; N (m); SMA (m)
MOUNTING DATA
Mounting Type Fixed	Desk; Mast; Wall
Mounting Methods	Desk; Mast; Wall
APPROVALS DATA
IP Rating	IP65
Cable Flammability	EN45545-2 HL3; UN ECE R118; EN6722
TECHNOLOGY DATA
Technology	4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GPS; GNSS

Available selections

Colour	White
4G/5G	4 x 4 MIMO
GPS	1 Module No
Cable Length	Below 1m Between 5m & 10m
Connector (LTE)	FAKRA D N (f) N (m) SMA (m)
Connector (GPS)	FAKRA D N (f) No Connector SMA (m)

Models and configurations

SKU; Colour | Cellular | GPS

WMM4G-6-60-05NJ	White \| 4 x 4 MIMO \| No 0.5m N (f)
WMM4G-6-60-5FKJ	White \| 4 x 4 MIMO \| No 5m FAKRA D
WMM4G-6-60-5NP	White \| 4 x 4 MIMO \| No 5m N (m)
WMM4G-6-60-5SP	White \| 4 x 4 MIMO \| No 5m SMA (m)
WMM4GG-6-60-05NJ	White \| 4 x 4 MIMO \| 1 Module
5m	5m
N (f)	N (f)
WMM4GG-6-60-5FKJ	White \| 4 x 4 MIMO \| 1 Module
5m	5m
FAKRA D	FAKRA D
WMM4GG-6-60-5SP	White \| 4 x 4 MIMO \| 1 Module
5m	5m
SMA (m)	SMA (m)

Configuration options

Option	Available values
Colour	White
4G 5G Mimo	4 x 4 MIMO
Gps	1 Module, No
Cable Length	Below 1m, Between 5m & 10m
Connector Lte	FAKRA D, N (f), N (m), SMA (m)
Connector Gps	FAKRA D, N (f), No Connector, SMA (m)
