Model / SKU: WMM8G-7-38
The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G/5G LTE.

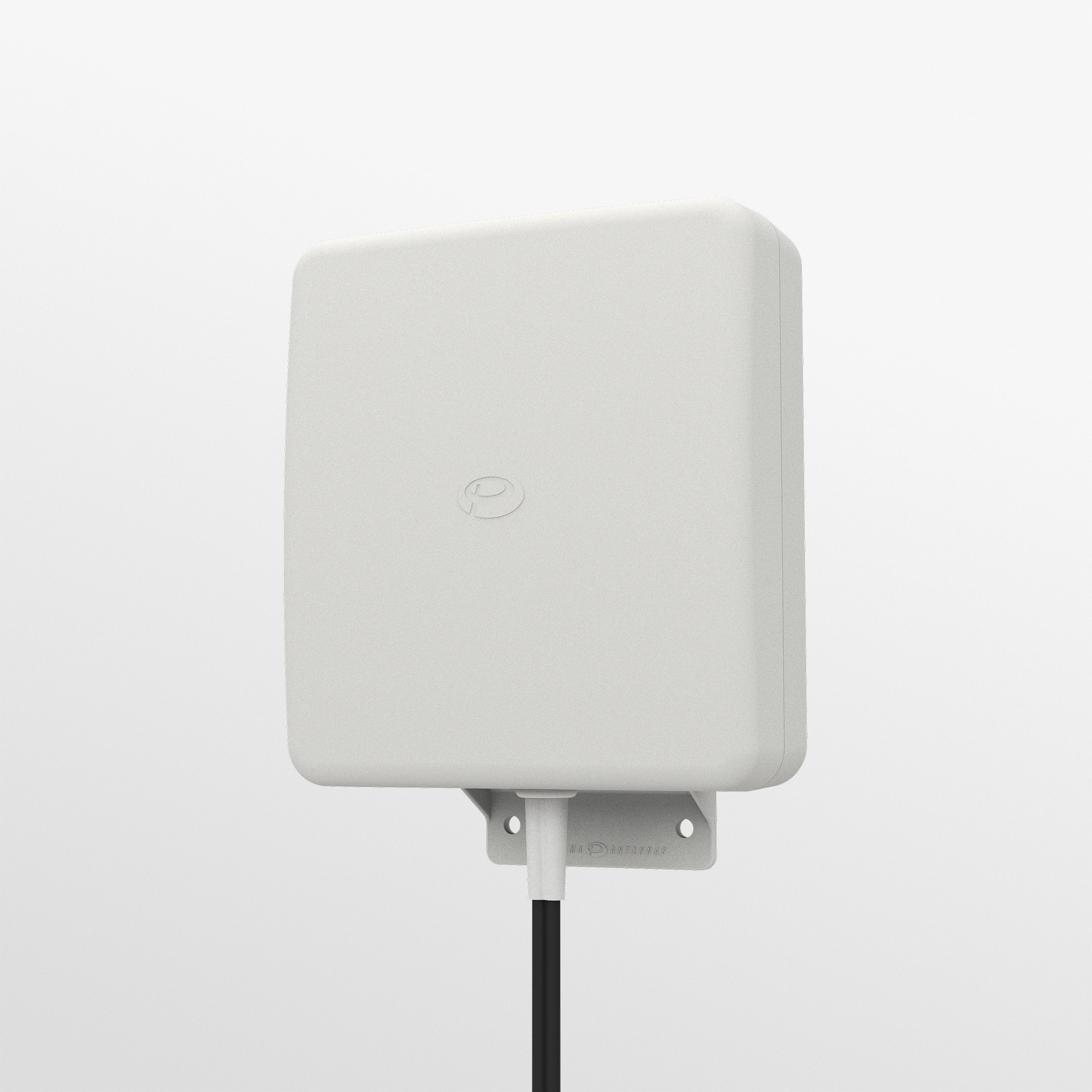

Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client-side MIMO and diversity support for 4G/5G LTE. The rugged, weatherproof housing is designed for wall mounting.

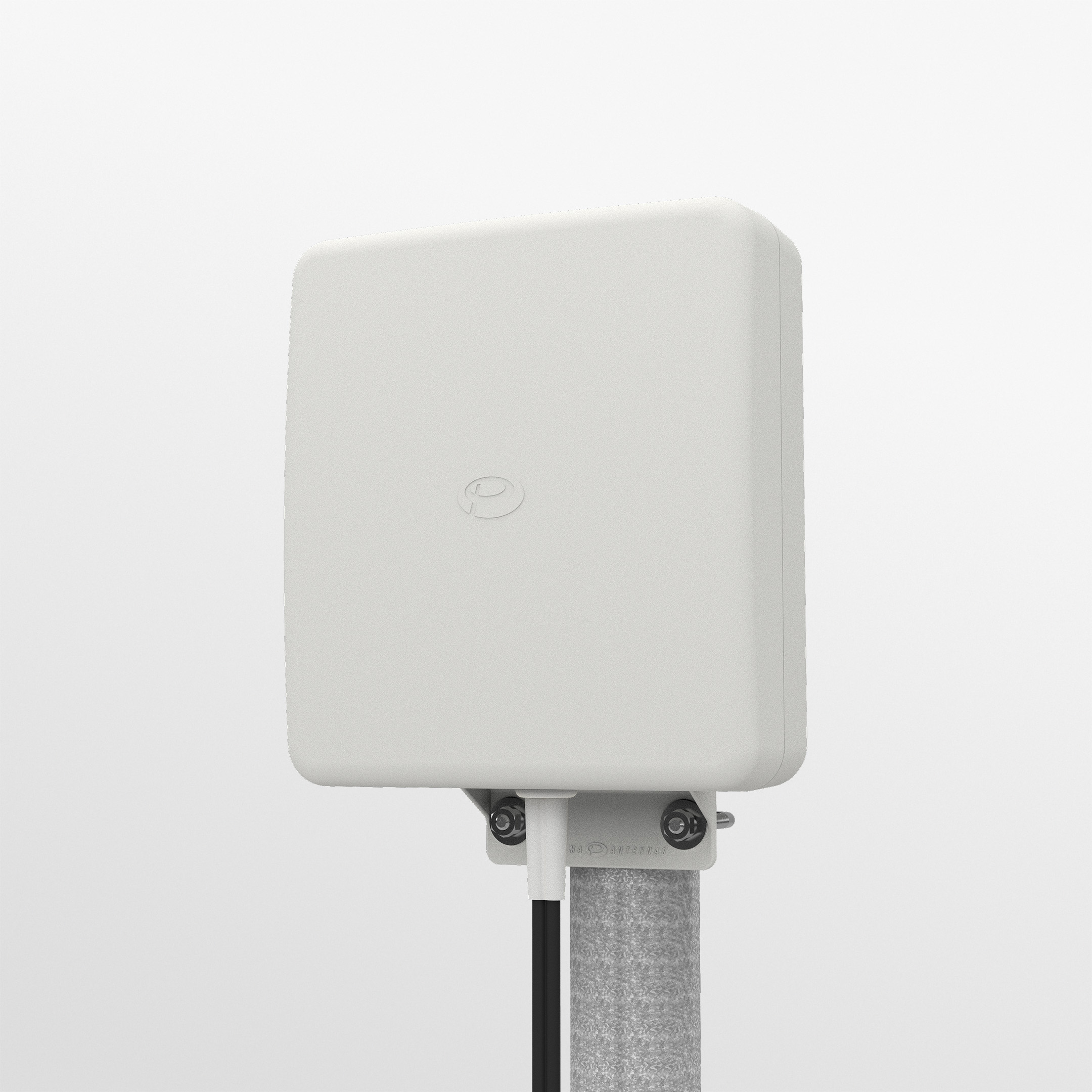

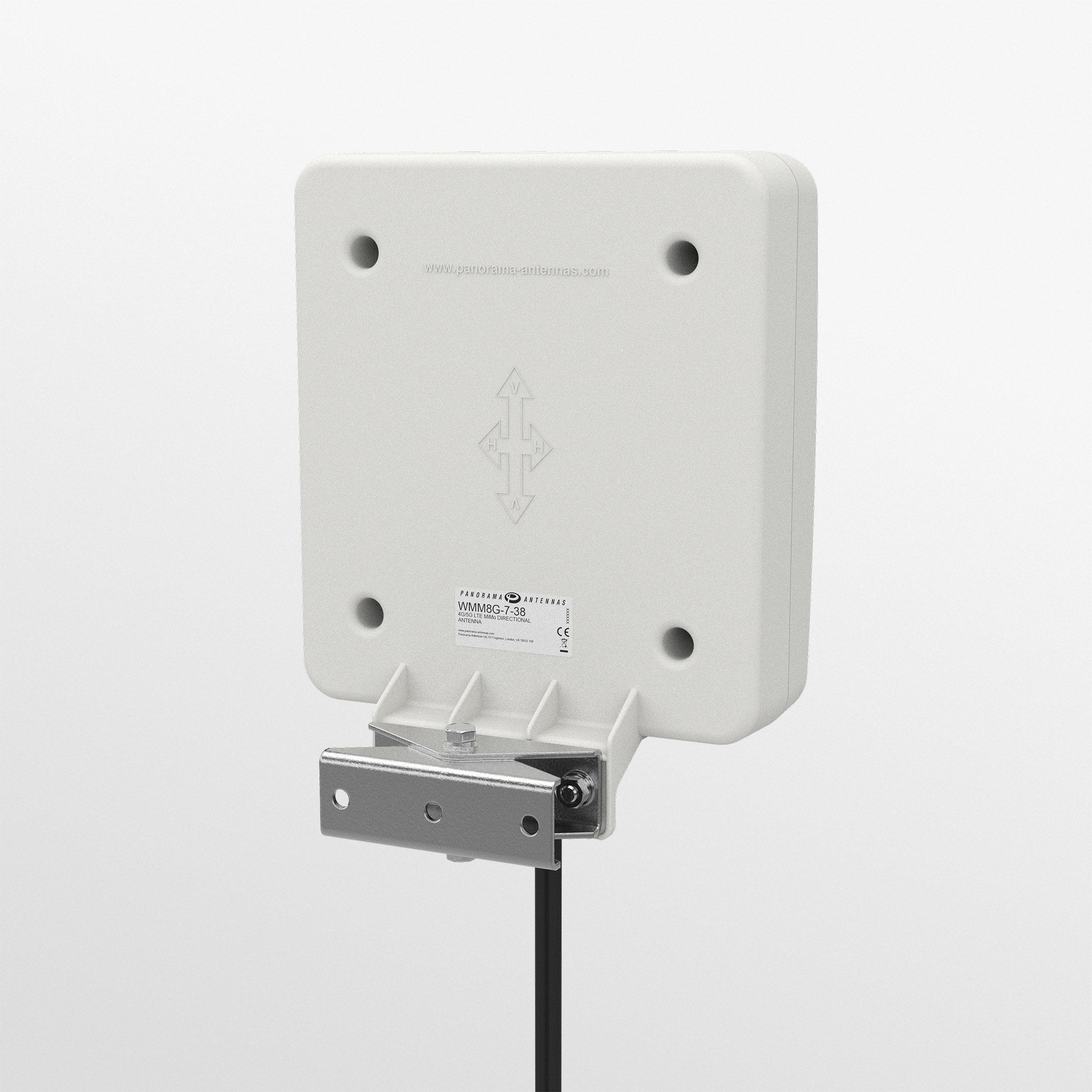

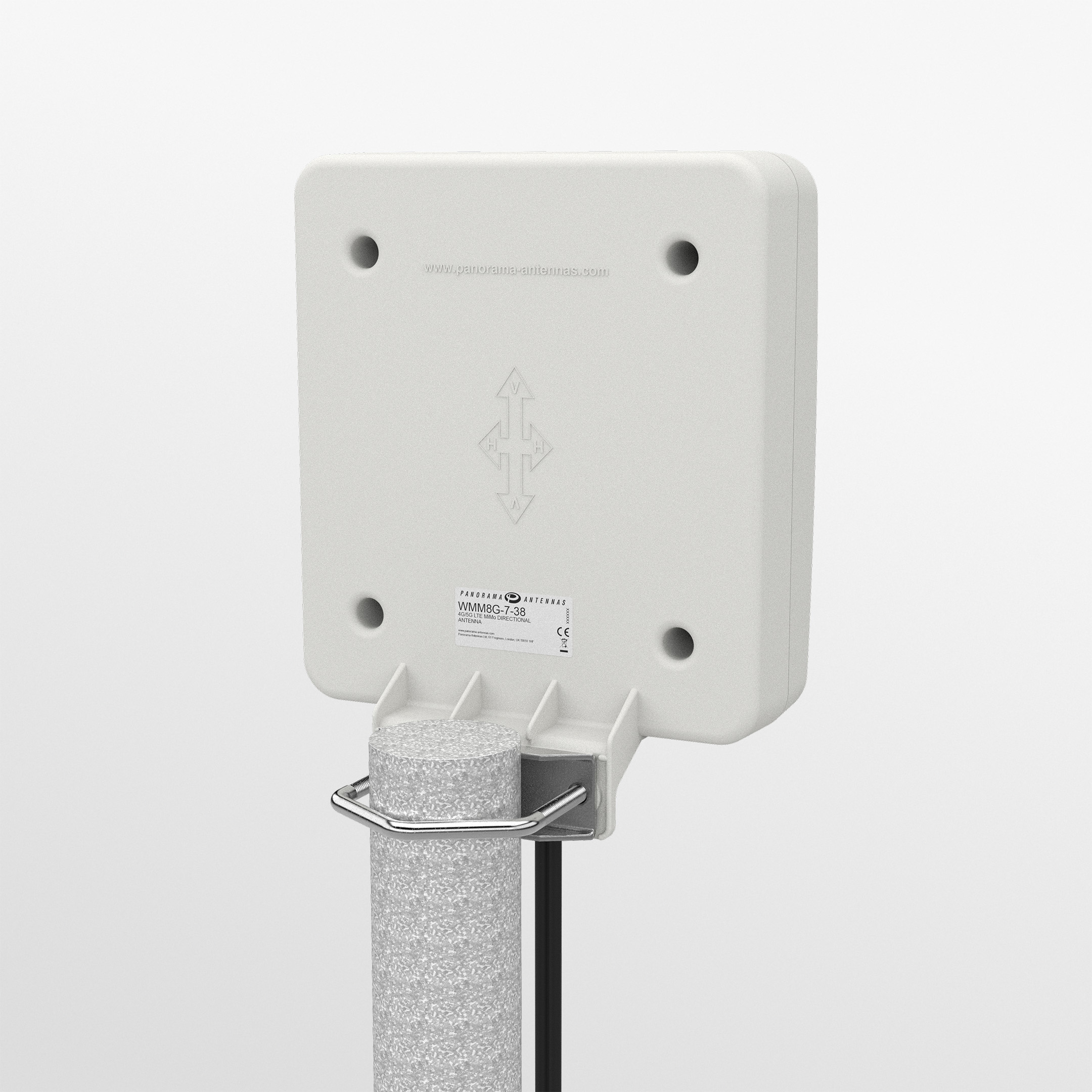

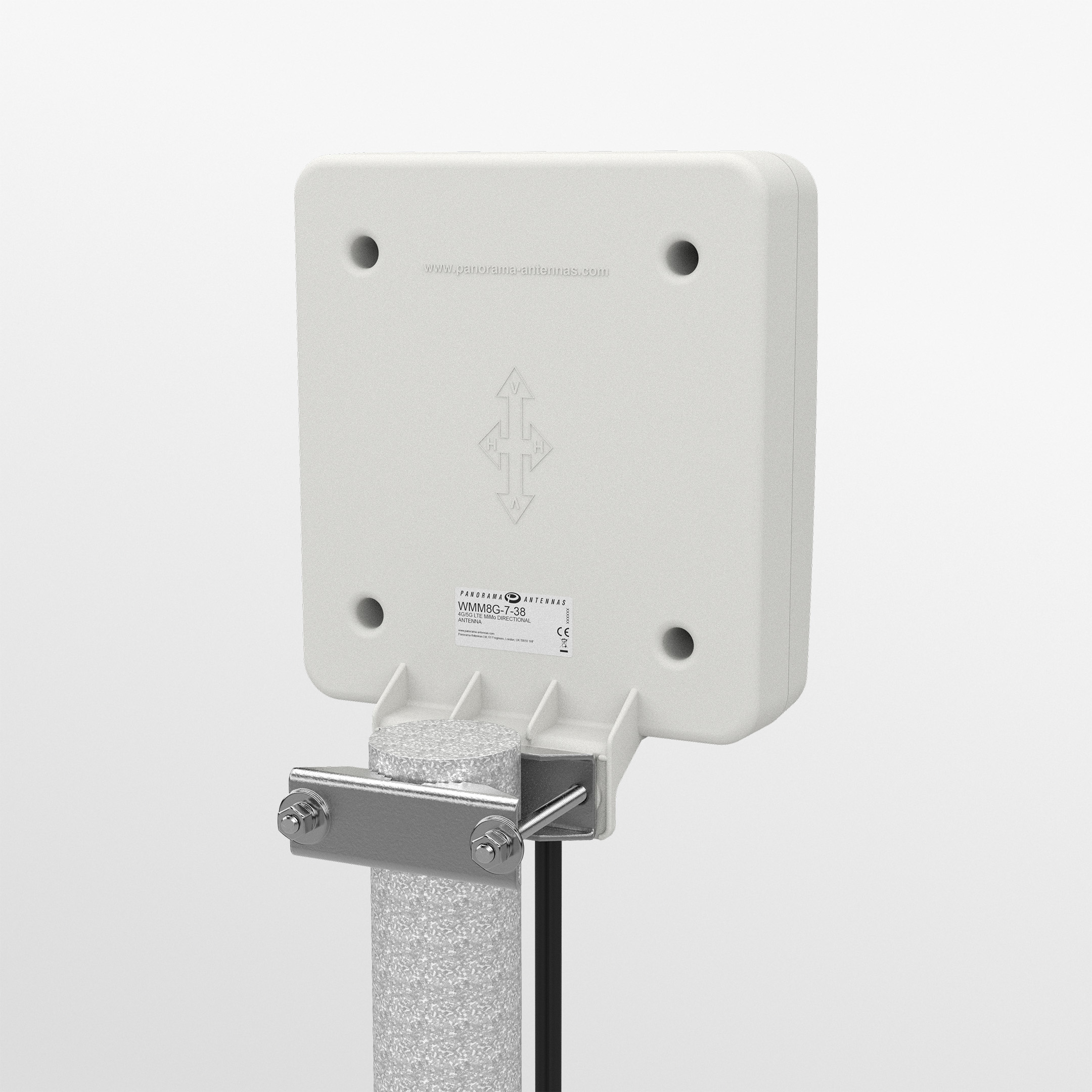

Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.
The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands.
The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G/5G LTE. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client-side MIMO and diversity support for 4G/5G LTE.
The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G/5G LTE.
Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client-side MIMO and diversity support for 4G/5G LTE. The rugged, weatherproof housing is designed for wall mounting.
Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.
The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands.
| Colour | White |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | N (f), SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Directional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 698 – 960MHz | 6dBi; 1710 – 2170MHz | 9dBi; 2396 – 2700MHz | 9dBi; 3400 – 3800MHz | 9dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 180 (mm) | 7.09 (in) |
| Width | 98 (mm) | 3.86 (in) |
| Height | 230 (mm) | 9.06 (in) |
| Operating Temperature | -45°/ +80°C (-49.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | CS29 |
| TERMINATION DATA | |
| Connector (LTE) | N (f); SMA (m) |
| MOUNTING DATA | |

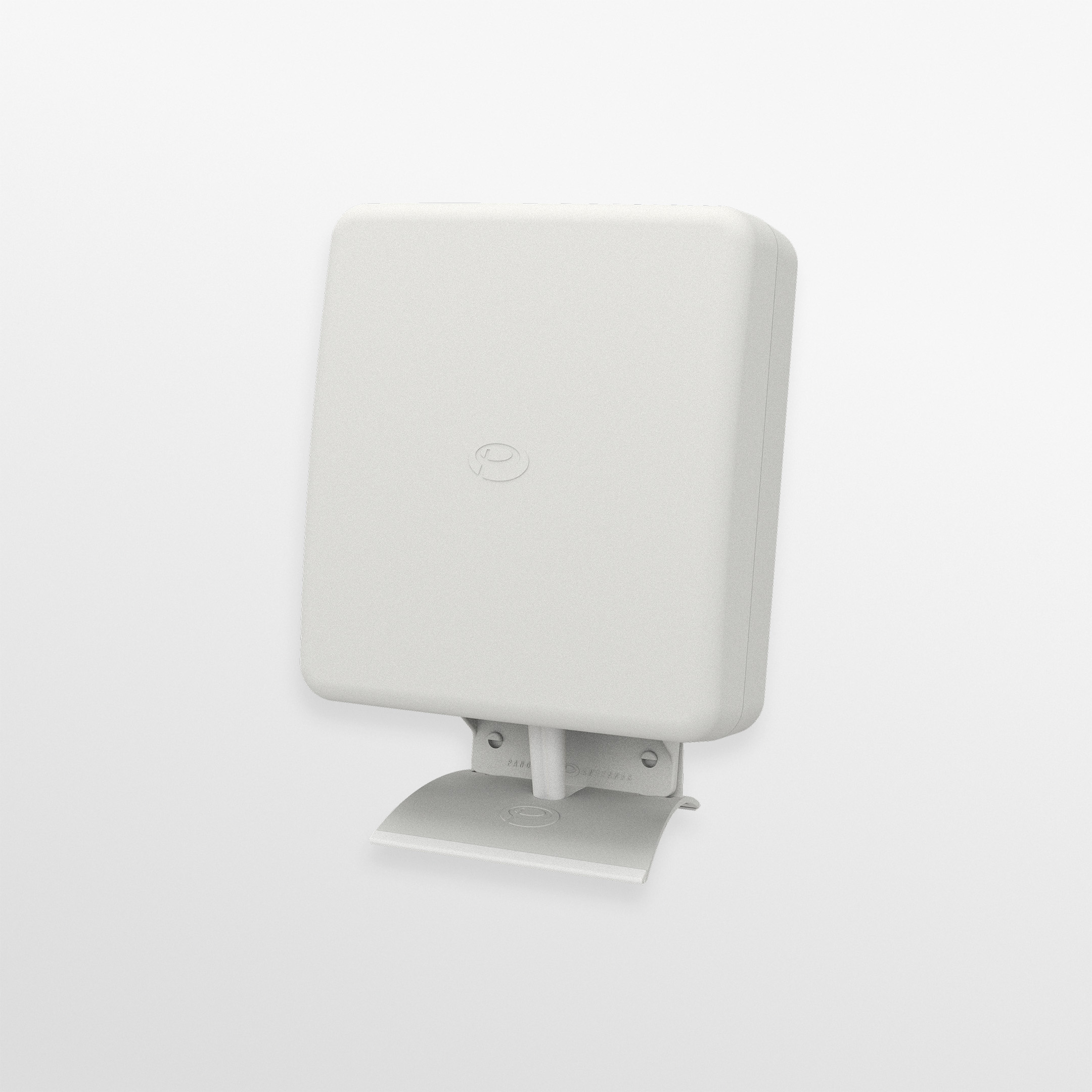

| Mounting Type Fixed | Desk; Mast; Wall |
| Mounting Methods | Desk; Mast; Wall |
| APPROVALS DATA | |
| IP Rating | IP65 |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G |
