Model / SKU: WMM[X]9G-24-72-NJ

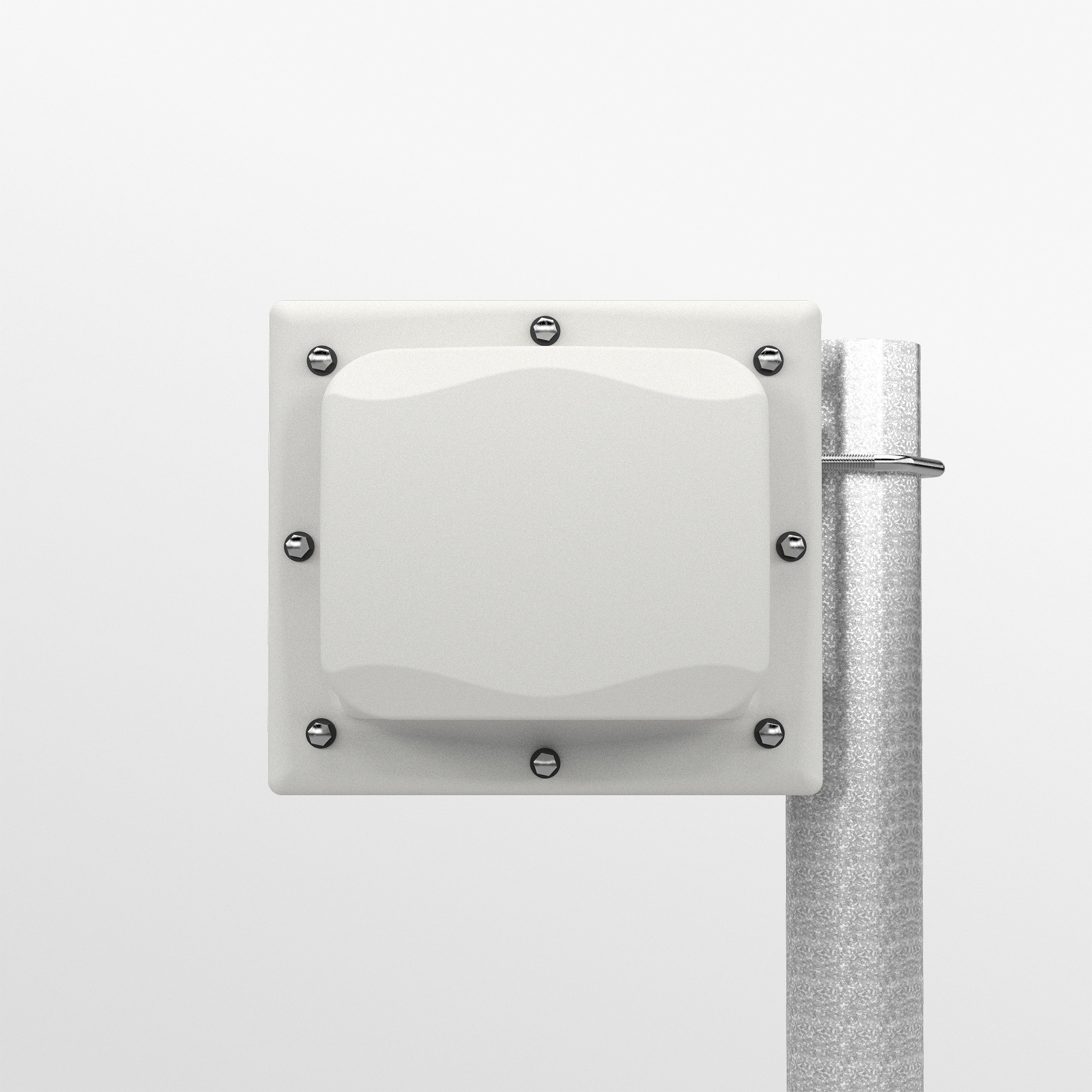

![WMM[X]9G-24-72-NJ | Directional MiMo Antenna 2.3-7.2GHz](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/WMM49G-24-72-NJ-2-Front-view.jpg "WMM[X]9G-24-72-NJ | Directional MiMo Antenna 2.3-7.2GHz")

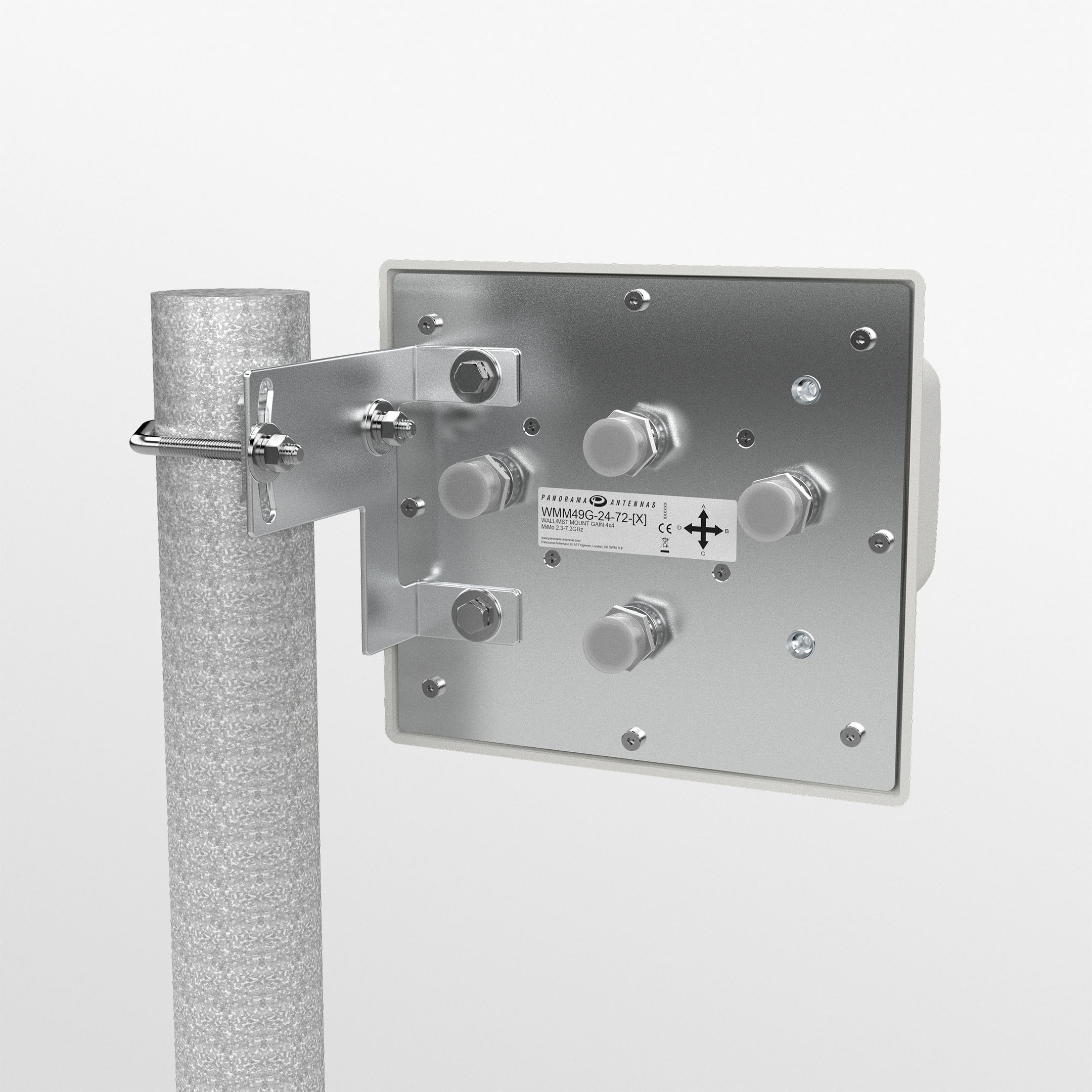

![WMM[X]9G-24-72-NJ | Directional MiMo Antenna 2.3-7.2GHz - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/WMM49G-24-72-NJ-3-Back-view.jpg)

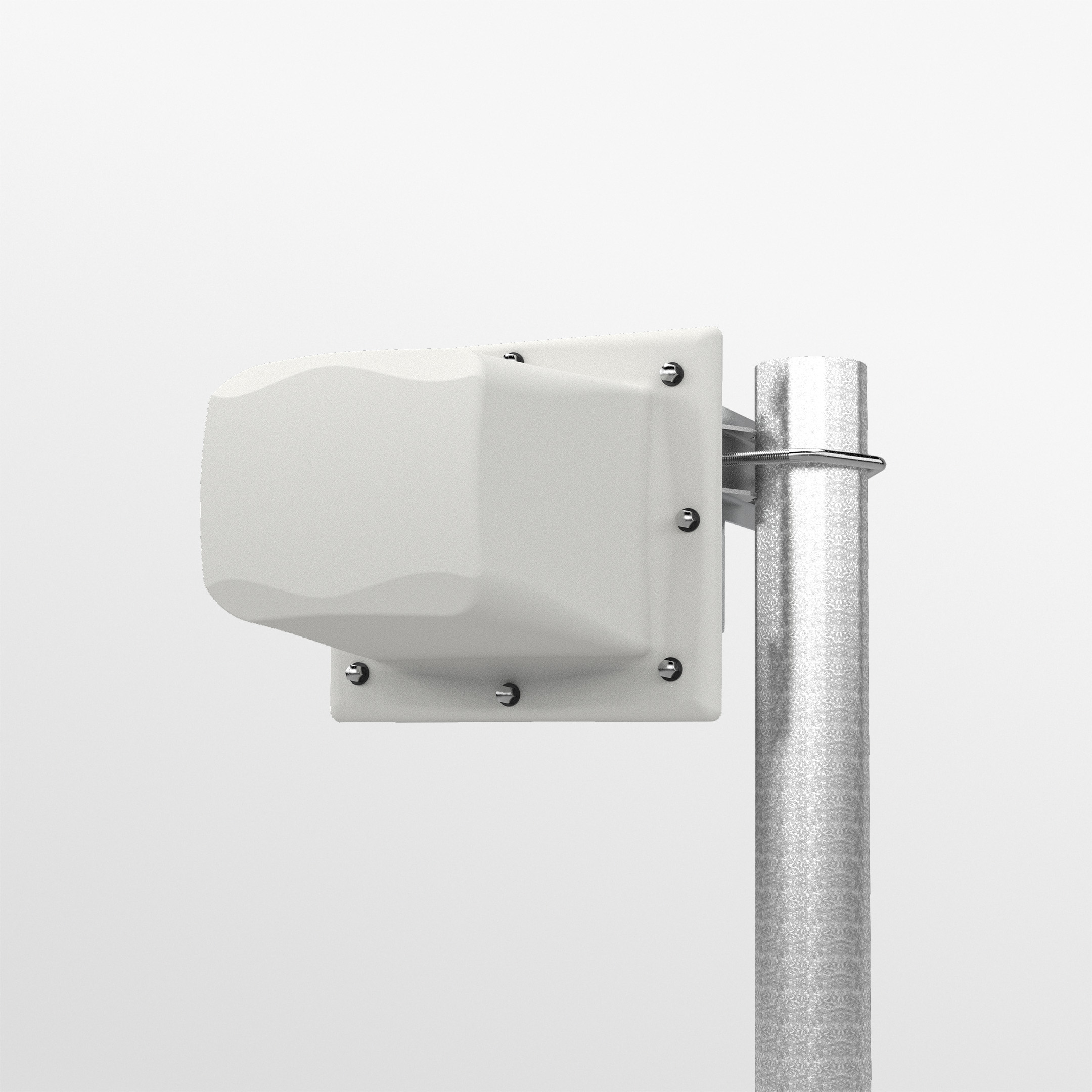

![WMM[X]9G-24-72-NJ | Directional MiMo Antenna 2.3-7.2GHz - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/WMM49G-24-72-NJ-1-Main-view.jpg "WMM[X]9G-24-72-NJ | Directional MiMo Antenna 2.3-7.2GHz")
The WMM[X]9G-24-72-NJ is a high directional gain 2×2, 3×3 or 4×4 MiMo antenna for WiFi, 5G and P-LTE networks. Incorporating two, three or four separately fed gain element assemblies in a single housing the WMM[X]9G-24-72-NJ is equipped to provide client-side MiMo support for modern networks.
The weather-resistant housing is designed for rail or mast mounting. Supplied with fitted N female bulkhead connections for easy installation, the product can be fitted with a range of extension cables.
The WMM[X]9G-24-72-NJ is a cost-effective value-added product for providing MiMo WiFi, 5G or P-LTE coverage to a room, platform or other areas.
The WMM[X]9G-24-72-NJ is a high directional gain 2×2, 3×3 or 4×4 MiMo antenna for WiFi, 5G and P-LTE networks. Incorporating two, three or four separately fed gain element assemblies in a single housing the WMM[X]9G-24-72-NJ is equipped to provide client-side MiMo support for modern networks.
The WMM[X]9G-24-72-NJ is a high directional gain 2×2, 3×3 or 4×4 MiMo antenna for WiFi, 5G and P-LTE networks. Incorporating two, three or four separately fed gain element assemblies in a single housing the WMM[X]9G-24-72-NJ is equipped to provide client-side MiMo support for modern networks.
The weather-resistant housing is designed for rail or mast mounting. Supplied with fitted N female bulkhead connections for easy installation, the product can be fitted with a range of extension cables.
The WMM[X]9G-24-72-NJ is a cost-effective value-added product for providing MiMo WiFi, 5G or P-LTE coverage to a room, platform or other areas.
| Colour | White |
|---|---|
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO |
| Connector (WIFI) | N (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Directional |
| Max Input Power(W) | 20 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 2300 – 7125MHz |
| Cellular LTE Elements | No |
| WIFI Elements | 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 193 (mm) | 7.60 (in) |
| Width | 188 (mm) | 7.40 (in) |
| Height | 168 (mm) | 6.61 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Rail |
| Mounting Methods | Mast; Rail; Pole |
| APPROVALS DATA | |
| IP Rating | IK10; IP66 |
| Material Flammability | UL746C-F1, UL94-V0 |
| TECHNOLOGY DATA | |
| Technology | WIFI MIMO; WIFI; 5G; CBRS; WIFI 6E |
